Volkswagen New Beetle. Manual - part 2119

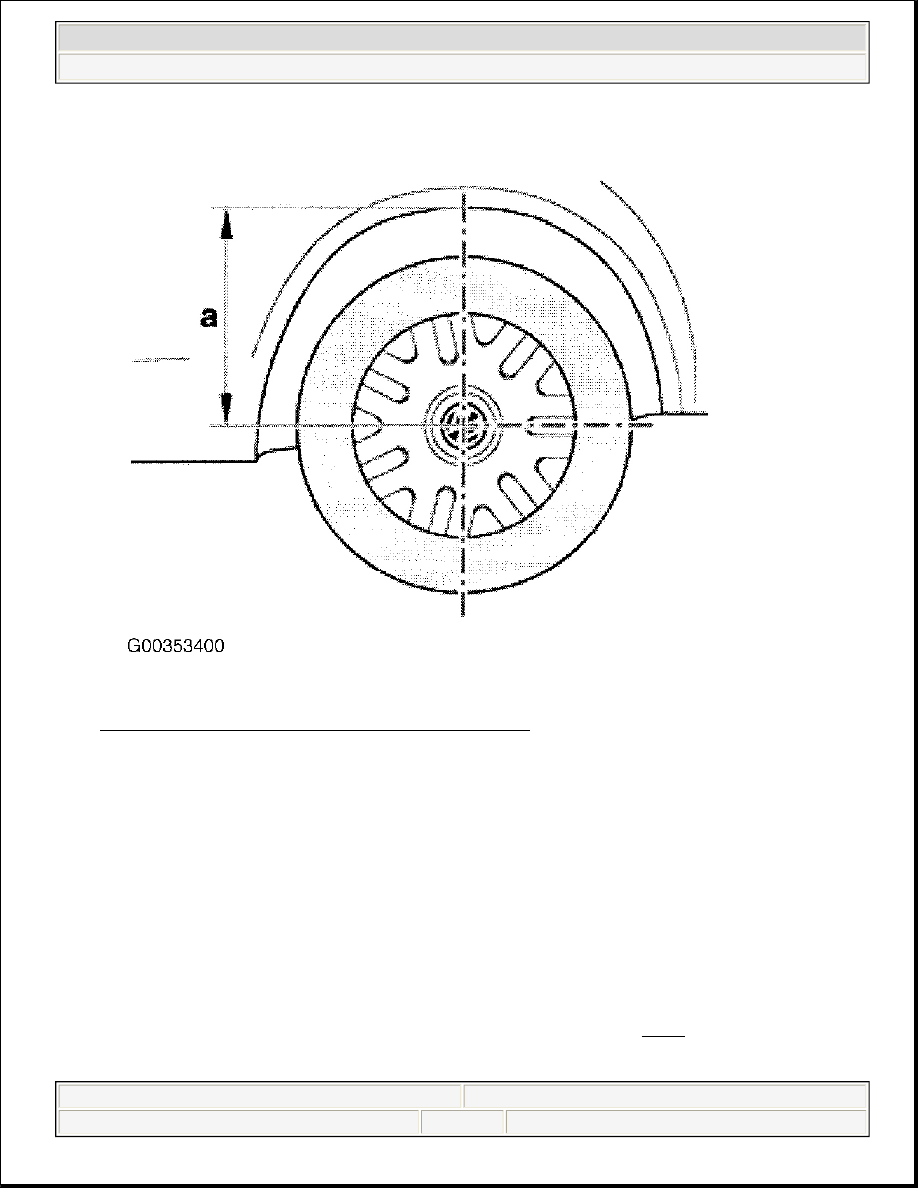

Fig. 3: Measuring Vehicle Standing Height (New Beetle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

2.

Install brake pedal loading device V.A.G1869/2 to apply brakes. Actuate the brake pedal with brake pedal
loading device.

3. Raise vehicle so that rear wheels still contact the ground, but upper shock mount bolts are accessible.

Remove upper shock absorber mounting bolts.

4. Raise vehicle and remove wheels.

5. Tighten vehicle to the lifting platform Before removing rear axle, the vehicle must be fixed to the support

arms of lifting platform. If the vehicle is not secured, there is a risk that it may slip off the hoist. Remove
the plugs from the trailing arm (3) and tighten the tensioning strap (1). See Fig. 4 . Support arm of lifting
platform (2) with tightening strap T10038. The vehicle must be tightened with the tensioning straps on
left and right side.

NOTE:

The bearing bracket should not be removed to remove the rear axle!
(Bracket which supports rear axle beam on body.)



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:44 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

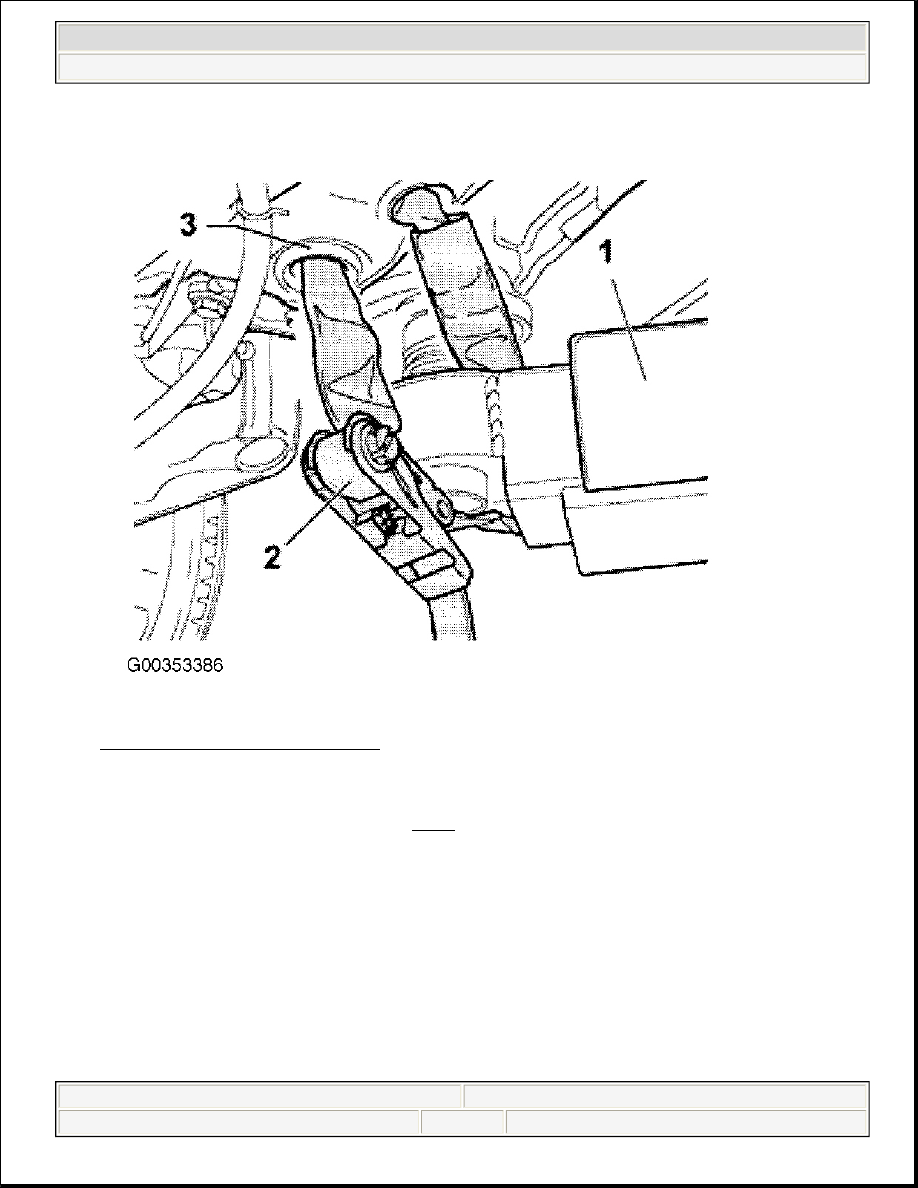

Fig. 4: Securing Axle Beam To Body
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. On vehicles with automatic headlight range control, removing connecting link from Left Rear Level

Control System Sensor from rear axle. See Fig. 5 .



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:44 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.

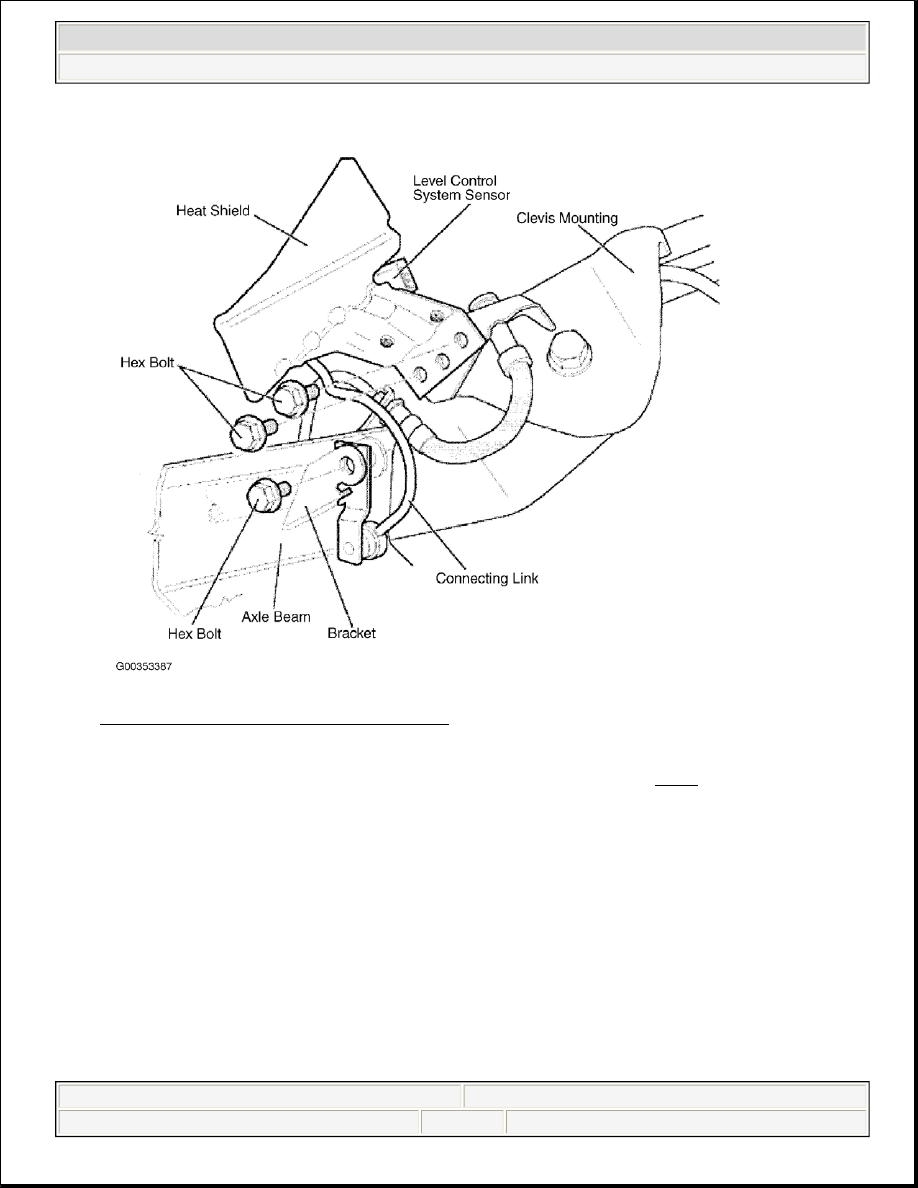

Fig. 5: Locating Level Control System Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.

7. On all vehicles, unclip emergency brake cable from axle beam (arrows). See Fig. 6 . Remove clips from

flexible brake hose (2), and separate and plug brake lines.



2003 Volkswagen New Beetle GLS

1999-2004 SUSPENSION Rear - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:56:44 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.

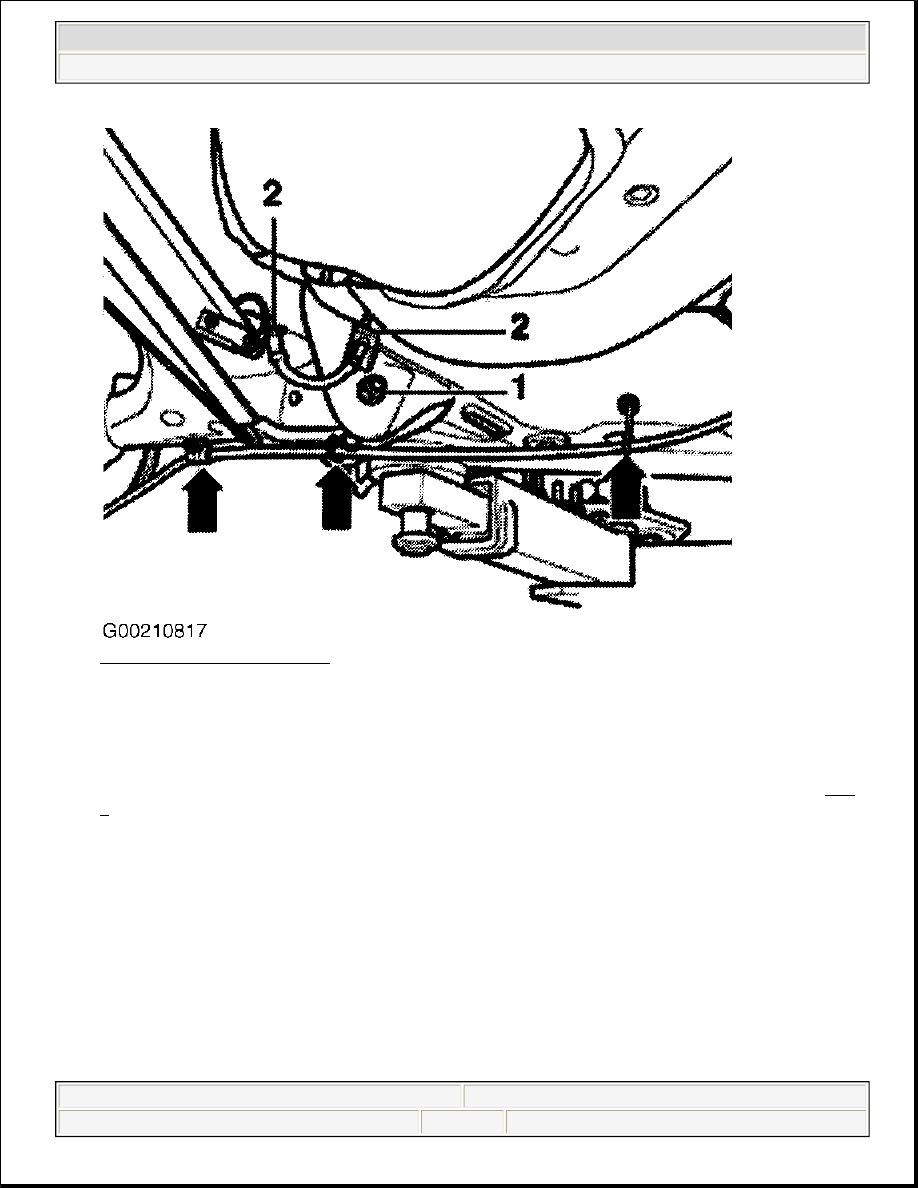

Fig. 6: Locating Brake Cables
