8. Using appropriate wheel bearing press tools, press wheel bearing inner race from hub. See Fig. 31 .

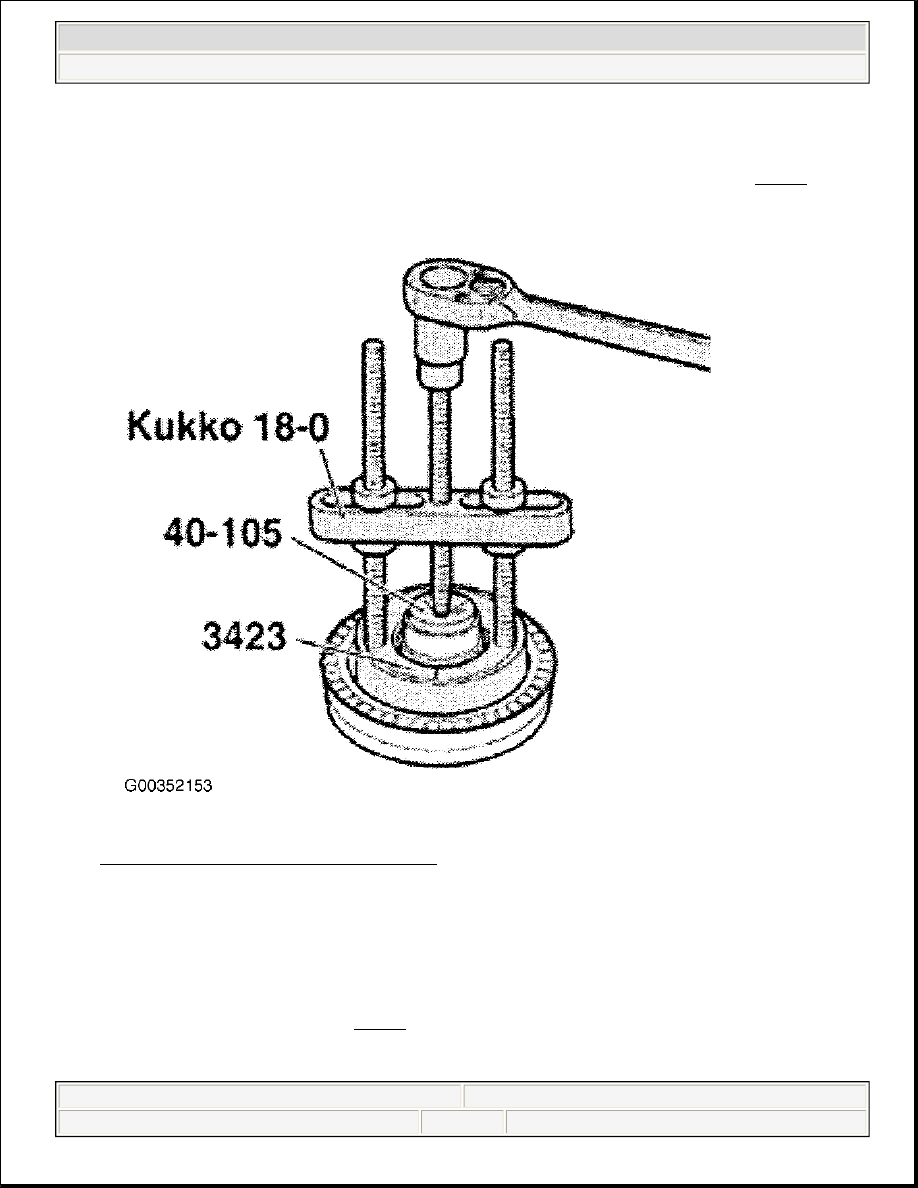

Fig. 31: Pressing Wheel Bearing Inner Race
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation

1. Clean hole from wheel bearing housing. Completely grease hole with Molykote grease (G 052 723 A2).

Use grease packet from repair kit.

2. Install wheel bearing (1), press piece (2) (install with collar in bearing) and piston cylinder (3) with pull

rod on wheel bearing housing. See Fig. 32 . Install thrust piece (4) with wide collar toward wheel bearing
housing and special nut (5) on inside. Press wheel bearing in by operating pump. Insert circlip with
needle nose pliers.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 44

© 2004 Mitchell Repair Information Company, LLC.

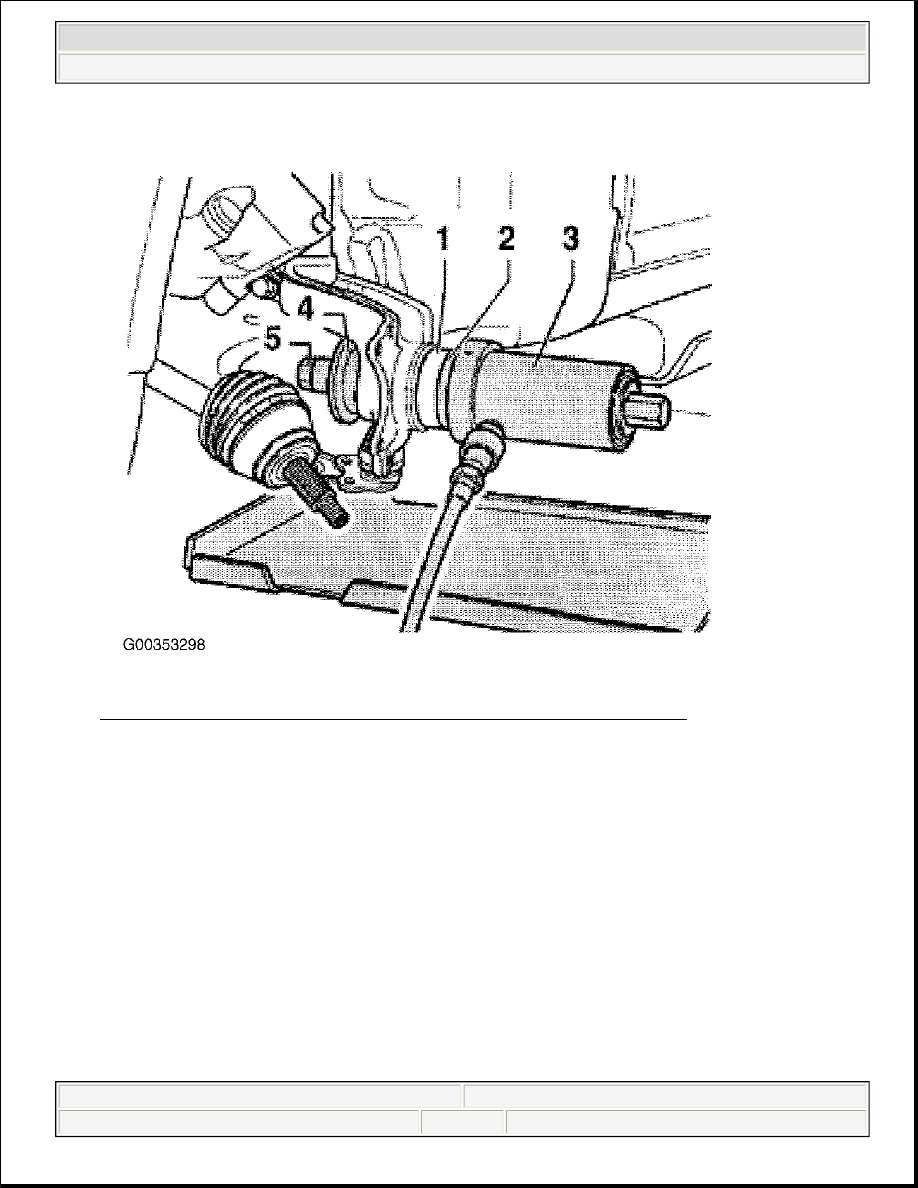

Fig. 32: Pressing Wheel Bearing Into Housing (Housing Installed In Vehicle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Install hub (1) and piston cylinder (2) with pull rod on wheel bearing. Install special nut (4) and thrust

piece (3) (with collar toward special nut) on inside. Press in hub by operating the pump. Further
installation is in the reverse sequence to removal.



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 45

© 2004 Mitchell Repair Information Company, LLC.

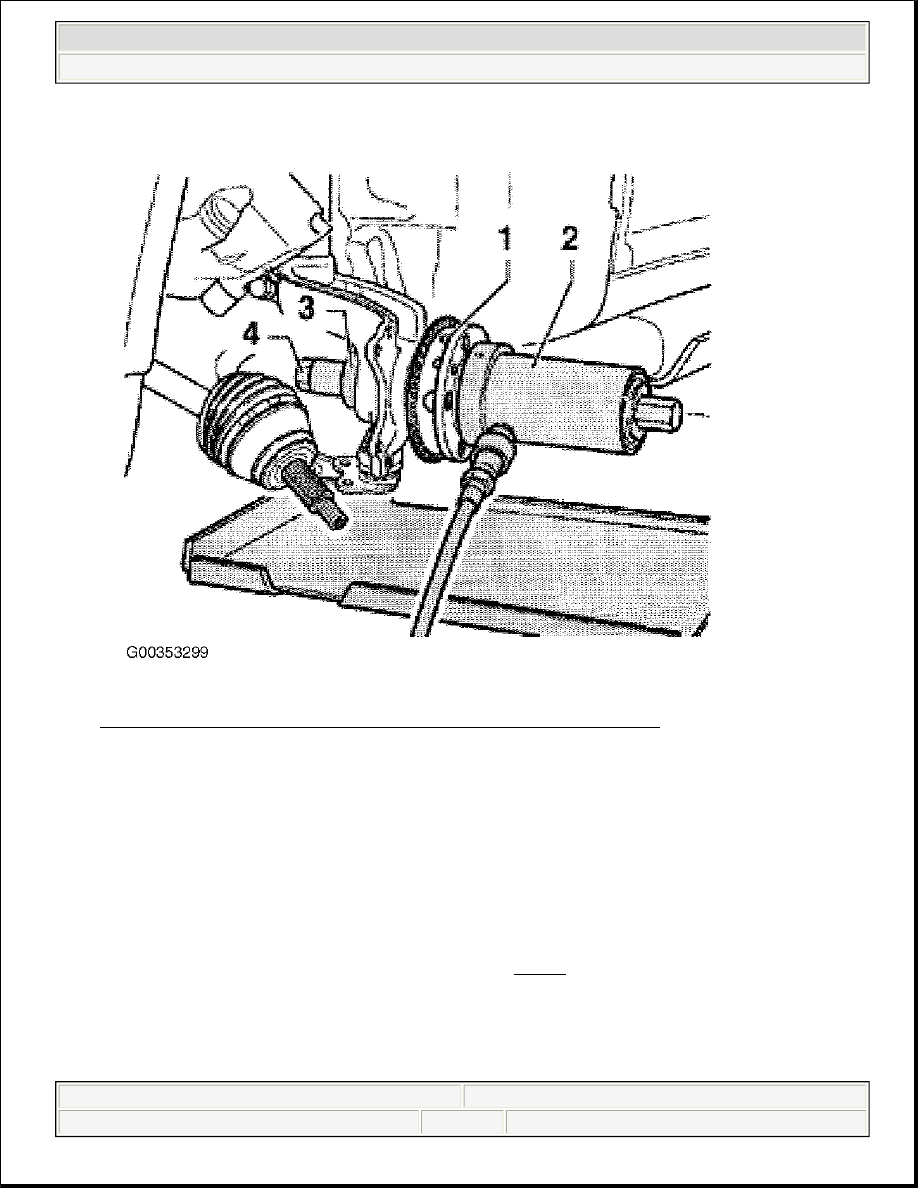

Fig. 33: Pressing Wheel Hub Into Housing (Housing Installed In Vehicle)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

OVERHAUL

STRUT ASSEMBLY

Disassembly & Reassembly (All Models)

1. Mount strut to strut holder or soft-jawed vise. Compress coil spring with Spring Compressor (VAG

1752/1) and Adapters (VAG 1752/4) until upper spring retainer is free. Remove piston rod nut using
ratchet (1), 2 - T10001/8, 3 - T10001/11, 4 - T10001/5, 5 - Spring tensioner and 6 - Bracket
V.A.G1752/4. Counter-hold piston rod as necessary. See Fig. 34 .



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:51 AM

Page 46

© 2004 Mitchell Repair Information Company, LLC.

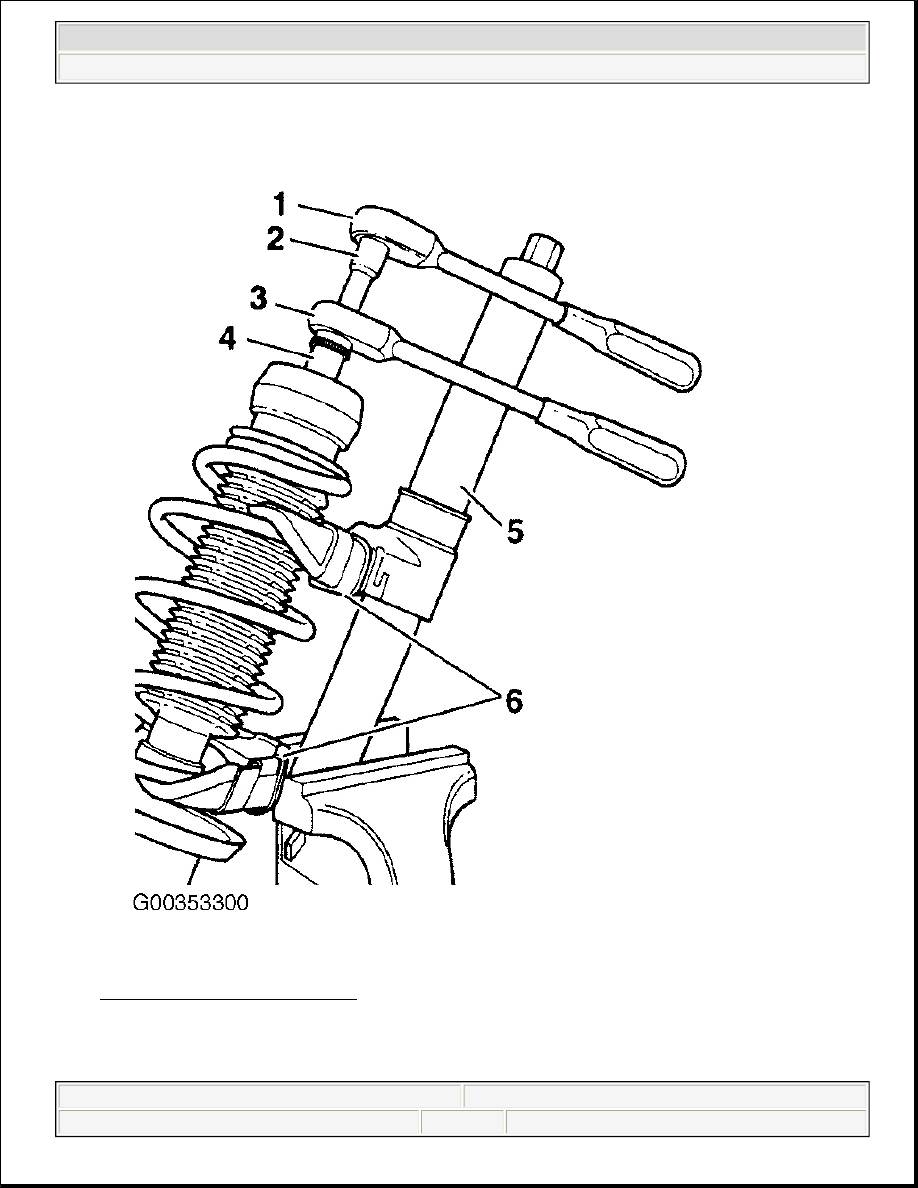

Fig. 34: Compressing Coil Spring
