SERVICING

FRONT SUBFRAME WELDED NUT THREADS

Servicing work may only be carried out once per thread. If servicing is necessary after this, the nuts must be
replaced. Observe the operating instructions of the VAS (VW) repair kit.

Have the thread repair checked by the responsible foreman or next person in charge. Correct any damage to the
underbody sealant layer. Only use the VAS repair kit listed in the for service work .

VAS THREAD REPAIR KIT

REMOVAL & INSTALLATION

BALL JOINT

Removal & Installation

1. Remove hub cap. Loosen 12-point axle nut or bolt. Raise and support vehicle. Remove wheel. On models

equipped with 1.9L TDI, remove air duct between charge air cooler and turbocharger. On all models,
remove sound insulation panel. Mark position of ball joint to lower control arm. Remove 3 ball joint-to-
lower control arm bolts.

2. Remove axle nut. Using Press Tool (3283) or equivalent, press axle shaft out of hub. See Fig. 5 . Ensure

sufficient clearance is available. Secure axle shaft to body with wire. Axle shaft must not be allowed to
hang down, or inner joint will be damaged through overflexing.

NOTE:

Wheel bearing and wheel hub are installed together in a housing. This wheel
bearing/hub unit is maintenance and adjustment free. Adjusting and servicing is
not possible. Replace wheel bearing and wheel hub if any damage exists. See
WHEEL BEARING (WHEEL BEARING HOUSING REMOVED FROM VEHICLE)
under REMOVAL & INSTALLATION.

CAUTION: When drilling, it is essential that eye protection be worn!

Thread

VAS Part No.

M10

6024

M12x1.5

6058

M14x1.5

6027



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.

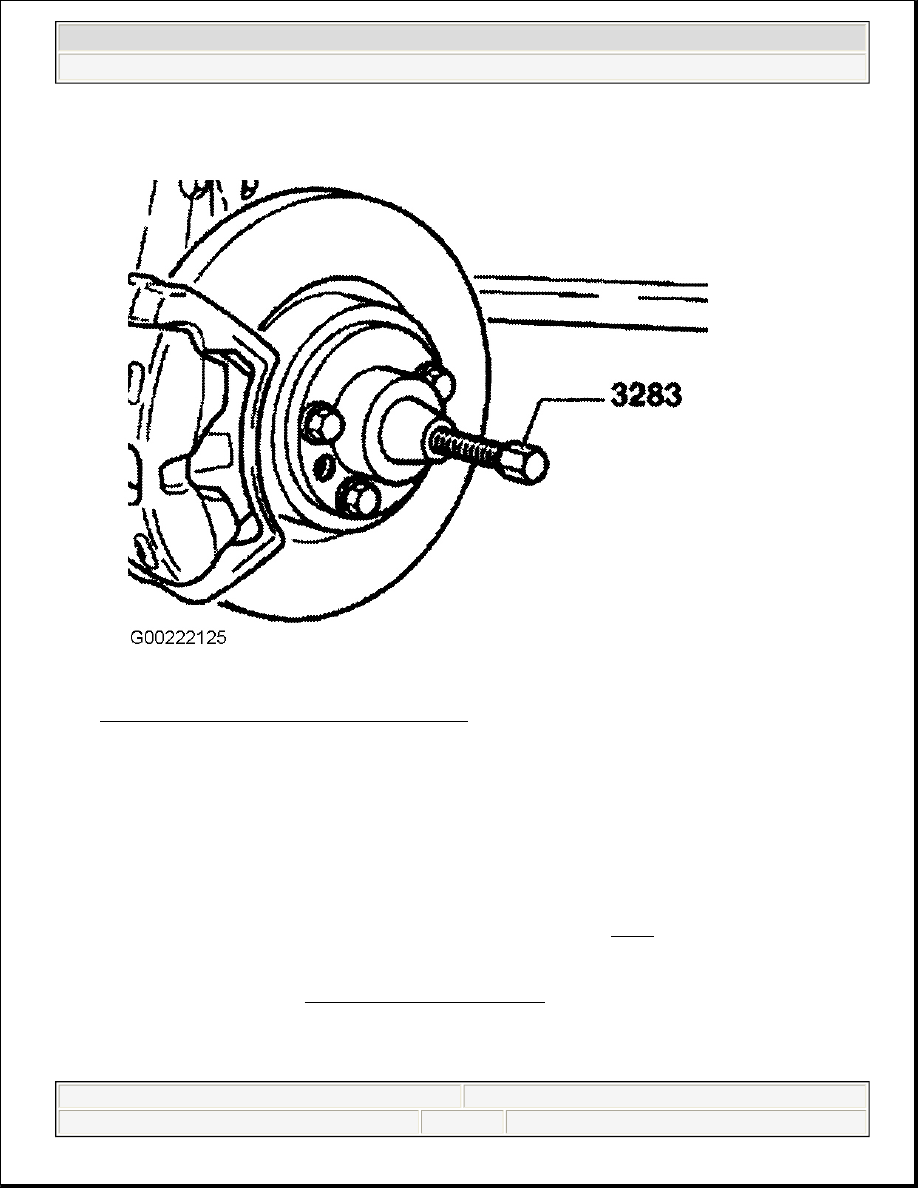

Fig. 5: Pressing Axle Shaft From Hub Assembly
Courtesy of VOLKSWAGEN UNITED STATES, INC.

3. Pull wheel bearing housing with ball joint out from control arm. Swing wheel with suspension strut

outward and support.

4.

Using Ball Joint Puller (3287A) or equivalent, press out ball joint. See Fig. 6 . To protect ball joint
threads and for safety reasons leave nut on a few turns.

5. Install ball joint to wheel bearing housing. Using NEW self-locking nut counter-hold ball joint and

tighten to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse
remaining removal procedure.

WARNING:

Place engine/transmission jack VAG 1383/A, or similar, below
control arm to ensure safety (danger of accident through falling
parts when pressing out ball joint).



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 9

© 2004 Mitchell Repair Information Company, LLC.

Fig. 6: Removing Ball Joint
Courtesy of AUDI OF AMERICA, INC.

LOWER CONTROL ARM



2003 Volkswagen New Beetle GLS

1999-04 SUSPENSION Front - Golf, GTI, Jetta & New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:55:50 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

Removal

1. Raise and support vehicle. Remove wheel.

2. For four wheel drive vehicles, the coupling link for vehicle left front level control system sensor (G78) on

front axle must be disconnected from the control arm bracket before removing the left control arm. See
Fig. 7 .
