Fig. 97: Identifying Position Of Key In Lock Cylinder
Courtesy of VOLKSWAGEN OF AMERICA, INC.

2. Position "Drive"

3. Position "Start"

z

Insert wire (approx. 1.2 mm diameter) in drilling next to ignition key -arrow-. See Fig. 98 .

z

Release lock cylinder securing lever using wire -2- and remove lock cylinder from steering lock housing.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

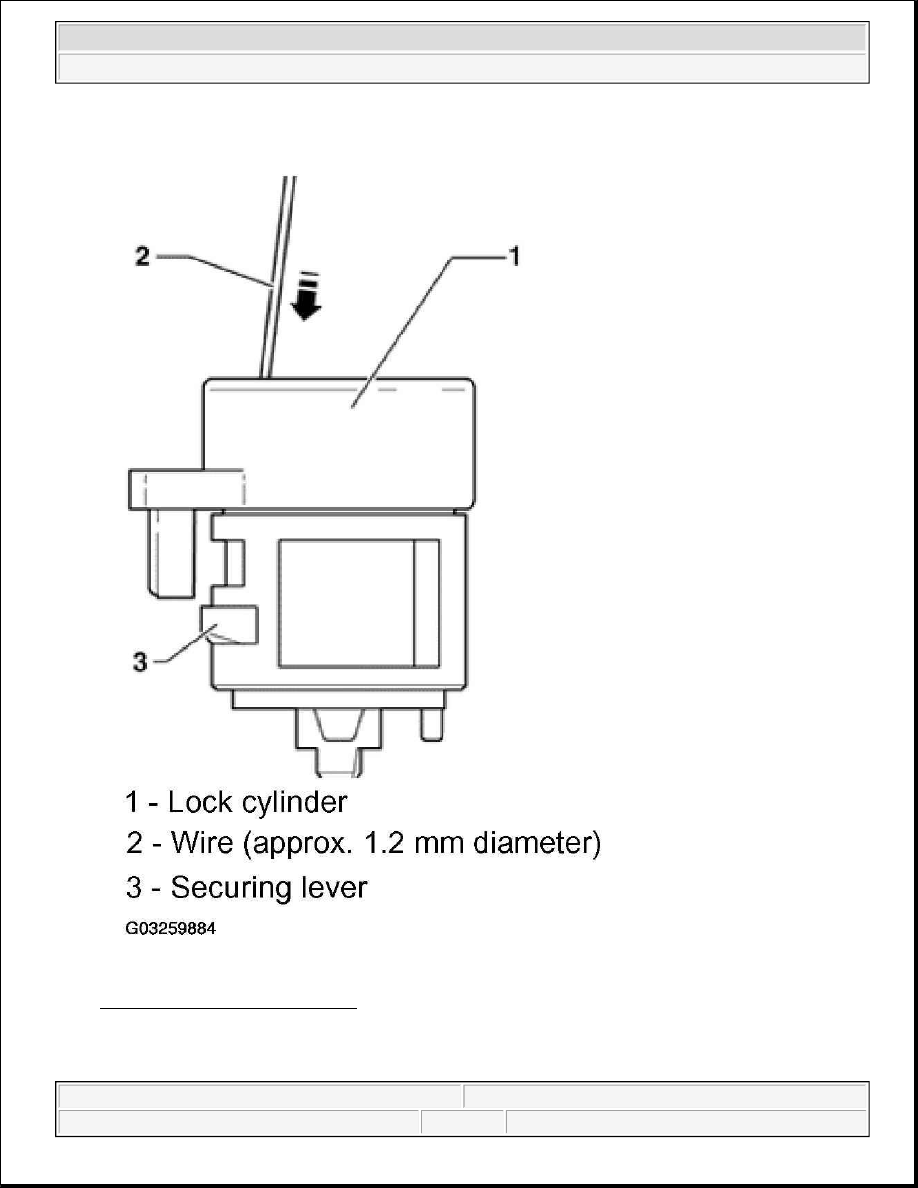

Fig. 98: Removing Lock Cylinder
Courtesy of VOLKSWAGEN OF AMERICA, INC.

1. Lock cylinder



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



2. Wire (approx. 1.2 mm diameter)

3. Securing lever

Installing

z

Insert ignition key into lock cylinder.

z

Turn to "Drive" position.

z

Release securing lever using wire (approx. 1.2 mm diameter) and insert lock cylinder in steering lock
housing.

z

Remove wire out from lock cylinder and check that lock cylinder is seated properly in steering lock
housing.

z

Install steering column switches and steering wheel trim. See STEERING COLUMN SWITCHES .

IGNITION/STARTER SWITCH, REMOVING AND INSTALLING

Special tools and equipment

Sealant "D2"

Removing

z

Disconnect battery. See BATTERY, DISCONNECTING AND RECONNECTING .

z

Remove upper and lower steering column switch trim. See REMOVING .

z

Disconnect multi-pin connector from ignition/starter switch.

CAUTION: Before beginning repairs on the electrical system:

z

Obtain the anti-theft radio security code.

z

Switch off all electrical consumers.

z

Switch off ignition and remove ignition key.

z

Disconnect negative ( - ) battery terminal.

z

When disconnecting and reconnecting battery terminals, observe all
applicable Notes and torque specifications, as well as instructions on
performing OBD program and electrical system function checks as
specified. See BATTERY, DISCONNECTING AND RECONNECTING .



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

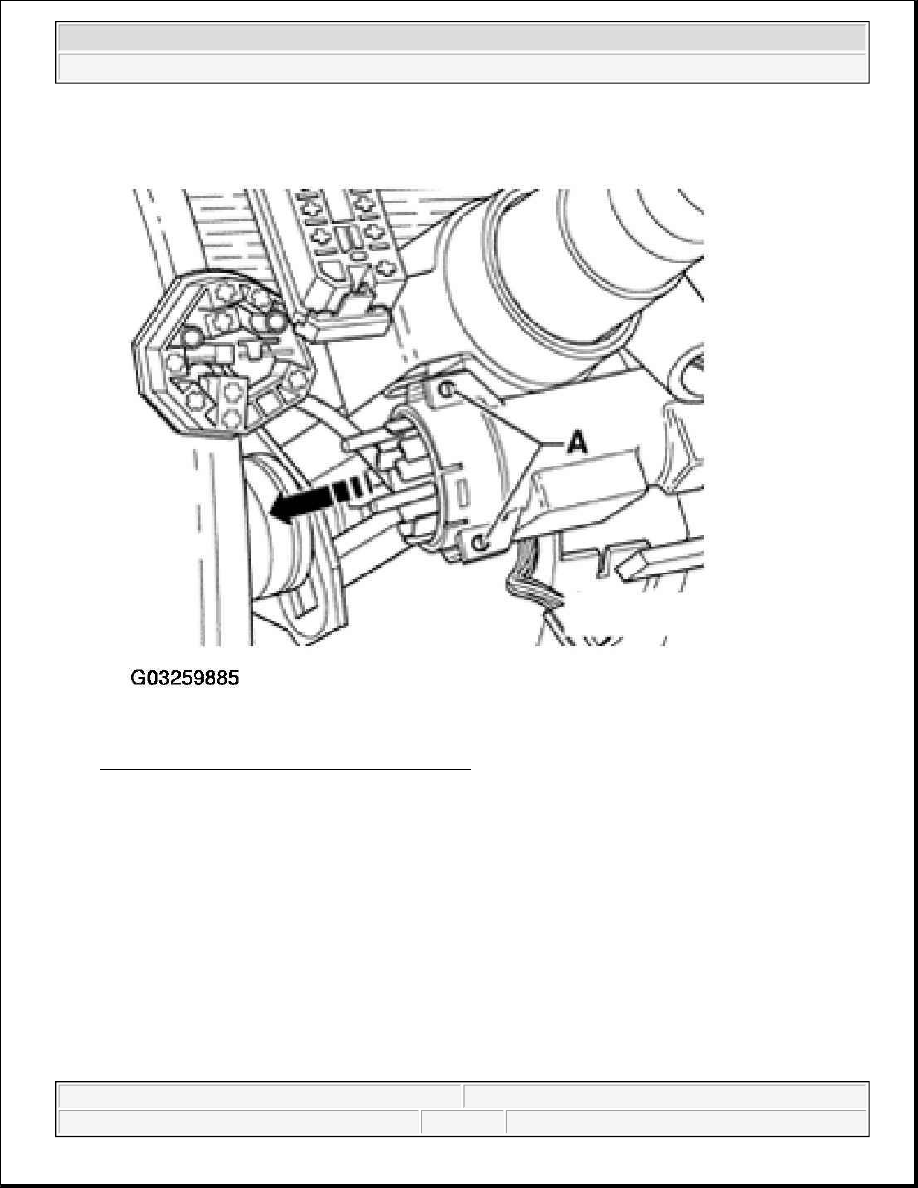

Fig. 99: Locating Ignition/Starter Switch Screws
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove locking fluid (paint) from threaded holes of screws -A-.

z

Loosen two screws -A- slightly and pull ignition/starter switch out from steering lock housing in direction
shown -arrow-.

Installing

z

Push ignition/starter switch into steering lock housing.

NOTE:

When installing the ignition/starter lock switch ensure that the
ignition/starter lock switch and the lock cylinder are in the same position,
e.g. "ignition on".
