1. Hex bolt

2. Hex bolt

z

22 N.m (16.2 ft lb)

3. Hex nut

z

10 N.m (7 ft lb)

4. Cross member for steering column

Fig. 9: Removing Steering Column From Cross Member (Manufactured By Presta)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Removing trim for steering column switch

NOTE:

The following list refers to items in Fig. 9 .



2003 Volkswagen New Beetle GLS

1998-2004 STEERING Steering - New Beetle



z

Remove bolts/screws -1-.

z

Remove height and reach adjustment handle -5-.

z

Remove bolts -2-, -3- and -4-.

Fig. 10: Removing Trim For Steering Column Switch
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove steering column switch lower trim

z

Remove steering column switch upper trim -1-



2003 Volkswagen New Beetle GLS

1998-2004 STEERING Steering - New Beetle



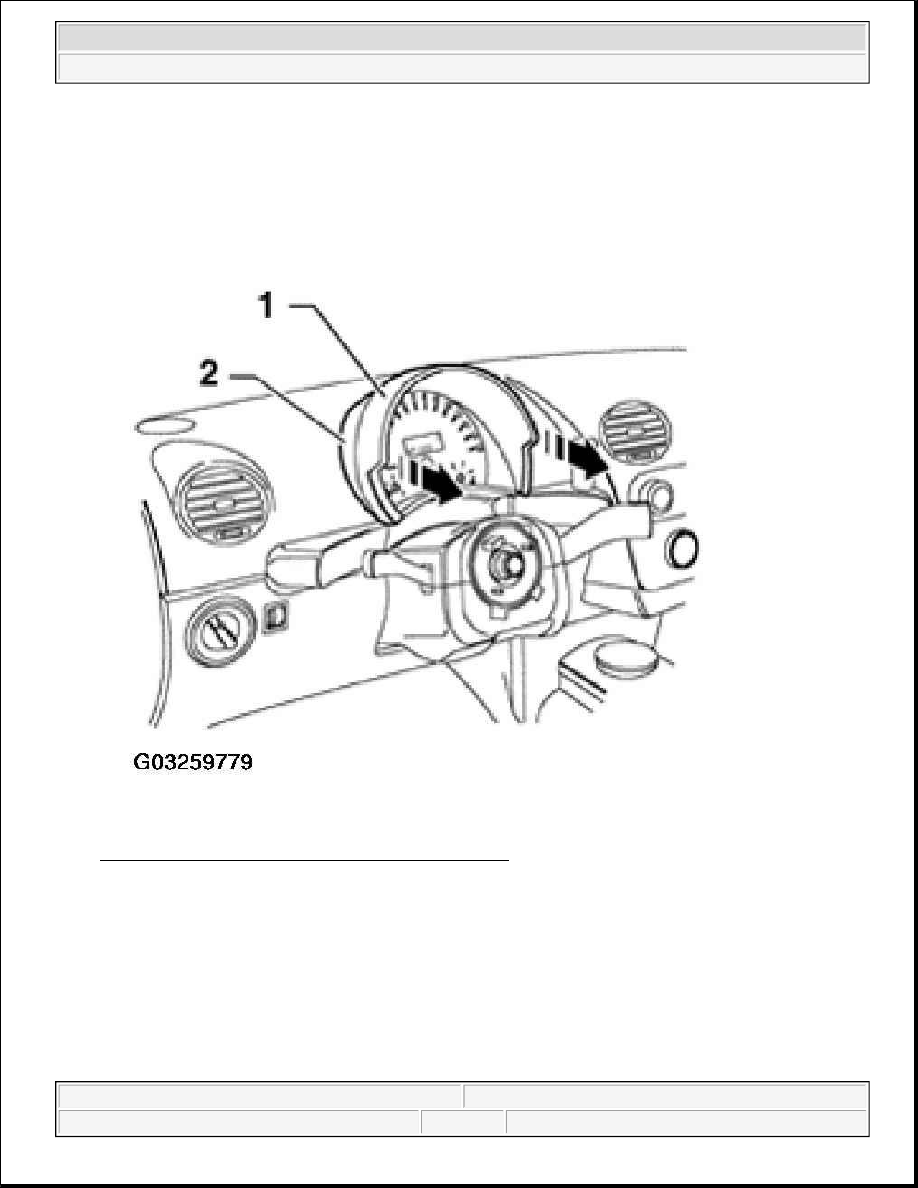

Fig. 11: Removing Steering Column Switch Upper Trim
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Installing steering column

Vehicles with the steering column from the company Nacam up to 01.00

New steering columns, which are delivered as spare parts, are secured with a transportation securing device -6-.

This transportation device 6 must be removed after installing steering column in vehicle .

The shear head bolt -10- and the roller -11- must be installed on new steering columns, which have been
supplied as a spare part .

NOTE:

The following list refers to items in Fig. 12 .



2003 Volkswagen New Beetle GLS

1998-2004 STEERING Steering - New Beetle



z

Tighten shear head bolt -10- until head shears off.

z

Install steering column with preassembled steering lock housing to cross member.

z

Install hex bolts -5-.

z

Now insert hex bolt -12-.

z

Install nut -13- and tighten to 10 N.m (7.4 in lb).

z

Now tighten bolts -5- to 25 N.m (18 ft lb).

z

Now pull out transportation securing device -6-.

z

Install universal joint shaft onto steering pinion -9-.

z

Tighten bolt 8 to 30 N.m (22 ft lb).

1. Cross member for steering column

2. Steering column

3. Screw

4. Handle

5. Hex. bolts

z

25 N.m (18 ft lb)

6. Transportation securing device

7. Steering column drive shaft

8. Hex. bolt

z

30 N.m (22 ft lb)

9. Steering gear pinion

10. Shear head bolt

11. Roller

12. Hex bolt

13. Hex. nut

z

10 N.m (7.4 in lb)

NOTE:

The following list refers to items in Fig. 12 .



2003 Volkswagen New Beetle GLS

1998-2004 STEERING Steering - New Beetle
