Release steering column adjustment. Lock steering column in fully extended and lowered position. Release
instrument cluster trim ring from mounting clips. Remove 2 screws and tilt instrument cluster toward passenger
compartment. Disconnect instrument cluster harness connectors. Remove instrument cluster. To install, reverse
removal procedure.

PASSENGER-SIDE AIR BAG MODULE

Removal & Installation

1. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Remove glove box.

Carefully pry passenger-side air bag cover up from instrument panel. See Fig. 5 . If air bag module has
been deployed, swing cover up, remove nuts and air bag cover. Remove screws and lift air bag from
supports. Disconnect connector and remove passenger-side air bag module. Remove air bag supports.

2. To install, reverse removal procedure. Install NEW air bag supports if air bag has deployed. Tighten air

bag module mounting bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag
system. Perform SYSTEM OPERATION CHECK .

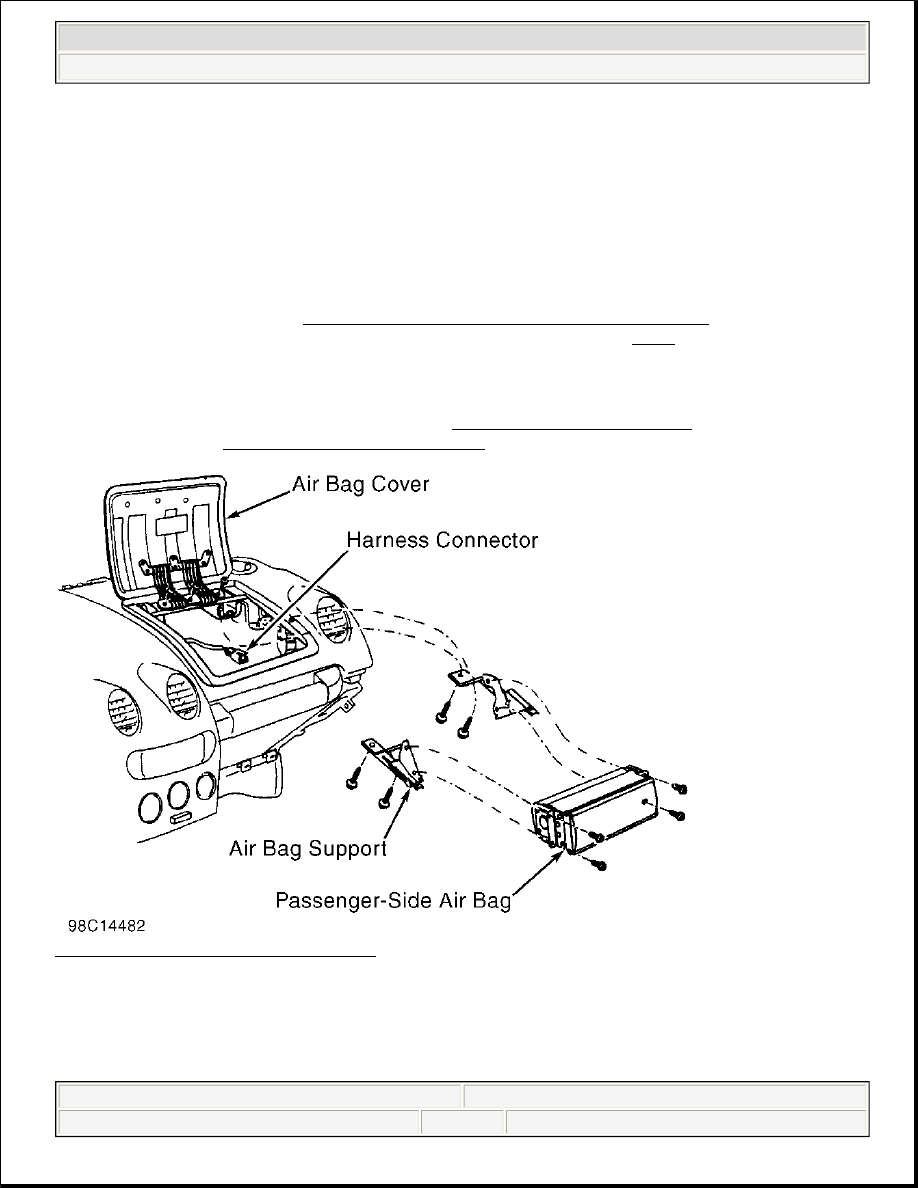

Fig. 5: Identifying Passenger-side Air Bag
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SIDE AIR BAG MODULES

Removal & Installation



2003 Volkswagen New Beetle GLS

2003 ACCESSORIES/SAFETY EQUIPMENT Volkswagen - Air Bag Restraint Systems



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:15 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.

1. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Remove front seat

backrest frame and release backrest cover in area of air bag. See Fig. 6 . Remove side air bag module
mounting bolts. Disconnect harness connector. Remove air bag module.

2. To install, reverse removal procedure. Tighten side air bag mounting bolts to specification. See

TORQUE SPECIFICATIONS . Activate air bag system. Perform SYSTEM OPERATION CHECK .

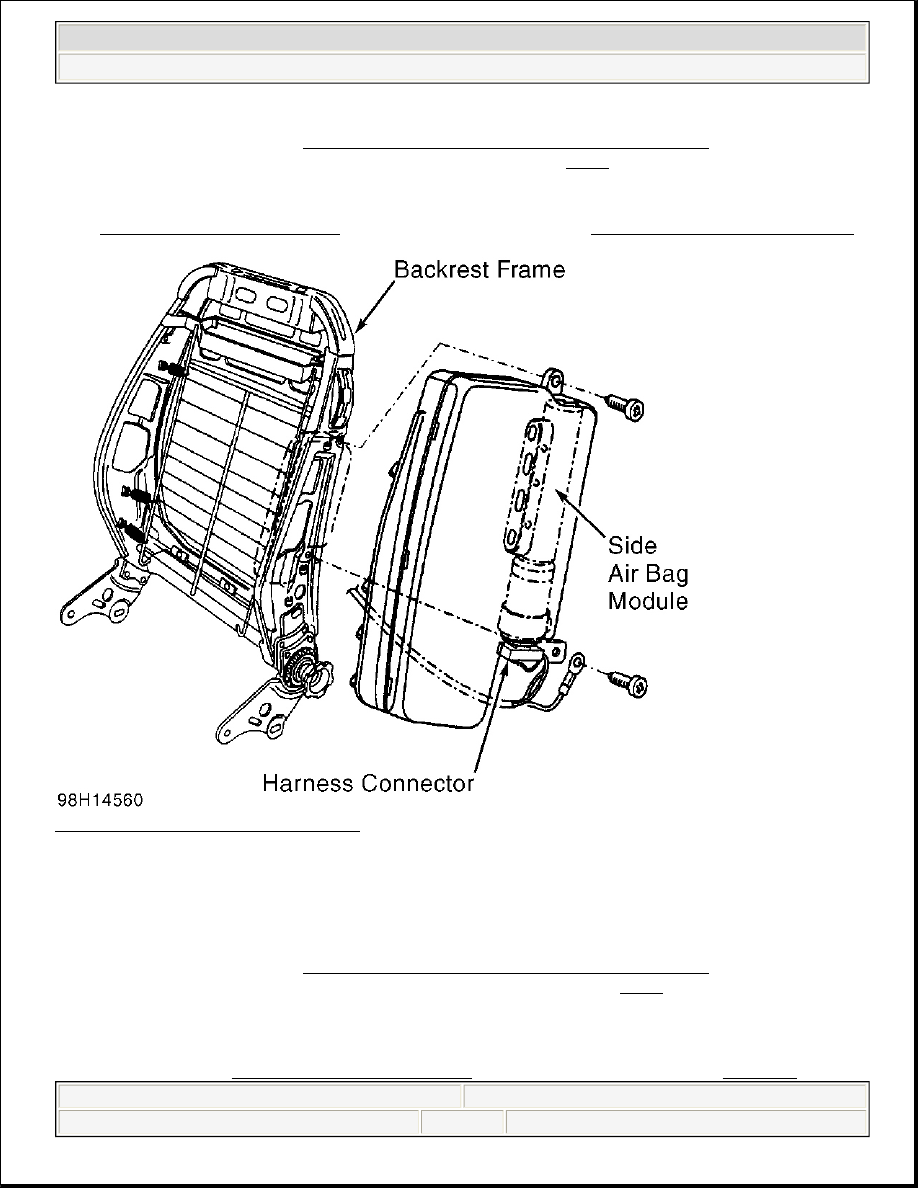

Fig. 6: Identifying Side Air Bag Module
Courtesy of VOLKSWAGEN UNITED STATES, INC.

SIDE AIR BAG IMPACT (CRASH) SENSORS

Removal & Installation

1. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Impact (crash)

sensors for side air bag modules are mounted under each front seat. See Fig. 7 . Remove appropriate front
seat. Release carpet and insulation mat in area of sensor. Disconnect impact sensor harness connector.
Remove mounting bolts and impact sensor.

2. To install, reverse removal procedure. Tighten side air bag impact (crash) sensor mounting bolts to

specification. See TORQUE SPECIFICATIONS . Activate air bag system. Perform SYSTEM



2003 Volkswagen New Beetle GLS

2003 ACCESSORIES/SAFETY EQUIPMENT Volkswagen - Air Bag Restraint Systems



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:15 AM

Page 9

© 2004 Mitchell Repair Information Company, LLC.

OPERATION CHECK .

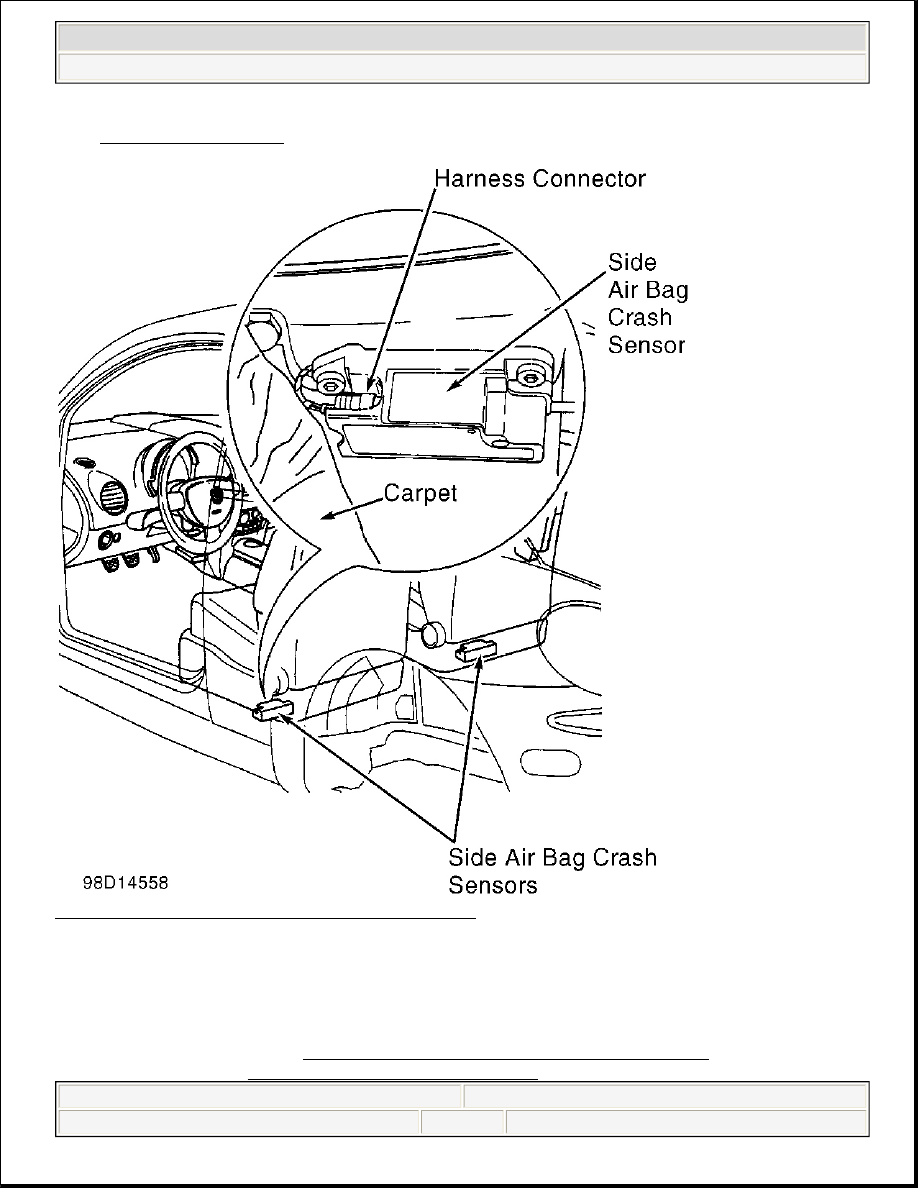

Fig. 7: Identifying Side Air Bag Impact (Crash) Sensor
Courtesy of VOLKSWAGEN UNITED STATES, INC.

STEERING WHEEL

Removal & Installation

1. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Remove driver-side

air bag module. See DRIVER-SIDE AIR BAG MODULE . Remove steering wheel bolt. Disconnect



2003 Volkswagen New Beetle GLS

2003 ACCESSORIES/SAFETY EQUIPMENT Volkswagen - Air Bag Restraint Systems



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:15 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

harness connectors. Remove steering wheel.

2. To install, reverse removal procedure. Install new steering wheel bolt and tighten to specification. See

TORQUE SPECIFICATIONS . Activate air bag system. Perform SYSTEM OPERATION CHECK .

SPIRAL SPRING

Removal & Installation

1. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Ensure front wheels

are in straight-ahead position. Remove steering wheel. See STEERING WHEEL . Remove upper
steering column cover.

2. Release steering column height adjustment lever. Remove steering column height adjustment lever

handle. Remove lower steering column cover. Disconnect harness connector from spiral spring. See Fig.
8 . Release locking tabs and remove spiral spring. DO NOT turn or twist spiral spring after removal.

3. To install, reverse removal procedure. NEW spiral spring has cable locking assembly in centered

position. Remove cable tie before installing spiral spring. Ensure front wheels are in straight-ahead
position. Activate air bag system. Perform SYSTEM OPERATION CHECK .

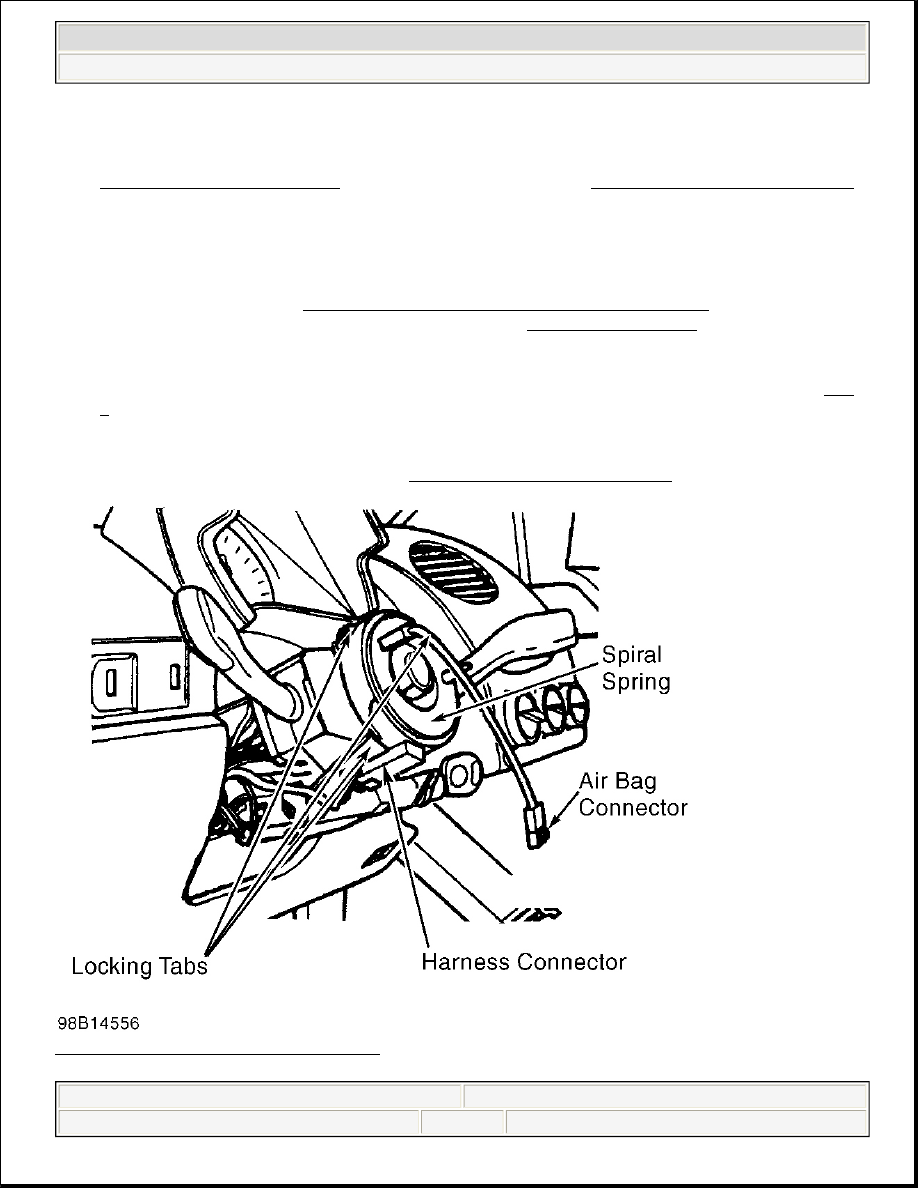

Fig. 8: Identifying Spiral Spring Assembly
Courtesy of VOLKSWAGEN UNITED STATES, INC.
