Volkswagen New Beetle. Manual - part 2039

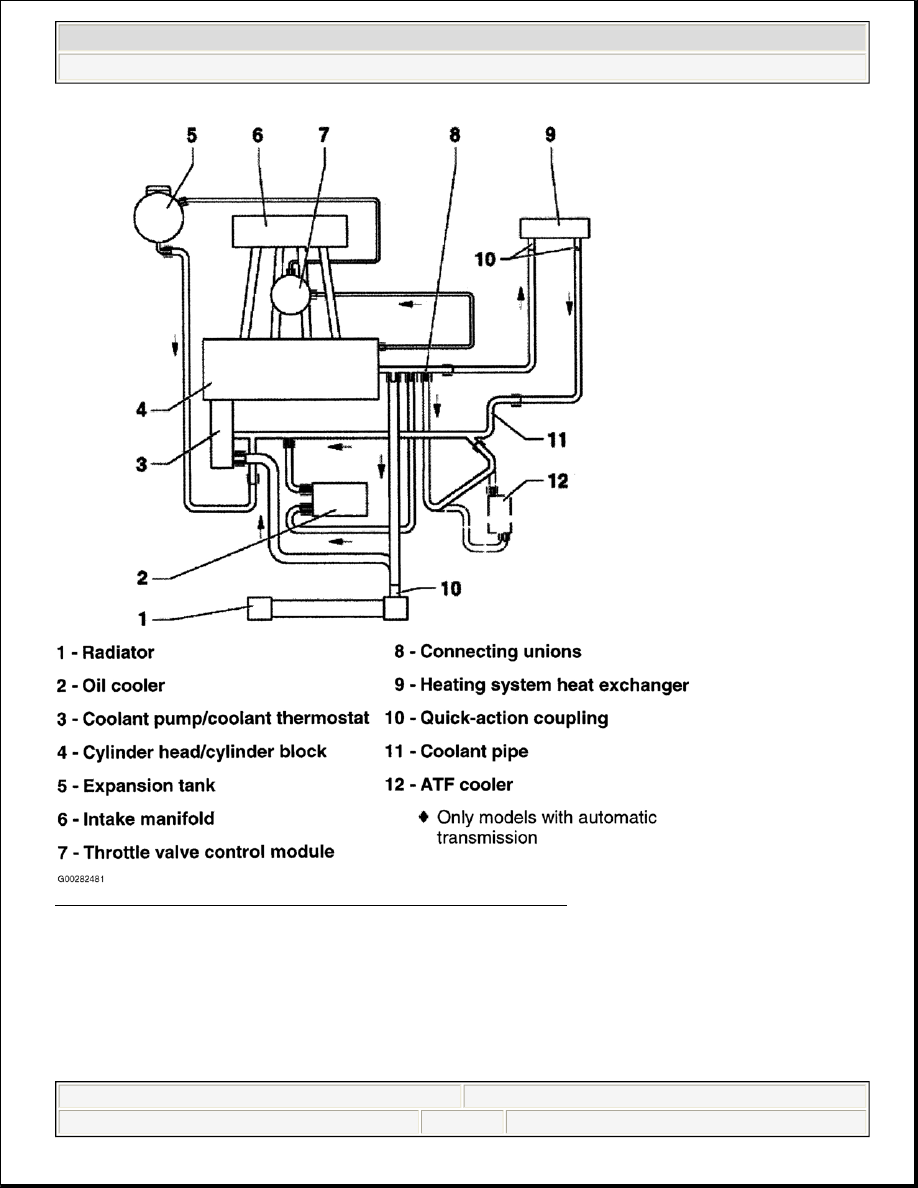

Fig. 12: Coolant Hose Routing Diagram (2.0L - Engine Code BDC)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

FUEL SYSTEM

FUEL PRESSURE

Specifications



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 19

© 2004 Mitchell Repair Information Company, LLC.

FUEL PUMP PERFORMANCE & REGULATED FUEL PRESSURE(GASOLINE ENGINES)

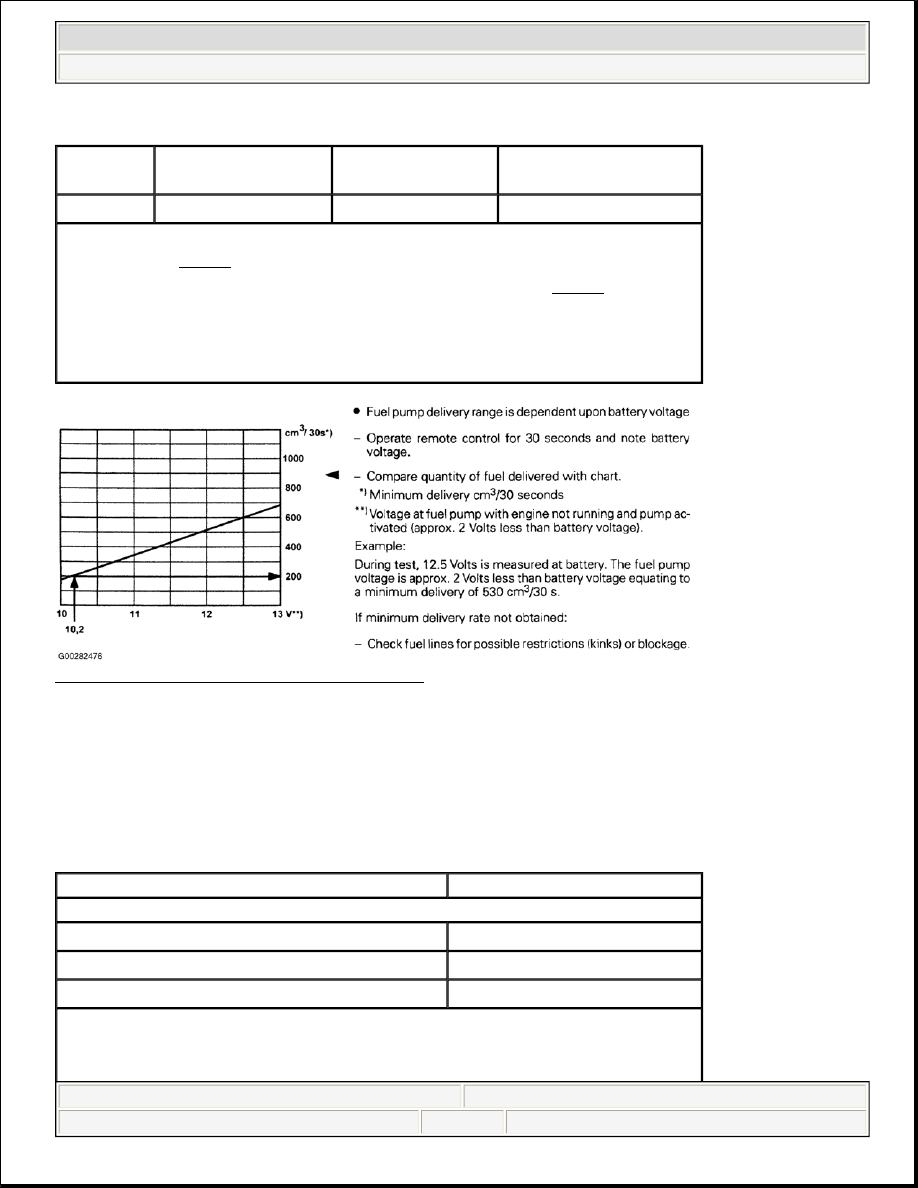

Fig. 13: Measuring Fuel Pump Delivery Volume
Courtesy of VOLKSWAGEN UNITED STATES, INC.

IGNITION SYSTEM

FIRING ORDER

Illustrations

FIRING ORDER

Application

Pressure At Idle - psi

(bar)

(1)

 Volume In 30

Seconds

(4)

 Residual Pressure - psi

(bar)

All Engines

(3)

 36.3 (2.5)

(2)

29 (2.0)

(1)

Volume is dependent upon battery voltage and should be checked with battery fully
charged. See Fig. 13 .

(2)

Fuel pump volume depends on battery voltage at fuel pump. See Fig. 13 .

(3)

With vacuum hose disconnected at fuel pressure regulator, pressure is 43.5 psi (3.0
bar).

(4)

Residual pressure is measured 10 minutes after engine or fuel pump is shut off.

Application

Firing Order

Beetle

1.8L Turbo

(1)

 1-3-4-2

1.9L Turbo Diesel

(2)

 1-3-4-2

2.0L

(3)

 1-3-4-2

(1)

Coil-on-plug type ignition system is used. Cylinder No. 1 is at timing belt end of
engine, and cylinder No. 4 is at flywheel end of engine.



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 20

© 2004 Mitchell Repair Information Company, LLC.

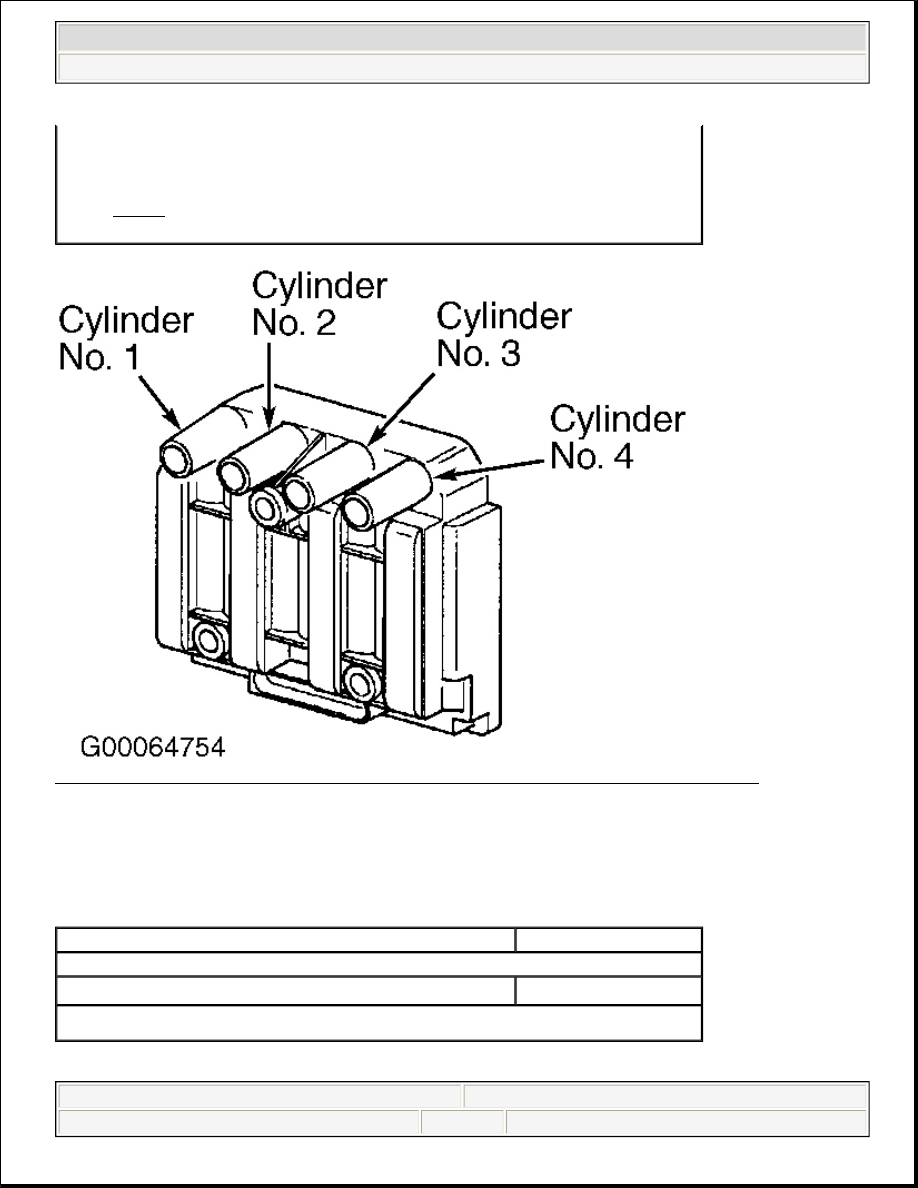

Fig. 14: Identifying Cylinder Numbers On Ignition Coil (2.0L - Engine Codes AVH & BDC)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

HIGH TENSION WIRES

Resistance Specifications

HIGH TENSION WIRE RESISTANCE

IGNITION COIL

(2)

Cylinder No. 1 is located at timing belt end of engine. Cylinder No. 4 is located at
flywheel end of engine.

(3)

System uses a Distributorless Ignition System (DIS) with one ignition coil assembly.
See Fig. 14 for cylinder No. to coil identification. Cylinder No. 1 is located at timing
belt end of engine. Cylinder No. 4 is located at flywheel end of engine.

Application

Ohms

Beetle

2.0L (Engine Codes AVH & BDC)

(1)

 4,000-8,000

(1)

Measured with suppression connector and spark plug connector installed.



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 21

© 2004 Mitchell Repair Information Company, LLC.

IGNITION TIMING

SPARK PLUGS

All Specifications

SPARK PLUG TYPE

SPARK PLUG SPECIFICATIONS

STARTING SYSTEM

STARTER

Service Specifications

SERVICE SPECIFICATIONS (STARTER)

Torque Specifications

TORQUE SPECIFICATIONS (STARTER)

NOTE:

Ignition coil resistance is not available from manufacturer for any engine.

NOTE:

All engines are equipped with DIS. Ignition timing is not adjustable.

Application

NGK No.

Beetle

1.8L Turbo (Engine Codes AWP)

PFR 6 Q

2.0L (Engine Codes AVH & BDC)

PZFR 5 D-11

Application

Gap - In. (mm)

Torque - Ft. Lbs. (N.m)

Beetle

1.8L Turbo (Engine Code AWP)

.032 (.80), Maximum

22 (30)

2.0L (Engine Code AVH)

.035-.043 (.9-1.1)

22 (30)

2.0L (Engine Code BDC)

.039-.043 (1.0-1.1)

18 (25)

Application

Rating

1.8L & 2.0L Engines

12V, 1.0 Kw

1.9L Turbo Diesel

12 V, 1.8 Kw

Application

Ft. Lbs. (N.m)

All Engines

Battery Cable Stud Nut On Solenoid

10 (13)

Starter Mounting Stud Nuts

44 (60)
