Fig. 17: Pin Assignments Of High Pressure Sensor -G65
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Electrical checks

z

Check voltage and ground supply to -G65- using wiring diagram.

z

Check wiring for short to one another.

z

Check wiring for short to B+ and ground.

z

Check wiring for short circuit between -G65- and -J293- using wiring diagram.

z

If no wiring faults can be determined, replace -G65-.

Removing And Installing A/C Pressure Switch -F129- And High Pressure Sensor -G65-

NOTE:

A/C clutch -N25- is switched off when connector -B- is disconnected



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle



Fig. 18: A/C Pressure Switch -F129- And High Pressure Sensor -G65
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Component can be removed without discharging refrigerant system.



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle



z

Disconnect electrical connection

z

Remove switch/sensor -B-.

z

Tightening torque 5 N.m (44 in. lb.)

z

Replace O-ring seal -A- (10.8 mm; 1.8mm)



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle

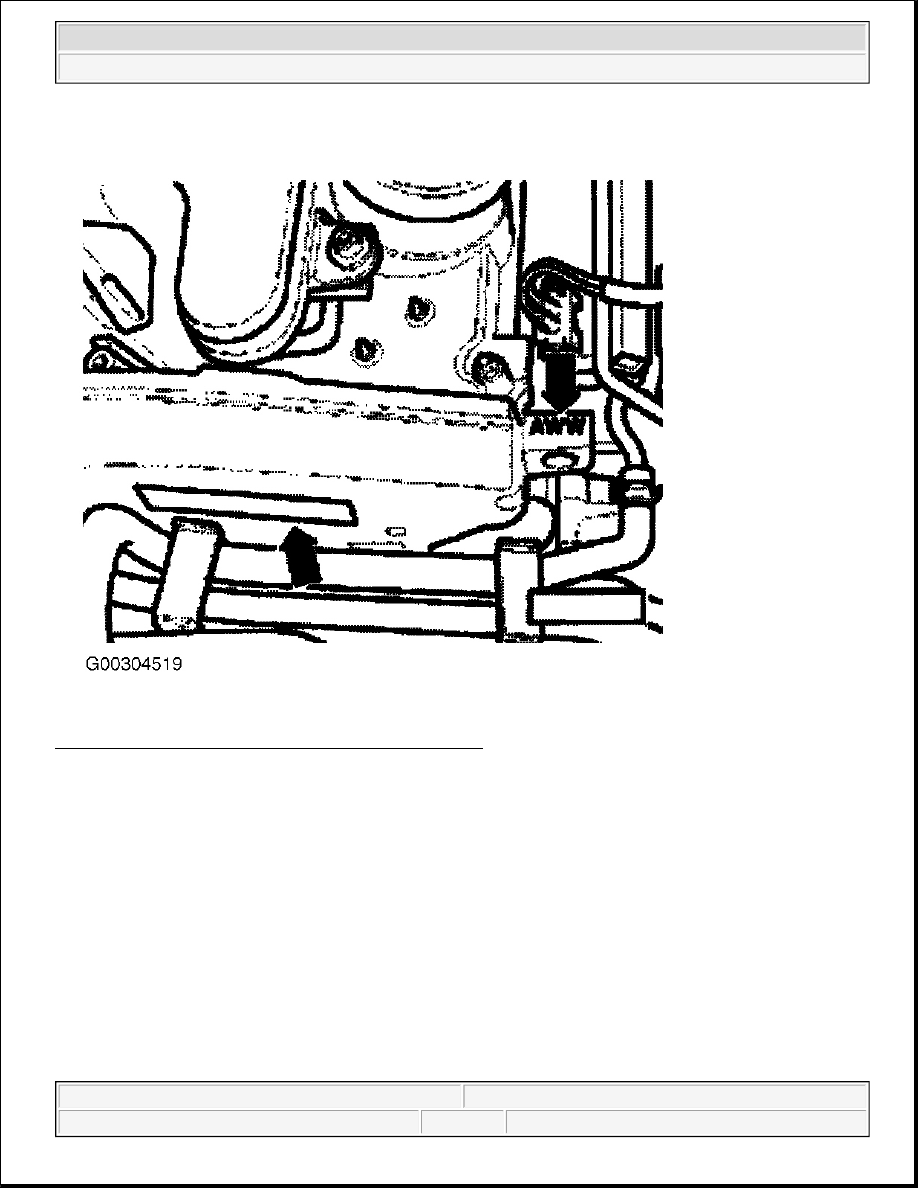

Fig. 19: Removing Switch/Sensor -B-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

A/C REFRIGERANT SYSTEM, REPLACING COMPONENTS
