Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig. 28: Vacuum Diagram Intake Manifold, Upper Section (4.0L W8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:55 AM

Page 28

© 2004 Mitchell Repair Information Company, LLC.

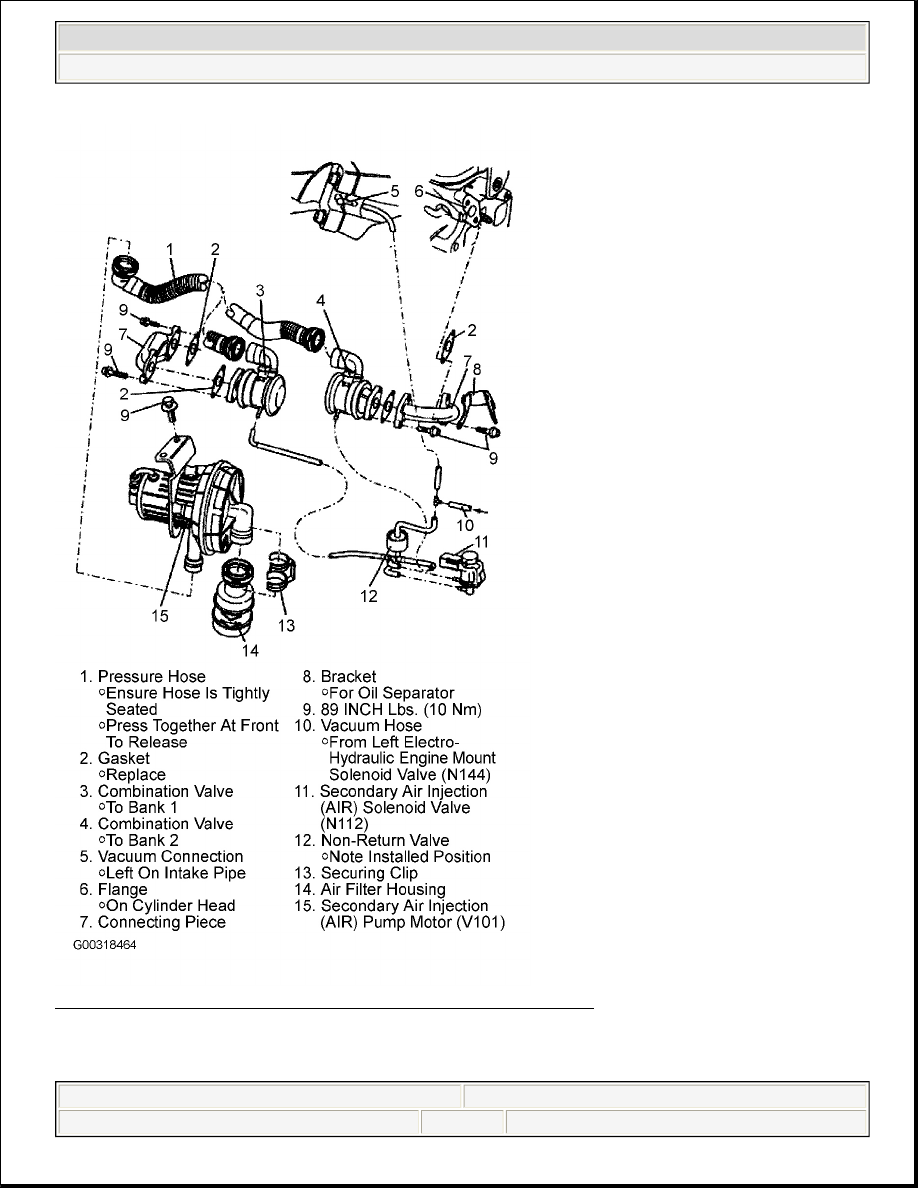

Fig. 29: Vacuum Diagrams Secondary Air Injection System (4.0L W8)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 ENGINE PERFORMANCE Vacuum Diagrams



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:50:55 AM

Page 29

© 2004 Mitchell Repair Information Company, LLC.

1998-2004 HVAC

Air Conditioning - New Beetle

A/C REFRIGERANT SYSTEM

SAFETY MEASURES

The subassemblies and lines of the air conditioner are filled with Tetrafluoroethane also known as refrigerant R-
134a.

A label on the lock carrier in the engine compartment indicates the refrigerant type and capacity.

WARNING:

z

Always use an Underwriter's Laboratory (UL) approved refrigerant
recovery/recycling/recharging unit such as Kent-Moore ACR

4

 , or

equivalent, whenever discharging an R-134a A/C system.

z

As of January, 1992 any person who services a motor vehicle air
conditioner MUST, by law, be properly trained and certified and use
approved refrigerant recycling equipment. Technicians must
complete an EPA approved recycling course to be certified.

z

State and Provincial governments may have additional requirements
regarding air conditioning servicing. Always comply with local laws.

WARNING:

A/C system is filled with refrigerant gas which is under pressure. Always
be careful that refrigerant does not come in contact with your skin. If
liquid refrigerant has come in contact with your skin or eyes:

z

Do not rub skin or eyes

z

Immediately flush with cool water for 15 minutes

z

Rush to a doctor or hospital

z

Do not attempt to treat yourself

z

Work in a well ventilated area because refrigerant gases are heavier
than air, displace oxygen and may cause suffocation in areas of
poor air circulation, like under the car.

z

Avoid breathing refrigerant vapors. Exposure may irritate eyes, nose
and throat. Always wear hand and eye protection (gloves and
goggles) when working around the A/C system. Keep refrigerant
containers stored below 50 °C (122 °F) and never drop from high
places. DO NOT warm refrigerant containers with an open flame. If
refrigerant needs to be warmed, place bottom of tank in warm water.

z

Keep refrigerant away from open flames because poisonous gas will
be produced if it burns. Do not smoke when refrigerant gases are
present for the same reason.



2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 HVAC Air Conditioning - New Beetle



WARNING:

z

Electric welding near refrigerant hoses causes R-134a to decompose
from ultraviolet light. Discharge system before electric welding.

z

Pressurized R-134a refrigerant in the presence of oxygen may form a
combustible mixture. Never introduce compressed air into any R-
134a container (full or empty), A/C component or piece of service
equipment

z

Do not expose any component of the A/C system to high
temperatures (for example, open flames). Excessive heat will cause
a pressure increase which could burst the system.

z

Do not steam clean condensers or evaporators. Use only cold water
or compressed air.

CAUTION:

z

Before working on electrical system, obtain radio security code and
disconnect battery Ground (GND) strap.

z

When reconnecting battery, always check operation of vehicle
equipment such as radio, clock, and power windows according to
Repair Manual and/or Owner's Manual.

z

R-12 and R-134a refrigerant are NOT compatible. Never add R-12
refrigerant to an R-134a system or R-134a refrigerant to an R-12
system. If the refrigerants are mixed, total system contamination will
occur and compressor failure may result.

z

Refrigerant oils used for the R-134a system and R-12 system are NOT
compatible. Use only the specified synthetic oil (Polyalkylene
Glycol/PAG) for the R-134a refrigerant system. DO NOT use R-12
system oil in an R-134a system or R-134a system oil in an R-12
system. If the refrigerant oils are mixed, system contamination will
occur and compressor failure may result.

z

R-134a refrigerant system oil (PAG oil) absorbs moisture very
rapidly. Moisture combines with the refrigerant to form acids which
will damage the system. Use only the specified oil from a sealed
container and ALWAYS reseal oil container immediately after use.
DO NOT use oil if it has become contaminated with moisture.

CAUTION:

z

Immediately plug open connections on A/C components to prevent
dirt and moisture contamination. Likewise, DO NOT remove new
components from packaging until ready to install. Immediately
tighten component connections after installation.

z

Always use separate refrigerant recovery/recycling/recharging
servicing equipment for R-12 and R-134a systems. DO NOT use one
piece of equipment for both R-12 and R-134a systems. The residual
traces of refrigerant will contaminate and damage the equipment.
Servicing equipment includes recovery/recycling/recharging unit,
charging station, vacuum pump, manifold gauges, etc.
