Volkswagen New Beetle. Manual - part 188

Fig. 30: Right High Intensity Gas-discharge Lamp (With Range Control) Control Module
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove retainer and module together.

z

Disconnect electrical connection from module.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



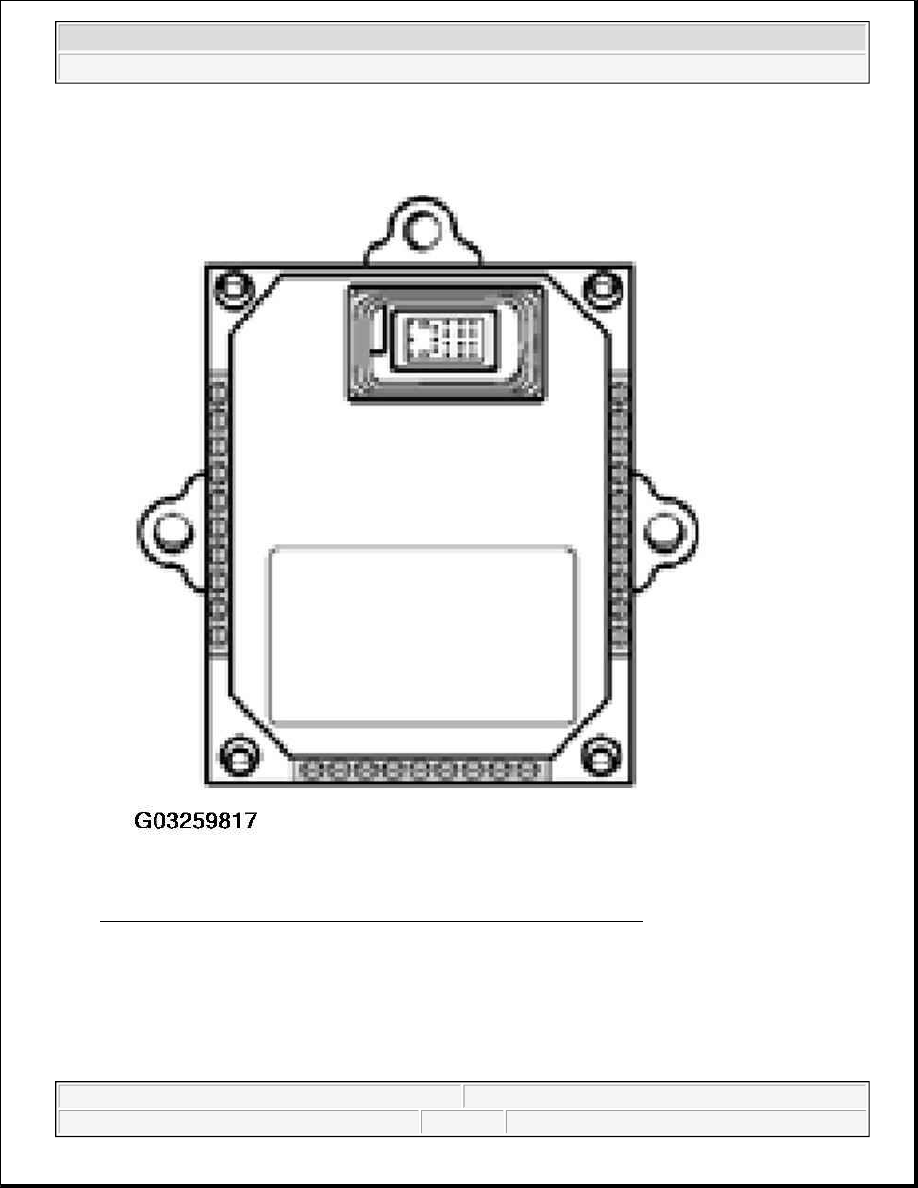

Fig. 31: Removing Module Screws To Separate Module From Retainer
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove screws and separate module from retainer.

Installing

Installation in reverse sequence of removal.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



LEFT FRONT LEVEL CONTROL SYSTEM SENSOR -G78-, REMOVING AND INSTALLING

Removing

z

Turn steering to full left lock.

z

Remove nuts -arrows-.

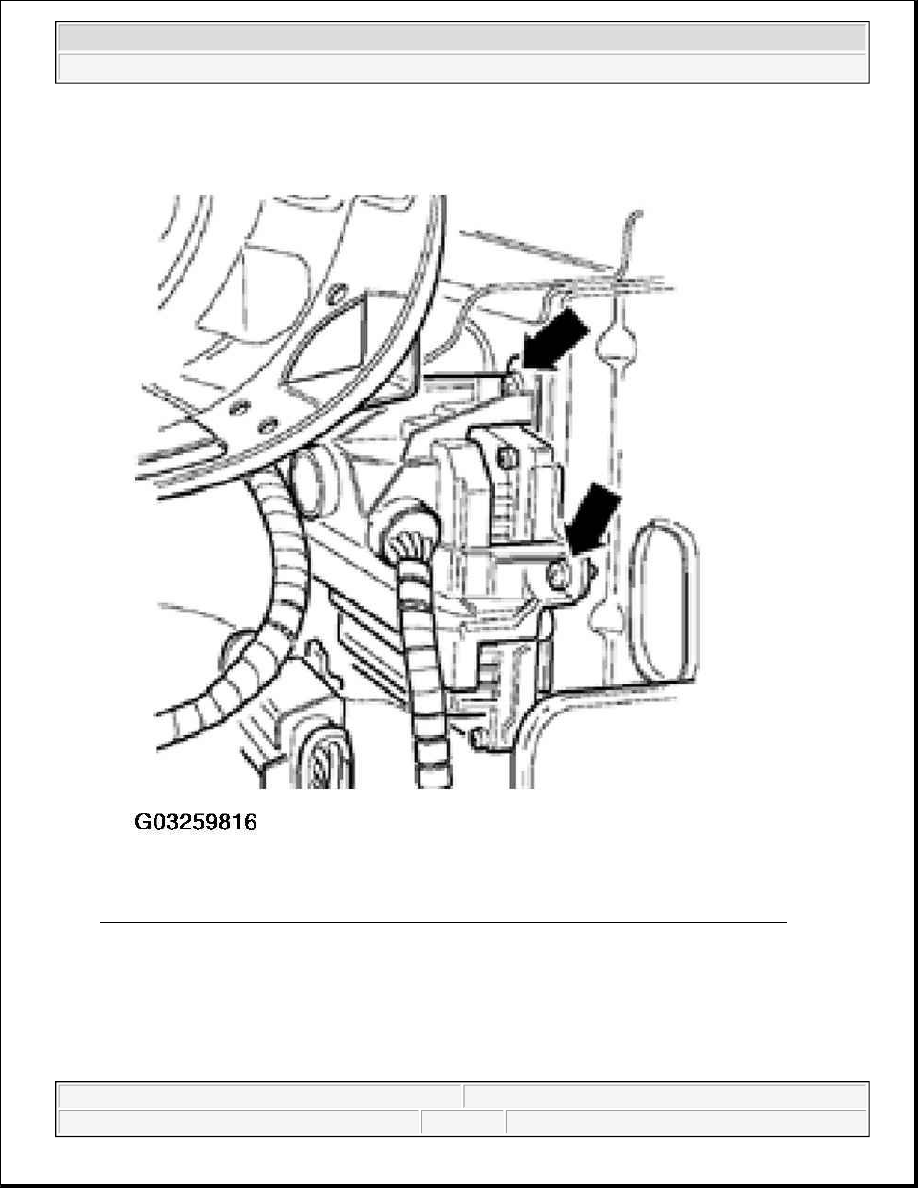

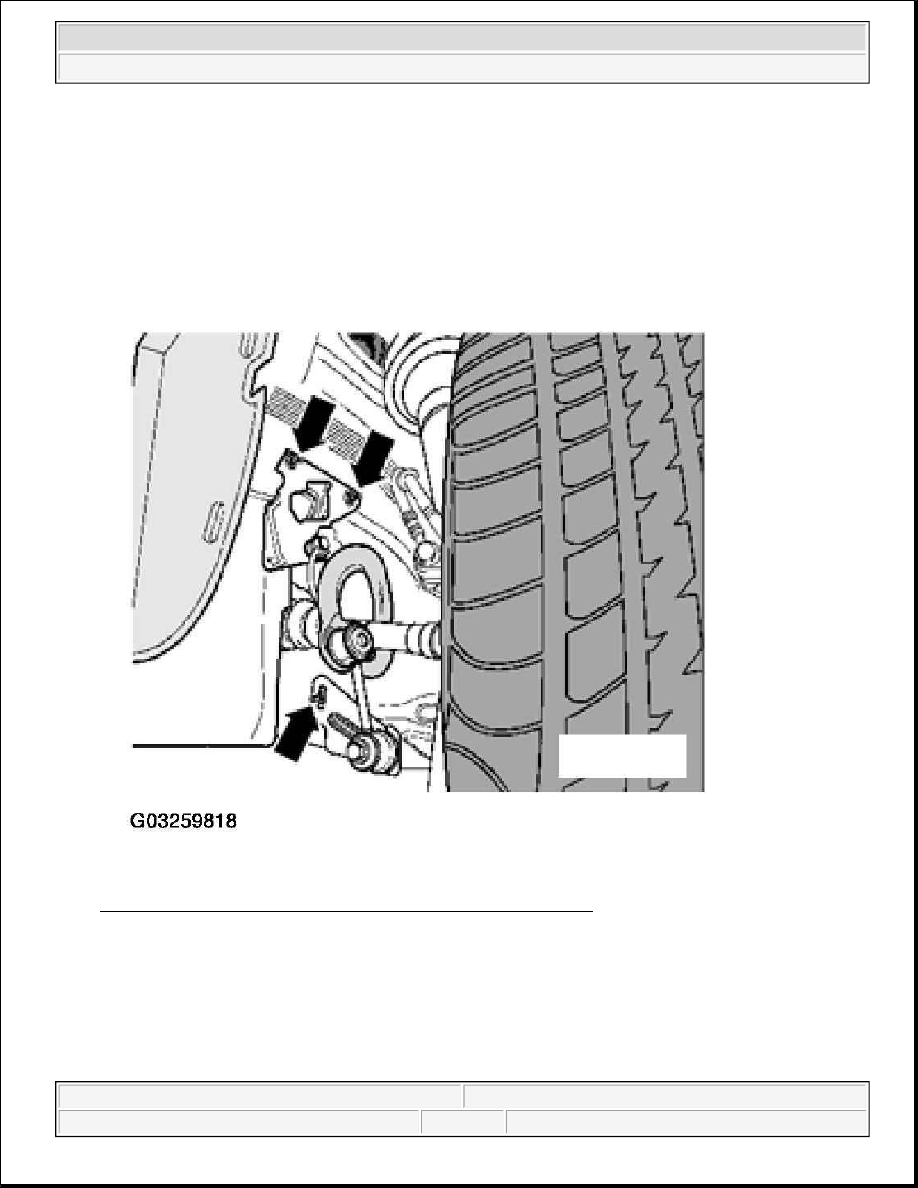

Fig. 32: Removing Left Front Level Control System Sensor Nuts
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove sensor with retainer.

z

Disconnect electrical connection.

Installing

Installation in reverse sequence of removal.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



z

Adjust level sensor, See LEFT FRONT LEVEL CONTROL SYSTEM SENSOR -G78-,
ADJUSTING .

LEFT FRONT LEVEL CONTROL SYSTEM SENSOR -G78-, ADJUSTING

Special tool, testers, and auxiliary items needed

z

VAG 1551/1552 Scan Tool (ST) or VAS 5051 Vehicle Diagnostic Testing and Information System tester.

z

VAG 1551/3B Adapter Cable

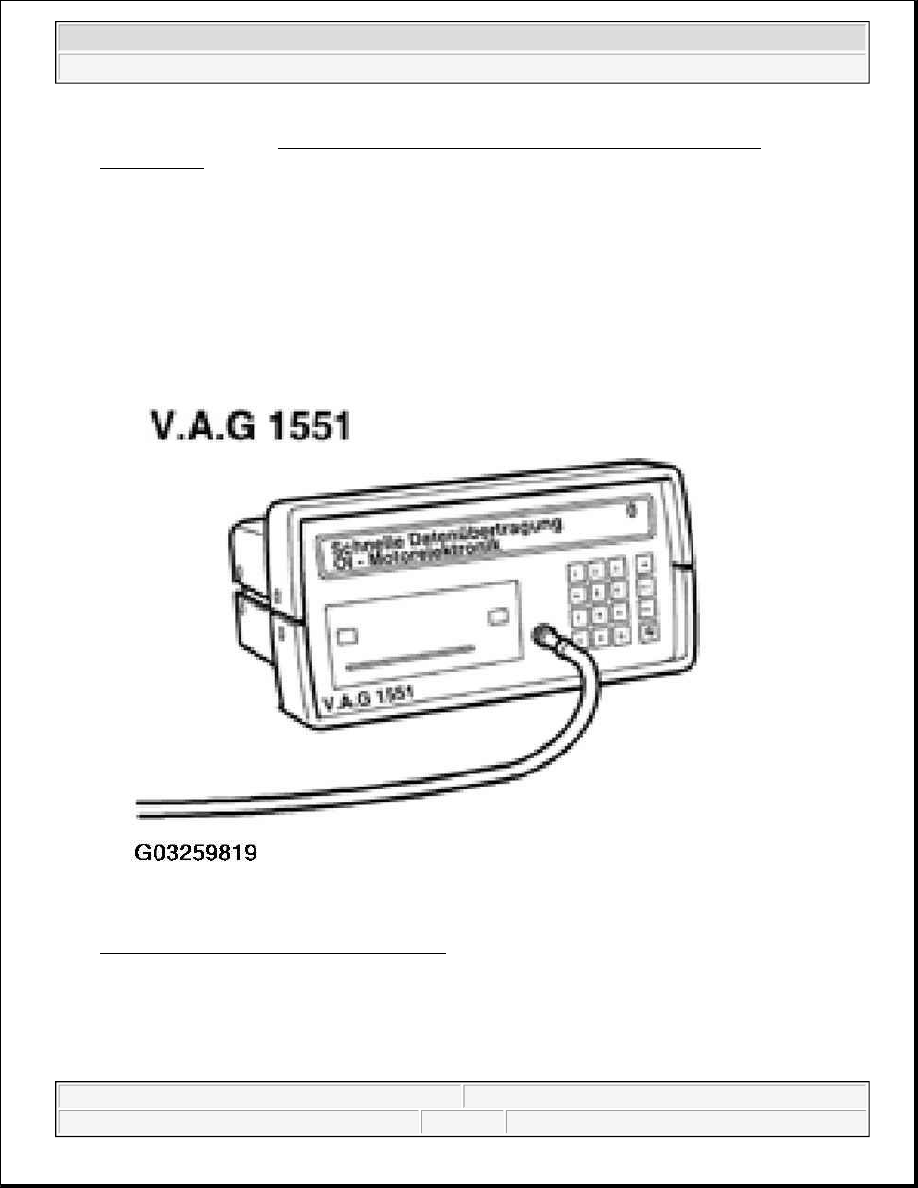

Fig. 33: Identifying Vag 1551/1552 Scan Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Prerequisites

z

Vehicle must be standing on all four wheels on a flat level surface.

z

Handbrake lever must be in off position and a drive gear must not be selected.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
