"9" for address word "19" (Gateway) and enter by pressing "Q" key. Press keys "0" and "7" for "Code Control
Module" function "7" and enter by pressing "Q" key. Enter code into CAN data bus Interface (J533). For coding
options, see Fig. 9 . Codes from each individual control module are added together to create CAN data bus
interface code. For example, enter 00006 if equipped with ABS and Airbag, (ABS activated 00002 + Airbag
activated 00004 = 00006).

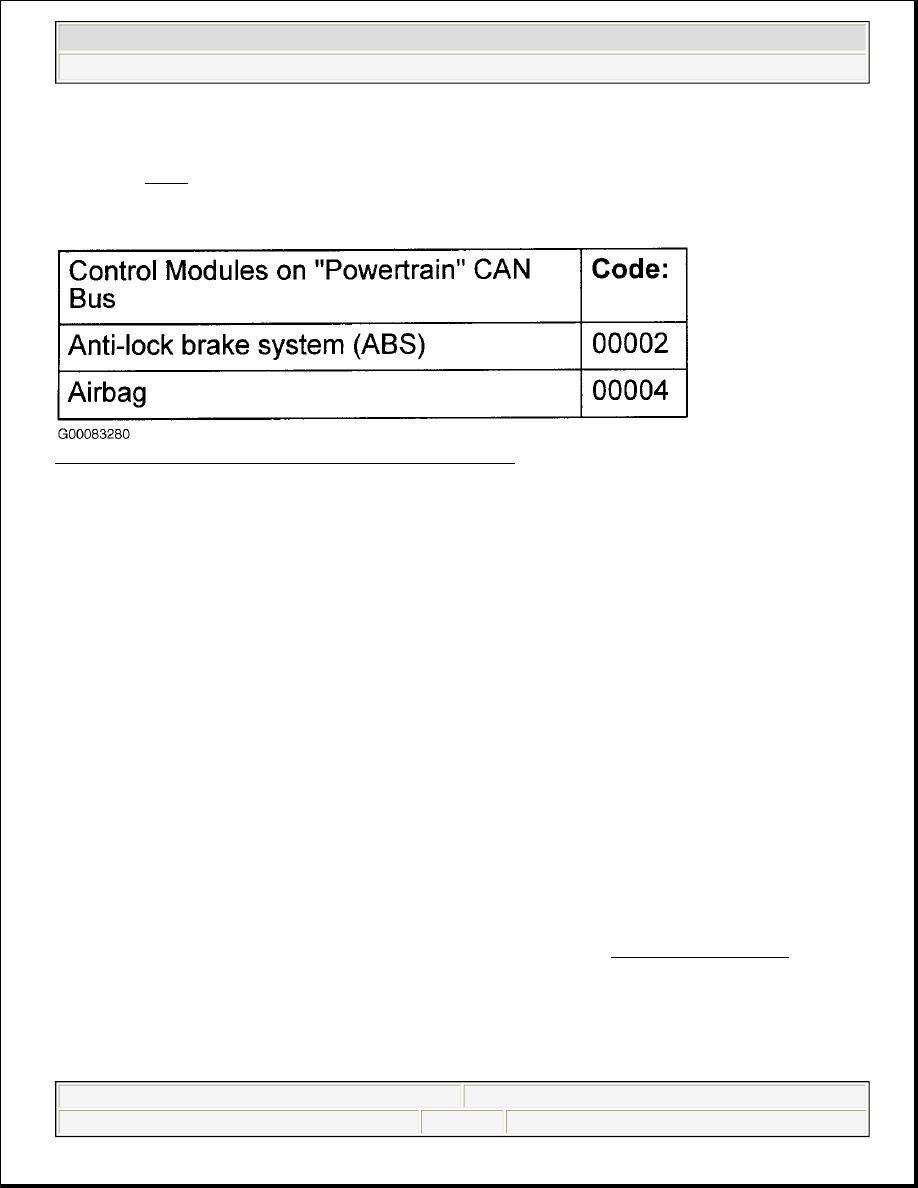

Fig. 9: Identifying CAN Data Bus Coding Options (2002-03)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

THROTTLE VALVE CONTROL MODULE (J338)

Throttle Valve Control Module (TVCM - J338) teaches ECM various positions of throttle valve when ignition
is on and engine is not running. Throttle positions are stored in the ECM. Throttle position is communicated to
ECM through two angle sensors: Angle sensor 1 for throttle valve drive (G187) and Angle sensor 2 for throttle
valve drive (G188). Sensors are integral parts of the TVCM (J338). Manufacturer recommends using Scan Tool
(VAG 1551/1552 or VAS 5051/5052).

Adapting Throttle Valve Control Module (J338) To ECM (J220)

TVCM (J338) adaptation must be performed when voltage supply to TVCM (J338) or ECM is lost. TVCM
(J338) adaptation occurs:

z

Automatically if ignition is switched on for 10 seconds or more, without operating accelerator pedal or
starter and ECM recognizes a need for adaptation. No notification that adaptation was successful will be
given when this happens.

z

When initiated through diagnostic function 04 - BASIC SETTING in display group 60, (VAG 1551/1552
or VAS 5051/5052). If using generic scan tool, follow scan tool manufacturer's instructions.

NOTE:

When adaptation of throttle valve control module is necessary and vehicle is
equipped with A/T, the transmission control module must also be adapted.
Perform adaptation of A/T to its Basic Setting. See A/T BASIC SETTING .

NOTE:

Engine will not start during automatic adaptation. Ignition must remain on
(engine off) for entire adaptation procedure. Ensure coolant temperature and
intake air temperature are between 41-194° F (5-90° C). ECM will abort
adaptation if; throttle valve cannot be closed completely (e.g.: dirty throttle



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 28

© 2004 Mitchell Repair Information Company, LLC.

Generic Scan Tool

If possible it is best to warm-up vehicle by test driving. Connect scan tool to DLC. DLC is located at left side of
steering column. See Fig. 1 . Follow scan tool manufacturer's instructions and adapt throttle valve control
module to ECM.

Scan Tool VAG 1551/1552 Or VAS 5051/5052

1. If possible it is best to warm-up vehicle by test driving. Connect scan tool to DLC. DLC is located at left

side of steering column. See Fig. 1 .

2. Turn ignition on, engine off. Using scan tool, retrieve DTCs. See RETRIEVING DIAGNOSTIC

TROUBLE CODES .

3. If DTCs are stored. Repair as necessary. See DIAGNOSTIC TROUBLE CODE IDENTIFICATION .

If no DTCs are stored, press right arrow key. Using scan tool, clear DTC memory. See CLEARING
DIAGNOSTIC TROUBLE CODES . After clearing codes, press right arrow key. Go to next step.

4. Adapt Throttle Valve Control Module (J338). Press keys "0" and "1" for address word "Engine

Electronics", and enter by pressing "Q" key. Press keys "0" and "4" for "Basic Setting", and enter by
pressing "Q" key. Press keys "0", "6" and "0" for "Display Group 60 Basic Setting", and enter by pressing
"Q" key.

5. After no longer than 30 seconds, ADP. OK should appear in specification window of display field 4. If

APD. OK appears TVCM has adapted successfully. Wait a minimum of 30 seconds before ending
"Display Group 60 Basic Setting". To end "Display Group 60 Basic Setting" press right arrow key. Press
keys "0" and "6" for function "End Output" and enter by pressing "Q" key.

6. To store values, turn ignition off for at least 25 seconds (control module after-run). If APD. ERROR

appears, TVCM has not adapted successfully. Check for DTCs. See DIAGNOSTIC TROUBLE CODE
IDENTIFICATION . Repair as necessary.

A/T BASIC SETTING

Generic Scan Tool

Connect scan tool to DLC. DLC is located at left side of steering column. See Fig. 1 . Turn ignition on, engine
off. Follow scan tool manufacturer's instructions to initiate basic setting for A/T.

Scan Tool VAG 1551/1552 Or VAS 5051/5052

body, distorted throttle body or lose throttle body bolts), battery voltage is too
low, engine is started or accelerator pedal is pressed during adaptation.

NOTE:

A/T basic setting must be initiated when Engine, ECM (J220), A/T Control
Module (J217), Throttle Valve Control Module (J338), or Accelerator Pedal
Position (APP) sensor 1 (G79) and APP sensor 2 (G185) are replaced. (APP
sensor 1 (G79) and APP sensor 2 (G185) are one unit, they are not adjustable
and can not be replaced separately). It is also necessary to initiate A/T basic
setting if idle speed has been adjusted.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 29

© 2004 Mitchell Repair Information Company, LLC.

1. Connect scan tool to DLC. DLC is located at left side of steering column. See Fig. 1 .

2. Turn ignition on, with engine off.

3. Using scan tool check for DTCs. See RETRIEVING DIAGNOSTIC TROUBLE CODES . If any

DTCs are present, repair as necessary and clear codes. See CLEARING DIAGNOSTIC TROUBLE
CODES .

4. Initiate basic setting for A/T. Press keys "0" and "2" for address word "Transmission Electronics",

advance scan tool by press right arrow key until "Select Function XX" appears. Press keys "0" and "4" for
"Basic Setting", and enter by pressing "Q" key. Press "0" key 3 times, for "Display Group "0" Basic
Setting", and enter by pressing "Q" key. Depress accelerator pedal as far as kickdown and hold in this
position for 3 seconds. Press right arrow key.

ADAPTING KICKDOWN FUNCTION

1. Connect scan tool to DLC. DLC is located at left side of steering column. See Fig. 1 .

2. Turn ignition on, with engine off.

3. Press keys "0" and "1" for address word "Engine Electronics". Press keys "0" and "4" for "Basic Setting",

and enter by pressing "Q" key. Press keys "0", "6" and "3" for display group 63 and enter by pressing "Q"
key.

4. Observe display zones 3 and 4, "Operate kick down" should display. Press accelerator pedal beyond kick-

down pressure point to floor. Hold accelerator pedal to floor for at least 2 seconds. Observe display zones
3 and 4, "Kick Down ADP. runs" should display, then "Kick Down ADP. OK" should appears in display
zones 3 and 4.

5. Press right arrow key. Press keys "0" and "6" for function "End output" and enter by pressing "Q" key. If

"Kick Down ADP. OK" appeared in display zones 3 and 4, adaptation was successful. If "Kick Down
ERROR" appeared in display zones 3 and 4, adaptation was unsuccessful. Check accelerator position
sensors. See DTC P0226/16610: ACCELERATOR PEDAL POSITION SENSOR 1 (G79)
ACCELERATOR PEDAL POSITION SENSOR 2 (G185), IMPLAUSIBLE SIGNAL . Repair as
necessary.

ACTIVATING/DEACTIVATING CRUISE CONTROL

Generic Scan Tool

Connect scan tool to DLC. DLC is located at left side of steering column. See Fig. 1 . Turn ignition on, engine
off. Follow scan tool manufacturer's instructions to Activating/Deactivating Cruise Control.

Scan Tool VAG 1551/1552 Or VAS 5051/5052

Activating Cruise Control
Connect scan tool to DLC. DLC is located at left side of steering column. See Fig. 1 . Turn ignition on,

NOTE:

Kickdown function adaptation must be performed when ECM or Accelerator
Pedal Position (APP) sensor 1 (G79) and APP sensor 2 (G185) are replaced. APP
sensor 1 (G79) and APP sensor 2 (G185) are one unit, they are not adjustable
and can not be replaced separately.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:54 AM

Page 30

© 2004 Mitchell Repair Information Company, LLC.

engine off. Press keys "0" and "1" for address word "Engine Electronics". Press "1" key 2 times for
"Login Procedure" function 11 and enter by pressing "Q" key. Press keys "1", "1", "4", "6" and "3" for
Code Number 11463 and enter by pressing "Q" key. Turn ignition off. Activation is complete.

Deactivating Cruise Control
Connect scan tool to DLC. DLC is located at left side of steering column. See Fig. 1 . Turn ignition on,
engine off. Press keys "0" and "1" for address word "Engine Electronics". Press "1" key 2 times for
"Login Procedure" function 11 and enter by pressing "Q" key. Press keys "1", "6", "1", "6" and "7" for
Code Number 16167 and enter by pressing "Q" key. Turn ignition off. Deactivation is complete.

IMMOBILIZER ADAPTATION TO ECM (J220)

Warning Light for Anti-Theft Immobilizer (K117) is located in speedometer gauge. Properly functioning
immobilizer system is indicated by warning light for Anti-Theft Immobilizer (K117) lighting up and going out
after approximately 3 seconds when ignition is turned on. Malfunction in immobilizer system is indicated, when
ignition is turned on and warning light flashes or lights up continuously. For immobilizer system diagnostics.
See appropriate DOOR LOCKS & ANTI-THEFT SYSTEMS article under ACCESSORIES & EQUIPMENT.

Generic Scan Tool

Connect scan tool to DLC. DLC is located at left side of steering column. See Fig. 1 . Follow scan tool
manufacturer's instructions for Immobilizer Adaptation.

Scan Tool VAG 1551/1552 Or VAS 5051/5052

1. Connect scan tool to DLC. DLC is located at left side of steering column. See Fig. 1 . Turn ignition on

using a currently valid key, engine off. Press keys "0" and "1" for address word "Engine Electronics".
Press "1" key 2 times for "Login Procedure" function 11 and enter by pressing "Q" key. Scratch off

NOTE:

This article is for adapting new key and readapting currently valid keys only (it
is necessary to readapt currently valid keys when adapting new key).

NOTE:

Manufacturer recommends using Scan Tool VAG 1551/1552 or VAS 5051/5052.
Starting with Model Year 2002 Golf and Jetta are equipped with Immobilizer
Generation III (Starting 6/2001 for Beetle). Ignition keys for Immobilizer III may
be marked "W3". For more reliable differentiation, always use the function
"check control module version". Scan Tool VAS 5051 or 5052 must be used for
Immobilizer Generation III diagnoses and coding. A correct Importer/Dealer
number must reside in VAS 5051 or VAS 5052 in order to request a PIN number
and to adapt Immobilizer Generation III.

NOTE:

Three attempts to enter secret code number is initially possible. Next three
attempts to enter secret code number is only possible after a minimum of 10
minutes (with ignition remaining on during this time and OBD program is exited
by function 06 "End Output"). Waiting period between each three attempts
doubles each time up to a maximum of 255 minutes.
