Volkswagen New Beetle. Manual - part 1756

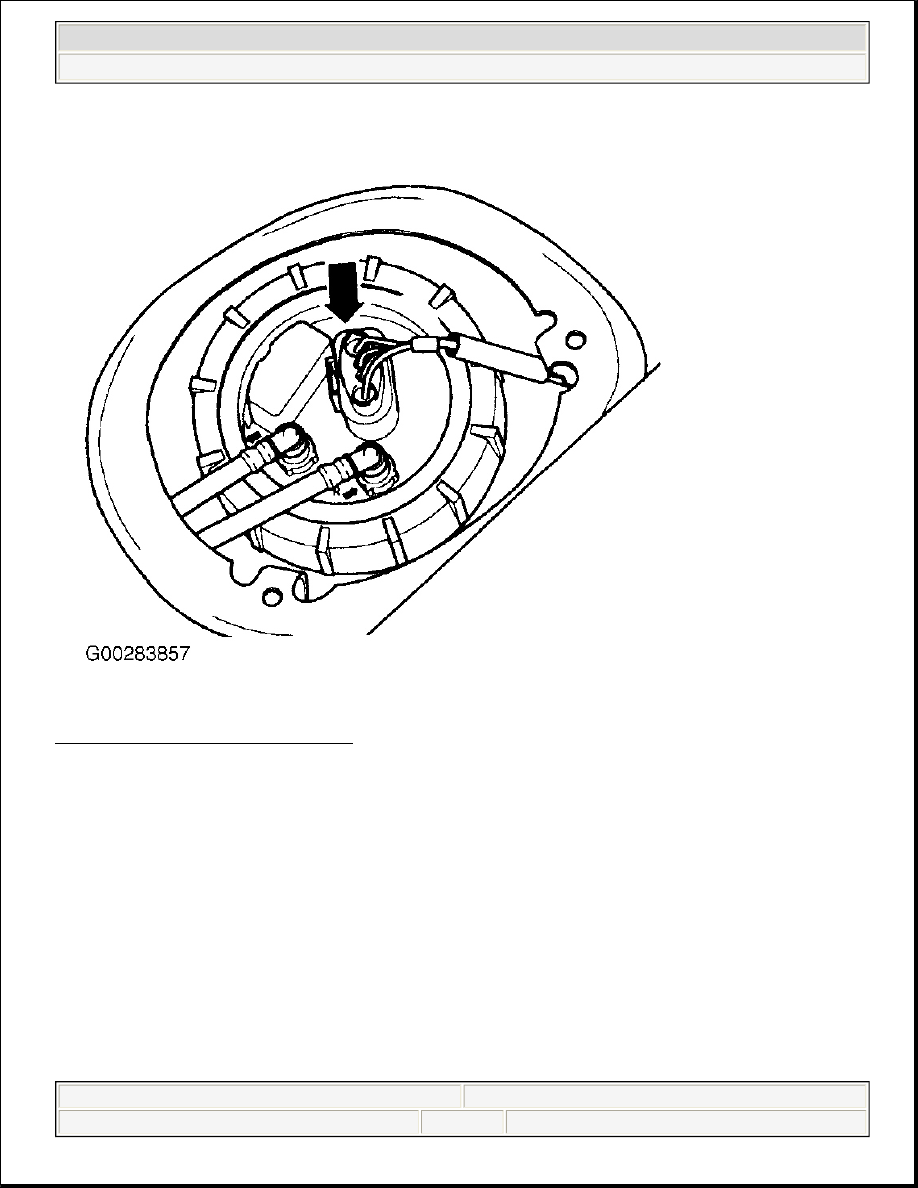

Fig. 20: Locating Fuel Pump Assembly
Courtesy of VOLKSWAGEN UNITED STATES, INC.

IGNITION SYSTEMS

Any fault with ignition system will set DTC. See appropriate SELF-DIAGNOSTICS article in ENGINE
PERFORMANCE.

IDLE SPEED & IGNITION TIMING

Any fault with idle speed or ignition timing will set a DTC. See appropriate SELF-DIAGNOSTICS article in
ENGINE PERFORMANCE.



2003 Volkswagen New Beetle GLS

1998-2003 ENGINE PEFORMANCE Basic Diagnostic Procedures - Beetle - Gasoline



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:43:30 AM

Page 26

© 2004 Mitchell Repair Information Company, LLC.

2000-2003 ENGINE PERFORMANCE

Basic Diagnostic Procedures - Beetle, Diesel

INTRODUCTION

The following diagnostic steps will help prevent overlooking a simple problem. This is also where to begin
diagnosis for a no-start condition.

The first step in diagnosing any driveability problem is verifying the customer's complaint with a test drive
under the conditions the problem reportedly occurred.

Information that involves ECM sensors and components that generate DTCs are not covered in this article. See
appropriate SELF-DIAGNOSTICS article in ENGINE PERFORMANCE.

Performing a thorough Visual Inspection and checking for DTCs, may pin point faulty circuit (vacuum or
electrical) and/or faulty component or adjustment. See VISUAL INSPECTION . After performing Visual
Inspection, check for DTCs, see appropriate SELF-DIAGNOSTICS article. Most engine control problems result
from mechanical breakdowns, poor electrical connections, or damaged/misrouted vacuum hoses.

PRELIMINARY INSPECTION & ADJUSTMENTS

VISUAL INSPECTION

1. Visually inspect all electrical wiring, looking for chafed, stretched, cut or pinched wiring. Ensure

electrical connectors fit tightly and are not corroded. Check for loose or defective electrical connections
on starter motor. Ensure all vacuum hoses are properly routed and are not pinched or cut. See Fig. 1 to
verify routing and connections. Inspect air induction system for possible vacuum leaks.

2. Check air filter for restriction or damage. Ensure turbocharger and charge air cooler inlet and outlet ducts

clamps are tight. Ensure glow plug electrical connectors are tight.

NOTE:

Perform all voltage tests using Digital Volt-Ohmmeter (DVOM) with a minimum
10-megohm input impedance, unless stated otherwise in test procedure.



2003 Volkswagen New Beetle GLS

2000-2003 ENGINE PERFORMANCE Basic Diagnostic Procedures - Beetle, Diesel





2003 Volkswagen New Beetle GLS

2000-2003 ENGINE PERFORMANCE Basic Diagnostic Procedures - Beetle, Diesel



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:43:07 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:43:10 AM

Page 1

© 2004 Mitchell Repair Information Company, LLC.

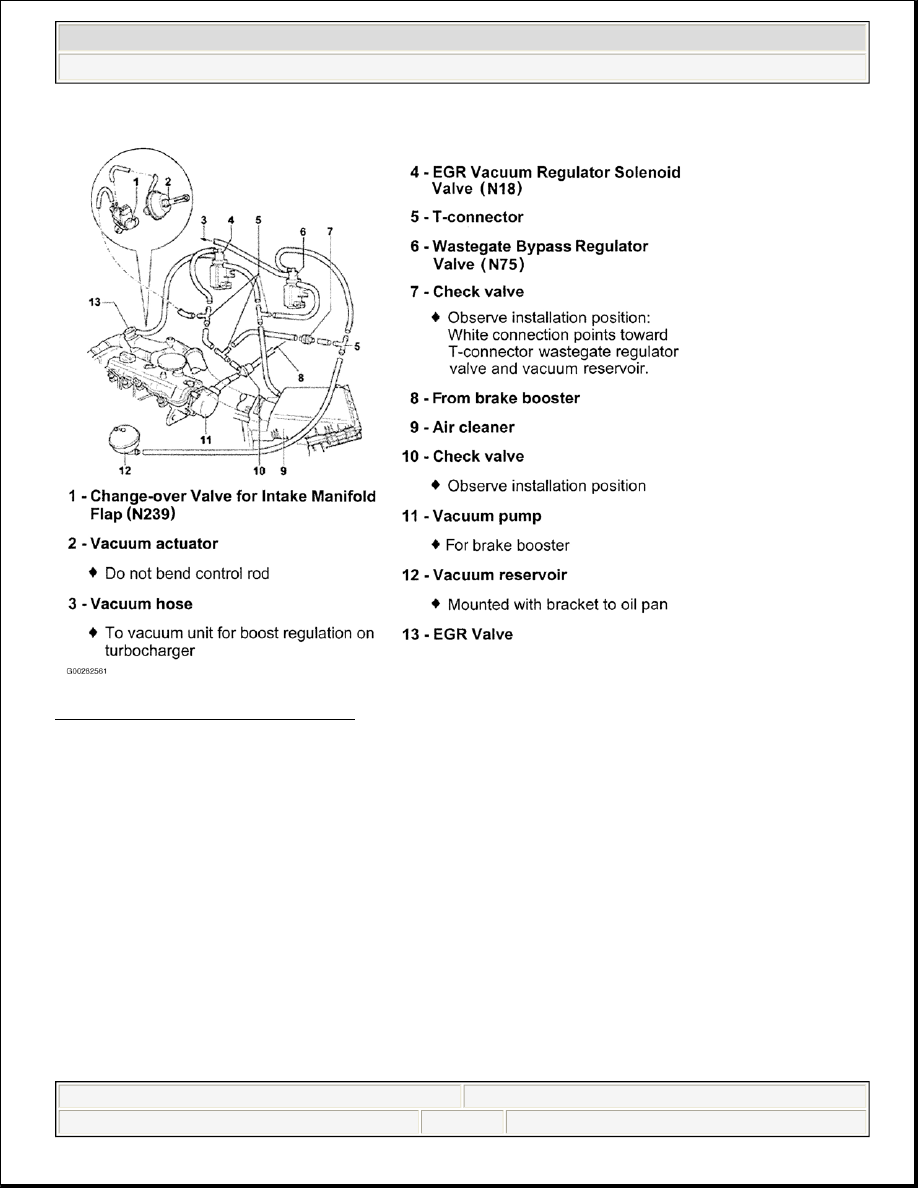

Fig. 1: Vacuum Hose Routing Diagram
