3. From charge air cooler

4. Gasket

z

replace

z

Coating (bead) to intake manifold

5. 25 Nm

6. Gasket

z

Note installed position

7. Bracket

z

For shielding plate, item no. 9

8. Washer

9. Heat shield

z

Engages in bracket, item no. 7

10. Turbocharger

z

Replace as complete unit with exhaust manifold only

z

To remove the exhaust turbocharger, disconnect right drive axle from transmission:

See FRONT AXLE SHAFT .

z

After installing turbocharger, let engine idle for approx. 1 minute without increasing engine speed.
This ensures adequate oil supply to the turbocharger.

11. Vacuum diaphragm

z

For boost pressure regulation

z

Part of turbocharger, cannot be replaced

12. From air filter

13. Gasket

z

replace

14. Seal

z

replace

15. Oil return line

z

to cylinder block

z

new version. See New version of oil return line and support .

16. Banjo fitting, 40 Nm

17. 15 Nm

18. 40 Nm

19. Brace

z

Turbocharger - cylinder block

z

new version. See New version of oil return line and support .

20. 25 Nm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle



21. Gasket

z

replace

22. Front exhaust pipe

23. Connecting piece

z

Coat threads and bolt head contact surface with G 052 112 A3

24. 10 Nm

25. Oil supply line

z

Before installing, fill turbocharger with oil at connection of oil supply line

z

Tighten to 22 Nm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle

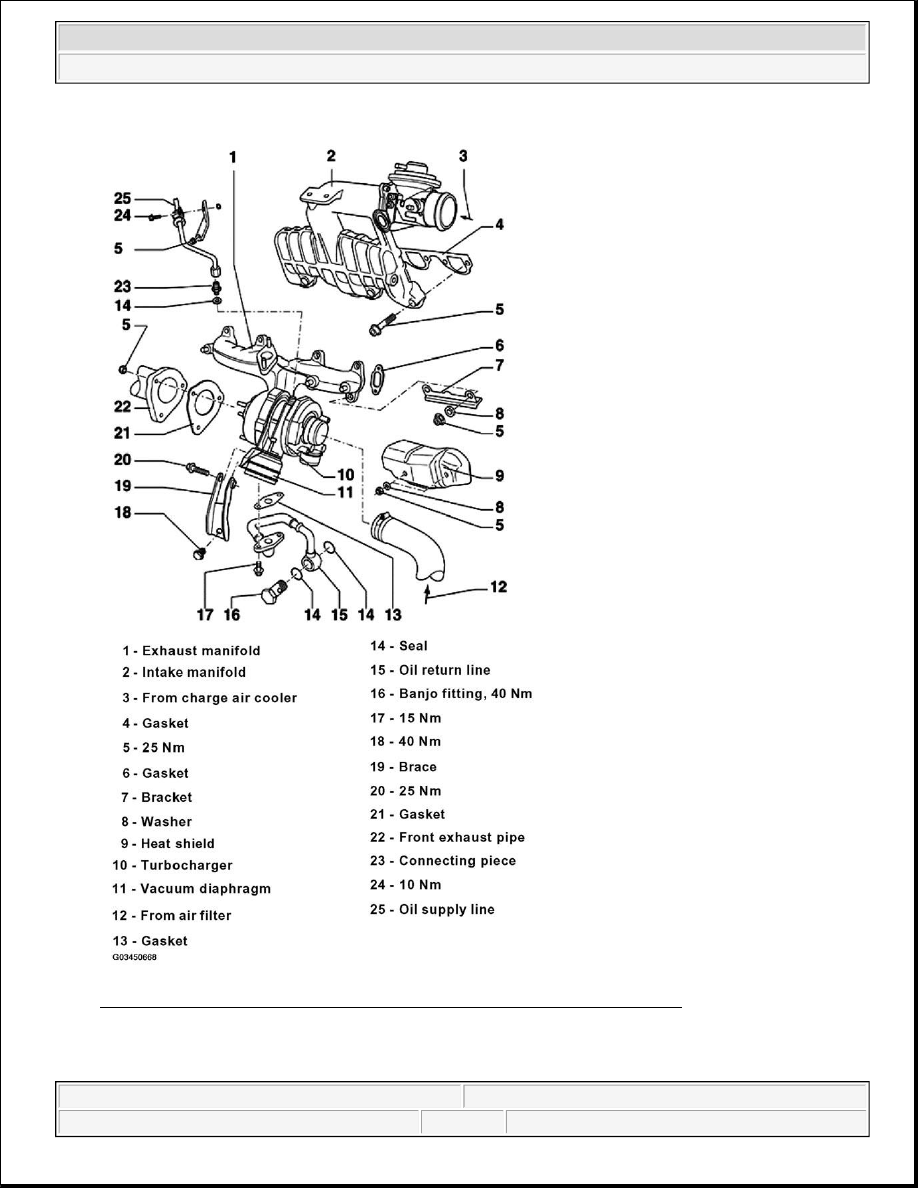

Fig. 2: Exploded View Of Turbo Charger & Exhaust Manifold Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.

New version of oil return line and support



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Turbocharger, G-Charger - New Beetle



1. Support for turbocharger - cylinder block

2. 40 Nm

3. Connection, 40 Nm

4. Oil return line with union nut

Tighten to 30 Nm on cylinder block

5. 15 Nm

6. Gasket

replace

7. 25 Nm

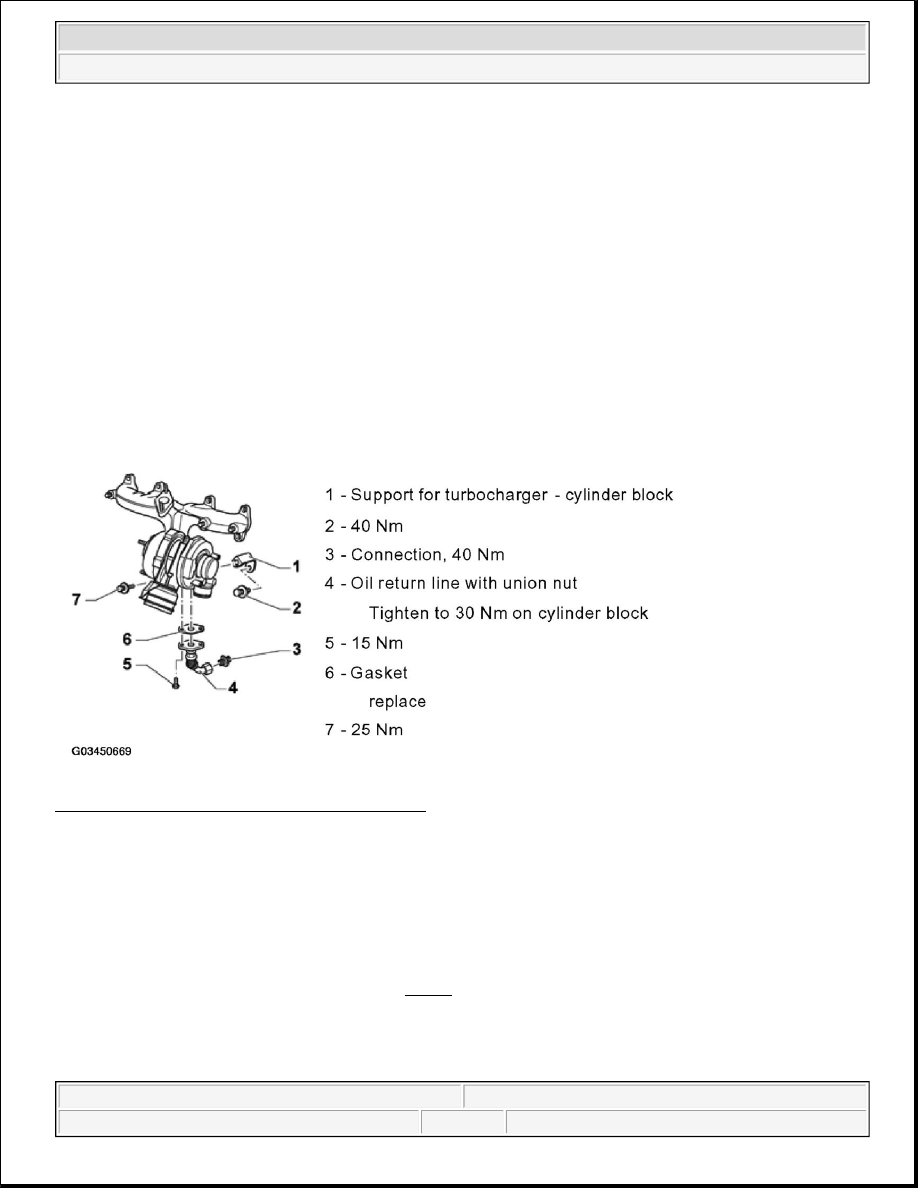

Fig. 3: Identifying Oil Return Line And Support
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Parts of charge air cooler, removing and installing

1. Connection hose

2. Connection tube

NOTE:

z

All hose connections are secured with clamps.

z

Charge air system must be properly sealed.

NOTE:

The following list refers to Fig. 4 .
