Volkswagen New Beetle. Manual - part 1719

Courtesy of VOLKSWAGEN UNITED STATES, INC.

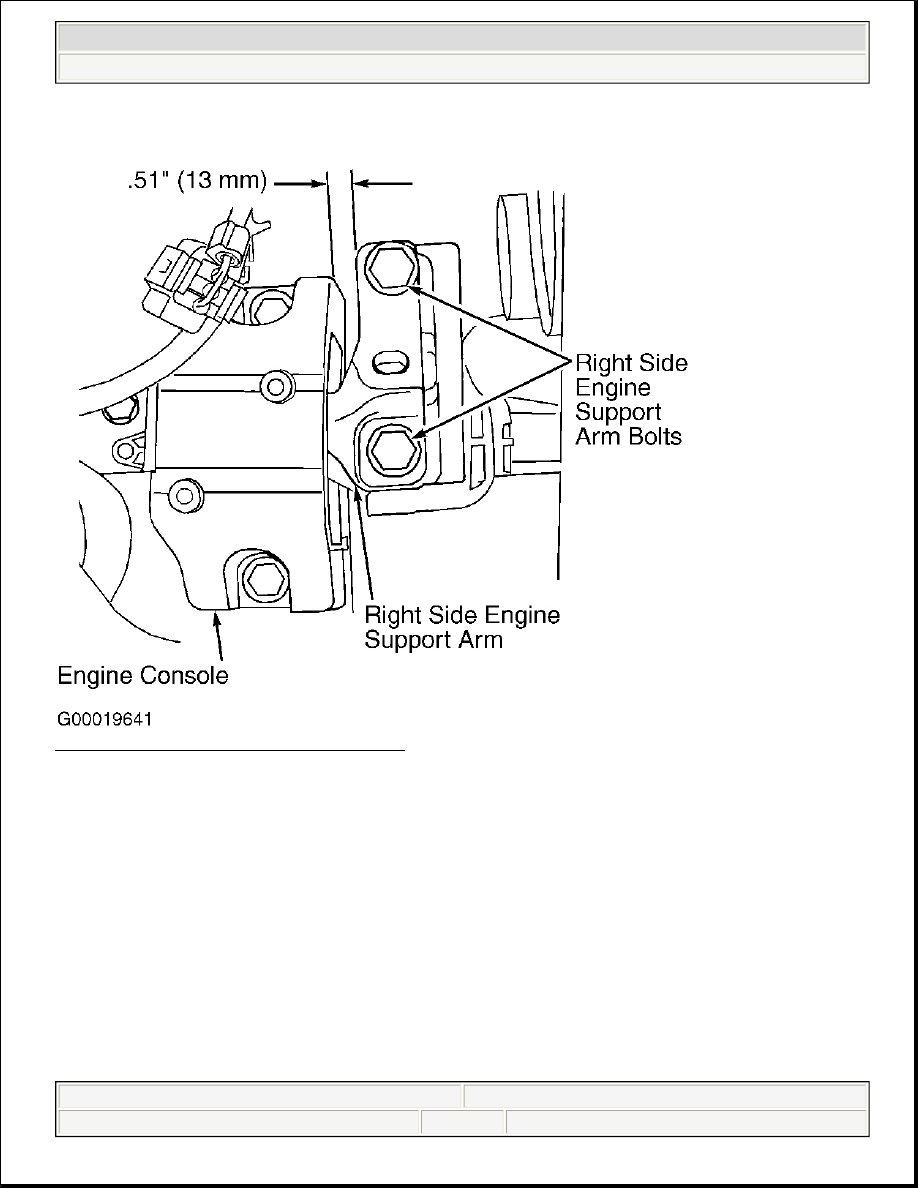

Fig. 7: Identifying Right-Hand Engine Mount
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

VOLKSWAGEN 2.0L 4-Cylinder - AEG, AVH, AZG, BDC & BEV Engines



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:41:22 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.

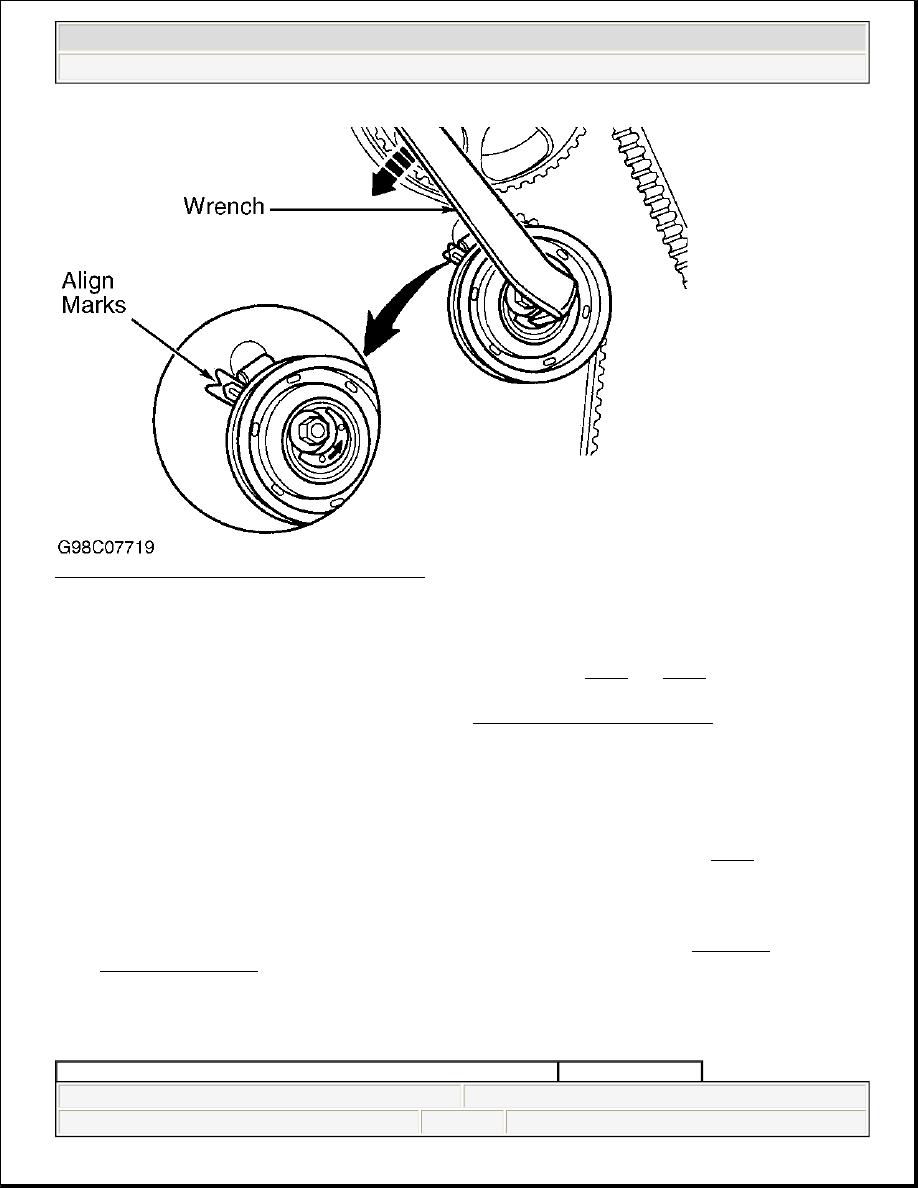

Fig. 8: Releasing/Adjusting Timing Belt Tension
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installation (AEG, AVH, AZG, BDC & BEV Engine Codes)

1. Ensure crankshaft and camshaft timing marks are still aligned. See Fig. 5 and Fig. 6 .

2. Install timing belt around crankshaft and water pump sprockets. Install engine support on front of engine

block. Tighten mounting bolts to specification. See TORQUE SPECIFICATIONS .

3. Install timing belt lower and center covers. Install crankshaft pulley and tighten bolts to specification.

Install engine mount-to-body and engine support. Remove floor jack or engine support bar from engine.

4. Install timing belt on camshaft sprocket and timing belt tensioner. Make sure there is no slack in timing

belt.

5. To tension timing belt, engine must be at most warm to the touch. Rotate tensioner pulley

counterclockwise until tensioner arrow is aligned with cut-out on cylinder head. See Fig. 8 .

6. Tighten tensioner pulley center nut to specification. Rotate crankshaft 2 revolutions in normal direction of

rotation, and recheck check belt tension. Adjust tension as necessary. Recheck all timing marks again.

7. Install upper timing belt cover. Install serpentine belt tensioner and serpentine belt. To complete

installation, reverse removal procedure. Tighten all fasteners to specification. See TORQUE
SPECIFICATIONS .

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS



2003 Volkswagen New Beetle GLS

VOLKSWAGEN 2.0L 4-Cylinder - AEG, AVH, AZG, BDC & BEV Engines



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:41:22 AM

Page 9

© 2004 Mitchell Repair Information Company, LLC.

Application

Ft. Lbs. (N.m)

Camshaft Sprocket Bolt

74 (100)

Camshaft Sprocket Sealing Plug

18 (25)

Crankshaft Pulley Socket-Head Bolts

Golf, GTI & Jetta

30 (40)

New Beetle

18 (25)

Crankshaft Sprocket Center Bolt

(1)

 ,

(2)

66 (90)

Engine Mounting Bolts

Engine Support-To-Engine Block

33 (45)

Mounting Bracket-To-Body (Small Bolt)

18 (25)

Mounting Bracket-To-Body Bolts (Large Bolts)

(1)

(2)

Mount-To-Body

74 (100)

Serpentine Belt Tensioner Bolt

18 (25)

Timing Belt Tensioner Center Nut

15 (20)

Water Pump Bolt

11 (15)

INCH Lbs. (N.m)

Timing Belt Cover Bolt

89 (10)

Valve Cover Retaining Nut

89 (10)

(1)

Replace torque-to-yield bolt on installation.

(2)

First tighten to (40 N.m), then tighten bolts an additional 90 degrees (1/4 turn).



2003 Volkswagen New Beetle GLS

VOLKSWAGEN 2.0L 4-Cylinder - AEG, AVH, AZG, BDC & BEV Engines



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:41:22 AM

Page 10

© 2004 Mitchell Repair Information Company, LLC.

VOLKSWAGEN

1.8L 4-Cylinder - New Beetle - APH, AWP & AWV Engines

MANUFACTURER'S SUGGESTED SCHEDULED MAINTENANCE

The manufacturer suggests the timing belt AND tensioner be replaced at 105,000 mile intervals.

REMOVAL & INSTALLATION

TIMING BELT

Removal

1. Remove engine cover. Remove noise insulation pan from under engine compartment.

2. Remove air duct pipe between turbocharger and charge air cooler. See Fig. 1 . Air duct pipe is located

along bottom right of cross member.

CAUTION: This application is an interference engine. Do not rotate camshaft or

crankshaft when timing belt is removed, or engine damage may occur.
