z

Brake pedal not depressed: Max. 1.5

z

Brake pedal depressed: (no continuity)

If the specifications are not obtained:

z

Replace Brake Light Switch -F- and Brake Vacuum Vent Valve Switch -F47-.

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

If the specifications are obtained:

z

Connect multimeter to measure voltage between terminal 1 and Ground (GND).

Specification: at least 11.5 V

z

Connect multimeter to measure voltage between terminal 2 and Ground (GND).

z

Switch on ignition.

Specification: min. 11.5 V

If the specifications are not obtained:

z

Check wiring between 4 -pin connector terminals 1 and 2 to central electric using Electrical Wiring
Diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

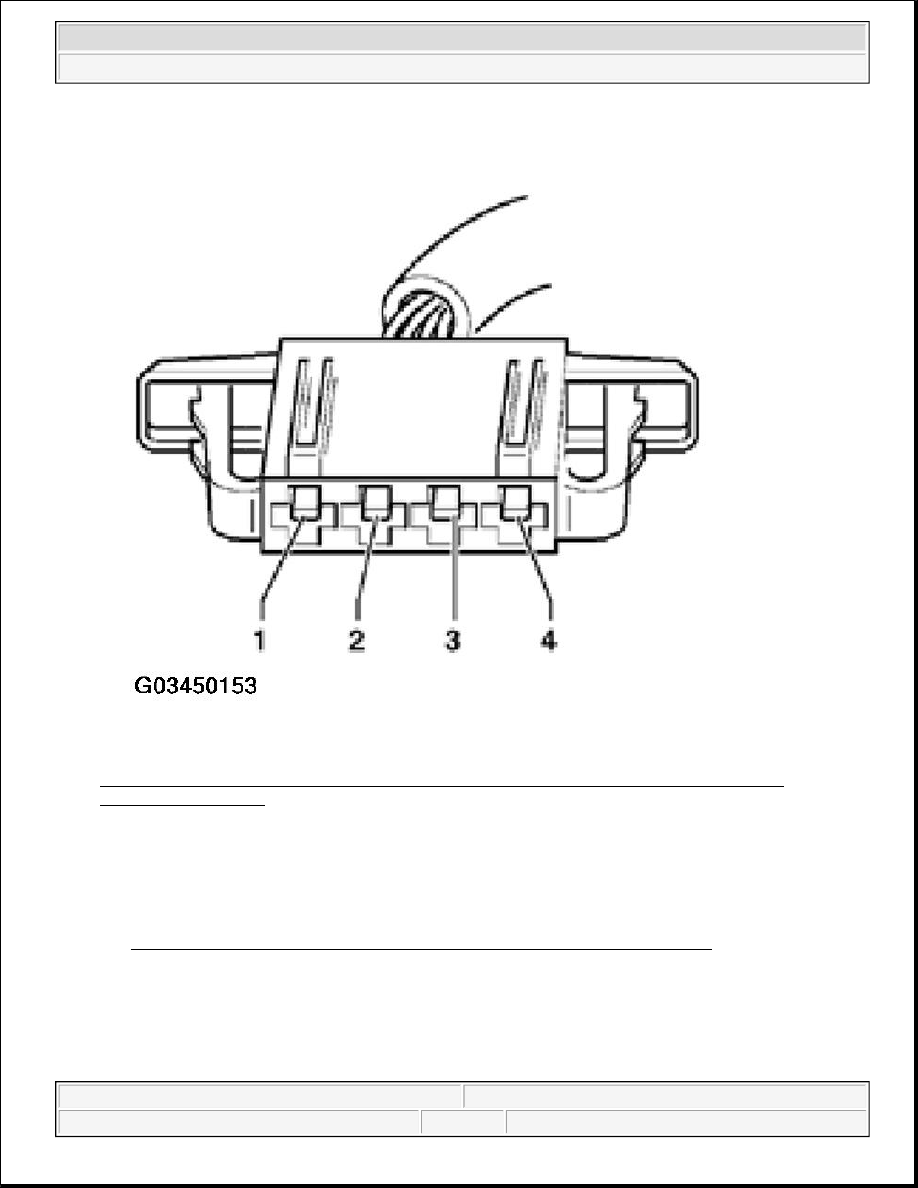

Fig. 178: Identifying Brake Light Switch And Brake Vacuum Vent Valve Switch Harness
Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If the specifications are obtained:

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 179: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between test box and 4 -pin connector using Electrical Wiring Diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

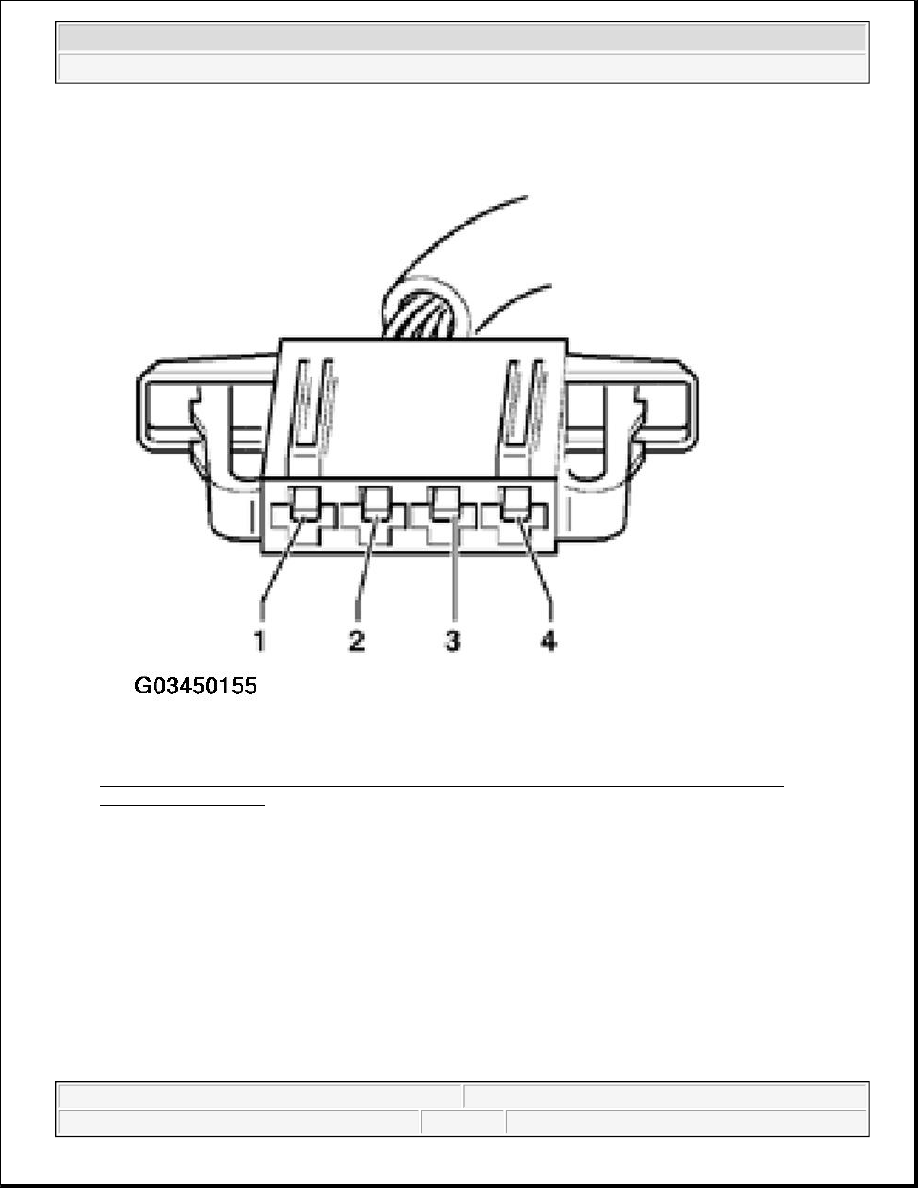

Fig. 180: Identifying Brake Light Switch And Brake Vacuum Vent Valve Switch Harness
Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

terminal 3 + socket 55

z

terminal 4 + socket 56

Wire resistance: Max. 1.5 ohm

z

Also check wires for short to one another.

z

Also check wiring for short to battery positive or Ground (GND).

If no wiring malfunction is found:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
