Significance of 3 digit number block in display zone 1

SIGNIFICANCE OF 3 DIGIT NUMBER BLOCK IN DISPLAY ZONE 1 SPECIFICATION

If the specification is obtained:

z

Change to display group 32 as follows:

z

Press -C- button.

z

Press buttons -0-, -3- and -2- for "Display group number 32" and confirm entry with -Q- button.

Indicated on display (1 to 2 -- Display zones)



Display zones

1

2

3 4

Display group 30: oxygen sensor control
Display

xxx

xxx

- -

Indicated

Status of oxygen sensor control before Three Way

Catalytic Converter (TWC)

Status of oxygen sensor

control after Three Way

Catalytic Converter (TWC)

- -

Working
range

-

-

- -

Specification

111

110

- -



Significance, see CHECKING OXYGEN SENSOR

WIRING FOR OXYGEN SENSOR 1

-

- -



If the specification is not obtained, see Heated Oxygen

Sensor (HO2S) for oxygen sensor before Three Way

Catalytic Converter (TWC), checking

-

- -

NOTE:

For display zone 1:

z

The first figure in the 3 figure number block periodically changes between
0 and 1 (Heated Oxygen Sensor (HO2S) on and off).

z

The numbers in the 3 figure number block can alternate from 0 and 1 in the
display depending on the status of the oxygen sensor control.

Significance if display = 1
1

2

3

Significance





1

Oxygen sensor control active



1



Oxygen sensor operationally ready

1





Heated Oxygen Sensor (HO2S) on



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



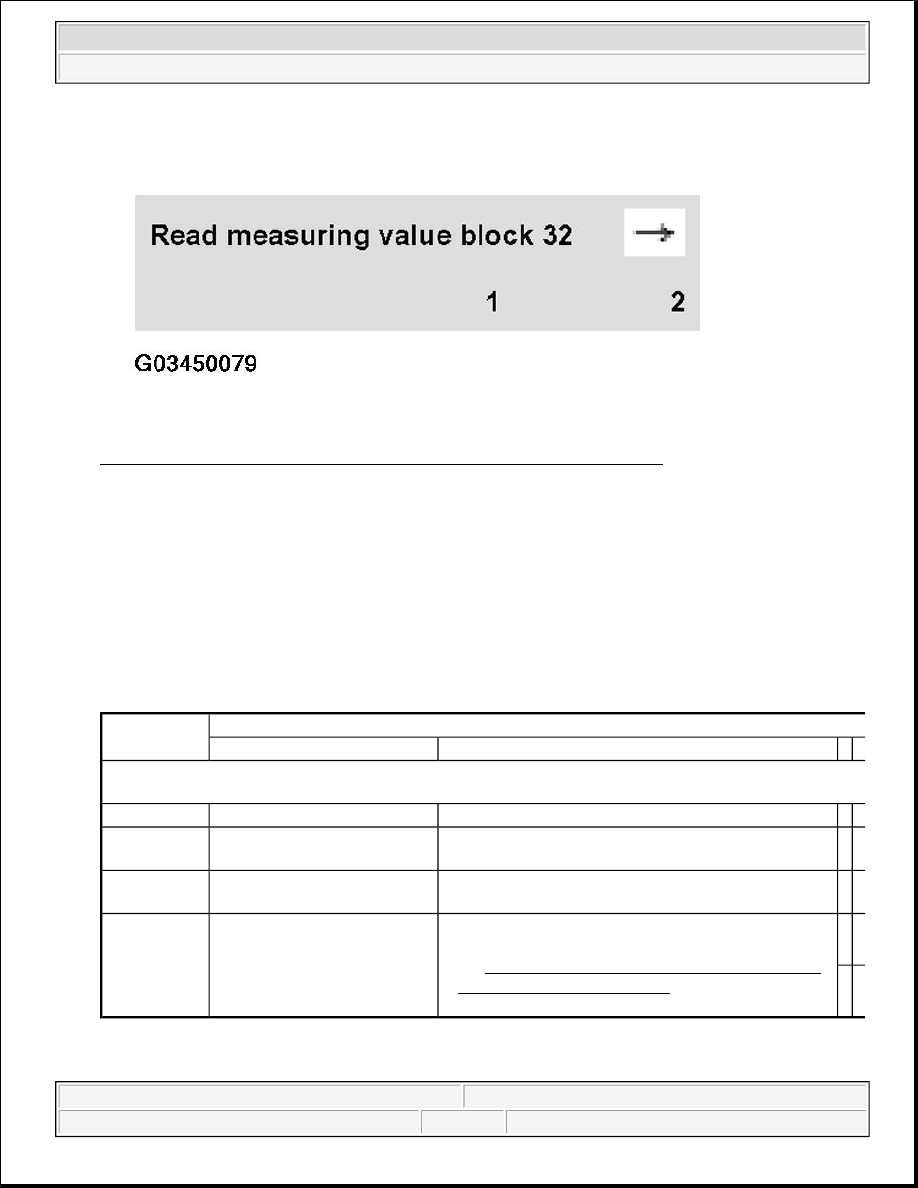

Fig. 104: Identifying Scan Tool Display - Read Measuring Value Block 32
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check oxygen sensor control learned values at idling speed (additive) in display zone 1.

Specification: -3.0...3.0%

z

Check oxygen sensor control learned values at part load (multiplicative) in display zone 2.

Specification: -10.0...10.0%

DISPLAY GROUP 32: OXYGEN SENSOR CONTROL LEARNED VALUES BEFORE THREE
WAY CATALYTIC CONVERTER (TWC)



Display zones

1

2

3 4

Display group 32: oxygen sensor control learned values before Three Way Catalytic Converter
(TWC)
Display

xx.x %

xx.x %

- -

Indicated

Oxygen sensor control learned

value at idling (additive)

Oxygen sensor control learned value at part load

(multiplicative)

- -

Working
range

-25.0 to 25.0%

-25.0 to 25.0%

- -

Specification

-3.0 to 3.0%

can fluctuate slightly

If the specifications are not

achieved

-10.0 to 10.0%

can fluctuate slightly

See CHECKING OXYGEN SENSOR WIRING

FOR OXYGEN SENSOR 1 , Evaluating display

group 32

- -

- -

NOTE:

In display zones 1 and 2:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If the specification is obtained:

z

Change to display group 33 as follows:

VAG 1551: Press button -3-

VAG 1552: Press button

Indicated on display (1 to 2 Display zones)

z

Oxygen Sensor control learned values are fuel dependent!

z

Low values indicate that the engine is running too rich and therefore
the oxygen sensor control is leaning the mixture.

z

High values indicate that the engine is running too lean and therefore
the oxygen sensor control enriches the mixture.

z

If there is no voltage supply to the control module all the values
learned will be cancelled.

z

add = additive - The effects of the malfunction (e.g. unmetered air)
will reduce as the engine speed increases. The injection period will
be modified by a fixed amount for additive learned values. This
amount is not dependent upon the basic injection period.

z

mul = multiplicative - The effects of the malfunction (e.g.
malfunctioning fuel injector) will increase as the engine speed
increases. A multiplicative learned value is a proportional change to
the injection period. This change is dependent on the basic injection
period.

Initiating learning process: Control module in mode 04, Basic
settings

z

Learning prerequisites for idle speed: idle speed, Engine Coolant
Temperature (ECT) min. 75 C, intake air temperature max. 90 °C.

z

Learning prerequisites for part load: Engine Coolant Temperature
(ECT) min. 75 °C, intake air temperature max. 90 °C

z

EVAP canister purge regulator valve must be closed and the A/C
compressor must be off.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



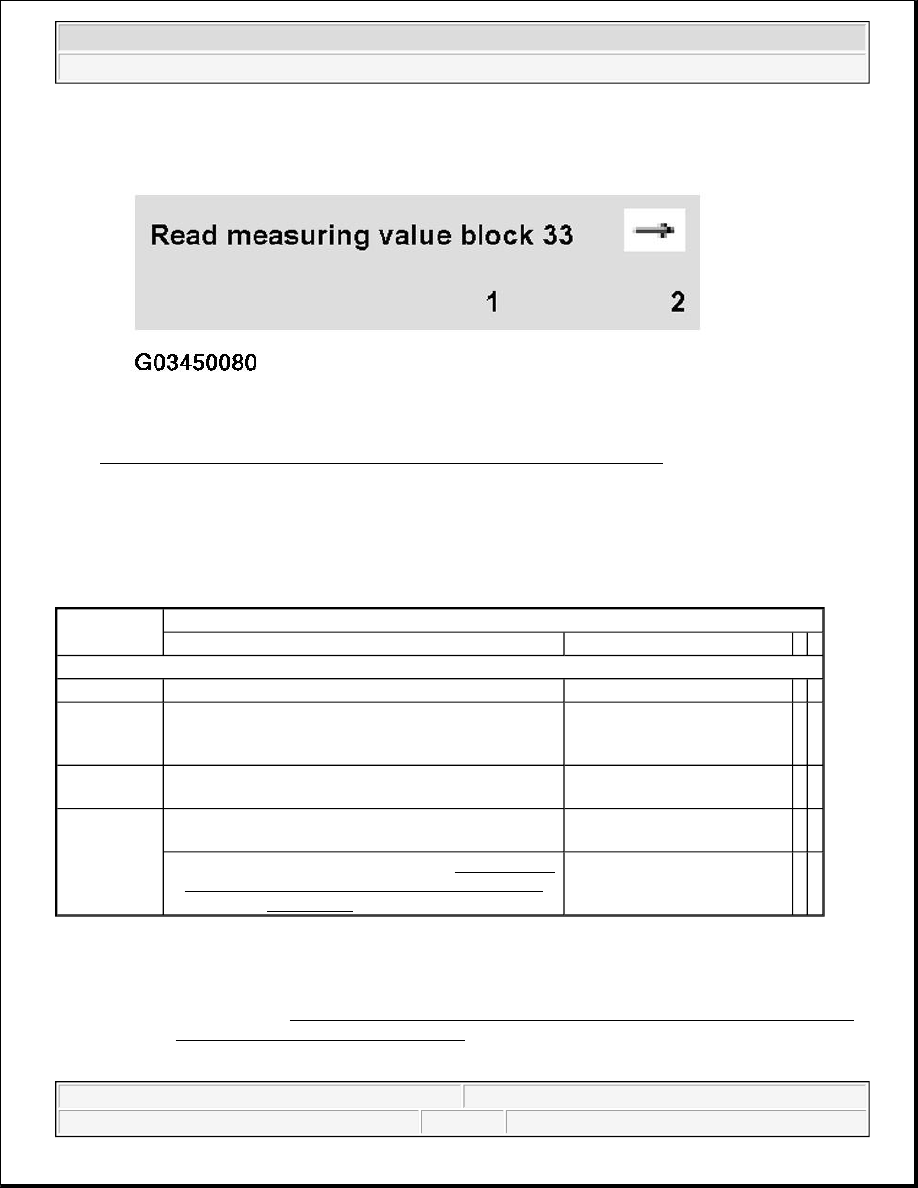

Fig. 105: Identifying Scan Tool Display - Read Measuring Value Block 33
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Observe oxygen sensor control in display zone 1. Display must fluctuate at least 2% in the range -10.0 to
10.0%

DISPLAY GROUP 33: OXYGEN SENSOR CONTROL BEFORE THREE WAY CATALYTIC
CONVERTER (TWC)



Display zones

1

2

3 4

Display group 33: oxygen sensor control before Three Way Catalytic Converter (TWC)
Display

xx.x %

x.xxx V

- -

Indicated

Oxygen sensor control before Three Way Catalytic

Converter (TWC)

Oxygen sensor voltage before

Three Way Catalytic

Converter (TWC)

- -

Working
range

-25.0 to 25.0%

-

- -

Specification The value must fluctuate at least 2% in -10.0 to 10.0%

range

-

- -

If the specification is not obtained, see CHECKING

OXYGEN SENSOR WIRING FOR OXYGEN

SENSOR 1 , Continuation

-

- -

NOTE:

In display zone 1: the display must fluctuate around 0.0%. If 0.0% is displayed
constantly, the oxygen sensor control has switched from regulation to control,
because there is a malfunction in the oxygen sensor control. Check DTC
Memory, see DTC MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM)
-J220-, CHECKING AND ERASING .
