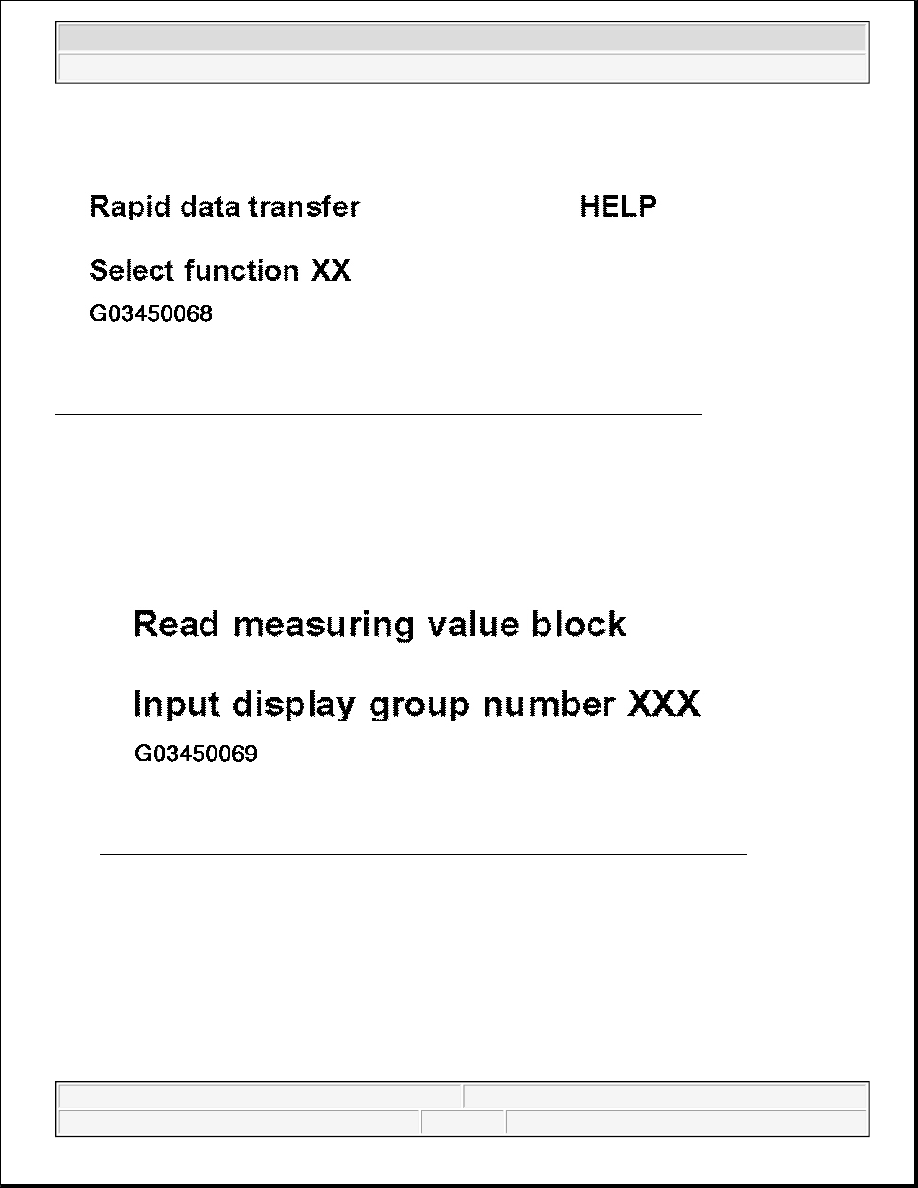

Fig. 93: Identifying Scan Tool Display - Checking For Unmetered Air Leaks (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display

Fig. 94: Identifying Scan Tool Display - Checking For Unmetered Air Leaks (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -1- for "Display group number 1" and confirm entry with -Q- button.

Indicated on display (1 to 4 Display zones)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



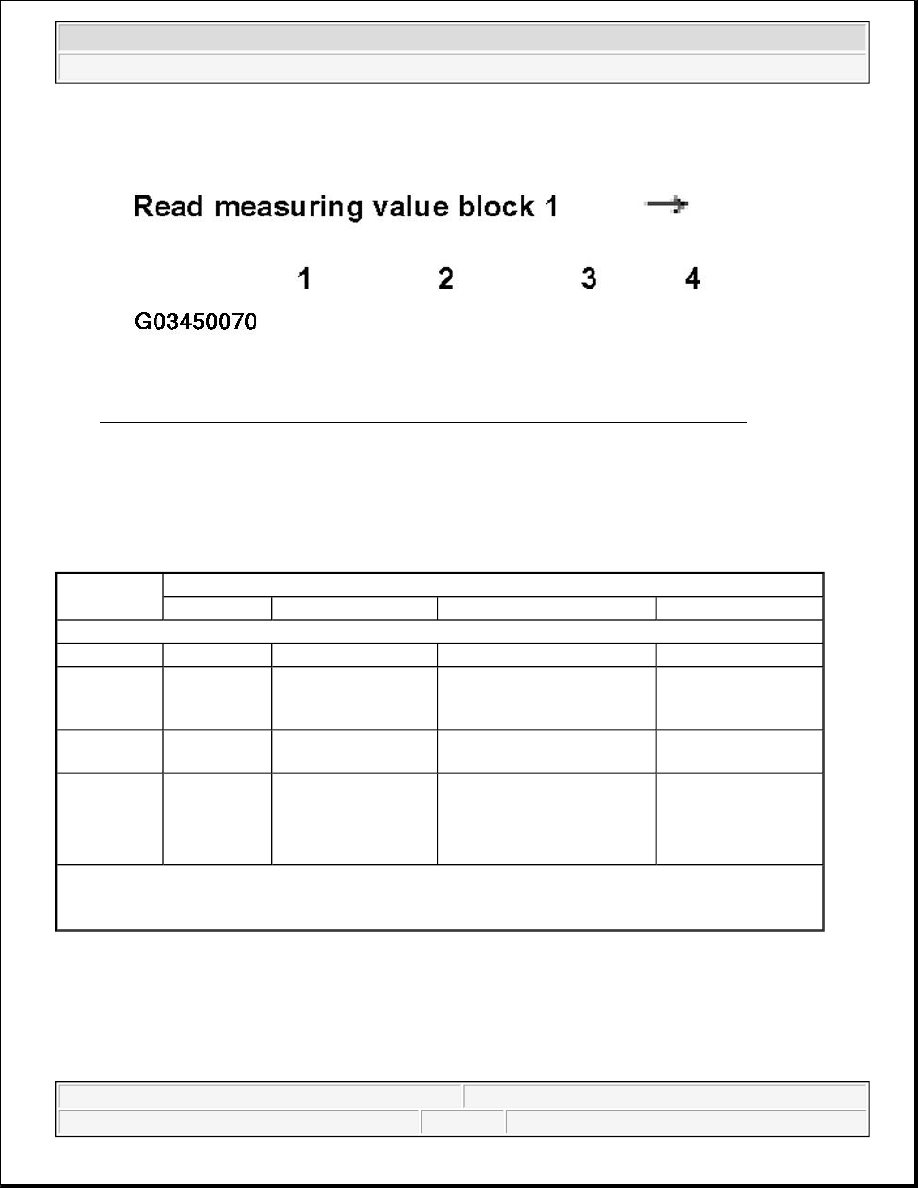

Fig. 95: Identifying Scan Tool Display - Checking For Unmetered Air Leaks (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check whether Engine Coolant Temperature (ECT) is above 80 °C in display zone 2.

z

Observe engine speed in display zone 1 and oxygen sensor control before Three Way Catalytic Converter
(TWC) in display zone 3.

DISPLAY GROUP 1: IDLING TEST

z

Systematically spray parts of intake system with engine leak detector spray.

If the engine speed drops or the oxygen sensor control changes:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.



Display zones

1

2

3

4

Display group 1: Idling test
Display

xxxx RPM

xxx.x °C

xx.x %

xxxxxx

Indicated

Engine speed

(in steps of

40)

Engine Coolant

Temperature (ECT)

Oxygen sensor control

before Three Way Catalytic

Converter (TWC)

Adjustment

conditions for basic

setting

Working
range

0 to 6800

RPM

-48.0 to 143.05C

-10.0 to 10.0%

-

Specification

760 to 810

RPM

(1)



700 to 750

RPM

(2)

80.0 to 115.05C

The value must fluctuate by

at least 2% in the -10.0 to

10.0% range

-

(1)

Engine idling at normal operating temperature for manual transmission

(2)

Engine idling at normal operating temperature for automatic transmission



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Switch off ignition.

z

Check sprayed areas of intake system for leaks and repair if necessary.

If the engine speed and the oxygen sensor control do not change:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

FUNCTIONS, CHECKING

Idle speed, checking

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

Test conditions

z

Exhaust system between Three Way Catalytic Converter (TWC) and cylinder head must be free of leaks

z

All electrical accessories, e.g. lights and rear window defroster must be switched off

z

If the vehicle is equipped with air conditioning, it must be turned off

z

On vehicles with automatic transmission selector lever in "P" or "N" position

z

Engine Coolant Temperature (ECT) must be at least 80 °C display group 04, display zone 3

z

Intake air temperature less than 60 °C, see display group 04, display zone 4

Test sequence

z

Connect VAG 1551 scan tool ((VAG 1552). Start engine and select "Address word" 01 of Motronic
Engine Control Module (ECM) -J220-. Engine must be running at idle speed. Connecting scan tool and
selecting Motronic Engine Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND
SELECTING MOTRONIC ENGINE CONTROL MODULE (ECM) -J220- .

z

- Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or

NOTE:

z

Idle speed, ignition timing and CO content not adjustable.

z

The idle speed is regulated to specification by the throttle valve positioner
in conjunction with the DIS function.

z

CO content regulated by oxygen sensor control. Malfunctions in oxygen
sensor control are detected in On Board Diagnostic (OBD) and stored in
DTC memory.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

z

Leave VAG 1551 scan tool connected.

z

Continue running engine at idle speed.

Indicated on display

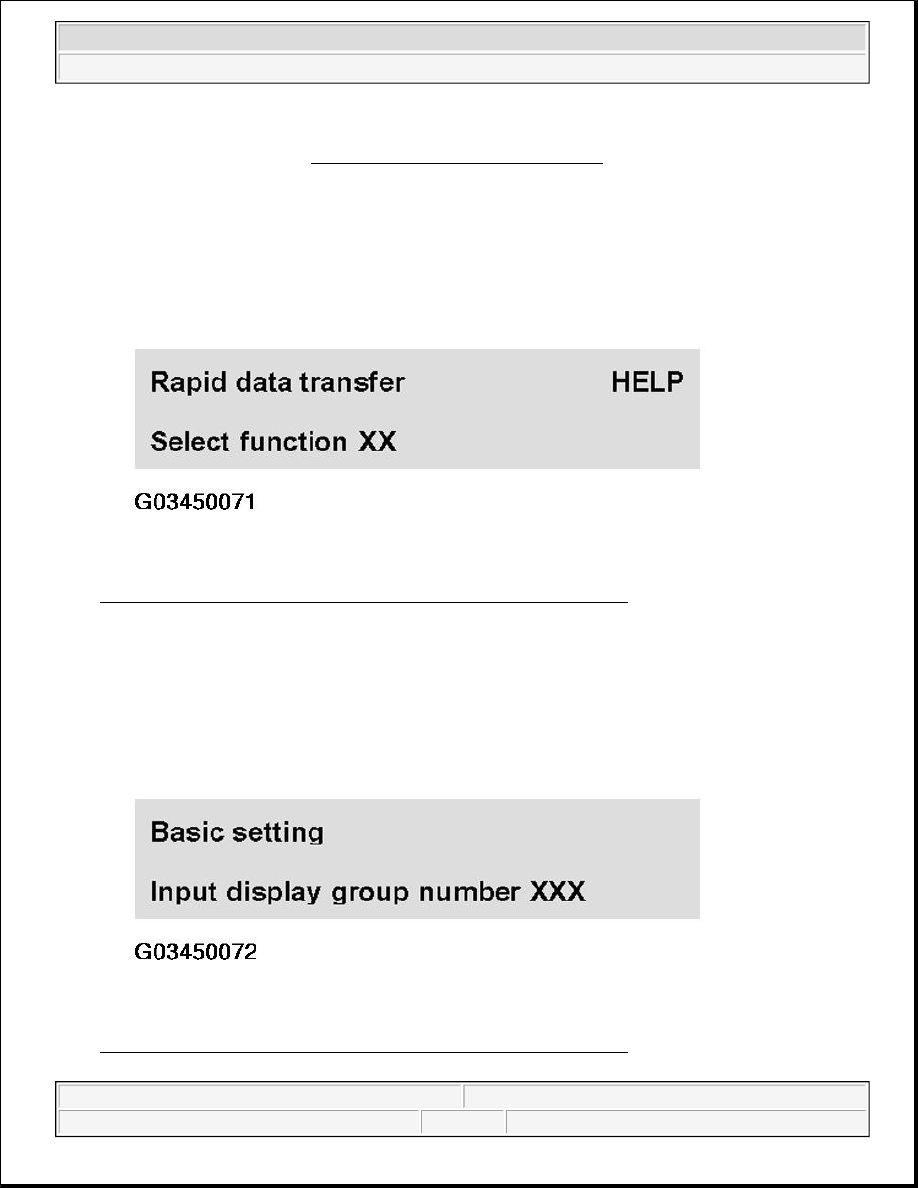

Fig. 96: Identifying Scan Tool Display - Checking Idle Speed (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -4- for function "Basic Setting" and confirm entry with -Q- button.

Indicated on display

Fig. 97: Identifying Scan Tool Display - Checking Idle Speed (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
