Volkswagen New Beetle. Manual - part 1680

LED must flicker

If the LED does not flicker:

z

Switch off ignition.

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.

Fig. 81: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Check wiring between the test box and 2-pin connectors for open circuit, short circuit to Ground (GND)
or positive using Electrical Wiring Diagram:

z

Fuel injector 1: terminal 2 + socket 96

z

Fuel injector 2: terminal 2 + socket 89

z

Fuel injector 3: terminal 2 + socket 97

z

Fuel injector 4: terminal 2 + socket 88

z

Wire resistance: Max.1.5



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

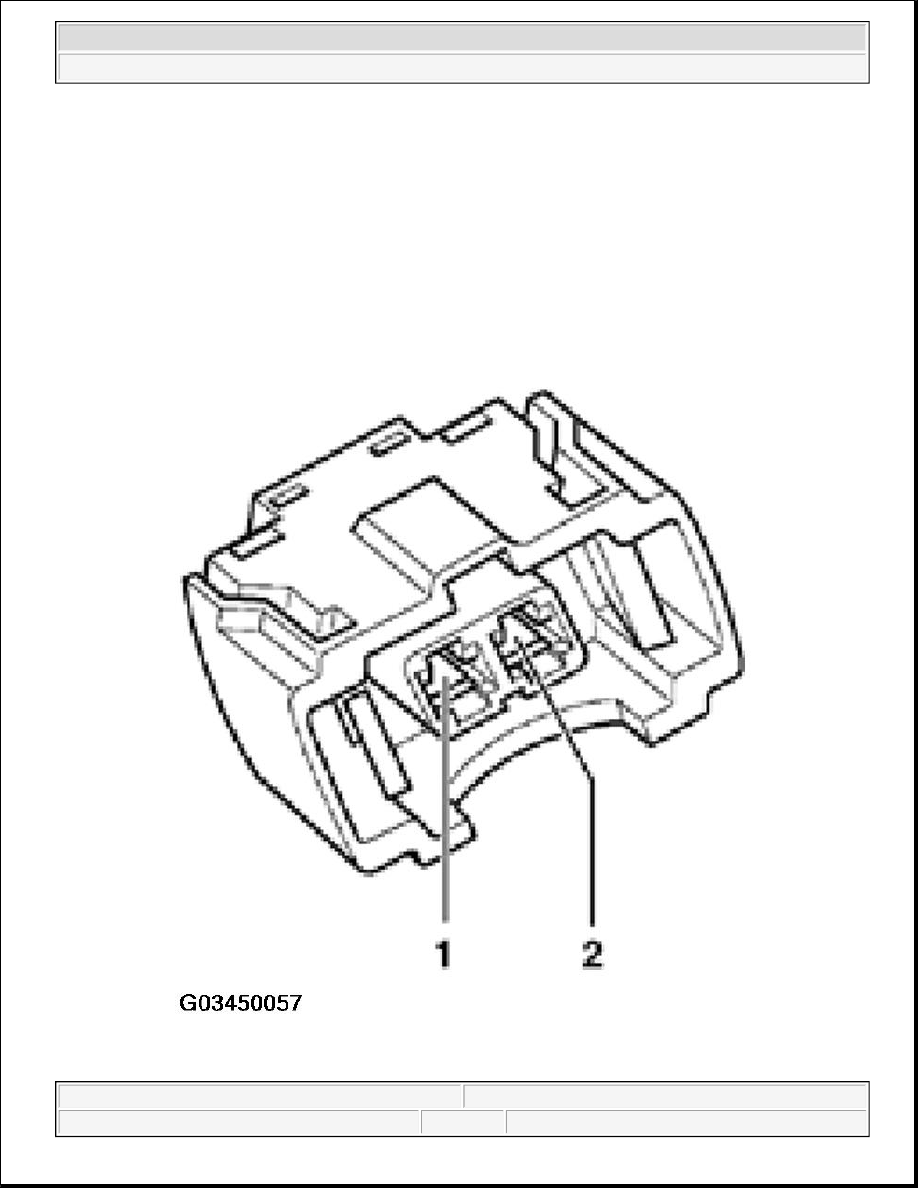

Fig. 82: Identifying Fuel Injector Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Additionally check wires for short to one another.

Specification:

If there is no malfunction in the wiring and the resistance measurement values are OK.:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING .

Fuel injectors, checking for leaks and quantity injected

Special tools, test equipment and auxiliary items

z

VAG 1348/3 Remote control

z

VAG 1348/3-2 Adapter

z

VAG 1602 Calibration tester



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

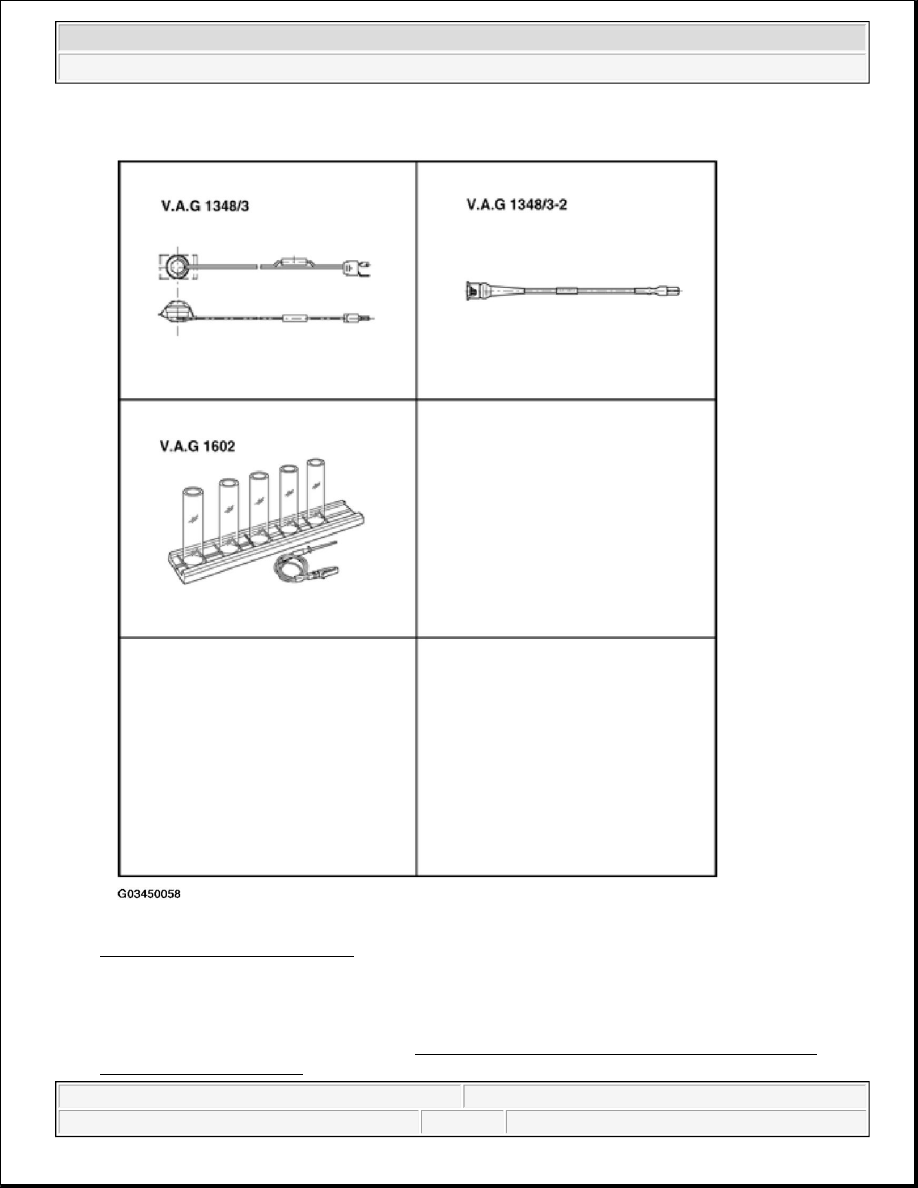

Fig. 83: Identifying Special Tools
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Test conditions

z

Check that the fuel pressure is in order, see FUEL PRESSURE REGULATOR AND HOLDING
PRESSURE, CHECKING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
