34. From crankcase breather

z

Valve cover

35. From intake hose

z

See item 7

See TURBOCHARGER, G-CHARGER

36. To Recirculating valve for turbocharger -N249-

z

See item 7

See TURBOCHARGER, G-CHARGER

37. To pressure unit on turbo charger

See TURBOCHARGER, G-CHARGER

38. Wastegate Bypass Regulator Valve - N75-*/**

z

Component location, see MULTIPORT FUEL INJECTION (MFI) , engine compartment
overview

z

Charge pressure system:

See TURBOCHARGER, G-CHARGER

39. Intake hose

z

Note installation position

40. To vacuum booster

See TURBOCHARGER, G-CHARGER

41. Mass Air Flow (MAF) sensor -G70-*

z

5-pin connector

z

Socket 1 not occupied

z

Sensor and connector terminals are gold-plated

z

Checking, see MASS AIR FLOW (MAF) SENSOR, CHECKING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

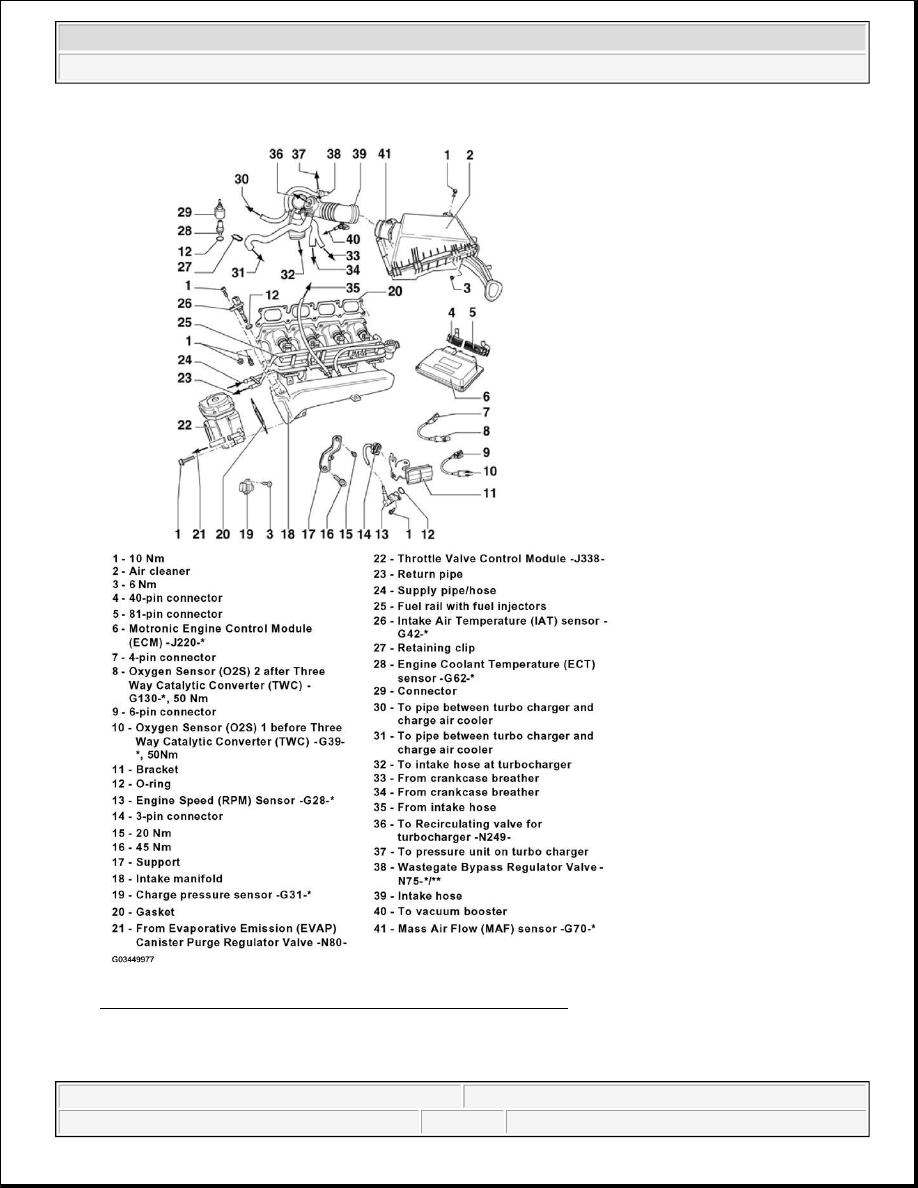

Fig. 2: Exploded View Of Fuel Injection System Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Air cleaner, disassembling and assembling



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



The following list pertains to Fig. 3 .

1. 10 Nm

2. Mass Air Flow (MAF) sensor -G70-

z

Sensor and connector terminals are gold-plated

z

Socket 1 not occupied

z

Checking, see MASS AIR FLOW (MAF) SENSOR, CHECKING

3. Connector

z

Black, 5-pin

z

Sensor and connector terminals are gold-plated

z

Socket 1 not occupied

4. Seal

z

Replace if damaged

5. Air cleaner upper part

6. 6 Nm

7. Filter element

8. Air cleaner lower part

9. Air duct

10. O-ring

z

Replace if damaged

11. Intake hose

z

Ensure seated tightly

z

Press together at front to release

z

To Secondary air injection (AIR) pump motor -V101-:

See EXHAUST SYSTEM, EMISSION CONTROLS



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

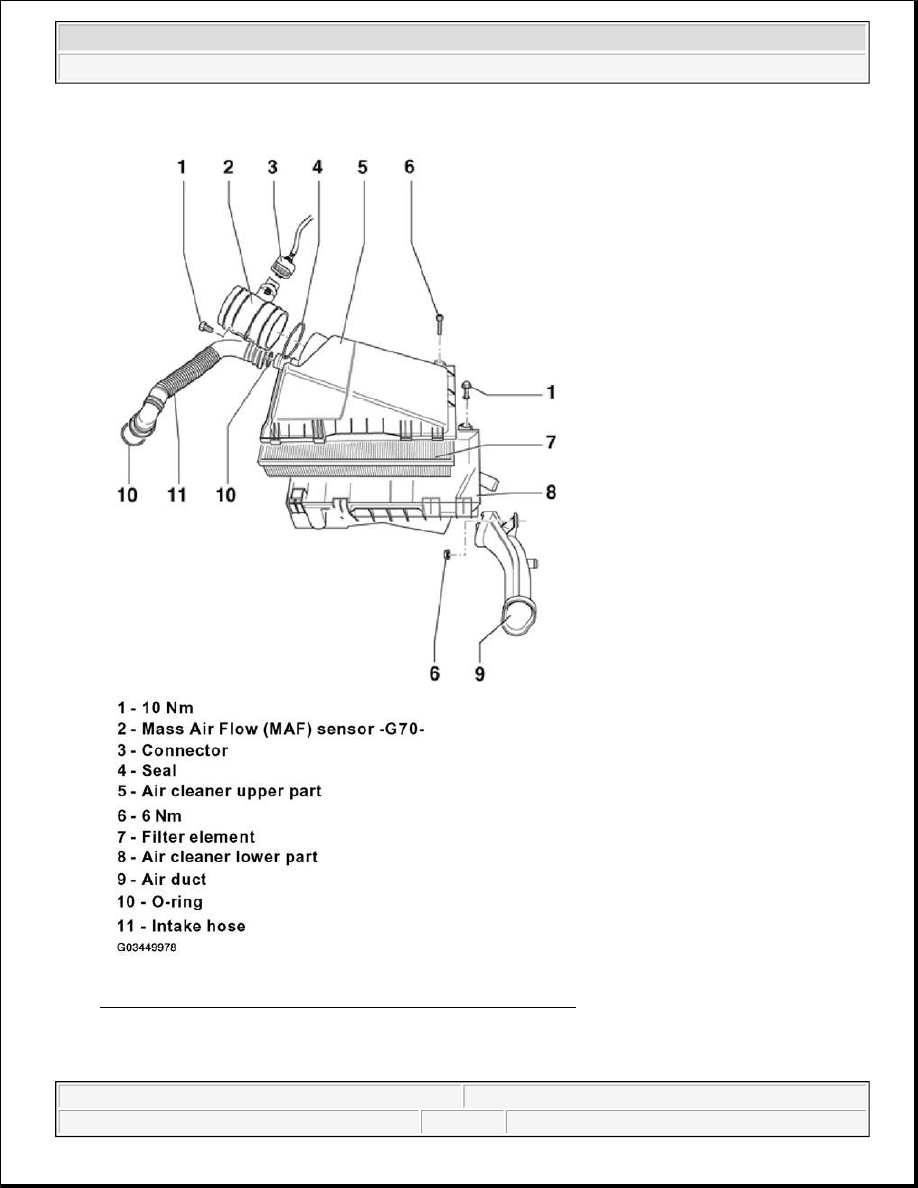

Fig. 3: Identifying MAF Sensor And Air Cleaner Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Fuel rail with fuel injectors, disassembling and assembling
