z

Battery voltage must be at least 11.5 V

z

Speedometer must be OK., checking speedometer:

See INSTRUMENTS

z

Selector lever must be in position "P" or "N" on vehicles with an automatic transmission

Test sequence

z

Connect VAG 1551 scan tool ((VAG 1552). Start engine and select "Address word" 01 of Motronic
Engine Control Module (ECM) -J220-. Engine must be running at idle speed. Connecting scan tool and
selecting Motronic Engine Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND
SELECTING MOTRONIC ENGINE CONTROL MODULE (ECM) -J220- .

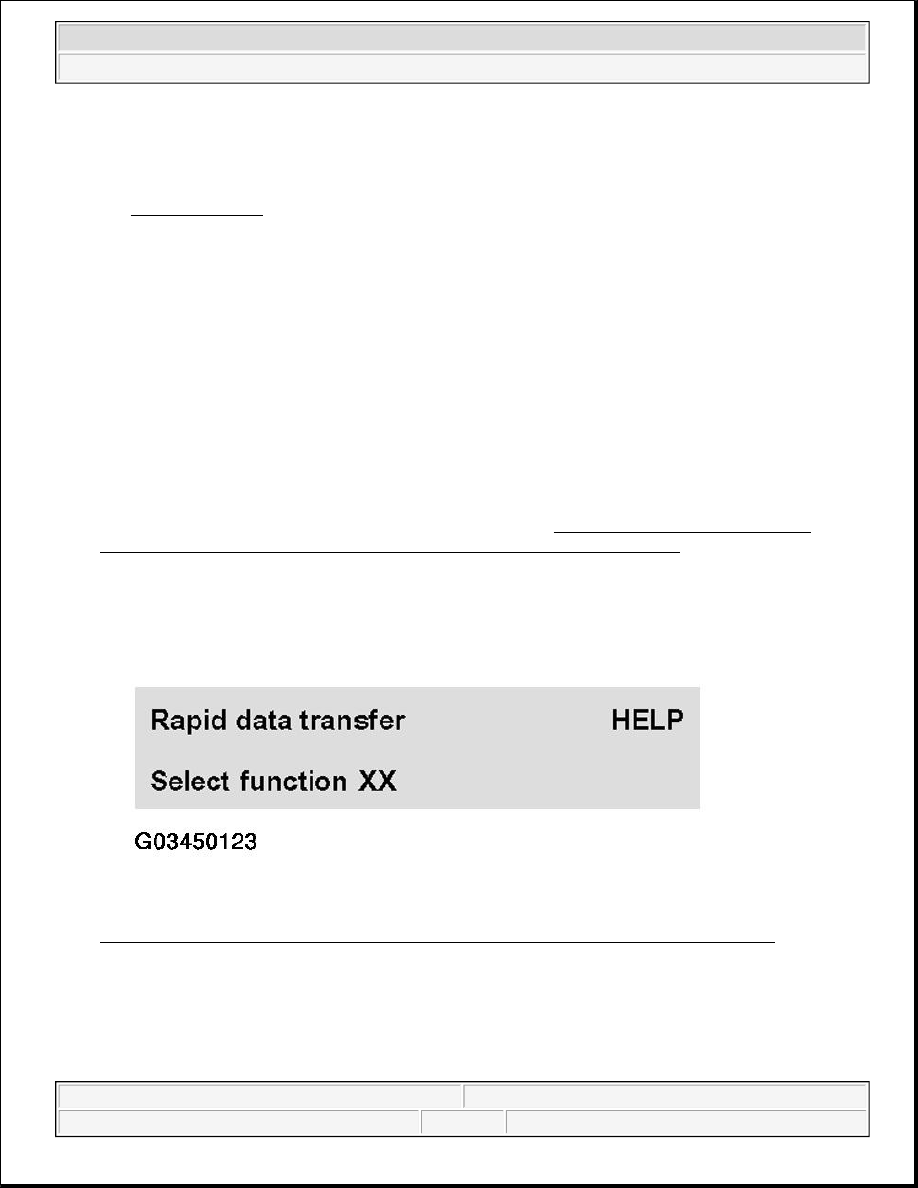

Indicated on display

Fig. 148: Identifying Scan Tool Display - Engine Speed Signal (RPM), Checking (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -8- for function "Read measuring value block" and confirm entry with -Q- button.

Indicated on display

NOTE:

To check the speed signal the vehicle must be driven and a second person is
necessary.

WARNING:

During a road test in an airbag-equipped vehicle, test equipment must
always be fastened to and operated from the rear seat by a second
technician.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



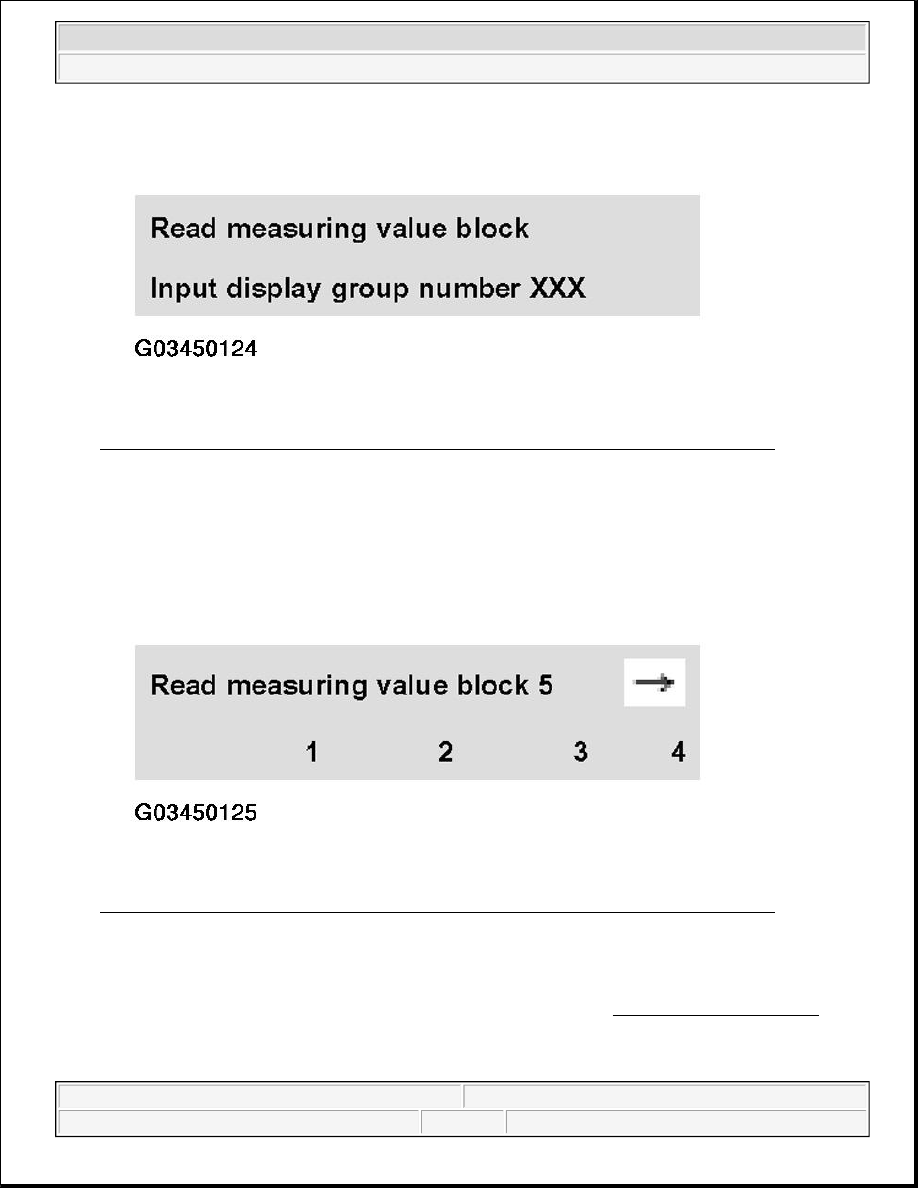

Fig. 149: Identifying Scan Tool Display - Engine Speed Signal (RPM), Checking (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -5- for "Display group number 5" and confirm entry with -Q- button.

Indicated on display (1 to 4 - Display zones)

Fig. 150: Identifying Scan Tool Display - Engine Speed Signal (RPM), Checking (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Test drive vehicle with a 2nd person to observe display.

Observe the valid safety precautions when carrying out a road test, see SAFETY PRECAUTIONS .

z

Observe figure displayed in display zone 3:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Specification: approx. driven speed

DISPLAY GROUP 5: GENERAL ENGINE DATA

z

Press --> button.

z

Press buttons -0- and -6- for "End output" function and confirm input with -Q- button.

z

Switch off ignition.

Continuation

If no speed is displayed:

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



Display zones

1

2

3

4

Display group 5: General engine data
Display

xxxx RPM

xxx %

xxx km/h

Idling part load full

load overrun

enrichment

Indicated

Engine

speed (in

steps of 40)

Engine

load

Vehicle speed

Operating mode

Working
range

0 to 6800

RPM

0 to

175%

0 to 260 km/h

-

Specification

-

-

Approx. vehicle speed

-

-

-

If no driving speed is displayed, see

SIGNAL FROM/TO AIR

CONDITIONING, CHECKING ,

Continued



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 151: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Connect multimeter to measure voltage between test box sockets 3 (terminal 15) + 54 (speed signal).

z

Switch on ignition.

z

Lift vehicle at front left.

z

Rotate front wheel and observe voltage display.

Specification: between 0 and at least 4 Volt fluctuating

If the display does not fluctuate:

NOTE:

If necessary, hold the front right wheel to prevent it from turning.
