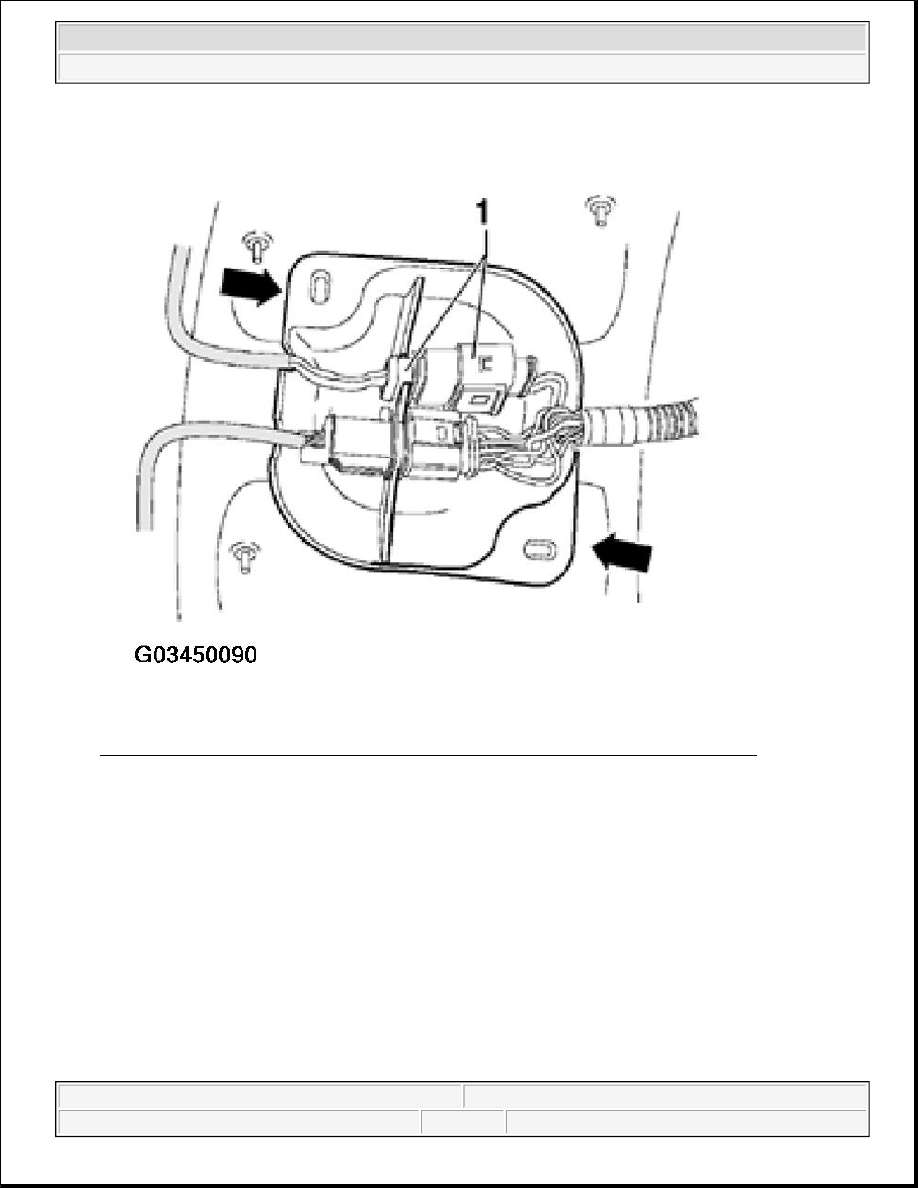

Fig. 115: Separating 4-Pin Connector (Black/Brown) -1- To HO2S -G130- After TWC
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Connect multimeter with auxiliary cables from VAG 1594 to measure voltage at terminals 3 + 4
(connector to Motronic control module).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

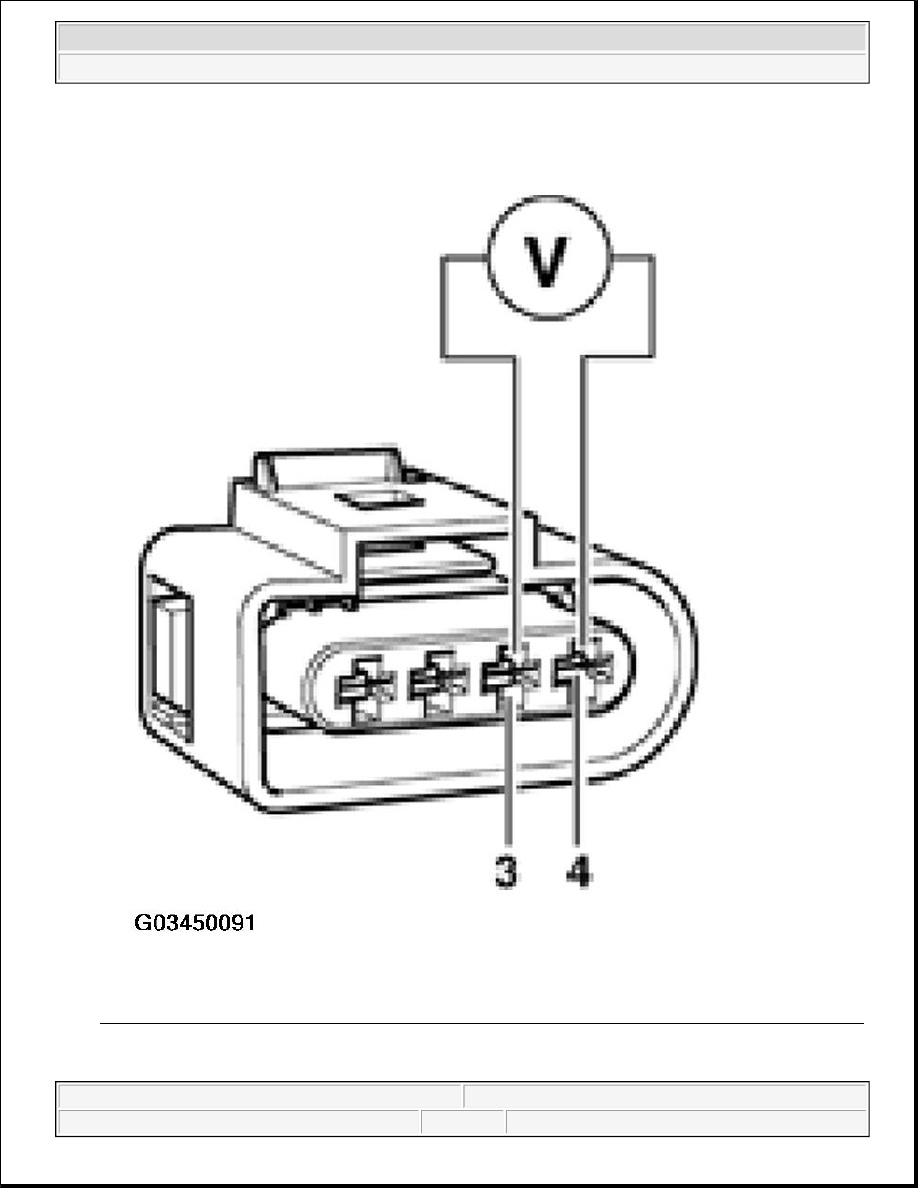

Fig. 116: Measuring Voltage At Terminals 3 And 4 On HO2S -G130- Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Start engine and measure basic voltage.

Specification: 0.400 to 0.500 V

z

Switch off ignition.

If the specification is not obtained:

z

Check oxygen sensor wiring, see CHECKING OXYGEN SENSOR WIRING, OXYGEN SENSOR
2 .

If the specification is obtained:

z

Replace Oxygen Sensor after Three Way Catalytic Converter (TWC) -G130-, see item 8 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

Checking Oxygen Sensor wiring, oxygen sensor 2

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 117: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between test box and 4 -pin connector to Motronic control module using
Electrical Wiring Diagram.

z

terminal 3 + socket 68

z

terminal 4 + socket 69
