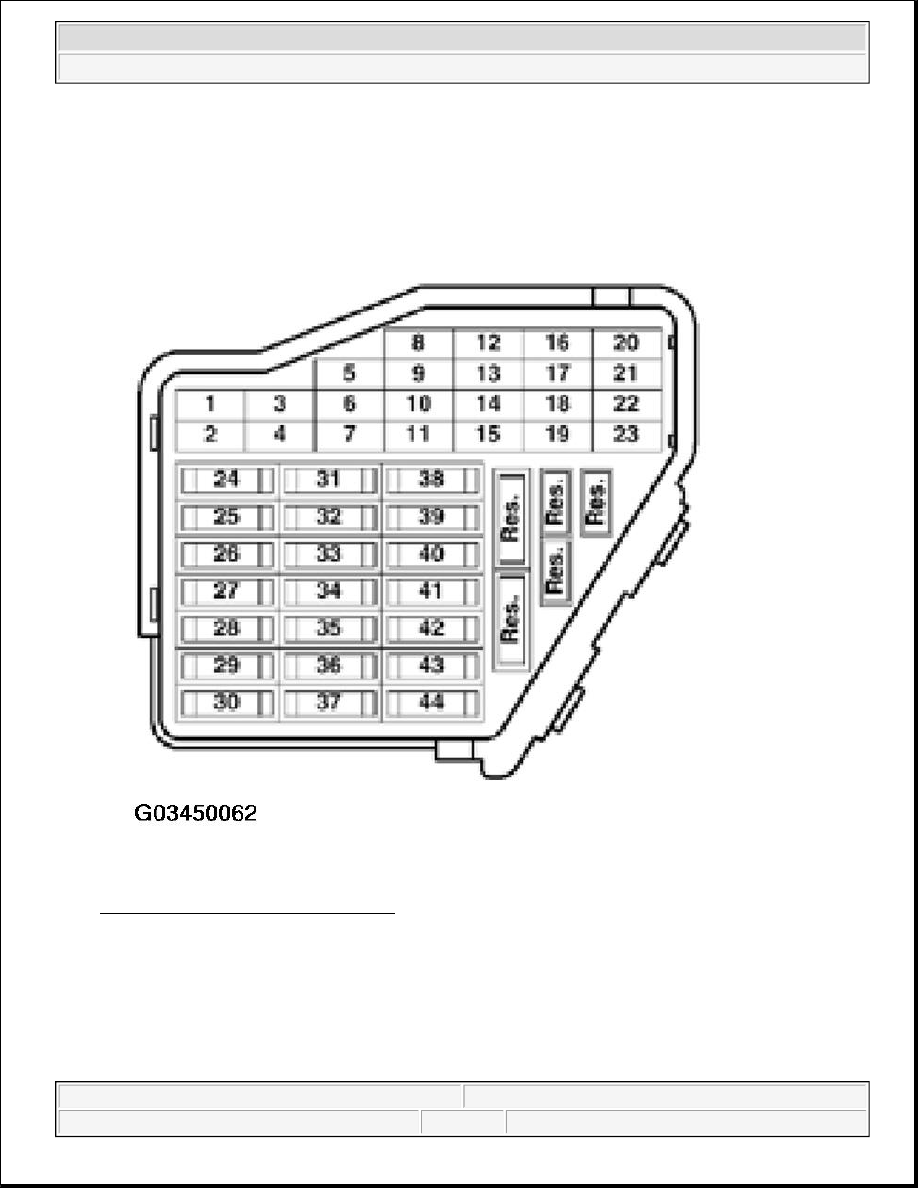

Fig. 87: Locating Fuse 28 (Fuel Pump)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Pull off supply line/hose -1- and collect leaking fuel with a cloth.

WARNING:

Fuel system is under pressure! Before opening the system place a
cloth around the connection. Then release pressure by carefully
loosening the connection.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

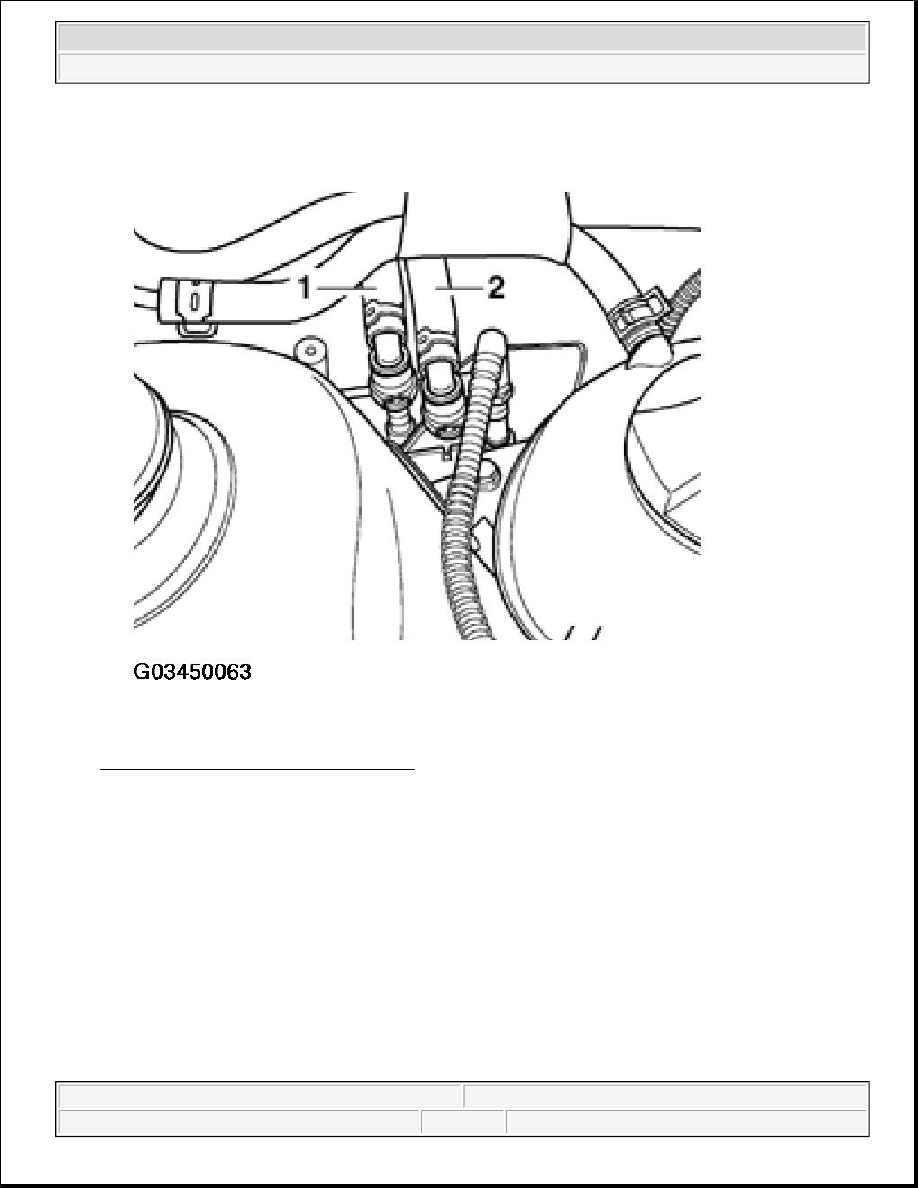

Fig. 88: Pulling Off Supply Line/Hose -1-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Connect VAG 1318 pressure gauge to fuel supply line/hose and to hose to fuel rail using adapters 1318/9
and 1318/17.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

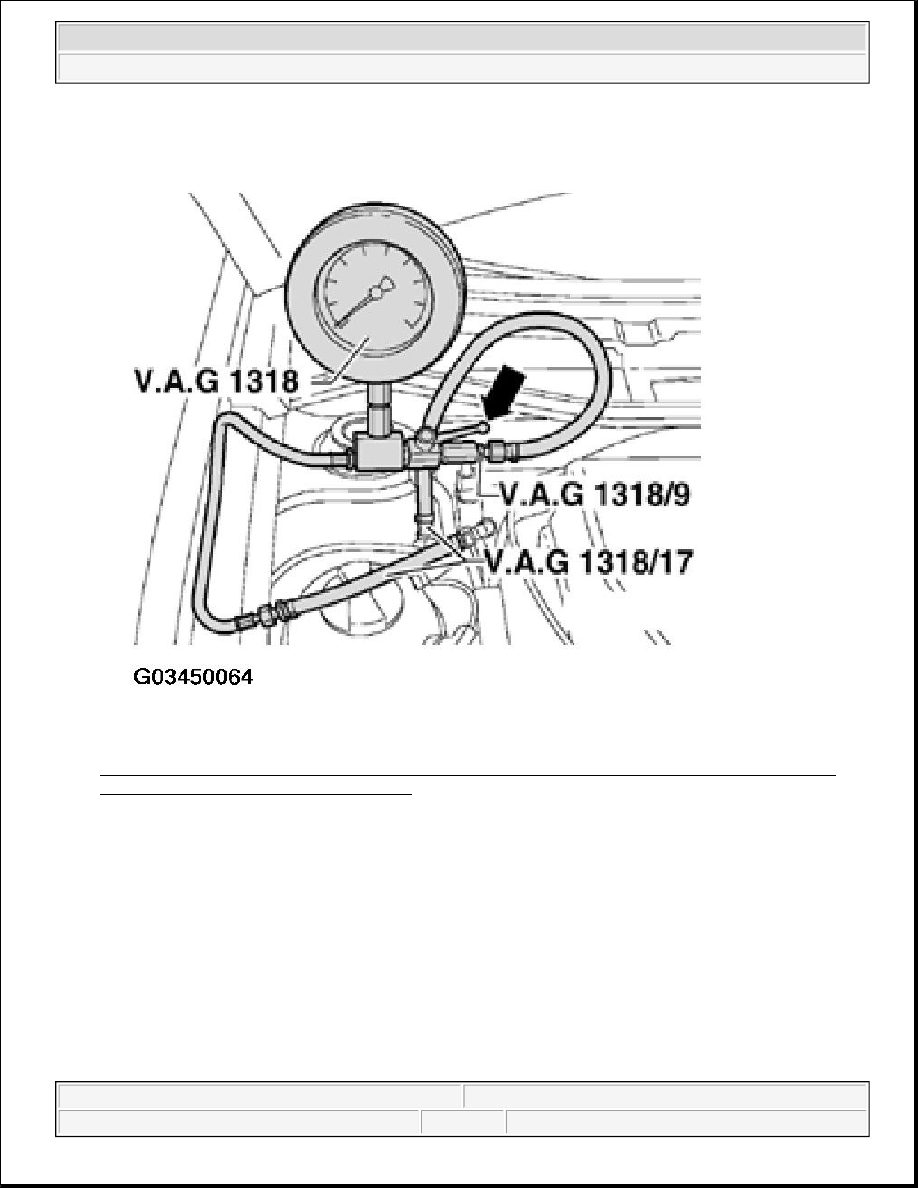

Fig. 89: Connecting VAG 1318 Pressure Gauge To Fuel Supply Line/Hose And To Hose To Fuel
Rail Using Adapters 1318/9 And 1318/17
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Open measured device cut -off tap. (Handle points in through-flow direction -arrow-).

z

Refit fuse 28 (fuel pump) in fuse holder.

z

Start engine and run at idle speed.

z

Measure fuel pressure.

Specification: Approx. 2.5 bar

If the specification is obtained:

z

Pull vacuum hose -1- off fuel pressure regulator -2-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fuel pressure must increase to approx. 3.0 bar.

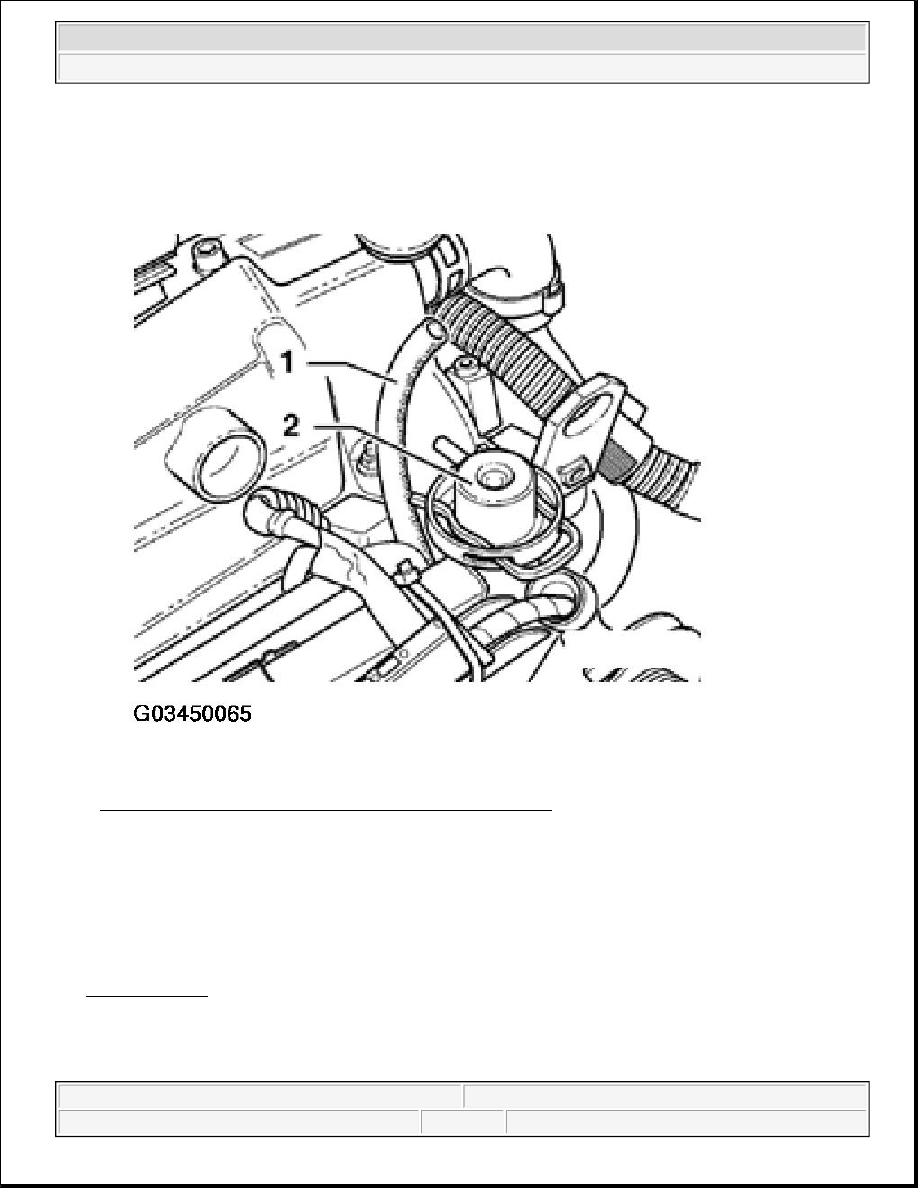

Fig. 90: Pulling Vacuum Hose Off Fuel Pressure Regulator
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

If the specification is not obtained:

z

Check quantity supplied by fuel pump.

See FUEL SUPPLY

If the specification is obtained:

z

Switch off ignition.
