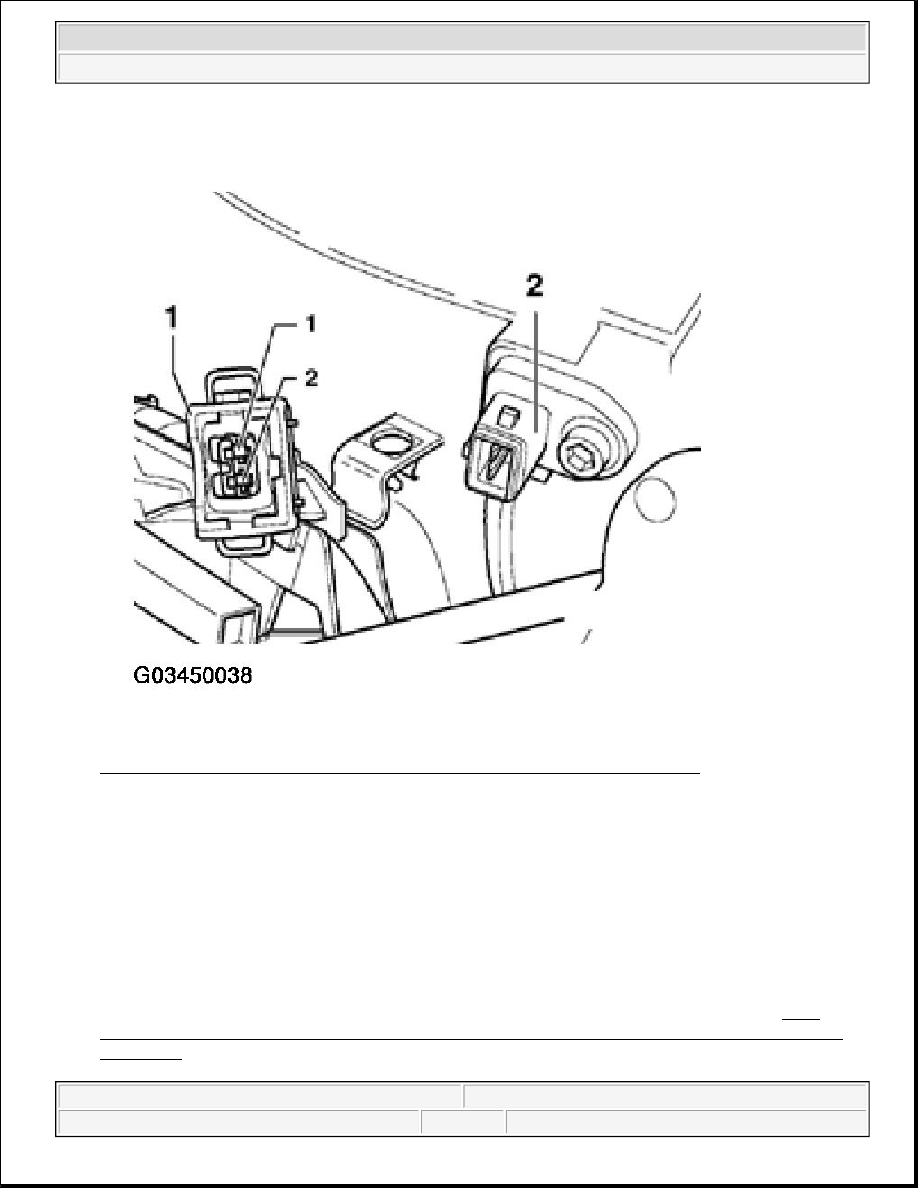

Fig. 63: Disconnecting Connector From Intake Air Temperature (IAT) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Bridge connector terminals using aux. cables from VAG 1594 and observe display.

If display jumps to approx. 143.0 °C:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

z

Replace Intake Air Temperature (IAT) sensor -G42-, see item 26 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

If display remains at approx. -48.0 °C:

z

Press --> button.

z

Press buttons 0 and 6 for function "End output" and confirm entry with Q button.

z

Switch off ignition.

z

Check wiring using Electrical Wiring Diagram, see CHECKING WIRING .

Continuation of check when display reads approx. 143 °C:

z

Disconnect connector -1- from Intake Air Temperature (IAT) sensor -2-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



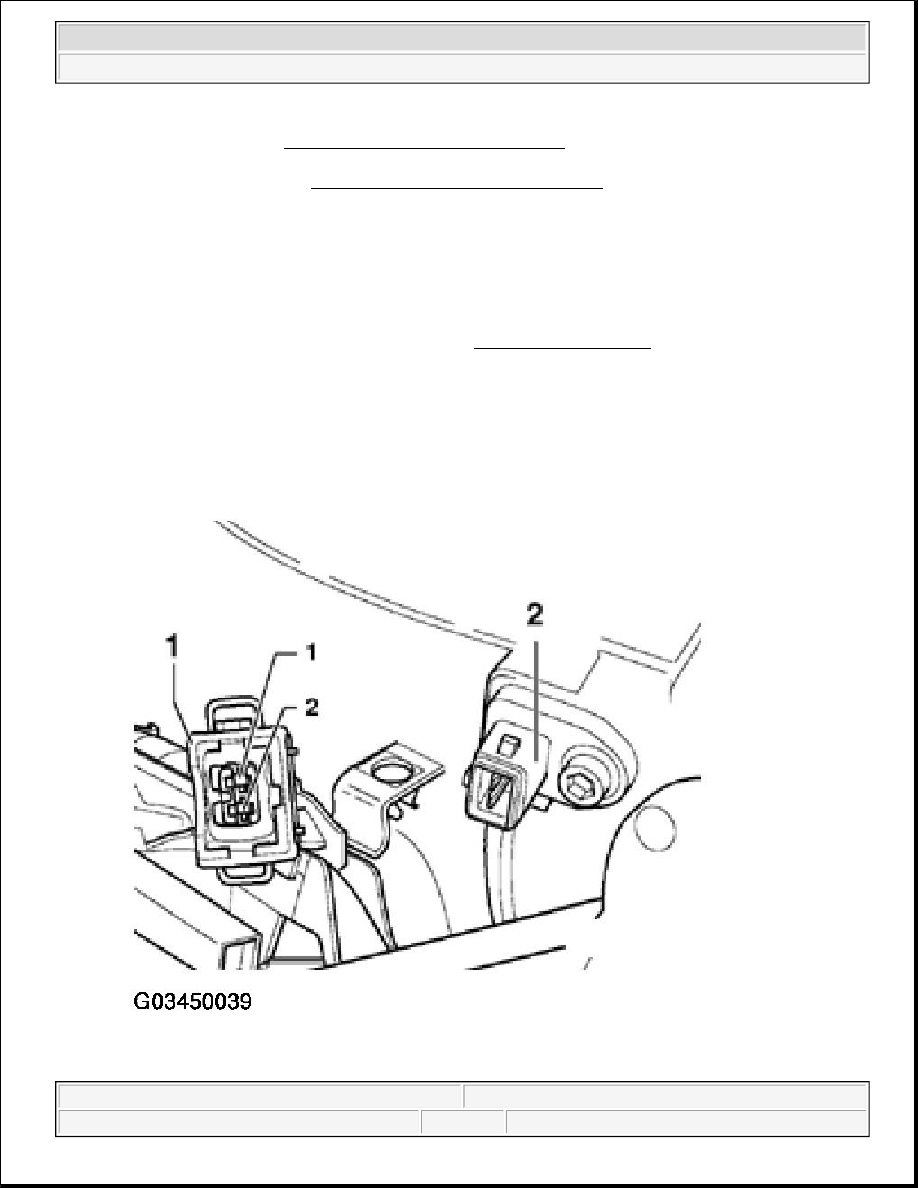

Fig. 64: Disconnecting Connector From Intake Air Temperature (IAT) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If display jumps to approx. -48.0 °C:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

z

Replace Intake Air Temperature (IAT) sensor -G42-, see item 26 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

If display remains at approx. 143 °C:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

z

Check wiring using Electrical Wiring Diagram, see CHECKING WIRING .

Checking wiring

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 65: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect connector -1- from Intake Air Temperature (IAT) sensor -2-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
