Fig. 62: Identifying Leak Detection Pump Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Start engine and run at idling speed:

LED must light up.

z

Switch ignition off.

If the LED does not light up:

z

Check wire for open circuit between 3 pin connector terminal 3 and relay plate using wiring diagram.

Wire resistance: max. 1.5 ohm

LED lights up (voltage supply OK.):

z

Remove inner plenum chamber cover, left.

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect test box VAG 1598/31 to control module wiring harness. Engine Control Module is not
connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 63: Connecting Test Box VAG 1598/31 To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring between test box and 3 pin connector for open circuit using wiring diagram.

Fig. 64: Identifying Leak Detection Pump Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Contact 1 + socket 80

Contact 2 + socket 25

Wire resistance: Max. 1.5 ohm

z

Additionally, check wires for short to one another.

Specification: infinite ohm

If no wiring malfunction is detected and voltage was present between contact 3 and Ground:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



z

Replace Leak Detection Pump -V144.

z

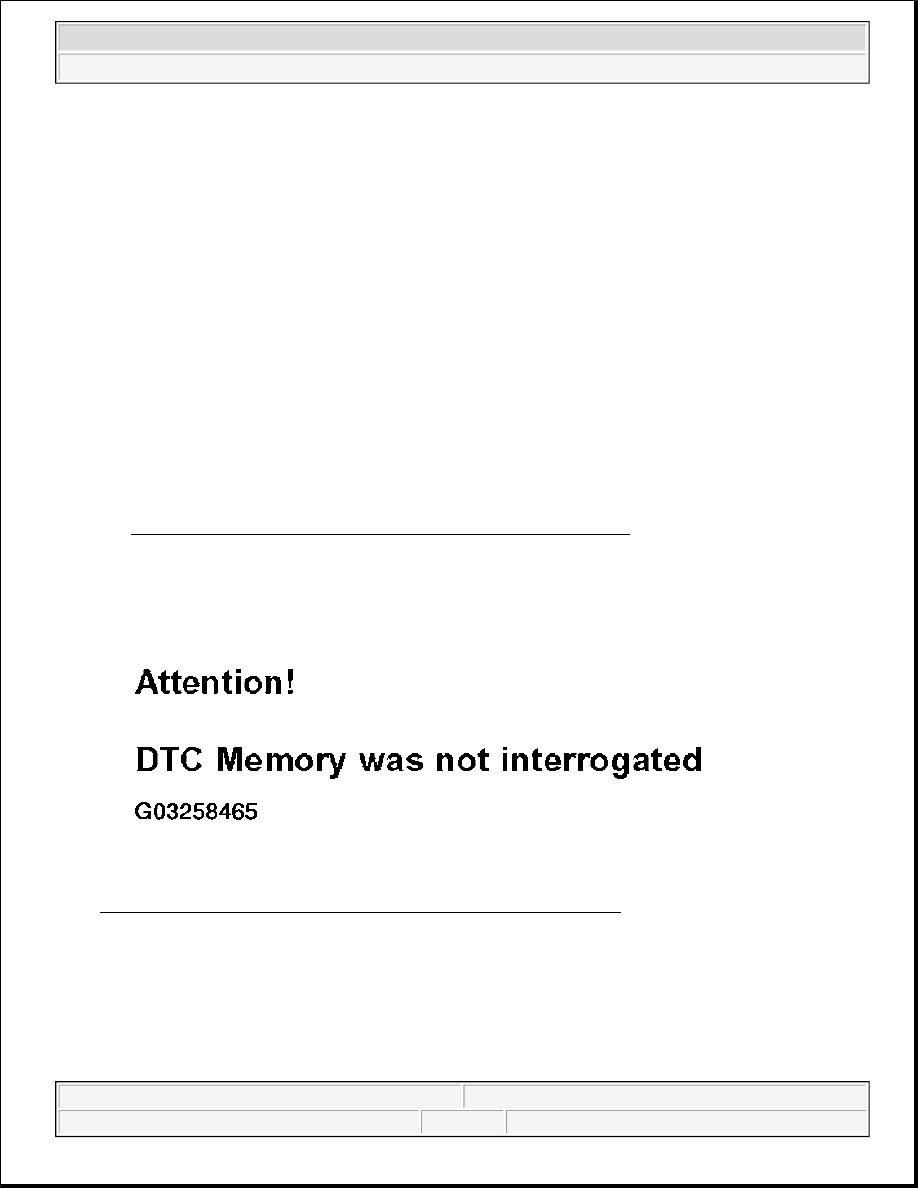

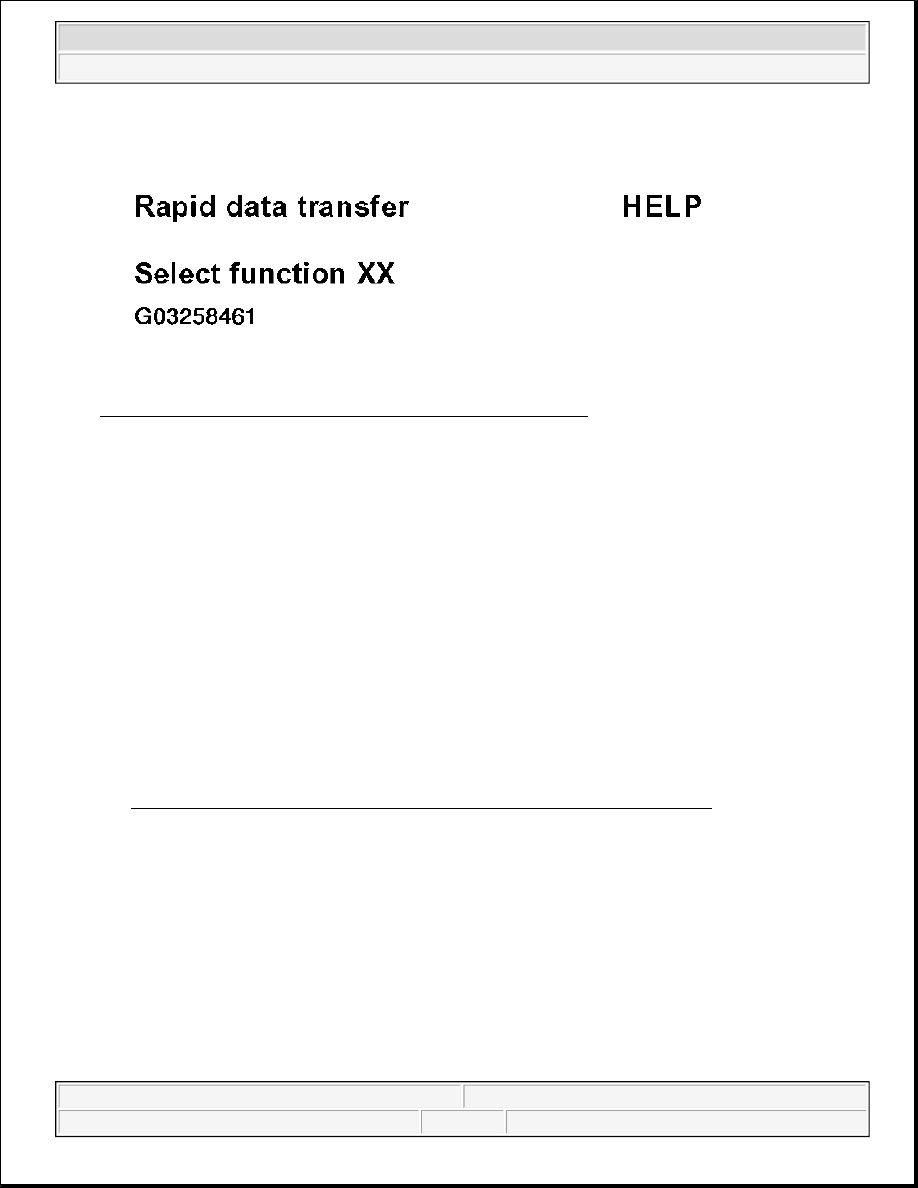

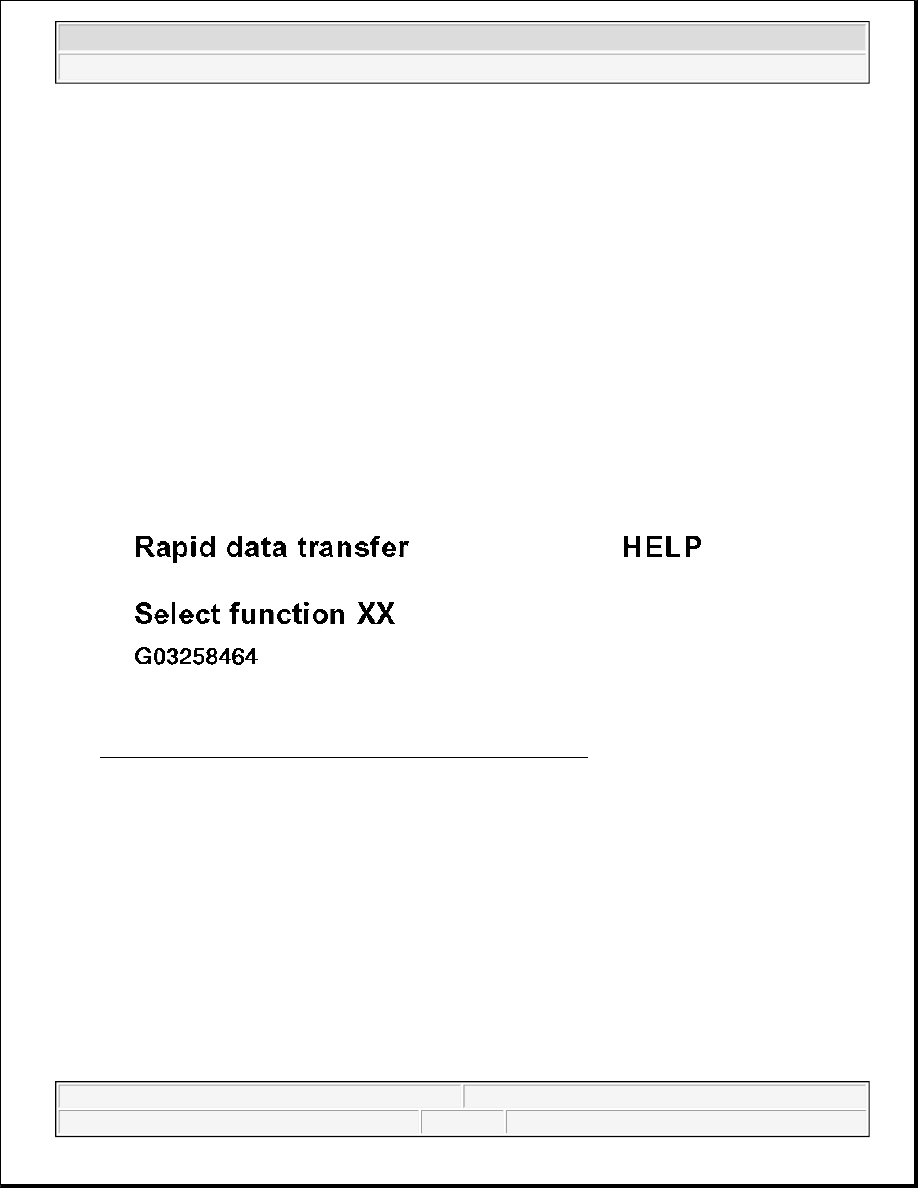

Check DTC memory.

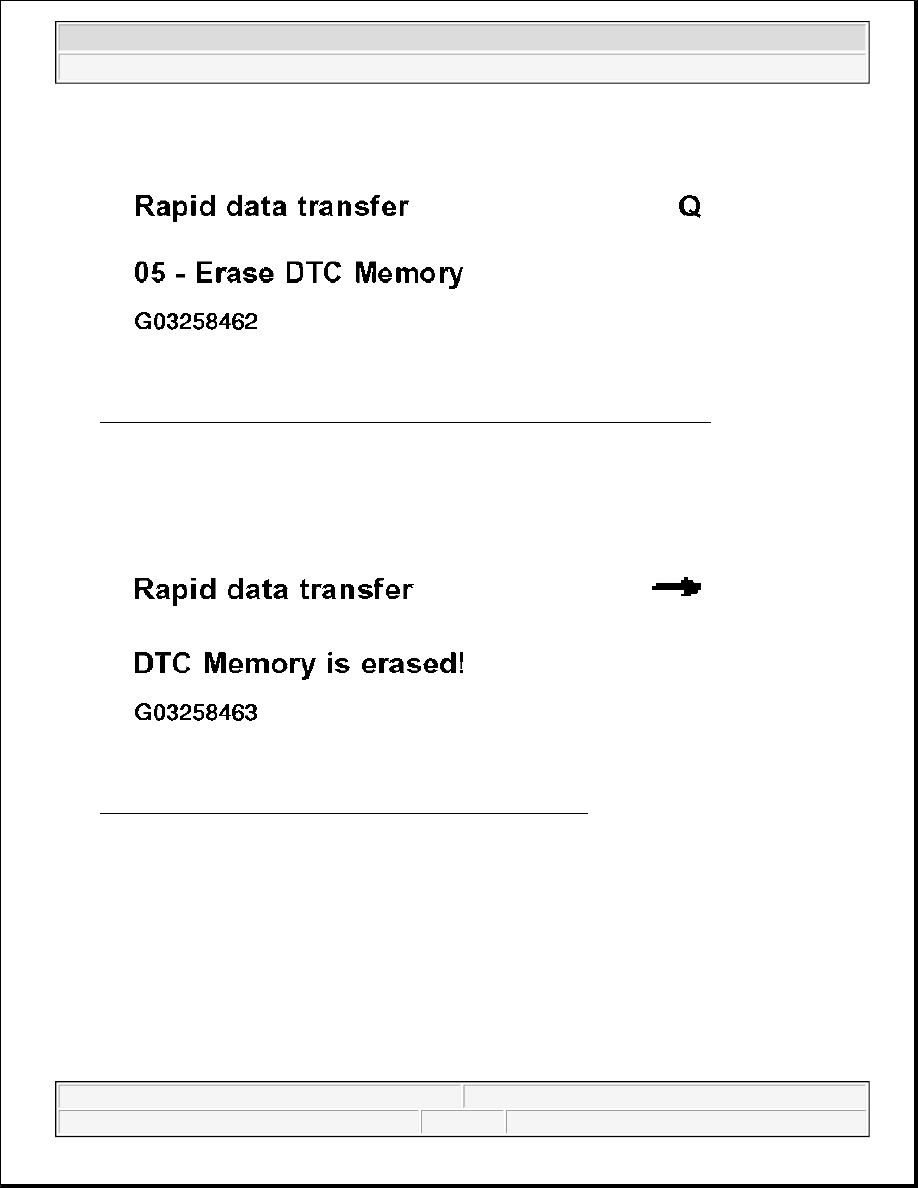

See Diagnostic Trouble Code (DTC) Memory, Checking And Erasing

z

Read readiness code.

See Readiness Code, Displaying

If the DTC memory has been erased or the engine control module separated from permanent positive, the
readiness code must be generated again.

See Diagnostic Trouble Code (DTC) Memory, Checking And Erasing

z

Check wiring between test box and 3 pin connector for open circuit using wiring diagram.

Fig. 65: Identifying Leak Detection Pump Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Contact 1 + socket 80

Contact 2 + socket 25

Wire resistance: Max. 1.5 ohm

z

Additionally, check wires for short to one another.

Specification: infinite ohm

If no wiring malfunction is detected and voltage was present between contacts 1 + 3:

z

Replace Leak Detection Pump -V144-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



z

Check DTC memory.

See Diagnostic Trouble Code (DTC) Memory, Checking And Erasing

z

Read readiness code.

See Readiness Code, Displaying

If the DTC memory has been erased or the Engine Control Module separated from permanent positive,
the readiness code must be generated again.

See Diagnostic Trouble Code (DTC) Memory, Checking And Erasing

Checking resistance

Test sequence

z

Remove rear right wheel housing liner.

See REAR WHEEL HOUSINGS LINER, ASSEMBLY OVERVIEW

z

Disconnect 3-pin connector from Leak Detection Pump -V144-.

Fig. 66: Disconnecting 3-Pin Connector From Leak Detection Pump
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Connect hand multimeter VAG1526 to measure resistance between contacts 1 and 3 of -V144.

Specification: 640-720 ohm
