Checking function of warning lamp

See Electronic Power Control (EPC) Warning Lamp, Checking (Through MY 1999) or Electronic Power
Control (EPC) Warning Lamp, Checking (From MY 2000) in ENGINE PERFORMANCE.

THROTTLE POSITION (TP) SENSORS -G79- AND -G185-, CHECKING

Special tools and equipment

z

VAG 1526 Hand multimeter

z

VAG 1551 Scan Tool (or VAG 1552 vehicle system tester with VAG 1551/3 cable)

z

VAG 1594 A Adapter set

z

VAG 1598/22 Test box

z

Wiring diagram

Fig. 30: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Function

Both the Throttle Position (TP) sensors -G185-and -G79- are located at the accelerator pedal and communicate
the driver's intentions to the Engine Control Module (ECM) fully independently of each other. Both are located
in one housing.

Test conditions

z

The fuses must be OK.

z

The battery voltage must be at least 11.5 V.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 31: Identifying Location Of Fuses
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Test sequence

z

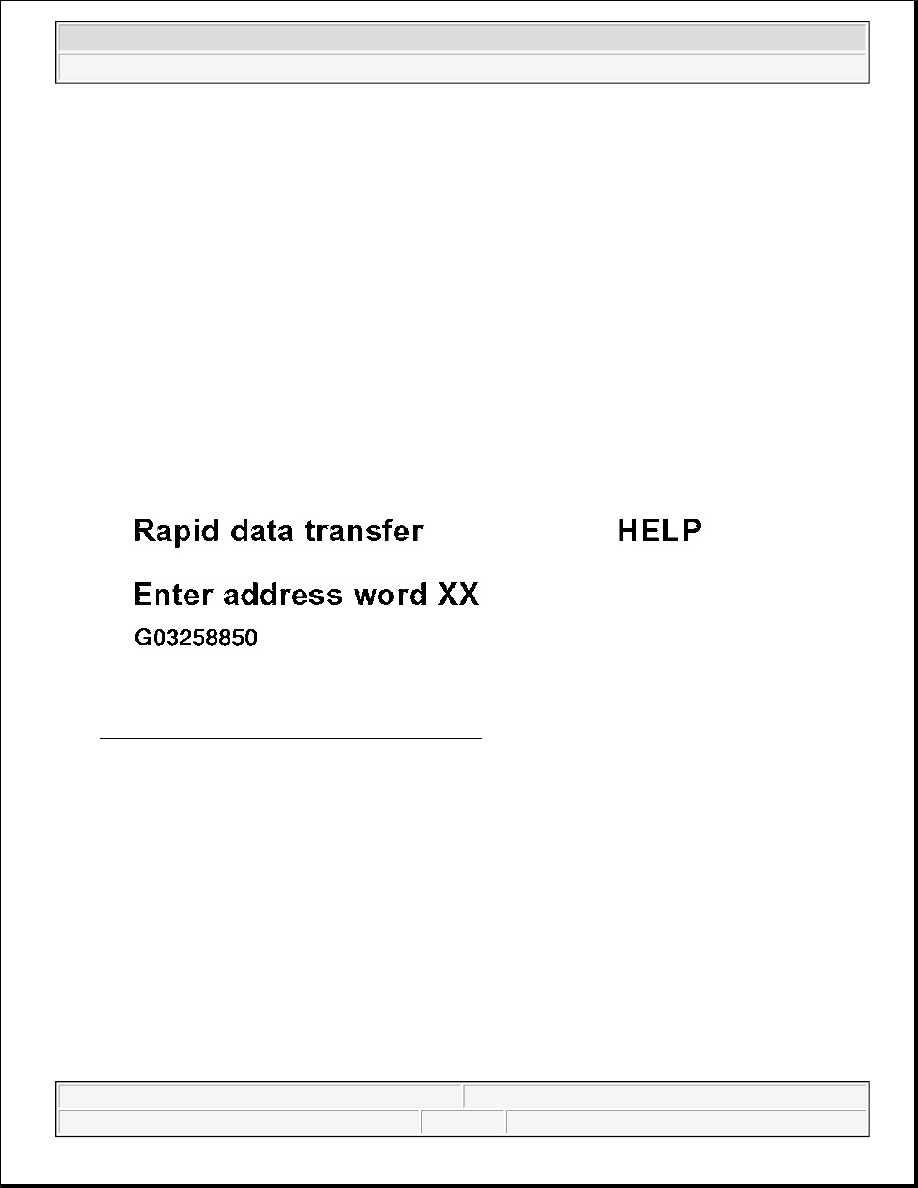

Connect VAG 1551 Scan Tool (or VAG 1552 Scan Tool) and with ignition switched on select engine
electronics with "Address word" 01:

See V.A.G 1551 Scan Tool, Connecting And Selecting Engine Control Module .

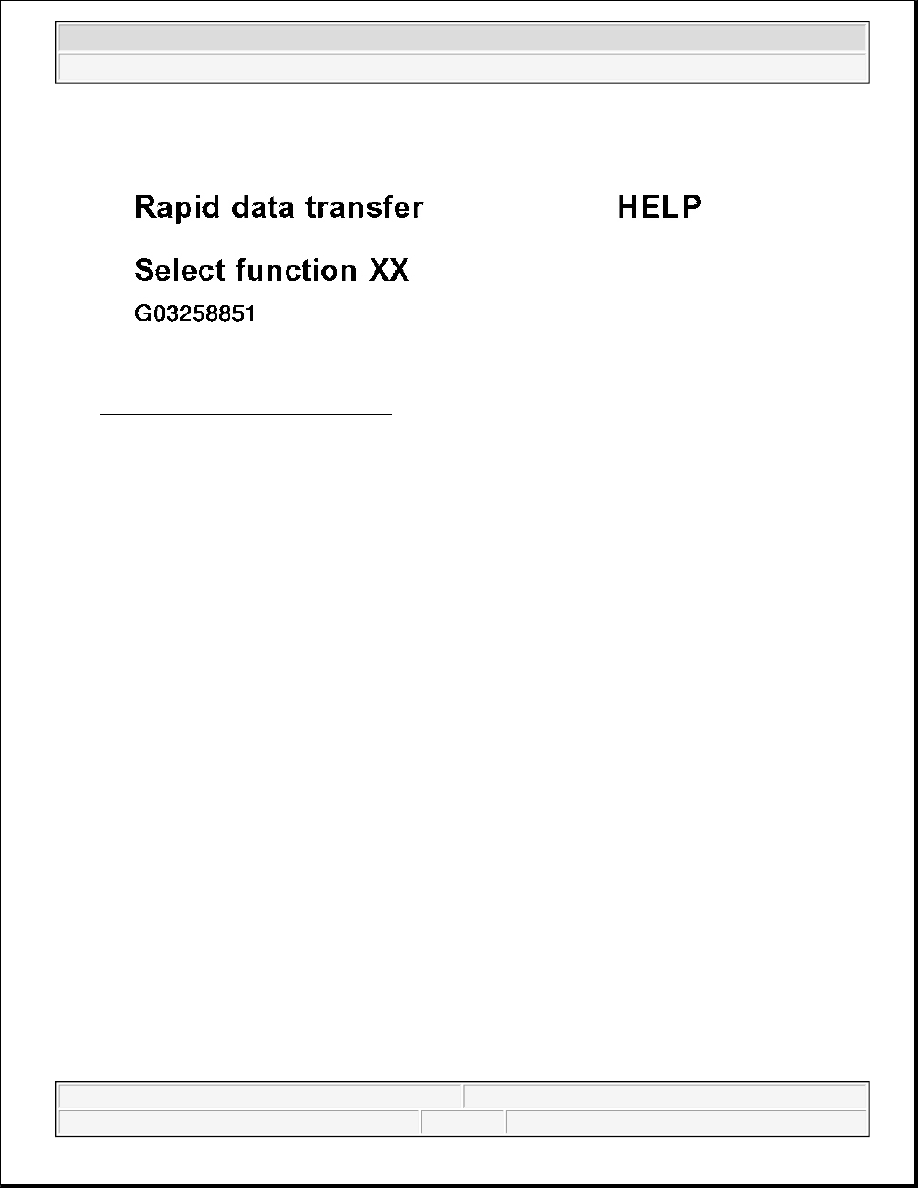

Indicated on display

z

Press buttons -0- and -8- for function "Read Measured Value Block" and confirm entry with -Q- button.

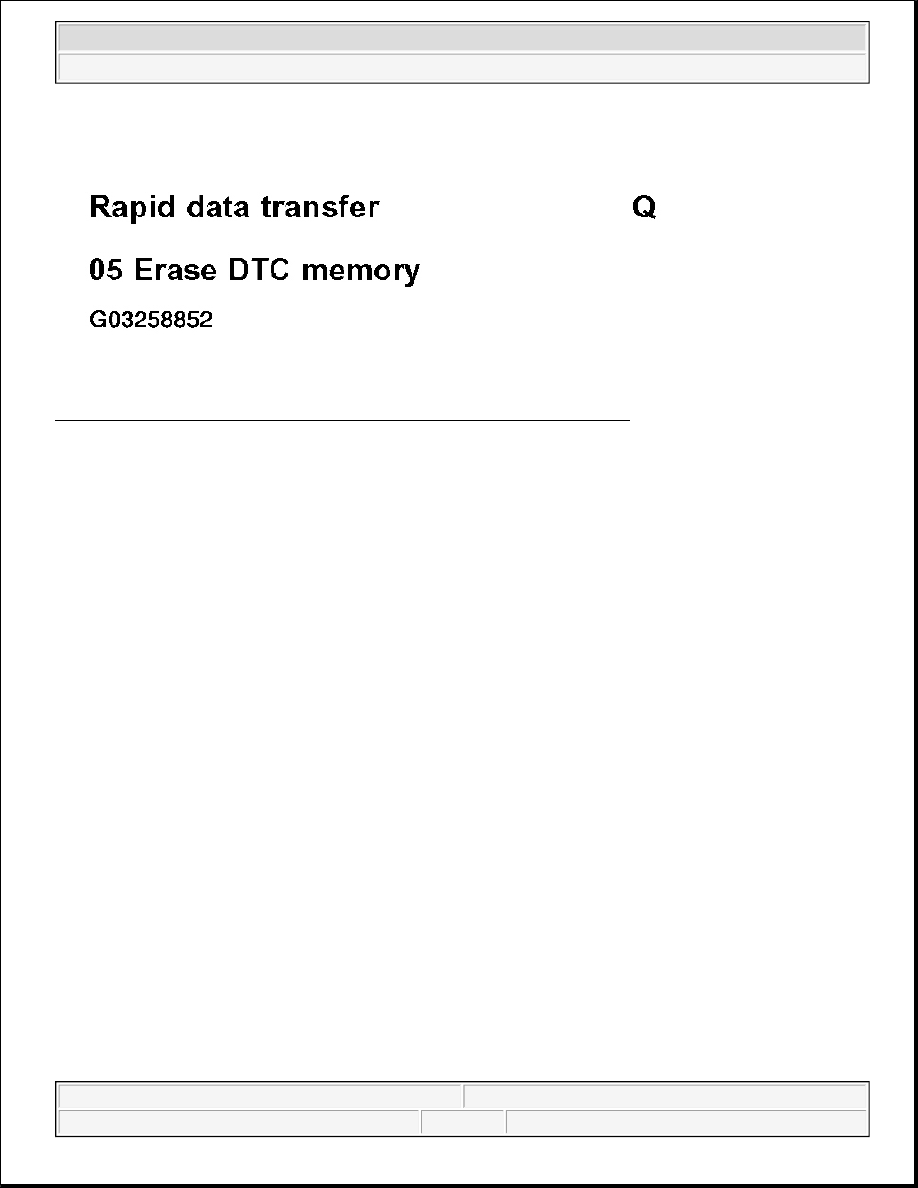

Indicated on display

z

Press buttons -0-, -6- and -2- for "Display group number 62" and confirm entry with -Q- button.

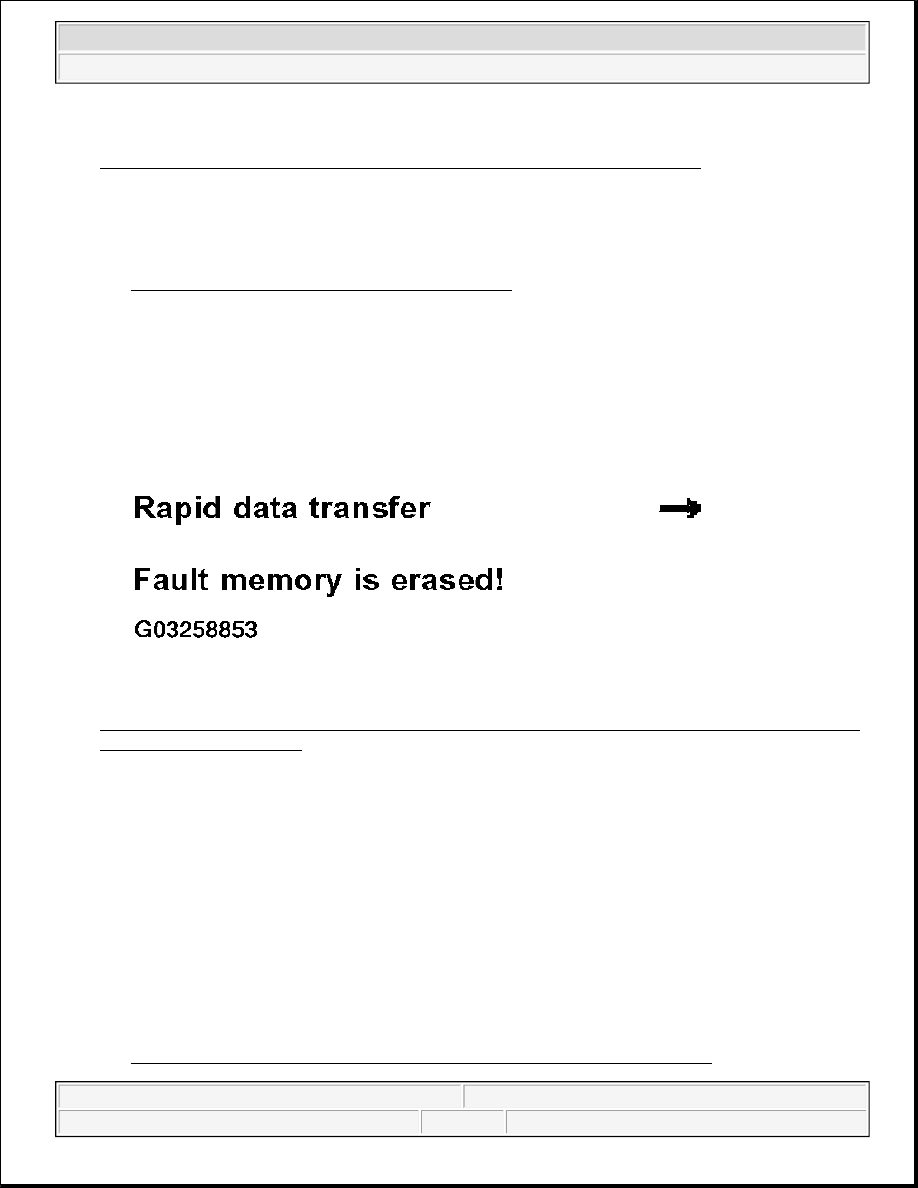

Indicated on display: (1...4 = Display zones)

NOTE:

Fuse box is located behind access panel at far left end of dash.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 32: V.A.G 1551 Scan Tool Display - Checking Throttle Position Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check specification of TP sensor -G79- at idling stop in display zone 3.

Specification: 6 to 96%

z

Check specification of Throttle Position (TP) sensor -G185- at idling stop in display zone 4.

Specification: 3 to 48%

z

Operate accelerator pedal slowly until Wide Open Throttle and observe the angle indication in display
fields 3 and 4:

The percent indication in display field 3 must rise evenly. Specified range of 6 to 96% will not be used in
it's entirety.

The percent figures in display zone 4 must rise evenly. The tolerance range of 3 to 48% is not covered
completely.

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch ignition off.

If the display does not indicate as described:

NOTE:

The Engine Control Module (ECM) calculates the voltage value of the angle
sensor in percent relative to 5 volts and displays this value (5 volts supply
voltage represents 100%).

NOTE:

The indicated value in display field 3 must always be approximately twice
as large as the value in display field 4.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - New Beetle, 1.8L (APH, AWV & AWP)



z

Check voltage supply and wiring connections of Throttle Position (TP) sensor -G185- and -G79-. See
CHECKING VOLTAGE SUPPLY AND WIRING TO CONTROL MODULE .

Checking voltage supply and wiring to control module

z

Remove driver side storage compartment

See GLOVE BOX, REMOVING AND INSTALLING

z

Disconnect 6-pin connector for Throttle Position (TP) sensors -G79- and -G185-.

z

Switch ignition on.

z

Connect multimeter for voltage measurement at following terminals of connector using adapter cables
from VAG 1594 A.

Fig. 33: Connecting Multimeter For Voltage Measurement Terminals Of Connector Using Adapter
Cables From VAG 1594 A
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Contact 1 + Ground (GND)

z

Terminal 1 + 5

z

Terminal 2 + Ground (GND)

z

Terminal 2 + 3

z

Specified value at least 4.5 V

z

Switch ignition off.

If the specifications are not obtained:

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING
