If specification not obtained:

z

Replace Engine Speed sensor -G28-.

See ENGINE, DISASSEMBLING AND ASSEMBLING .

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

If specification obtained:

z

Connect VAG1598/22 (or 1598/31) Test Box to ECM wiring harness.

Fig. 33: Connecting VAG1598/22 (Or 1598/31) Test Box To ECM Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between Test Box and 3-pin harness connector using Wiring diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 34: Identifying Engine RPM Sensor Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Up to MY 1999

z

Terminal 1 + socket 69

z

Terminal 2 + socket 67

z

Terminal 3 + socket 71

From MY 2000

z

Terminal 1 + socket 102

z

Terminal 2 + socket 110

z

Terminal 3 + socket 86

z

Wire resistance: 1.5ohm maximum

z

Check wiring for short circuit to one another at 3-pin harness connector using Wiring diagram.

z

Specification: INFINITY ohm

If wiring OK:

z

Replace Engine Control Module -J248-. See Engine Control Module (ECM), replacing .

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

Manifold Absolute Pressure (MAP) Sensor -G71- and Barometric Pressure (BARO) Sensor -F96-, checking



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



The BARO -F96- sensor is located in the Engine Control Module - Direct Injection System. The intake
manifold pressure sensor is a separate component and is located in the pipe between the charge air cooler and
intake manifold.

Special tools

z

VAG1551/1552 Scan Tool using VAG1551/3 Adapter cable

Test sequence

z

Connect VAG1551/1552 Scan Tool. See VAG1551/1552 SCAN TOOL, CONNECTING .

z

Switch ON ignition but do not start engine.

z

Press -0- and -1- buttons to select Address word 01: "Engine electronics"

Display will appear as shown (example only):

Fig. 35: Scan Tool Display - MAP Sensor & BARO Sensor (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



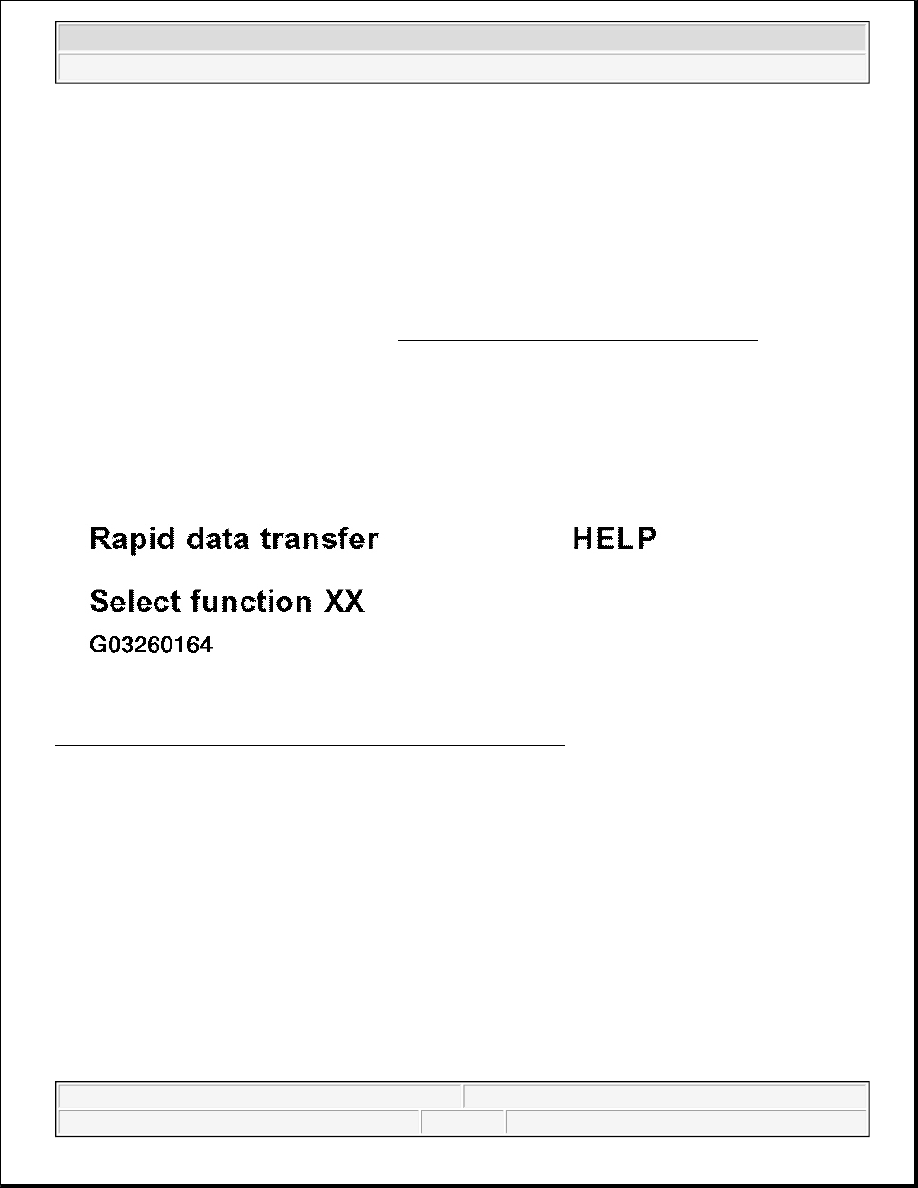

Fig. 36: Scan Tool Display - MAP Sensor & BARO Sensor (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block".

z

Press -Q- button to enter input.

Display will appear as shown:

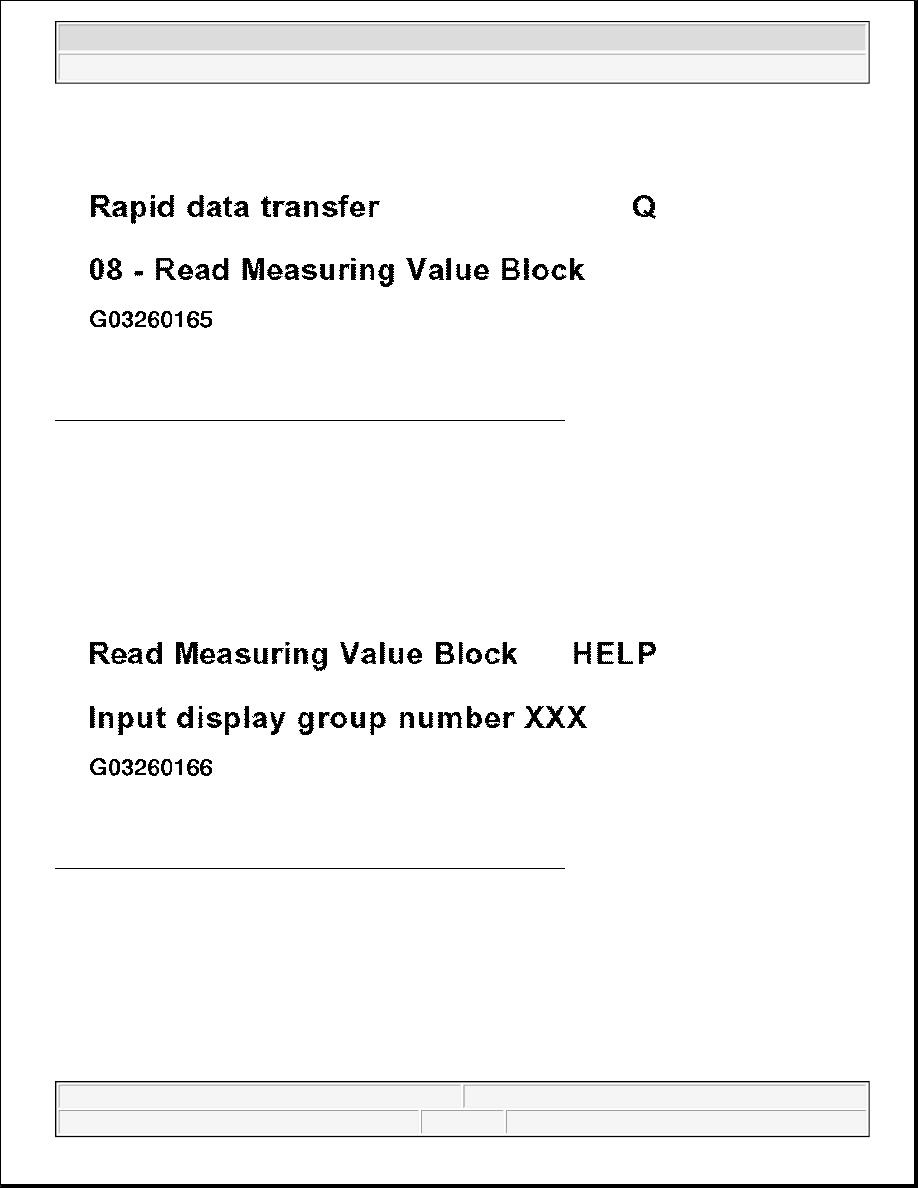

Fig. 37: Scan Tool Display - MAP Sensor & BARO Sensor (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0-, -1- and -0- buttons to select "Display group 10".

0 mg/H 1027 mbar 1013 mbar 0.0 %

Compare Display zone 2 (Barometric Pressure (BARO) Sensor -F96-) with Display zone 3 (Manifold Absolute
Pressure (MAP) Sensor -G71-).
