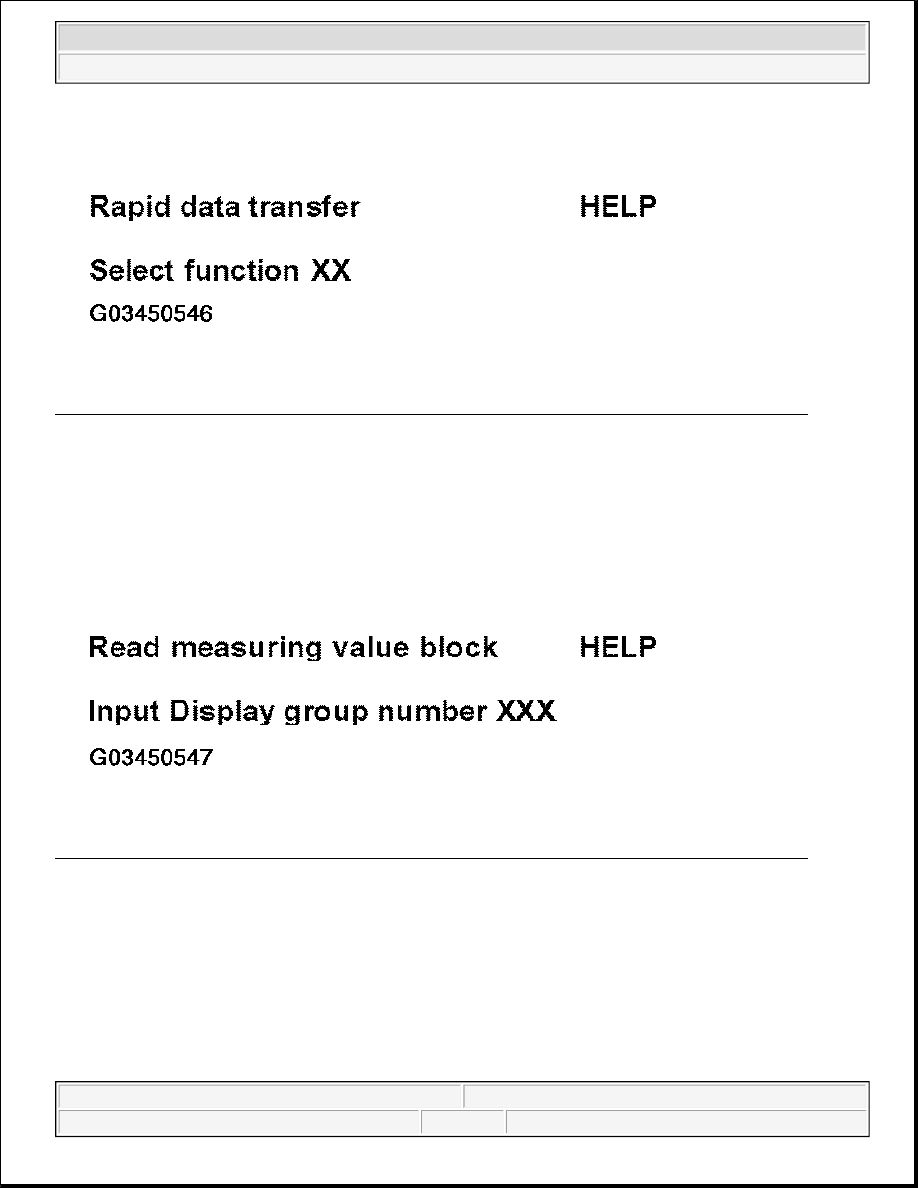

Fig. 86: Scan Tool Display - Modulating Piston Displacement Sensor & Quantity Adjuster (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block".

z

Press -Q- button to enter input.

Display will appear as shown:

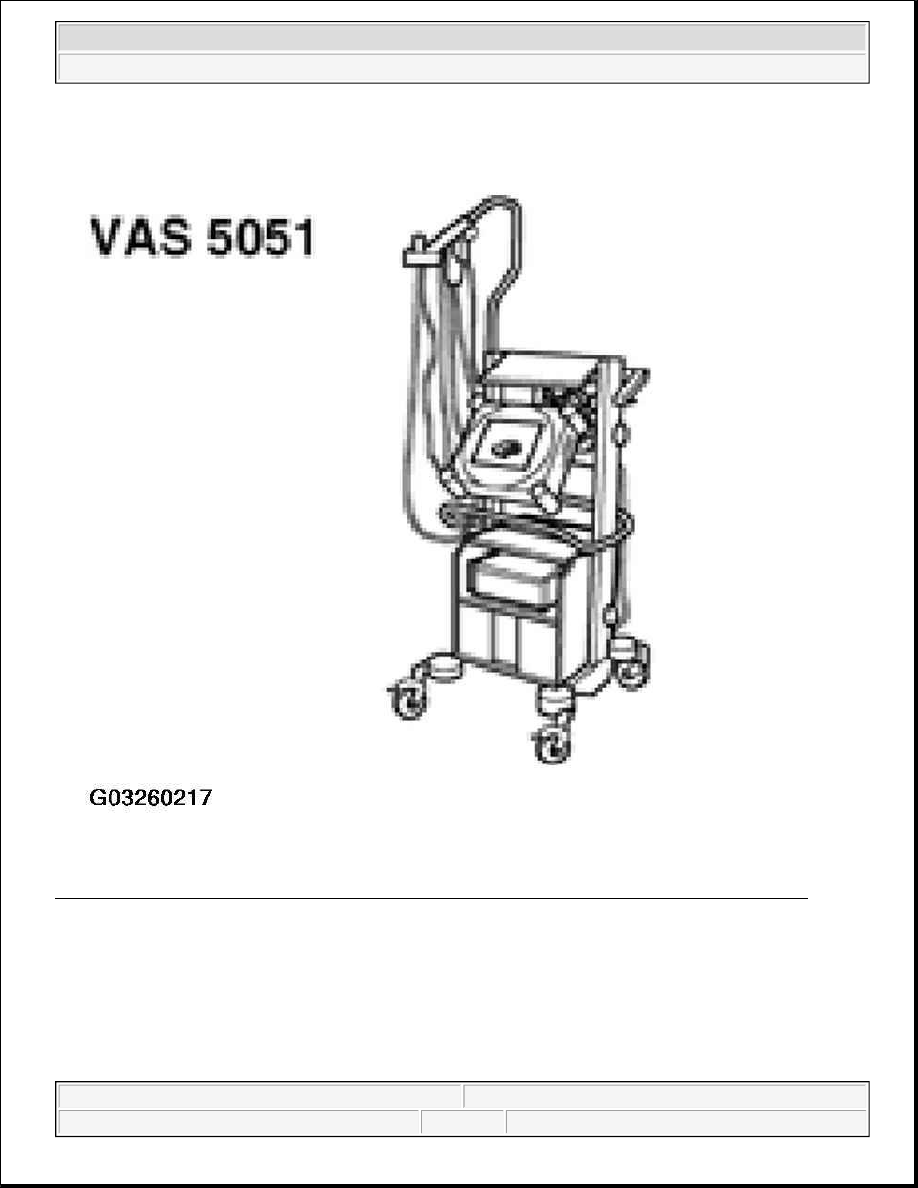

Fig. 87: Scan Tool Display - Modulating Piston Displacement Sensor & Quantity Adjuster (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -1- to select "Display group 1".

z

Press -Q- button to enter input.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



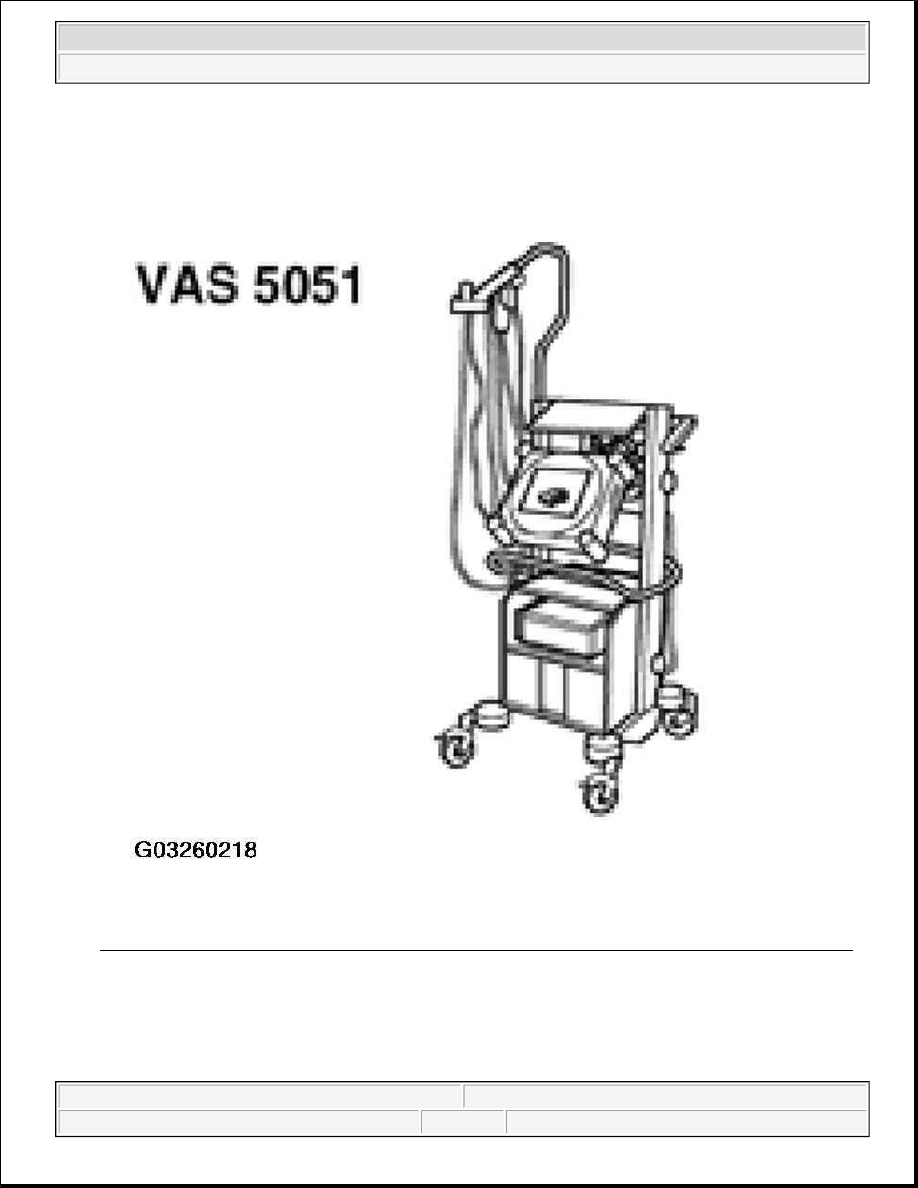

Fig. 88: Scan Tool Display - Modulating Piston Displacement Sensor & Quantity Adjuster (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check Engine Coolant Temperature value in Display zone 4.

z

Specification: 85 °C minimum

z

Continue with check only when temperature speck. is obtained.

z

Check value in Display zone 3 (Voltage from Modulating piston movement).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Check Modulating piston displacement sensor -G149- Voltage supply value in Display zone 3.

Fig. 89: Scan Tool Display - Modulating Piston Displacement Sensor & Quantity Adjuster (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Specification: 1.450 to 2.000 Volts

If specification not obtained:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Check Modulating piston displacement sensor -G149- and quantity adjuster as described in following:

Modulating piston displacement sensor -G149-, checking

z

Press --> button.

Display will appear as shown:

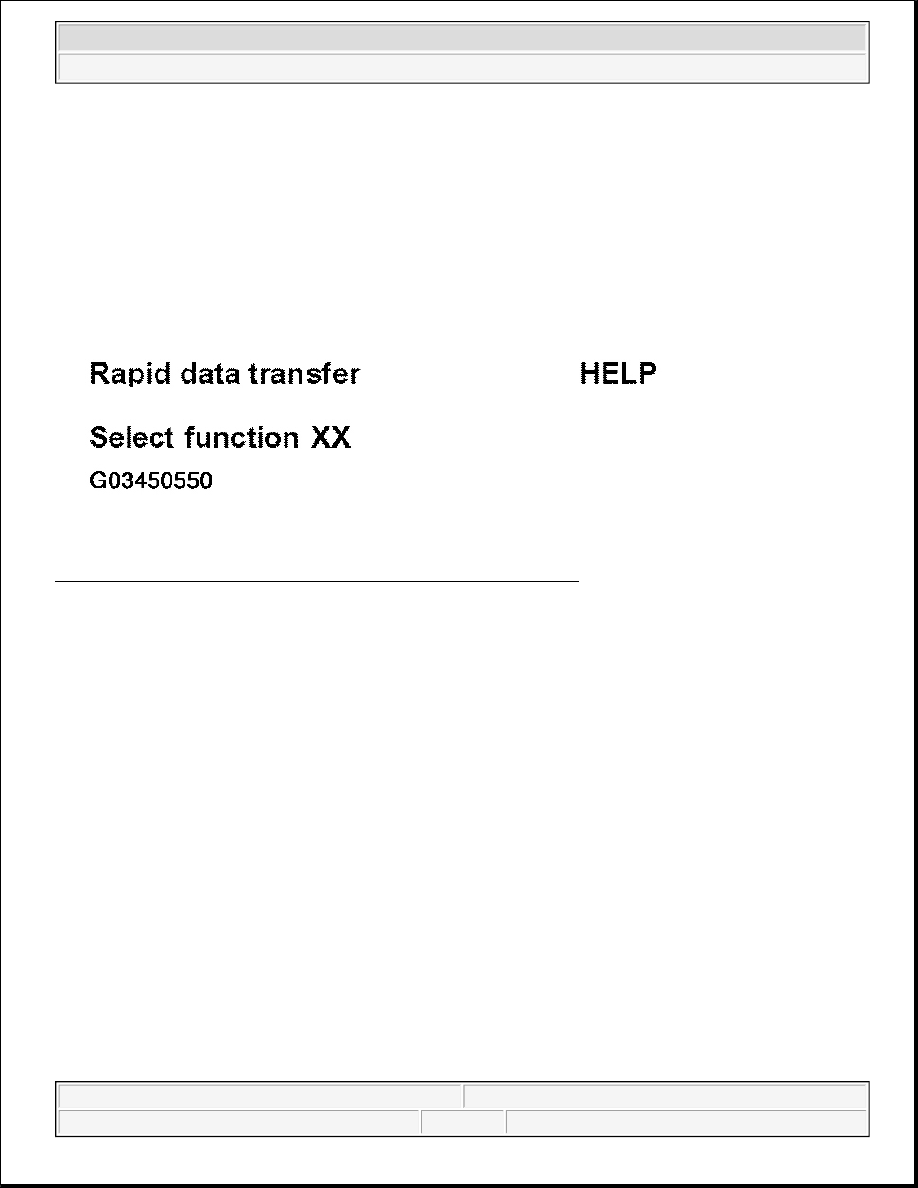

Fig. 90: Scan Tool Display - Modulating Piston Displacement Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

Switch OFF ignition.

z

Disconnect 10-pin Fuel Temperature sensor harness connector (connection to Diesel injection pump
metering control).
