C. Specified range for Start of injection

Fig. 24: Start Of Diesel Fuel Injection Graph
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Example:

Value 90 in Display zone 9 (B) corresponds to a numerical range from 35 to 74 in Display zone 2 (A).

If Start of injection is outside specification, adjust as follows:

z

Remove connecting line between charge air cooler and intake manifold.

z

Remove upper toothed belt guard.

z

Loosen two injection pump sprocket mounting bolts -1-.

z

Place 22 mm box wrench onto hub nut -2- to counter-hold pump shaft.

NOTE:

If, when checking Start of injection, the specifications are within zone -C-, no
adjustment is required. After repairs, e.g. removing and installing injection
pump or adjusting timing, Start of injection must be set to the mean value
(dashed line) in zone -C-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH

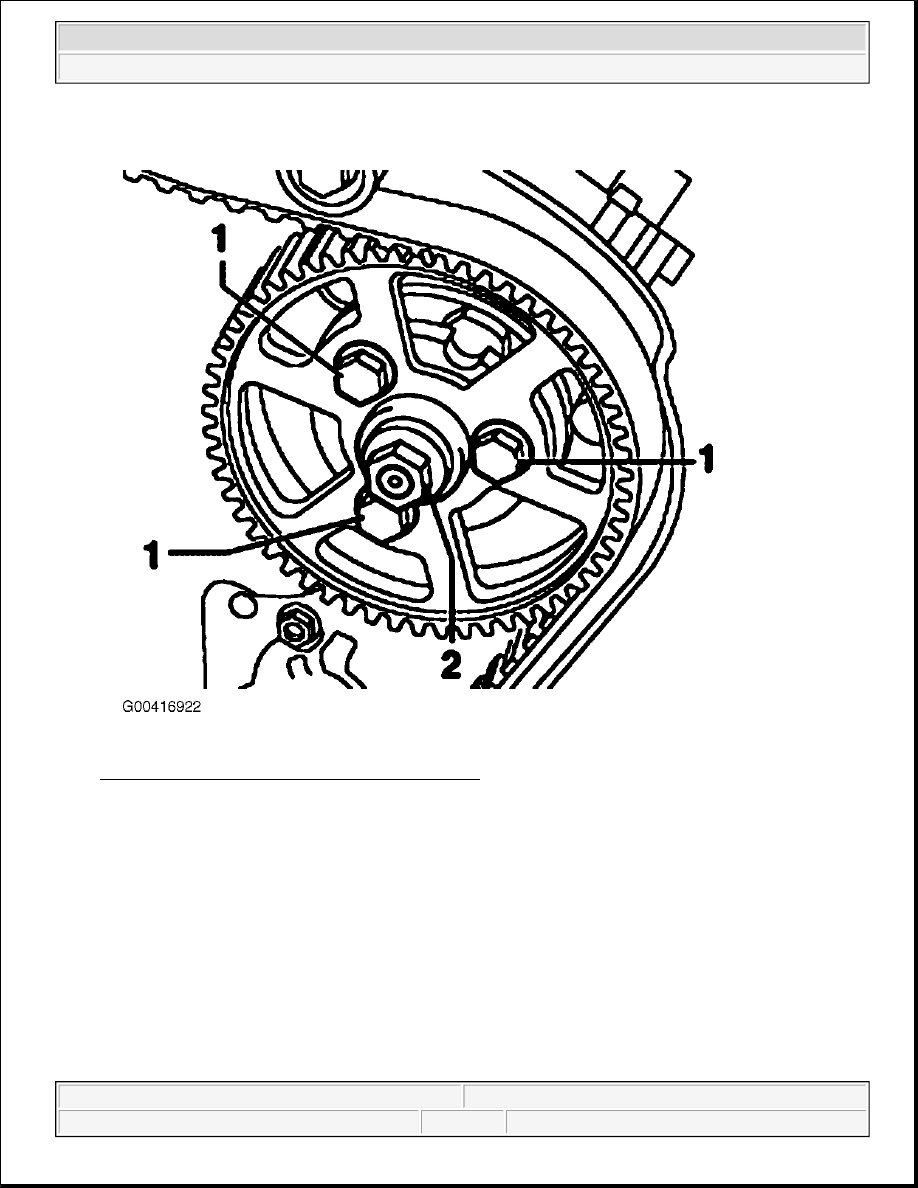

Fig. 25: Injection Pump Sprocket Mounting Bolts
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Loosen 3rd injection pump sprocket mounting bolt and slightly turn pump shaft

z

Left = advance Start of injection

z

Right = retard Start of injection

z

Tighten new mounting bolts for injection pump sprocket.

z

20 Nm (15 ft lb)

CAUTION: Do not loosen hub nut -2- for ANY reason. Otherwise, the Diesel

injection pump basic setting will be altered and cannot be reset with
normal workshop equipment.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH



If injection pump has not previously been removed and installed

z

Screw in new injection pump sprocket mounting bolts one after the other.

z

Observe values in zone 2 and adjust again, if necessary, until the mean value for specification zone -C- is
displayed.

z

Tighten injection pump sprockets 1/ 4 turn (90°) additional.

z

Press "right arrow" button.

Display will appear as shown:

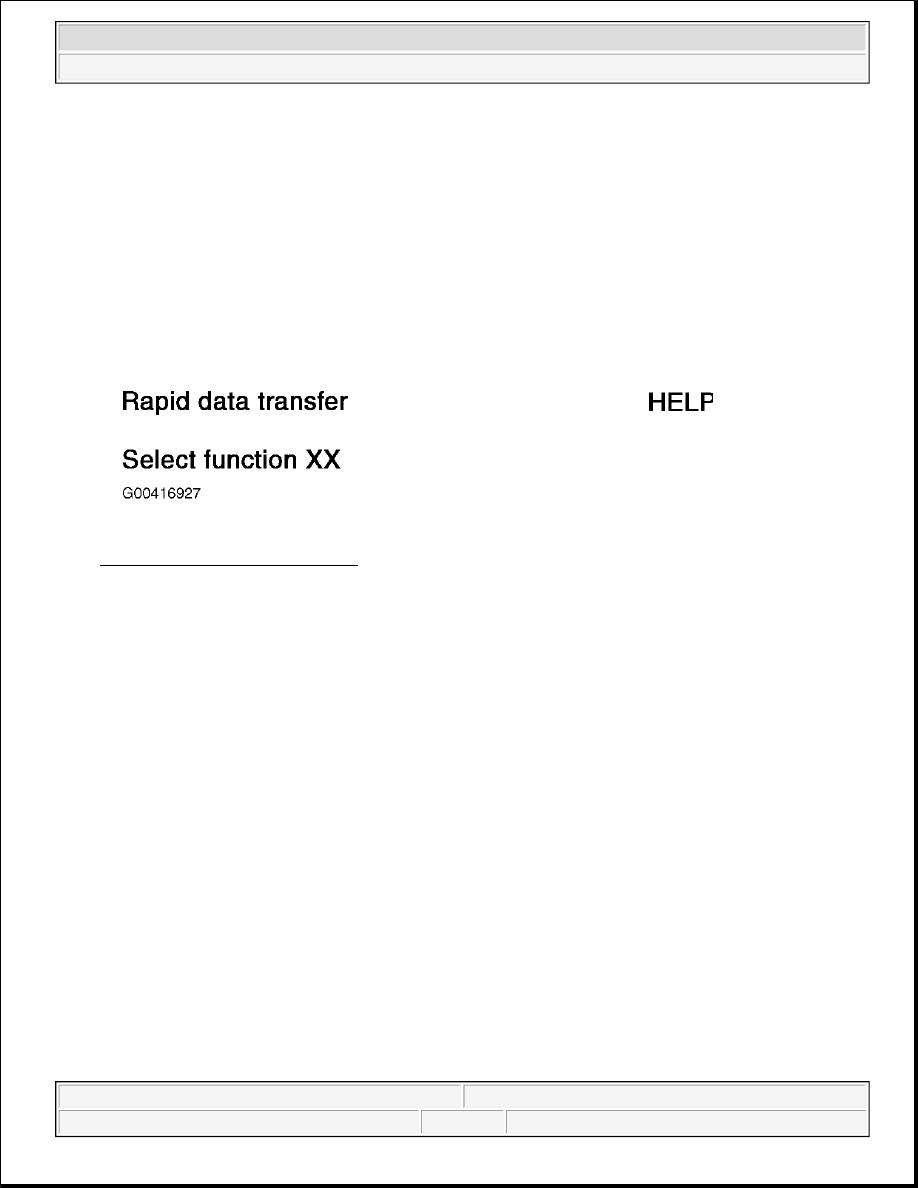

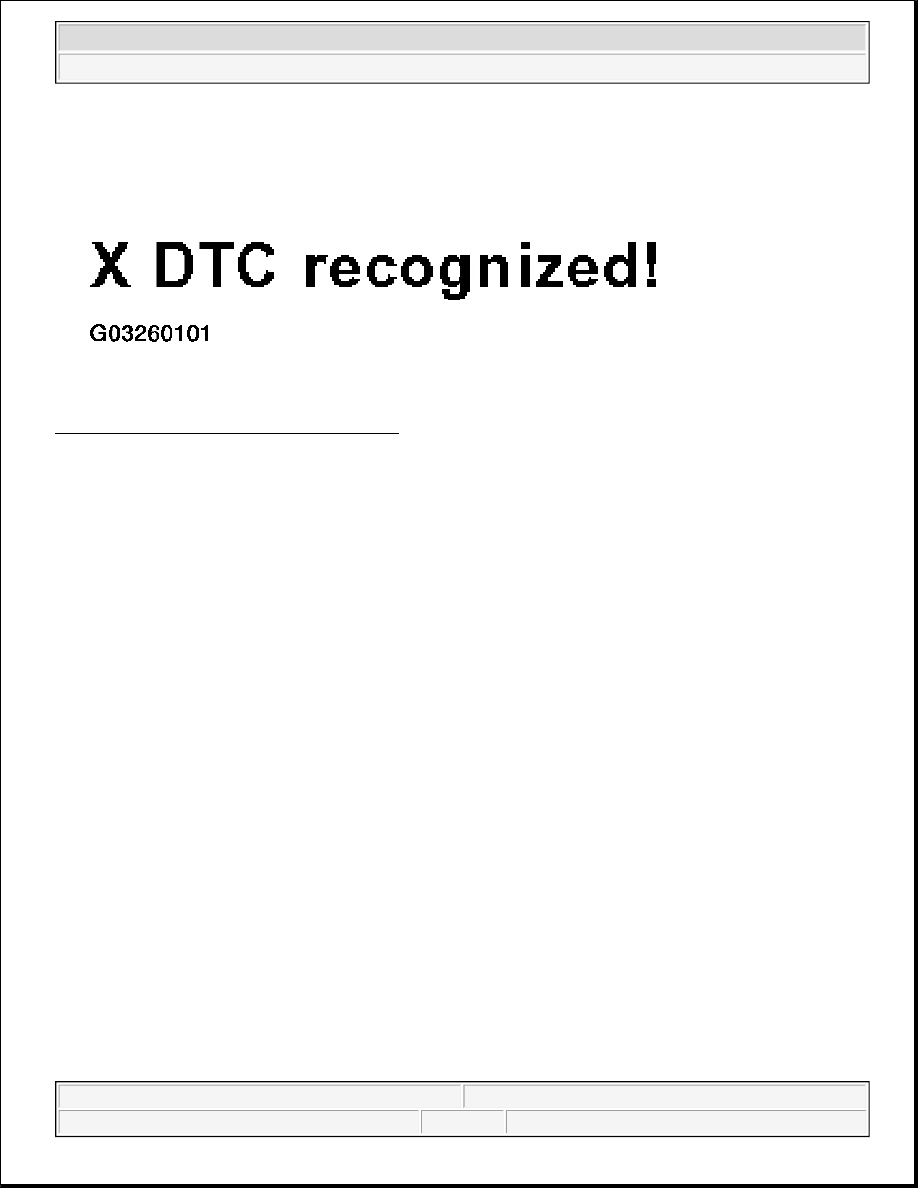

Fig. 26: Scan Tool Display Screen
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

Erase DTC memory and set the readiness code CLEARING DIAGNOSTIC TROUBLE CODES
(FUNCTION 0 .

FUEL INJECTORS, REMOVING AND INSTALLING

Special tools

z

VAG1331 Torque wrench (5 to 50 Nm) or equivalent



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Diesel Direct Fuel Injection System, Servicing - New Beetle, 1.9L 4-Cyl. ALH

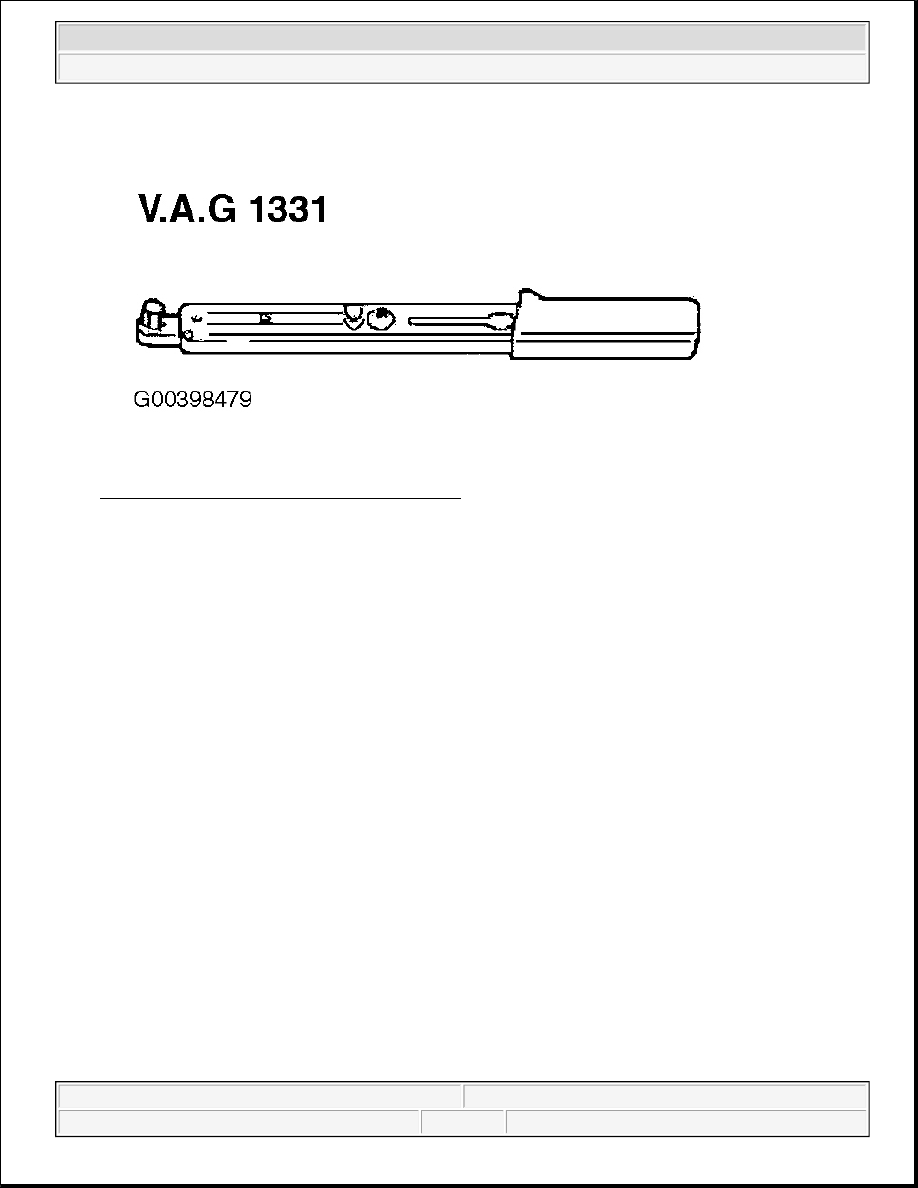

Fig. 27: Identifying Torque Wrench VAG 1331
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

3035 Injector line wrench
