2. EGR Vacuum Regulator solenoid valve -N18-

3. Check valve

4. Brake servo

5. Air Cleaner

6. Vacuum pump

Fig. 19: Identifying Vacuum Hose Connections
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Exhaust Gas Recirculation (EGR) valve, checking

Special tools and equipment

z

VAG 1390 Hand vacuum pump

Fig. 20: Identifying VAG 1390 Hand Vacuum Pump
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Test sequence



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



z

Remove engine cover.

z

Disconnect pipe between Charge Air cooler and intake manifold at intake manifold.

z

Disconnect vacuum hose from EGR valve.

z

Connect VAG 1390 hand vacuum pump to EGR valve.

z

Operate pump and observe membrane rod.

Membrane rod must move in direction of arrow.

Fig. 21: Locating Hand Vacuum Pump Membrane Rod
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect hand vacuum pump hose from EGR valve.

Membrane rod must move back against direction of arrow to its original position.

Exhaust Gas Recirculation (EGR), checking

Special tools and equipment

z

Fluke 83 multimeter

z

VW 1594 Adaptor kit

z

VAG 1598/22 Test Box

z

VAG 1551/1552 Scan Tool with VAG 1551/3 adaptor cable

z

Wiring diagram



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



Fig. 22: Identifying Special Tools And Equipment
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Test sequence

z

Connect VAG 1551/1552 Scan Tool:

See VAG1551/1552 Scan Tool, Connecting .

z

Start engine and let idle.

z

Press 0 and 1 buttons to select Address word 01 "Engine electronics":

See DTC Memory, Checking .

Indicated on display

NOTE:

The EGR return function is checked via Function 04 (Basic Setting). Through
this procedure the valve for EGR is metered every 10 seconds, so that in
measured value block 003 the extreme values for the EGR (air mass sensor) in
display field 3 can be read.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



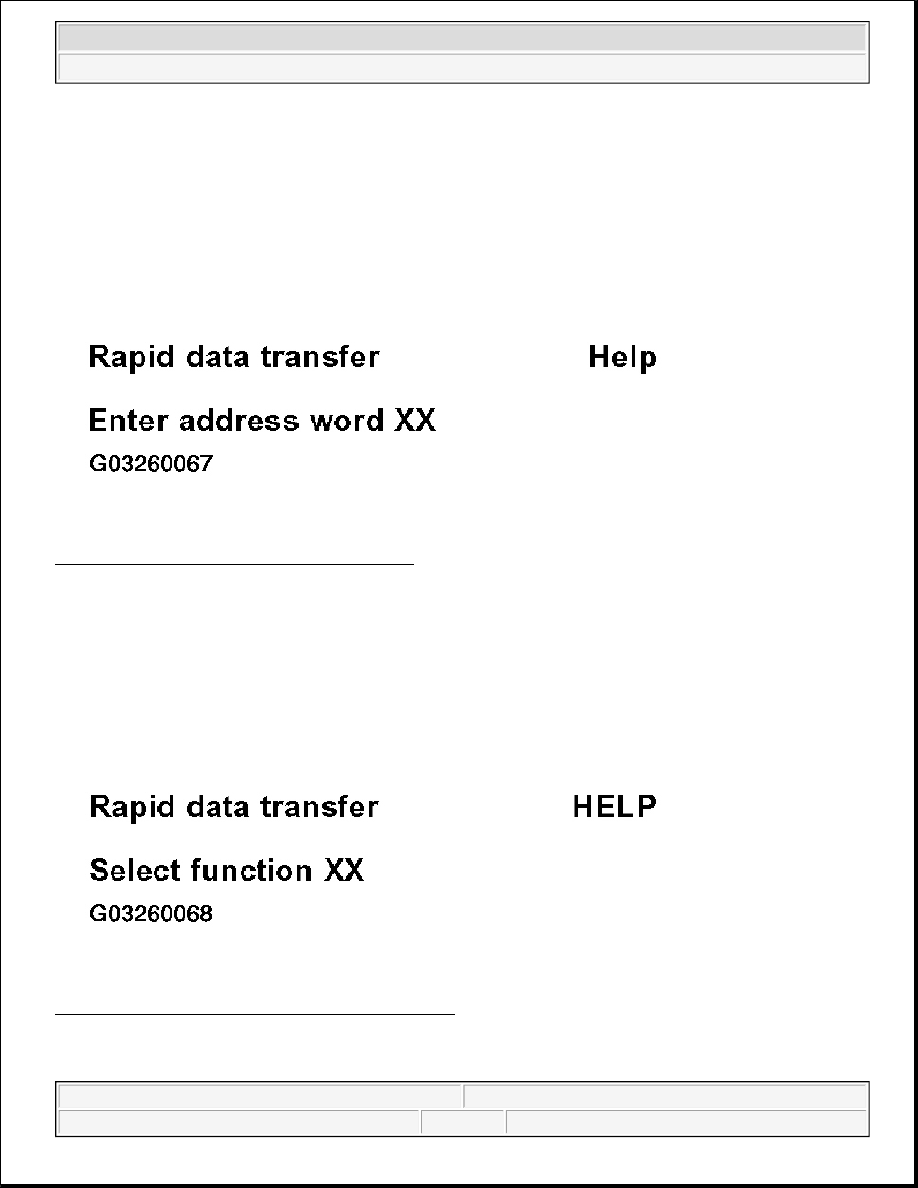

Fig. 23: Identifying Special Tools Display (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press 0 and 4 buttons to select Function 04: "Basic setting".

z

Press Q button to enter input.

Indicated on display

Fig. 24: Identifying Special Tools Display (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press 0, 0 and 3 buttons to select "Display group 3".

z

Press Q button to enter input.

Indicated on display: (1 to 4 - Display zones)
