Volkswagen New Beetle. Manual - part 1240

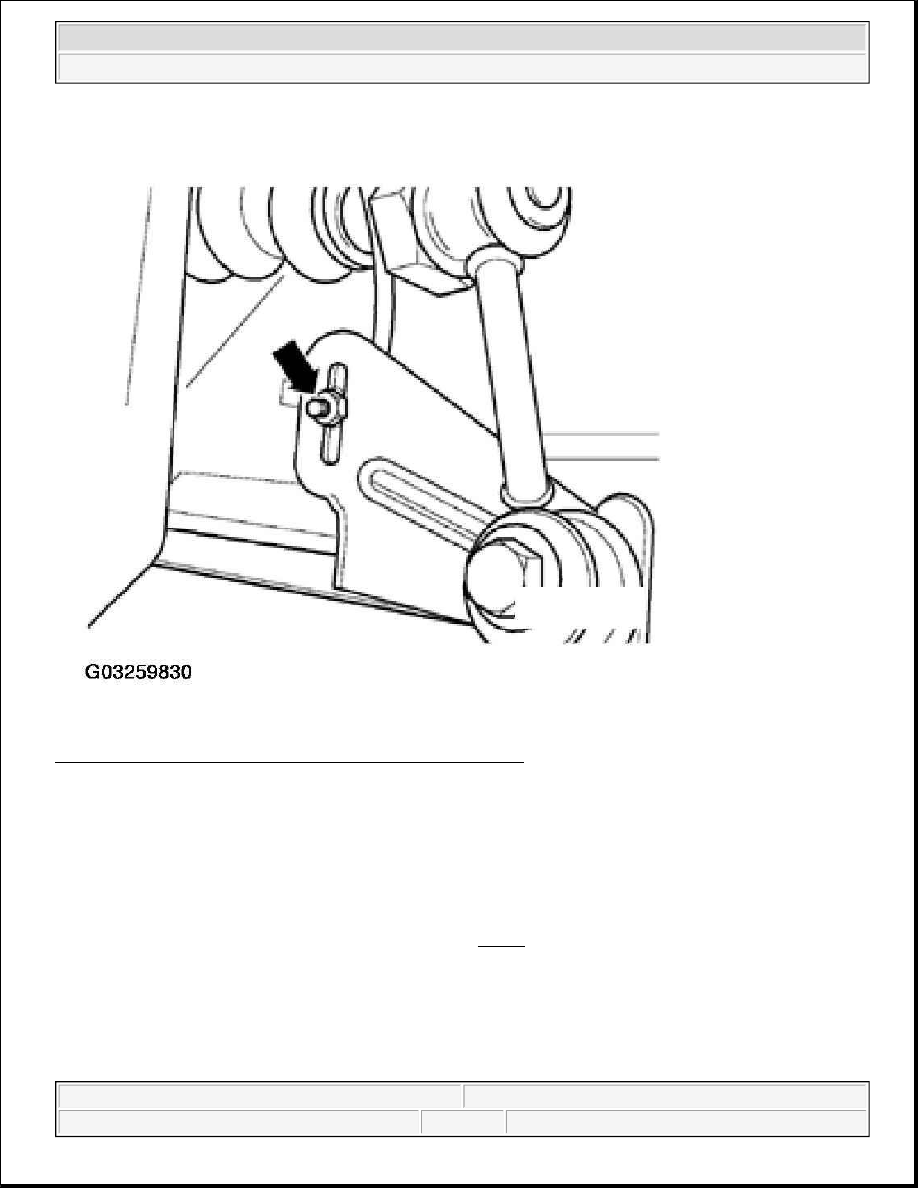

Installing

The rest of the assembly is basically a reverse of the disassembling sequence.

Tightening torques. See SECONDARY AIR SYSTEM COMPONENTS, REMOVING AND
INSTALLING .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



1998-2004 ENGINE

Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle

TURBOCHARGER, G-CHARGER

CHARGE AIR PRESSURE WITH TURBOCHARGER

Turbocharger system components, removing and installing

Observe rules for cleanliness. See RULES FOR CLEANLINESS .

1. Exhaust manifold

z

With turbocharger

z

Only replace as assembly

2. Intake manifold

3. from charge air cooler

4. Gasket

z

Replace

z

Coating (beading) toward intake manifold

5. 25 N.m (18 ft lb)

6. Gasket

z

Note installation position

7. Bracket

z

For heat shield (item -9-)

8. Washer

9. Heat shield

z

Engage in bracket (item -7-)

10. Turbocharger

z

Only replace as assembly

z

Removing: remove right drive shaft at transmission:

See FRONT AXLE SHAFT .

NOTE:

z

All hose connections are secured with clips.

z

Charge air pressure must be leak free.

z

Replace self-locking nuts.

NOTE:

The following list refers to items in Fig. 1 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle





2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



z

Charge air pressure control, checking. See CHARGE AIR PRESSURE SYSTEM,
CHECKING .

11. Pressure unit

z

For charge air pressure control valve

z

Integral part of turbocharger; cannot be replaced

12. From Air Cleaner

13. Gasket

z

Replace

14. Sealing ring

z

Replace

15. Oil return pipe

z

To cylinder block

16. Banjo bolt

z

25 N.m (18 ft lb)

17. 15 N.m (11 ft lb)

18. 40 N.m (30 ft lb)

19. Bracket

20. 25 N.m (18 ft lb)

21. Gasket

z

Replace

22. Front exhaust pipe

23. Connection

24. 10 N.m (7 ft lb)

25. Oil supply pipe



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



Fig. 1: Exploded View Of Turbocharger System Components
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Charge air cooler components, removing and installing

1. Charge air cooler

2. 10 N.m (7 ft lb)

3. Connecting hose

4. Connecting pipe

NOTE:

z

All hose connections are secured by clips.

z

Charge air pressure must be free of leaks.

NOTE:

The following list refers to items in Fig. 2 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle
