Specification: 1350 to 1750 bar

Engine code AWP

z

Press print button between 1800 to 2300 RPM and read charge air pressure actual value in display zone 4.

Specification: 1700 to 2000 bar

Continued for all vehicles

z

Compare actual charge air pressure value with specified charge air pressure value in display zone 3.

Difference: max. 100 mbar

z

Press --> button.

z

Press buttons -0- and -6- for "End output" function and confirm input with -Q- button.

z

Switch ignition off.

If the charge air pressure is exceeded:

z

Check Charge Air Pressure Sensor -G31-. See CHARGE AIR PRESSURE SENSOR -G31-,
CHECKING .

z

Check Wastegate Bypass Regulator Valve -N75-. (Hose from turbocharger via valve to pressure unit not
blocked when connector is pulled off).

z

Check pressure unit for charge air pressure regulating valve is securely mounted on turbocharger.

z

Check pressure unit. See PRESSURE UNIT FOR WASTEGATE BYPASS REGULATOR VALVE -
N75-, CHECKING

z

Check shaft mount for charge air pressure regulating valve in turbocharger for ease of movement. When
corroded together, replace turbocharger.

If the charge air pressure is not attained:

z

Check Charge Air Pressure Sensor -G31-. See CHARGE AIR PRESSURE SENSOR -G31-,
CHECKING .

z

Check Wastegate Bypass Regulator Valve -N75-. See WASTEGATE BYPASS REGULATOR
VALVE -N75-, CHECKING .

z

Check shaft mount for charge air pressure regulating valve in turbocharger for ease of movement. When
corroded together, replace turbocharger.

z

Turbocharger malfunctioning. Replace turbocharger. See TURBOCHARGER WITH
ATTACHMENTS, REMOVING AND INSTALLING .

z

Check DTC memory:

NOTE:

Repeat the measurement if the charge air pressure has not fully built-up or
there is a large difference between specified and actual values.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



See Diagnostic Trouble Code (DTC) Memory, Checking And Erasing .

z

Read readiness code:

See Readiness Code, Displaying .

If the DTC memory has been erased or the engine control module separated from the permanent positive, the
readiness code must be generated again.

See Readiness Code, Displaying .

Wastegate Bypass Regulator Valve -N75-, checking

Special tools and equipment

z

VAG 1551 scan tool or vehicle system tester VAG 1552 with cable VAG 1551 /3B

z

VAG 1526 Hand multimeter or VAG 1715 multimeter

z

Adapter set VAG 1594

Test conditions

z

Output Diagnostic Test Mode (DTM) carried out

See Output Diagnostic Test Mode (DTM) .

Test sequence

z

Switch ignition off.

z

Pull 2-pin connector off Wastegate Bypass Regulator Valve -N75- -arrow-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



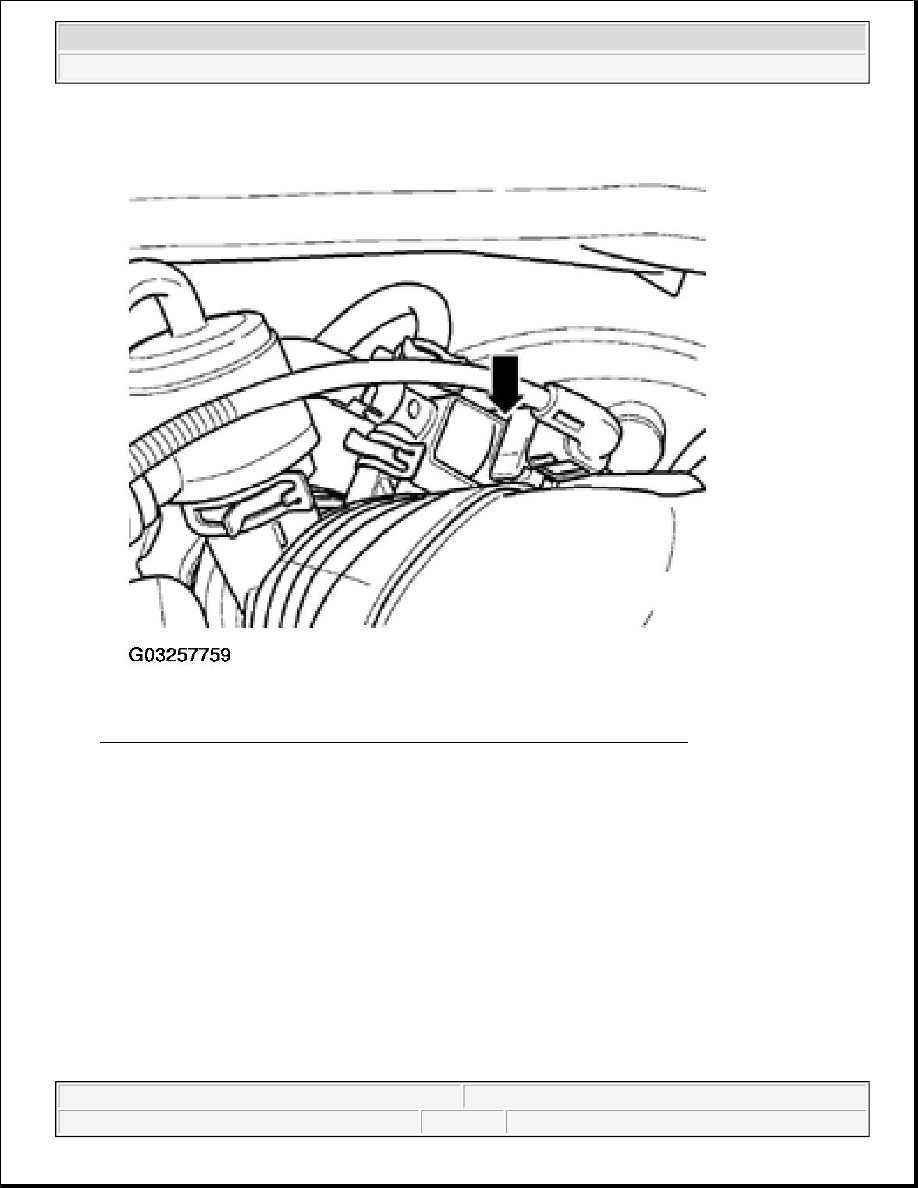

Fig. 16: Pulling 2-Pin Connector Off Wastegate Bypass Regulator Valve N75
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure resistance between valve contacts.

Specification: 25-35 ohm
