PTFE sealing rings

Coil spring seals

Continuation for all seals

z

Install sealing flange immediately and lightly tighten all bolts.

z

Tighten sealing flange securing bolts using an alternating sequence and torque to 15 N.m.

z

Remove excess sealing compound.

z

Install sump. See OIL SUMP, REMOVING AND INSTALLING .

z

Install crankshaft toothed belt pulley and counter support with 3415. Torque bolts to 90 N.m + 1/4 turn
(90°) further.

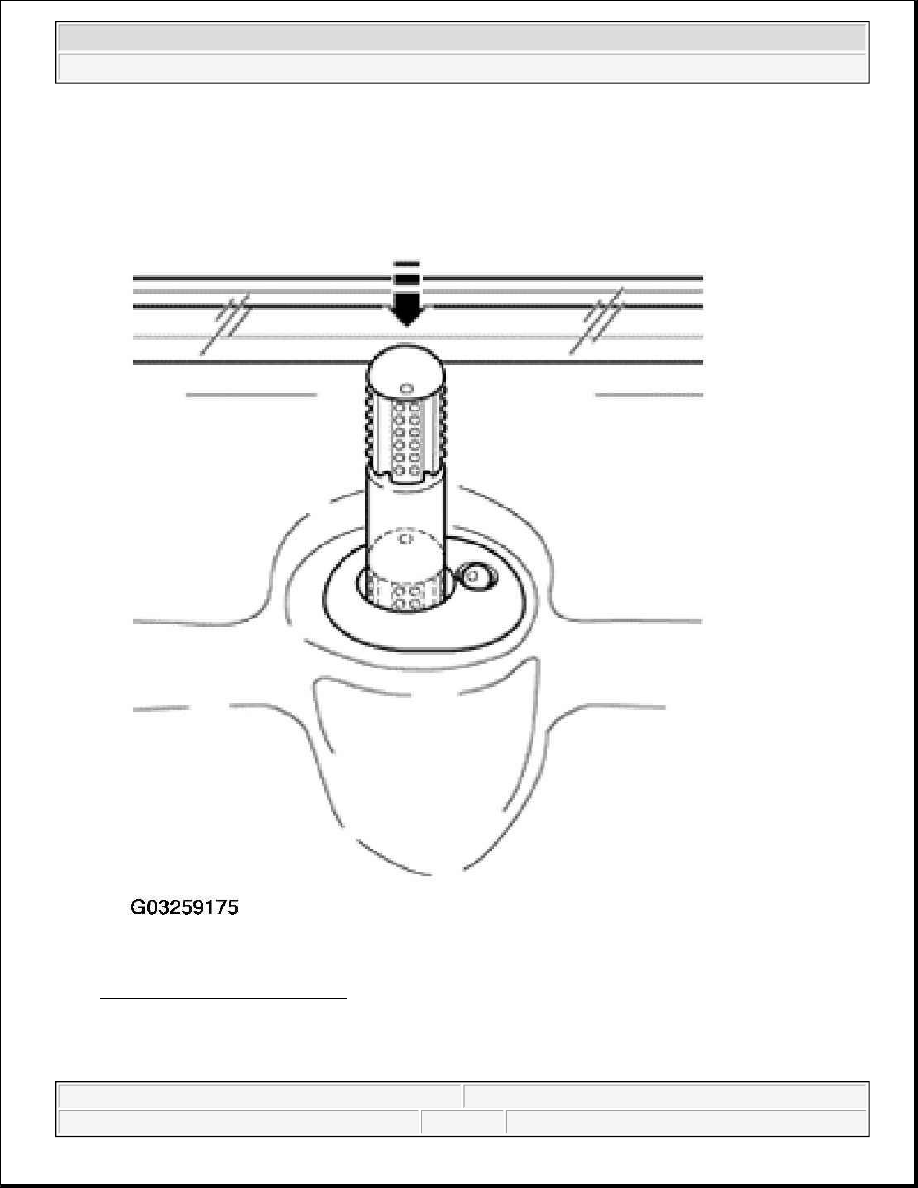

the oil suction pipe strainer.

z

Note the use-by date of the sealant.

z

The sealing flange must be installed within 5 minutes of
applying the silicone sealing compound.

NOTE:

Use guide sleeve T10053/1 to fit sealing flange with the oil seal already
installed.

NOTE:

Use guide sleeve 2080 A to fit sealing flange with the oil seal already installed.

NOTE:

The sealant must be allowed to cure for approx. 30 minutes after installing the
sump. After this time the engine may be filled with engine oil.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 2.0L 4-Cyl. - AEG, AVH, AZG, BDC, BEV, BGD



Fig. 49: Installing Crankshaft Toothed Belt Pulley
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Install toothed belt and adjust timing. See TOOTHED BELTS, REMOVING, INSTALLING AND
TENSIONING .

z

Install tensioning element for ribbed belt.

z

Install ribbed belt. See RIBBED BELT, REMOVING AND INSTALLING .

Drive plate, removing and installing

Special tools, equipment, testers, measuring instruments and auxiliary items required

z

VW 558 Counter support tool

NOTE:

Thread and shoulder must be free of oil and grease.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 2.0L 4-Cyl. - AEG, AVH, AZG, BDC, BEV, BGD



z

Hex bolt M8 x 45 and two M10 hex nuts

z

Depth gauge

Fig. 50: Identifying Special Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Loosening and tightening drive plate



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 2.0L 4-Cyl. - AEG, AVH, AZG, BDC, BEV, BGD



z

Secure counter support tool VW 558 to the drive plate with a M8 x 45 hex bolt. Place two M10 hex nuts
between counter support tool and drive plate.
