GENERAL INFORMATION

Gear Tooth Contact Patterns

INSPECTION

Wipe lubricant from internal parts. Rotate gears and inspect for wear or damage. Mount dial indicator to
housing and check backlash at several points around ring gear. Backlash must be within specification at all
points. If no defects are found, check gear tooth pattern contact.

GEAR TOOTH CONTACT PATTERN

1. Paint ring gear teeth with marking compound. Wrap cloth or rope around drive pinion flange to act as

brake. Rotate gear until clear contact pattern is obtained.

2. Contact pattern will indicate whether correct pinion bearing mounting shim has been installed and if drive

gear backlash has been set properly. Backlash between drive gear pinion must be maintained within
specified limits until correct tooth pattern is obtained.

ADJUSTMENTS

GEAR BACKLASH & PINION SHIM CHANGES

1. With no change in backlash, moving pinion further from ring gear moves drive pattern toward heel and

top of tooth, and moves coast pattern toward toe and top of tooth.

2. With no change in backlash, moving pinion closer to ring gear moves drive pattern toward toe and bottom

of tooth, and moves coast pattern toward heel and bottom of tooth.

3. With no change in pinion shim thickness, an increase in backlash moves ring gear further from pinion.

Both drive and coast patterns move toward heel and top of tooth.

4. With no change in pinion shim thickness, a decrease in backlash moves ring gear closer to pinion gear.

Both drive and coast patterns move toward toe and bottom of tooth.

NOTE:

Drive pattern should be well centered on ring gear teeth. Coast pattern should
be centered, but may be slightly toward toe of ring gear teeth.



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Gear Tooth Contact Patterns





1998 Chevrolet Pickup C1500

GENERAL INFORMATION Gear Tooth Contact Patterns



Fig. 1: Drive Axle Gear Tooth Patterns




1998 Chevrolet Pickup C1500

GENERAL INFORMATION Gear Tooth Contact Patterns



GENERAL INFORMATION

General Cooling System Service

DESCRIPTION

The liquid cooling system consists of a radiator, water pump, thermostat, electric or belt-driven cooling fan,
pressure cap, heater, and various connecting hoses and cooling passages in the engine block and cylinder head.

MAINTENANCE

DRAINING

Remove radiator cap and open heater control valve to maximum heat position. Open drain cocks or remove
plugs in bottom of radiator and engine block. In-line engines usually have one plug or drain cock, while "V"
type engines have 2, one in each bank of cylinders.

FLUSHING

Radiator

Connect flushing gun to water outlet of radiator. Disconnect water inlet hose. To prevent flooding engine, use a
hose connected to radiator inlet. Use air in short bursts to prevent damage to radiator. Continue flushing until
water runs clear.

Engine Block

To flush engine, remove thermostat. Connect flushing gun to water outlet of radiator. Use air in short bursts to
prevent damage to radiator. Continue flushing until water runs clear.

REFILLING

To prevent air from being trapped in engine block, engine should be running when refilling cooling system.
After system is full, continue running engine until thermostat is open, then recheck fill level. Do not overfill
system.

TESTING

THERMOSTAT

1. Remove and inspect thermostat for corrosion and proper seating of valve. If okay, suspend thermostat and

thermometer in a 50/50 mixture of coolant and water. See Fig. 1 . DO NOT allow thermostat or

CAUTION: Some manufacturers use an aluminum and plastic radiator. Flushing

solution must be compatible with aluminum.



1998 Chevrolet Pickup C1500

GENERAL INFORMATION General Cooling System Service





1998 Chevrolet Pickup C1500

GENERAL INFORMATION General Cooling System Service



thermometer to touch bottom or container. Heat water until thermostat begins to open.

2. Read temperature on thermometer. This is the initial opening temperature and should be within

specification. Continue heating water until thermostat is fully open and note temperature. This is the fully
open temperature. If either reading is not to specification, replace thermostat.

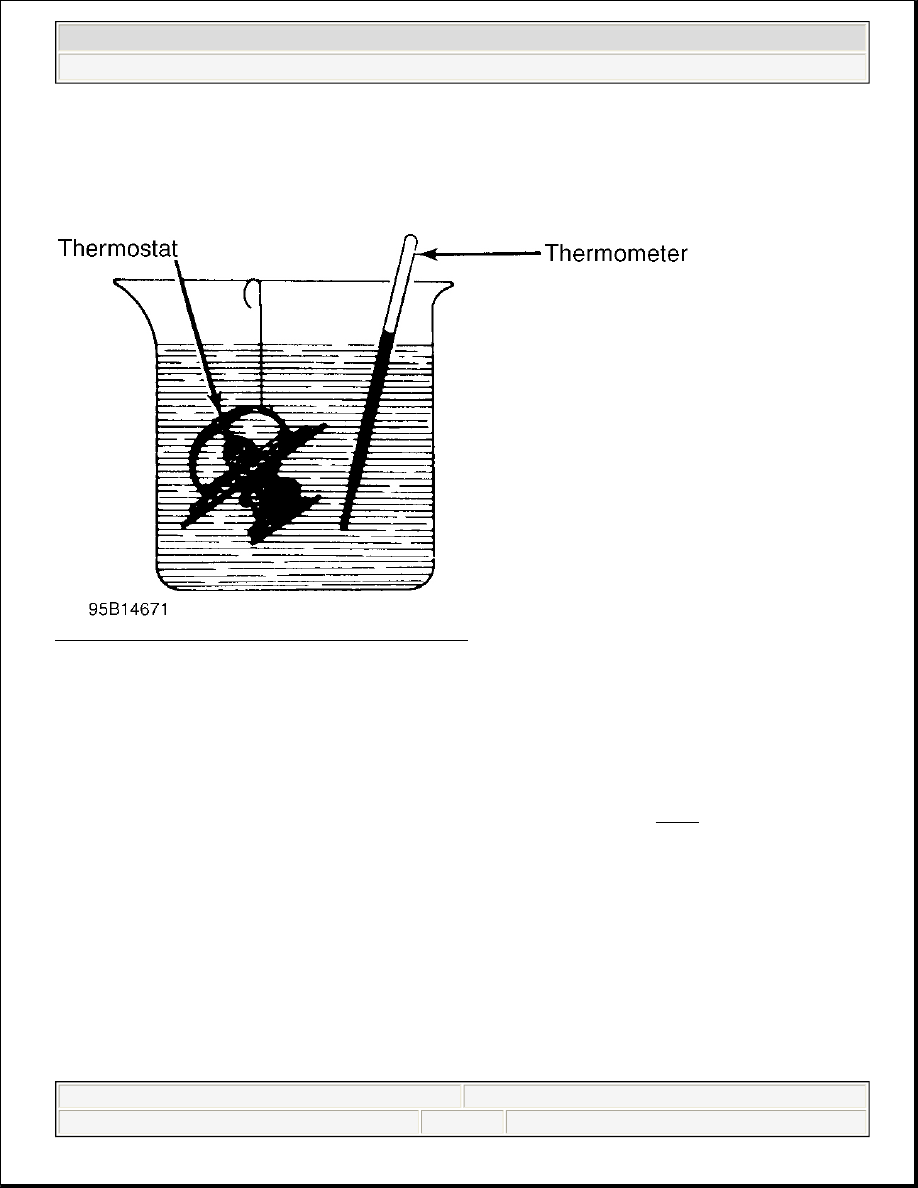

Fig. 1: Testing Thermostat in Coolant/Water Solution

PRESSURE TESTING

A pressure tester is used to check both radiator cap and complete cooling system. Follow pressure tester
manufacturer instructions and test components as follows:

Radiator Cap

Visually inspect radiator cap. If cap looks okay, connect pressure tester to cap. See Fig. 2 . Pressurize tester to
full radiator cap specification. Replace cap if it fails to hold pressure.



1998 Chevrolet Pickup C1500

GENERAL INFORMATION General Cooling System Service
