indicator to zero. Rotate camshaft gear 360 degrees and note reading. If backlash or runout exceeds
specification, replace camshaft and/or crankshaft gear.

REAR MAIN OIL SEAL INSTALLATION

One-Piece Type Seal

For one-piece type oil seal installation, coat block contact surface of seal with sealer if seal is not factory
coated. Ensure seal surface is free of burrs. Lubricate seal lip with engine oil and press seal into place using
proper oil seal installer. See Fig. 27 .

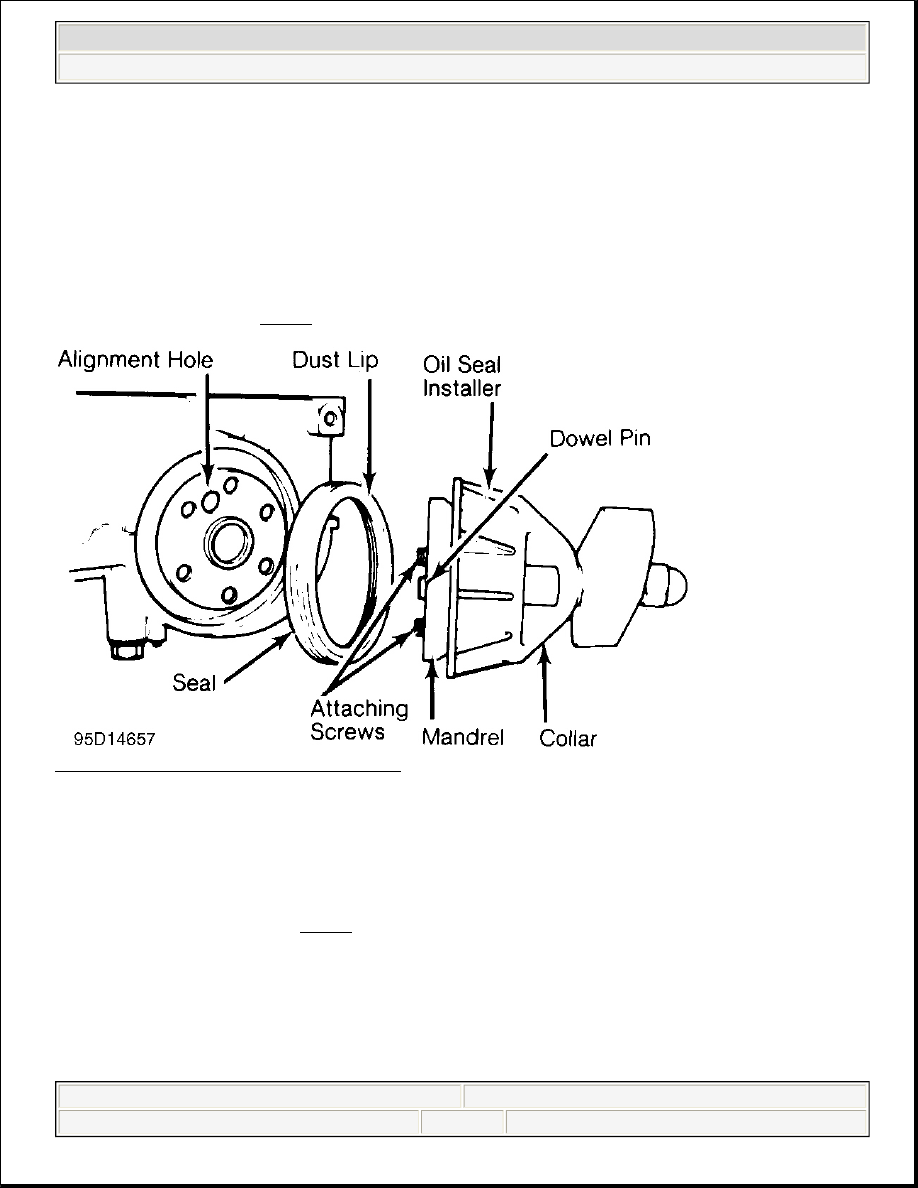

Fig. 27: Installing Typical One-Piece Oil Seal

Rope Type Seal

For rope type rear main oil seal installation, press seal lightly into seat area. Using seal installer, fully seat seal
in bearing cap or cylinder block.

Trim seal ends even with cylinder block parting surface. Some applications require sealer to be applied on main
bearing cap before installing. See Fig. 28 .



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures

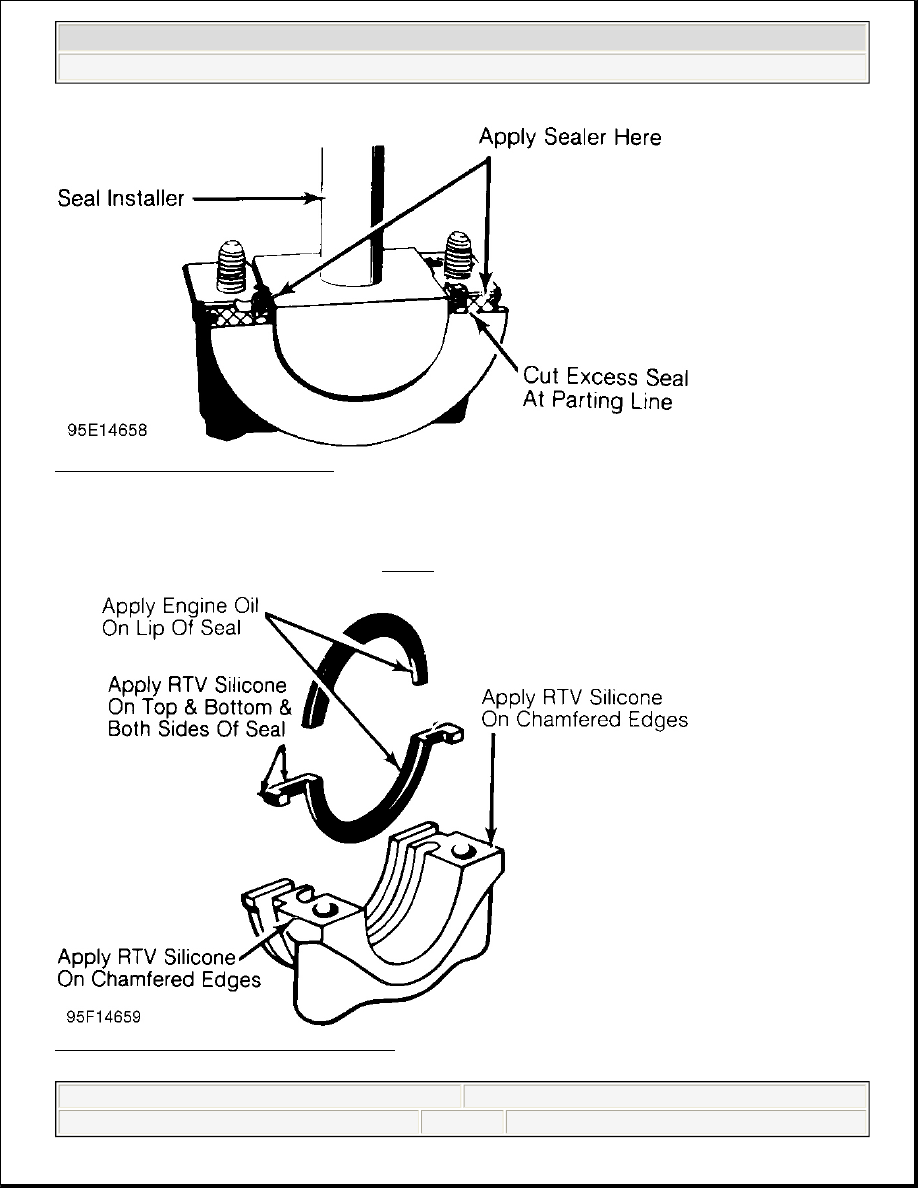

Fig. 28: Installing Typical Rope Seal

Split-Rubber Type Seal

Follow manufacturer's procedures when installing split-rubber type rear main oil seals. Installation procedures
vary with manufacturer and engine type. See Fig. 29 .

Fig. 29: Installing Typical Split-Rubber Seal



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures



OIL PUMP

ROTOR TYPE

Mark oil pump rotor locations before removing. See Fig. 30 . Remove outer rotor and measure thickness and
diameter. Measure inner rotor thickness. Inspect shaft for scoring or wear. Inspect rotors for pitting or damage.
Inspect cover for grooving or wear. Replace worn or damaged components.

Measure outer rotor-to-body clearance. Replace pump assembly if clearance exceeds specification. Measure
clearance between rotors. See Fig. 31 . Replace shaft and both rotors if clearance exceeds specification.

Install rotors in pump body. Position straightedge across pump body. Using feeler gauge, measure clearance
between rotors and straightedge. Pump cover wear is measured using a straightedge and feeler gauge. Replace
pump if clearance exceeds specification.

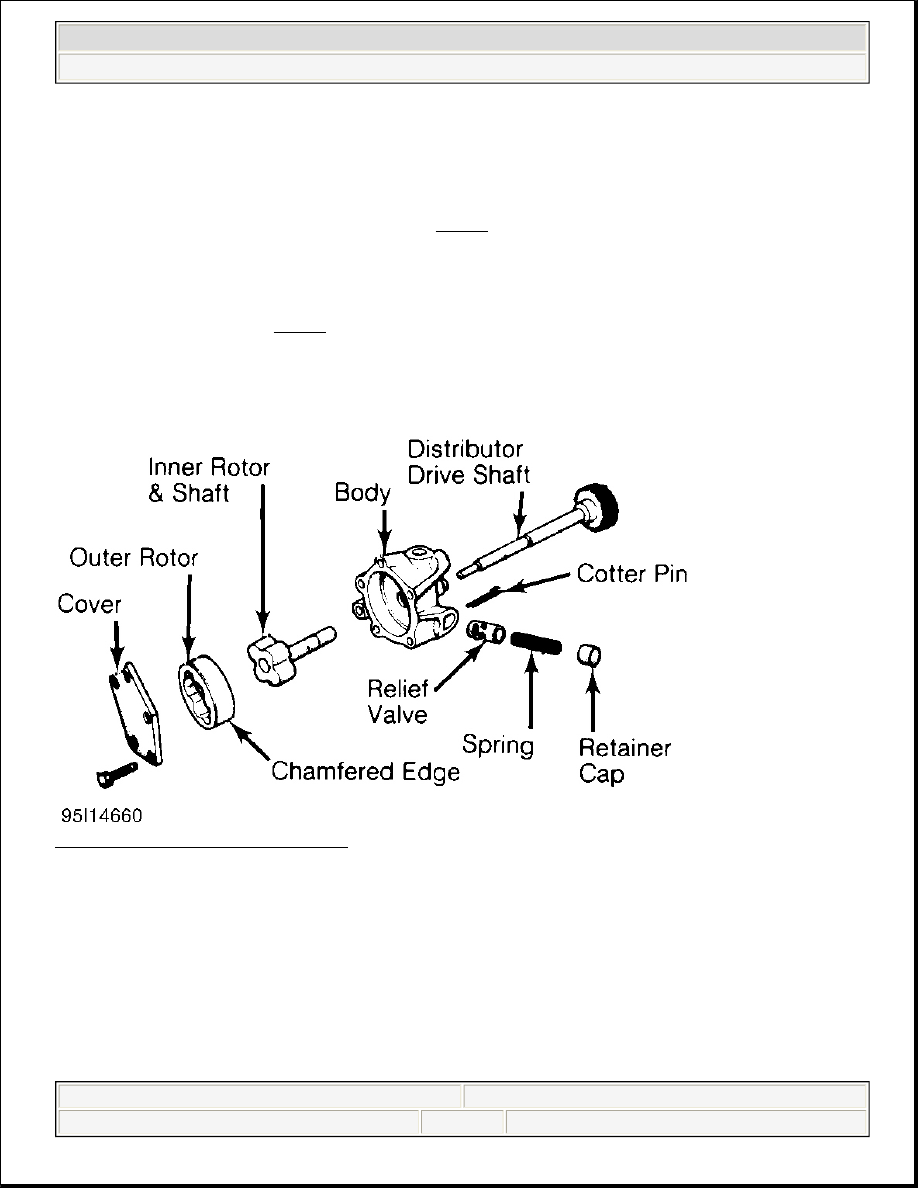

Fig. 30: Typical Rotor Type Oil Pump



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures

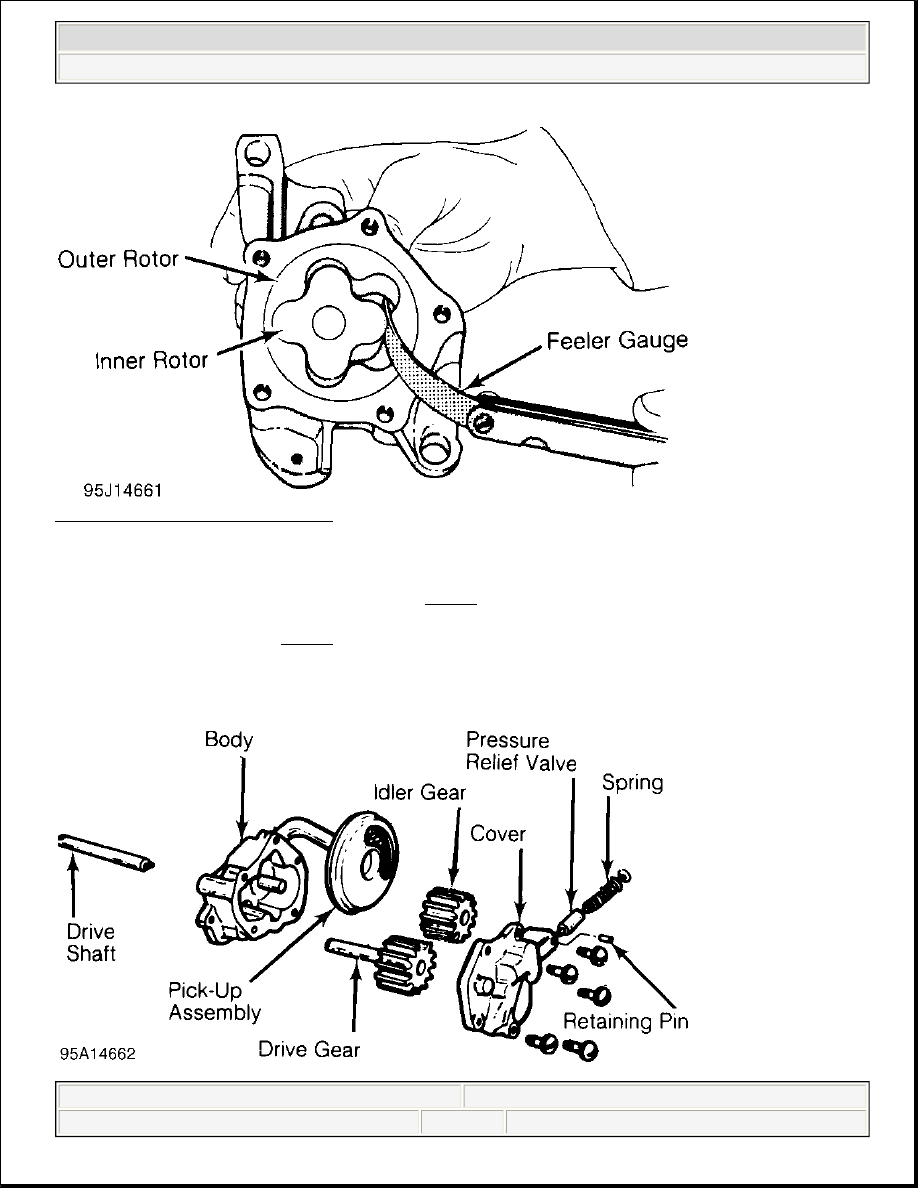

Fig. 31: Measuring Rotor Clearance

GEAR TYPE

Mark oil pump gear location before removing. See Fig. 32 . Remove gears from pump body. Inspect gears for
pitting or damage. Inspect cover for grooving or wear. Measure gear diameter and length. Measure gear housing
cavity depth and diameter. See Fig. 33 . Replace worn or damaged components.

Pump cover wear is measured using a straightedge and feeler gauge. Replace pump or components if warpage
or wear exceeds specification, or mating surface of pump cover is scratched or grooved.
