Volkswagen New Beetle. Manual - part 22





wear safety glasses, rubber gloves and long-sleeved shirt during clean-up. After clean-up, wash hands
using mild soap and water.

z

DO NOT install components previously installed on another vehicle. Only use NEW components
supplied by manufacturer.

z

When using electric welding, disconnect air bag module and seat belt pretensioner connectors.

z

When carrying a live air bag module, trim cover must be pointed away from body to minimize injury in
case of accidental air bag deployment.

z

If SRS is not fully functional for any reason, vehicle should not be driven until system is repaired and
again becomes operational. DO NOT remove bulbs, modules, sensors or other components or in any way
disable system from operating normally. If SRS is not functional, park vehicle until it is repaired and
functions properly. See SYSTEM OPERATION CHECK .

DISABLING & ACTIVATING AIR BAG SYSTEM

Disabling System (ES300 & LS400)

1. Obtain radio anti-theft protection code from vehicle owner and record preset radio frequencies before

disconnecting battery.

2. Place front wheels in straight-ahead position. Turn ignition switch to LOCK position. Disconnect and

shield negative battery cable. Wait at least 90 SECONDS before working on vehicle.

3. Disconnect driver-side air bag module Yellow 2-pin connector located under steering column lower

cover, near combination switch connector. See Fig. 22 . Disconnect passenger-side air bag module
Yellow 2-pin connector located on finish plate at left side of glove box. See Fig. 23 . Air bag connector
terminals are automatically shorted together. See Fig. 21 .

4. Disconnect left and right side air bag module Yellow 2-pin connectors located under each front seat.

Disconnect left and right seat belt pretensioner Yellow 2-pin connectors located under lower front scuff
plate and floor carpet. Air bag connector terminals are automatically shorted together. See Fig. 21 .

Activating System (ES300 & LS400)

Connect all seat belt pretensioner and air bag Yellow 2-pin connectors in reverse order. Install all removed
covers. Connect negative battery cable. Staying well away from air bag modules, turn ignition switch to ACC or
ON position. Ensure AIR BAG indicator light operates properly, see SYSTEM OPERATION CHECK .

Disabling System (GS300 & GS400)

1. Obtain radio anti-theft protection code from vehicle owner and record preset radio frequencies before

disconnecting battery.

2. Place front wheels in straight-ahead position. Turn ignition switch to LOCK position. Disconnect and

shield negative battery cable. Wait at least 90 SECONDS before working on vehicle.

3. Disconnect driver-side air bag module Yellow 2-pin connector located under steering column lower

cover, near combination switch connector. Disconnect passenger-side air bag module Yellow 2-pin
connector located on finish plate at right side of glove box. Air bag connector terminals are automatically
shorted together. See Fig. 21 .

4. Disconnect left and right side air bag modules Yellow 2-pin connectors located under each front seat.



1997 Lexus SC 300

GENERAL INFORMATION Air Bag Deactivation Procedures



Helpmelearn Repair Manuals



Wednesday, January 18, 2006 7:48:25 PM

Page 35

© 2004 Mitchell Repair Information Company, LLC.

Disconnect left and right seat belt pretensioner Yellow 2-pin connectors located at center pillar lower
garnish. Air bag connector terminals are automatically shorted together. See Fig. 21 .

Activating System (GS300 & GS400)

Connect all seat belt pretensioner and air bag Yellow 2-pin connectors in reverse order. Install all removed
covers. Connect negative battery cable. Staying well away from air bag modules, turn ignition switch to ACC or
ON position. Ensure AIR BAG indicator light operates properly, see SYSTEM OPERATION CHECK .

Disabling System (SC300 & SC400)

1. Obtain radio anti-theft protection code from vehicle owner and record preset radio frequencies before

disconnecting battery.

2. Place front wheels in straight-ahead position. Turn ignition switch to LOCK position. Disconnect and

shield negative battery cable. Wait at least 90 SECONDS before working on vehicle.

3. Disconnect driver-side air bag module connector located under steering column, near combination switch.

Air bag connector terminals are automatically shorted together. See Fig. 21 and Fig. 24 .

4. Open glove box. Remove passenger-side air bag connector cover from inside glove box. Disconnect

passenger-side air bag connector. Air bag connector terminals are automatically shorted together. See Fig.
21
 and Fig. 25 .

Activating System (SC300 & SC400)

Connect passenger-side air bag Yellow 2-pin connector. Connect driver-side air bag Yellow 2-pin connector.
Install covers. Connect negative battery cable. Staying well away from air bag modules, turn ignition switch to
ACC or ON position. Ensure AIR BAG indicator light operates properly, see SYSTEM OPERATION
CHECK
.

Disabling System (LX450)

1. Obtain radio anti-theft protection code from vehicle owner and record preset radio frequencies before

disconnecting battery.

2. Place front wheels in straight-ahead position. Turn ignition switch to LOCK position. Disconnect and

shield negative battery cable. Wait at least 90 SECONDS before working on vehicle.

3. Disconnect driver-side air bag module Yellow 2-pin connector located under steering column, near

combination switch. Air bag connector terminals are automatically shorted together. See Fig. 21 .

4. Remove glove box door. Remove passenger-side air bag connector from air bag bracket. Disconnect

passenger-side air bag Yellow 2-pin connector. Air bag connector terminals are automatically shorted
together. See Fig. 21 and Fig. 26 .

Activating System (LX450)

Connect passenger-side air bag Yellow 2-pin connector. Connect driver-side air bag Yellow 2-pin connector.
Install covers. Connect negative battery cable. Staying well away from air bag modules, turn ignition switch to
ACC or ON position. Ensure AIR BAG indicator light operates properly, see SYSTEM OPERATION
CHECK
.



1997 Lexus SC 300

GENERAL INFORMATION Air Bag Deactivation Procedures



Helpmelearn Repair Manuals



Wednesday, January 18, 2006 7:48:25 PM

Page 36

© 2004 Mitchell Repair Information Company, LLC.

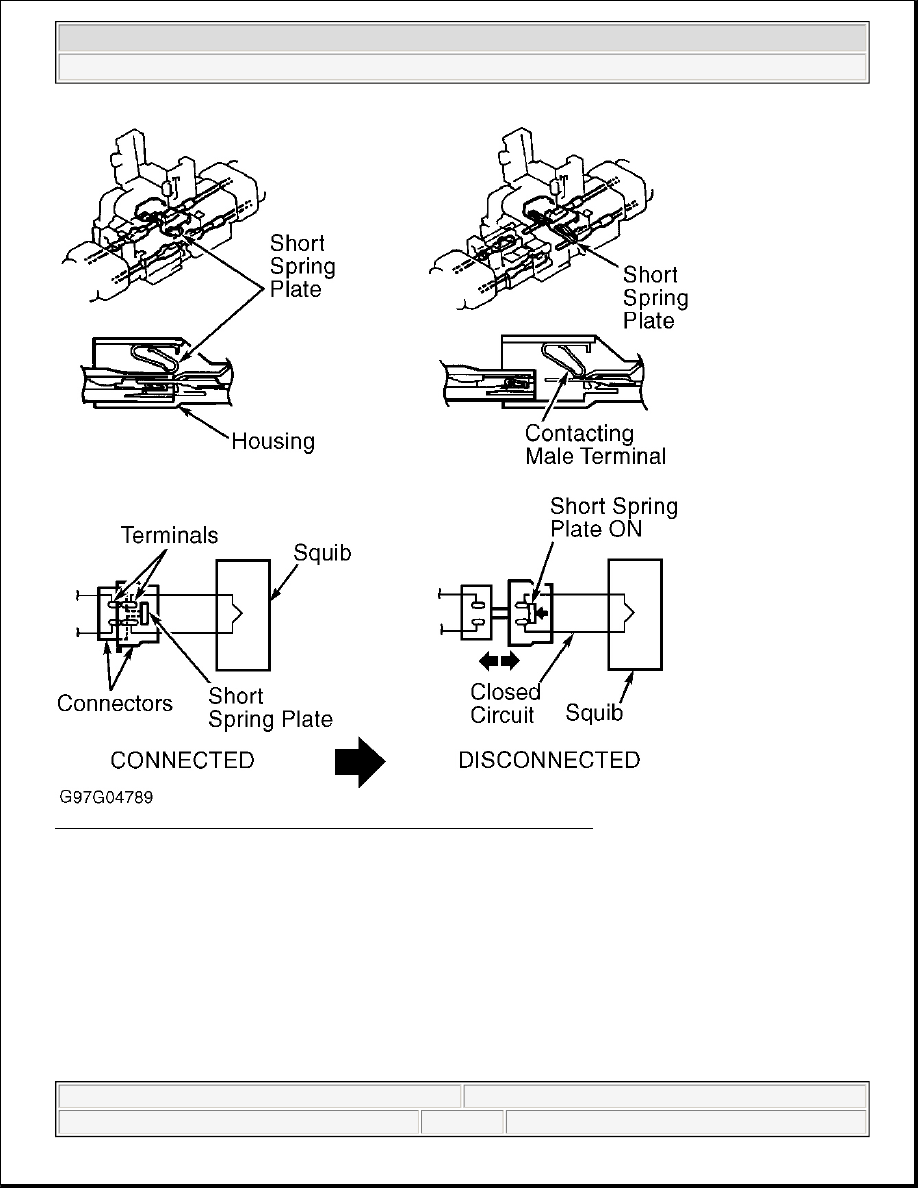

Fig. 21: Air Bag Activation Prevention Mechanism Connector (Lexus)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.



1997 Lexus SC 300

GENERAL INFORMATION Air Bag Deactivation Procedures



Helpmelearn Repair Manuals



Wednesday, January 18, 2006 7:48:25 PM

Page 37

© 2004 Mitchell Repair Information Company, LLC.

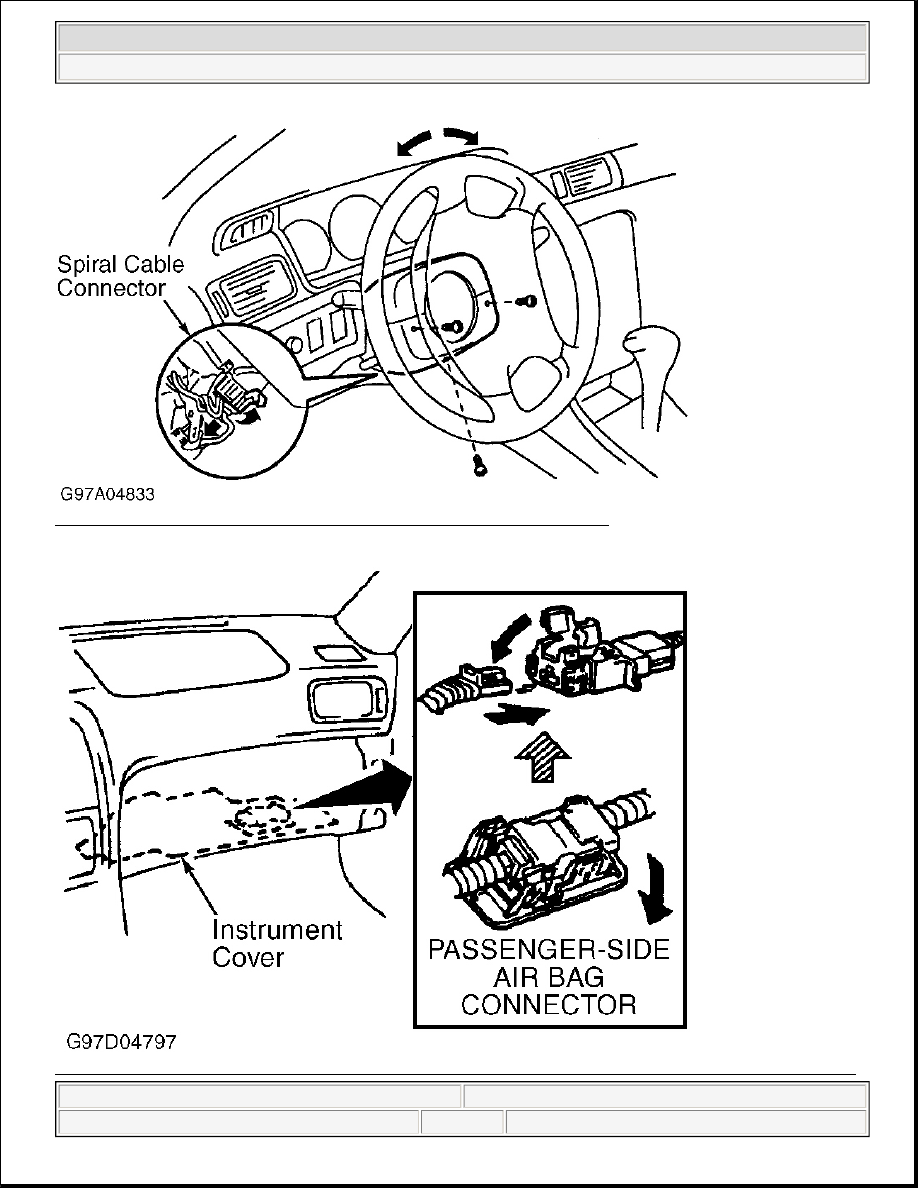

Fig. 22: Disconnecting Driver-Side Air Bag Connector (ES300 & LS400)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig. 23: Disconnecting Passenger-Side Air Bag Connector (ES300 & LS400 Shown; GS300 & GS400 Are



1997 Lexus SC 300

GENERAL INFORMATION Air Bag Deactivation Procedures



Helpmelearn Repair Manuals



Wednesday, January 18, 2006 7:48:25 PM

Page 38

© 2004 Mitchell Repair Information Company, LLC.
