Carry out following procedures:

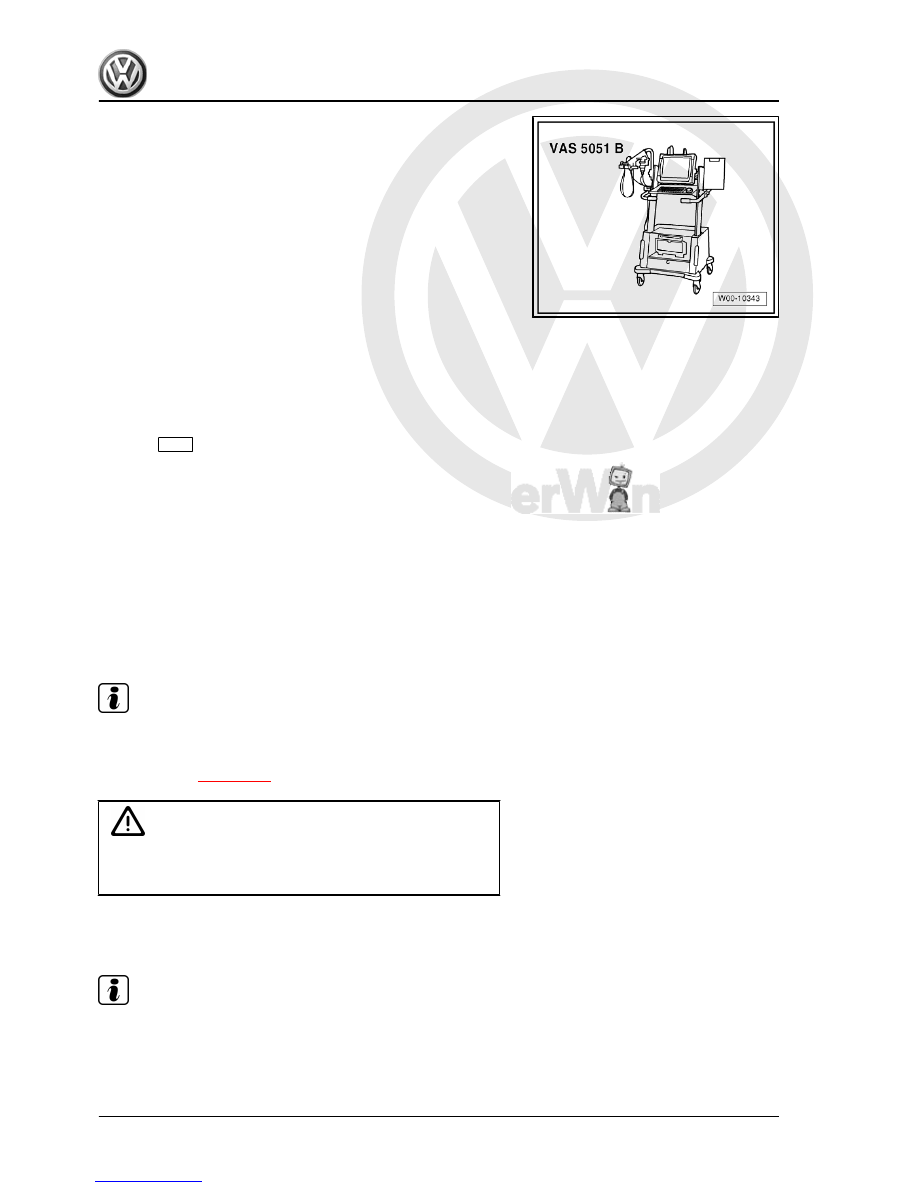

– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– On vehicle diagnosis, testing and information system -VAS

5051B- select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Dash panel insert
♦ Functions of dash panel insert
♦ Adapting/renewing dash panel insert

1.2

Removing and installing dash panel in‐

sert (up to MY2009)

Note

Before removing the dash panel insert, the work procedure „Re‐

newing dash panel insert“ must always be carried out in order that

the data stored in the control unit in dash panel insert -J285- can

be interrogated

⇒ page 173

 .

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Carry out following procedures:
Removing

Note

There is no need to remove the steering wheel.

– Pull out steering wheel fully and engage steering wheel in low‐

est position.

174



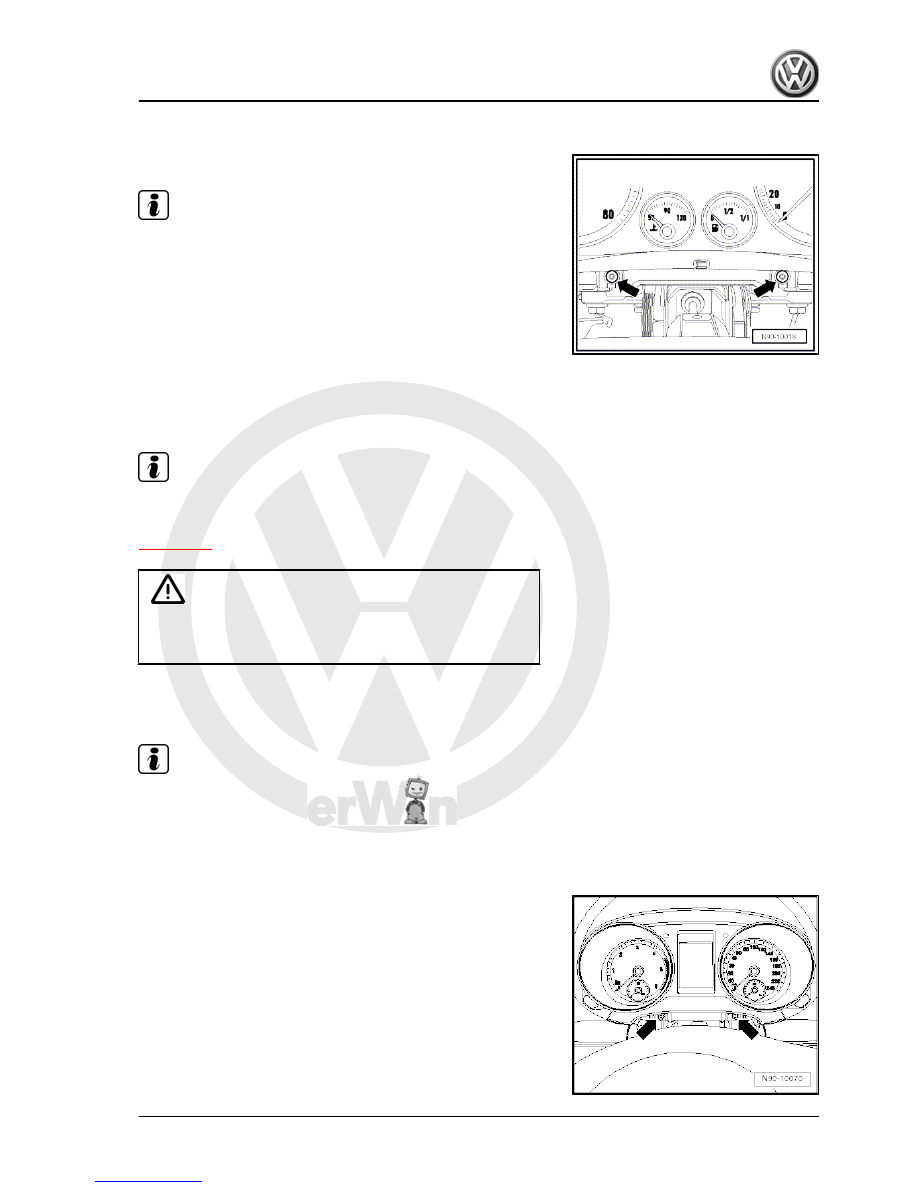

– Remove bolts -arrows- from dash panel insert.

Note

When pulling out dash panel insert, there is no need to separate

the connectors. The connections comprise of one part that is fixed

to the vehicle and are thus separated automatically when the

dash panel insert is pulled out.

– Pull dash panel insert out of dash panel.
Installing
Installation is carried out in reverse order of removal.

1.3

Removing and installing dash panel in‐

sert (from MY2010)

Note

Before removing the dash panel insert, the work procedure „Re‐

newing dash panel insert“ must always be performed to read out

the data stored in the control unit in dash panel insert -J285-

⇒ page 173

 .

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Carry out following procedures:
Removing

Note

There is no need to remove the steering wheel.

– Pull out steering wheel fully and engage steering wheel in low‐

est position.

– Remove upper part of steering column trim ⇒  General body

repairs, interior; Rep. gr.  68 .

– Remove bolts -arrows- from dash panel insert.
– Pull dash panel insert backwards straight out of dash panel,

taking connected wiring length into consideration.

1. Dash panel insert

175



– Remove dash panel insert from vehicle.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten bolted connections to 1.5 Nm.

1.4

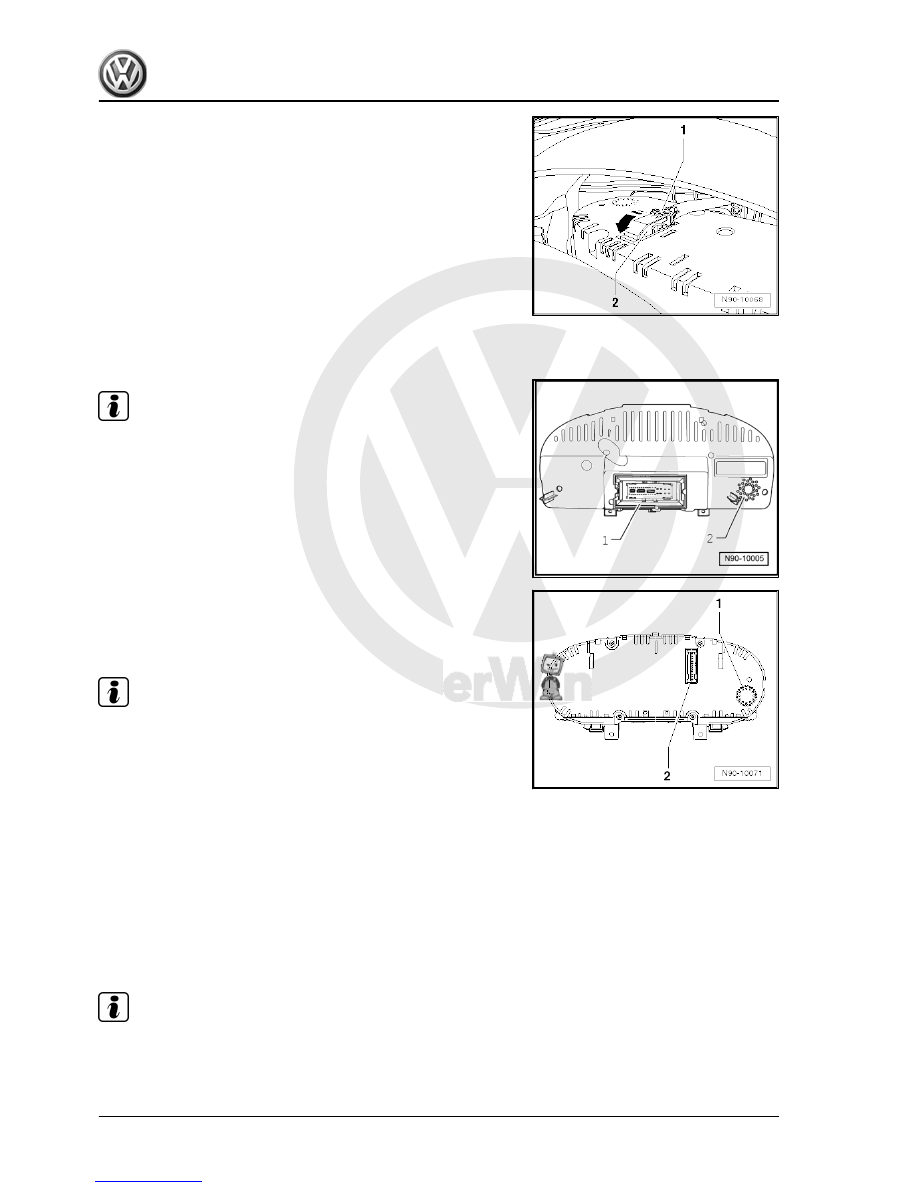

Back of dash panel insert (up to

MY2009)

Note

The dash panel insert must not be dismantled. If necessary, the

dash panel insert is renewed as a unit.

Back
1 - 36-pin connector
2 - Warning buzzer

1.5

Back of dash panel insert (from

MY2010)

Back

Note

The dash panel insert must not be dismantled. If necessary, the

dash panel insert is renewed as a unit.

1 - Warning buzzer
2 - 32-pin connector

1.6

Pin assignment of connectors at dash

panel insert

For pin assignment of connectors on dash panel insert, refer to

⇒ Current flow diagrams, Electrical fault finding and Fitting loca‐

tions.

1.7

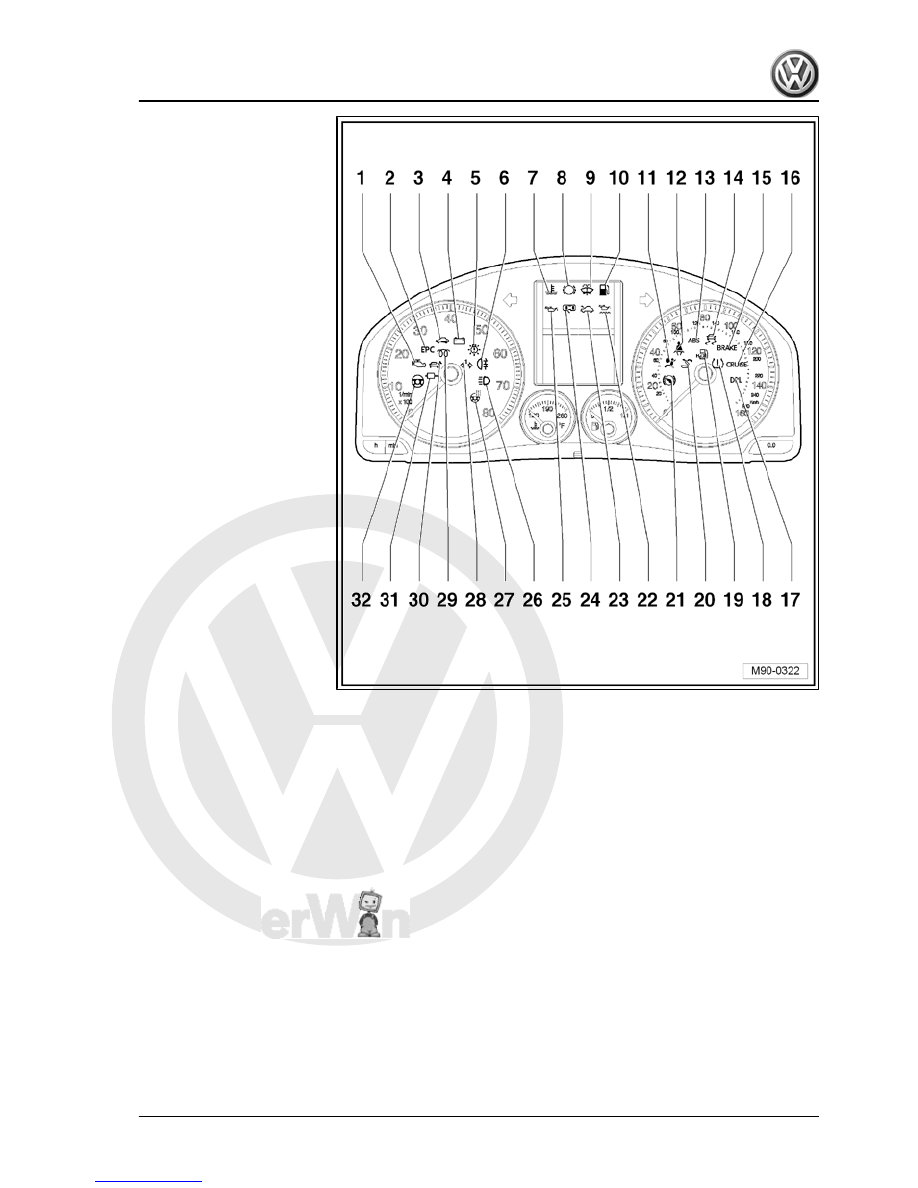

Warning lamp symbols on dash panel

insert (up to MY2009)

Note

Different versions of dash panel insert are installed depending on

the vehicle equipment level. Therefore, the arrangement of the

warning lamps may differ.

176



tric accelerator mechanism -

K132-

❑ Only vehicles with petrol

engine

3 - immobiliser warning lamp -

K115-
4 - Warning lamp for alternator

-K2-
5 - Bulb failure warning lamp -

K170-
6 - Warning lamp for rear fog

light -K13-
7 - Coolant shortage warning

lamp -K36-
8 - Brake pad warning lamp -

K32-
9 - Washer fluid level warning

lamp -K37-
10 - Reserve fuel warning lamp

-K16-
11 - Airbag warning lamp -K75-
12 - Seat belt warning system

warning lamp -K19-
13 - ABS warning lamp -K47-
14 - ESP and TCS warning

lamp -K155-
15 - Brake system warning

lamp -K118-
16 - Cruise control system warning lamp -K31-
17 - Warning lamp for daytime running lights -K205-
18 - Tyre pressure monitor warning lamp -K220-
19 - Water in fuel
20 - Rear seat backrest lock warning lamp -K193-
21 - Selector lever lock warning lamp -K169-

❑ only on vehicles with automatic gearbox

22 - Oil level warning lamp -K38-
23 - Bonnet open warning lamp -K171-
24 - Door open warning lamp -K166-
25 - Oil pressure warning lamp -K3-
26 - Main beam warning lamp -K1-
27 - Steering wheel heating
28 - Warning lamp for trailer operation -K18-
29 - Glow period warning lamp -K29-

❑ Only vehicles with diesel engine

1. Dash panel insert
