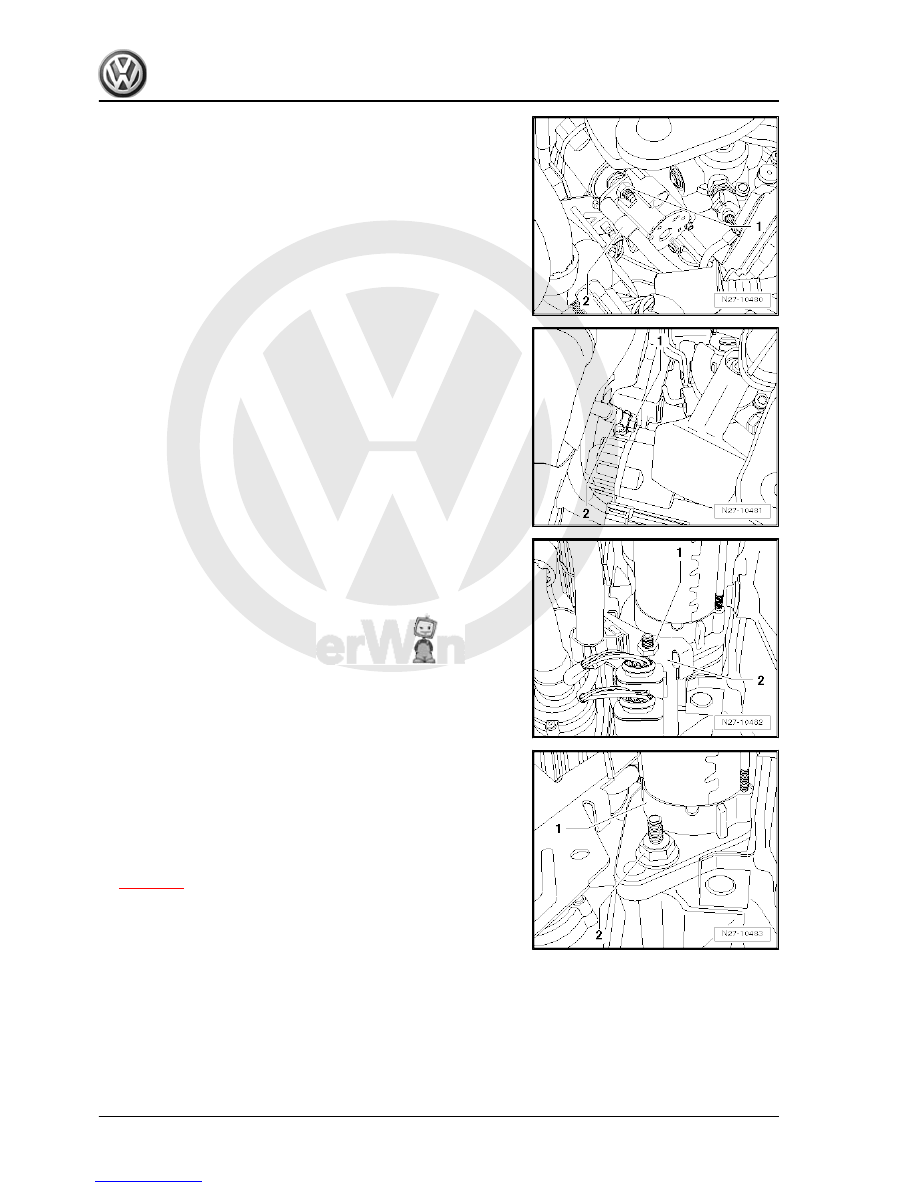

– Unscrew nut -1- from upper starter bolt and remove earth ca‐

ble -2-.

– Remove upper starter bolt behind from starter.
– Remove noise insulation ⇒  General body repairs, exterior;

Rep. gr.  50 .

– Unscrew nut -1- and remove wiring retainer -2- from lower

starter bolt.

– Remove lower starter bolt -2-.
– Remove starter -B- -1- from vehicle downwards.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 60

 .

6.4.3

Vehicles with 1.4 l petrol engine and

1.4/1.6 l FSI engine

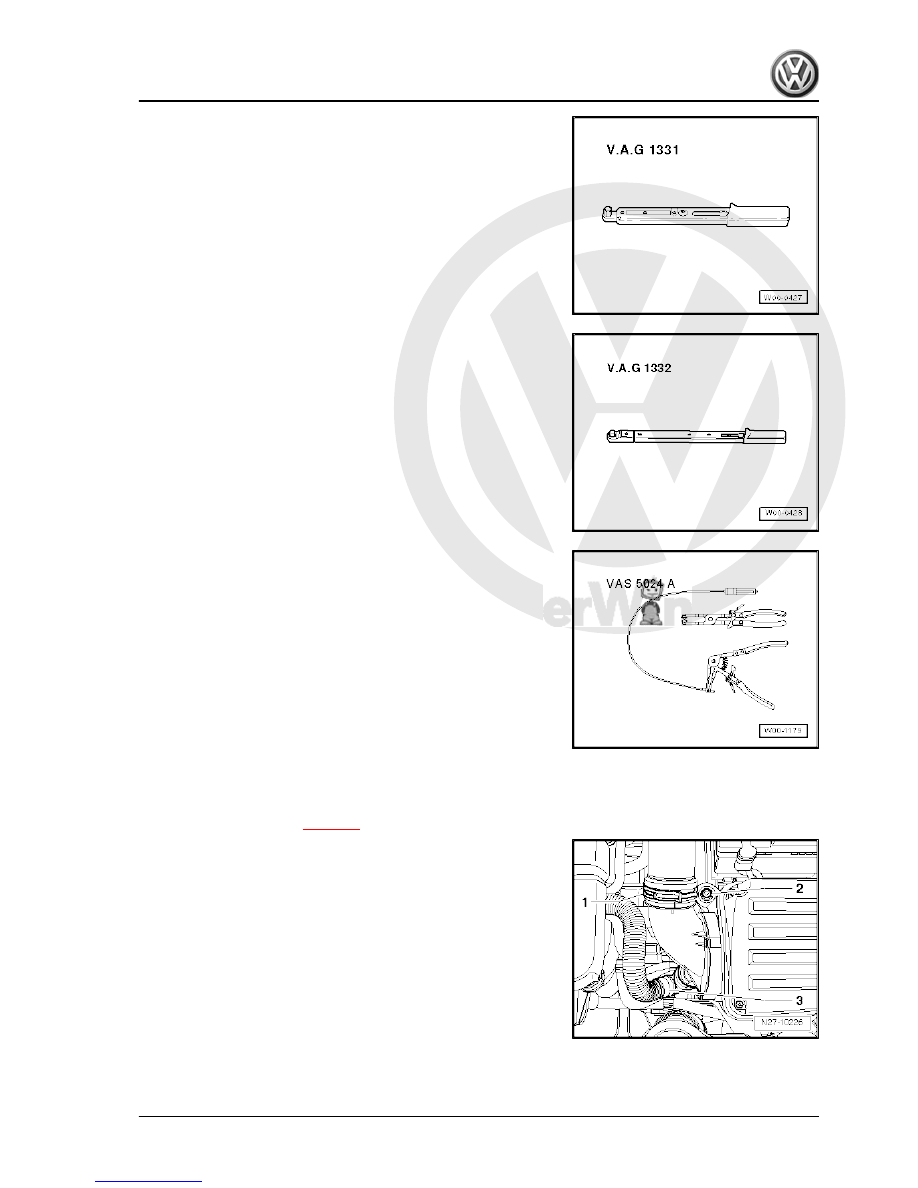

Special tools and workshop equipment required

62



♦ Spring-type clip pliers -VAS 5024A-

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

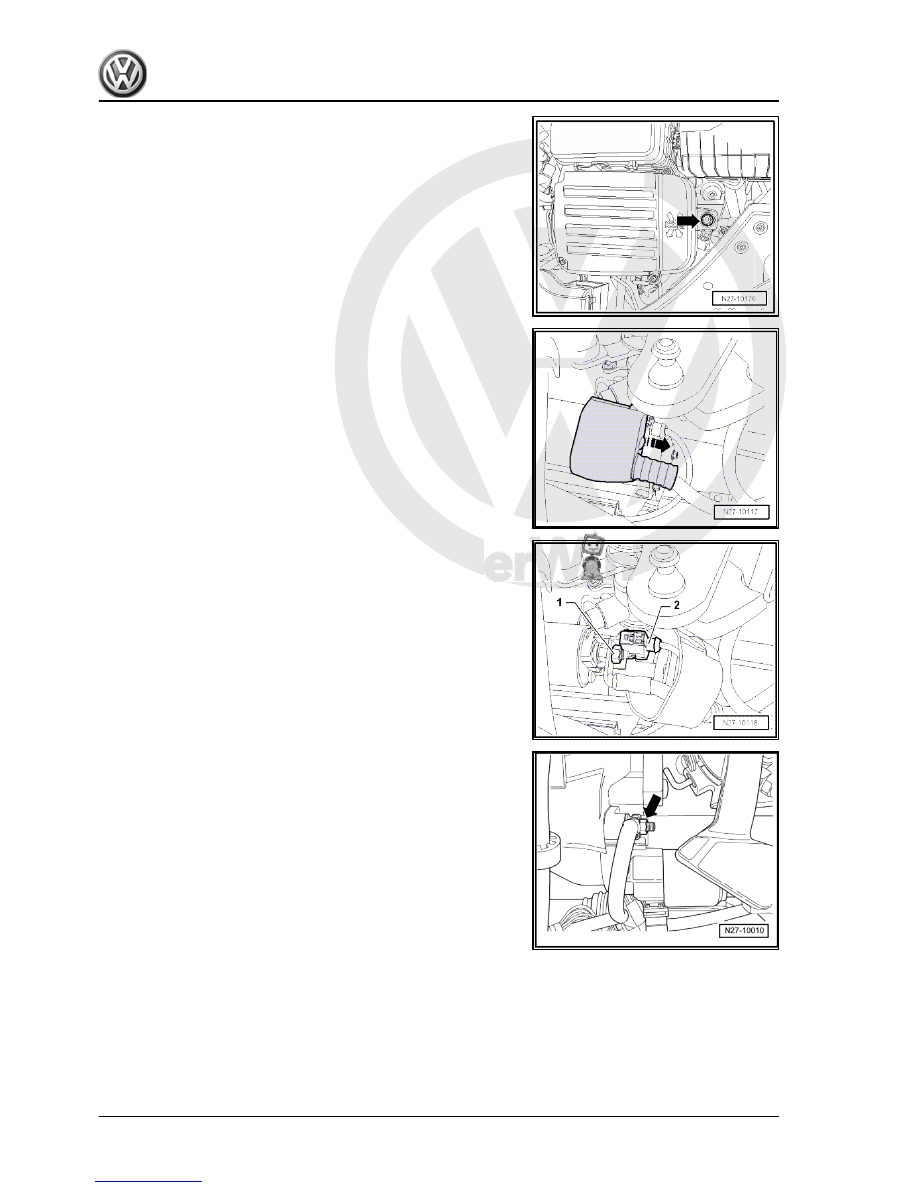

– Loosen spring-type clip -1- using spring-type clip pliers -VAS

5024A- and remove bolt -2-.

– Release hose -3- and pull it off the air filter housing.

6. Starter B

63



– Take air filter housing out of vehicle.

– Slide protective cap in direction of -arrow- off solenoid switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Unscrew earth wire from starter bolt -arrow-.

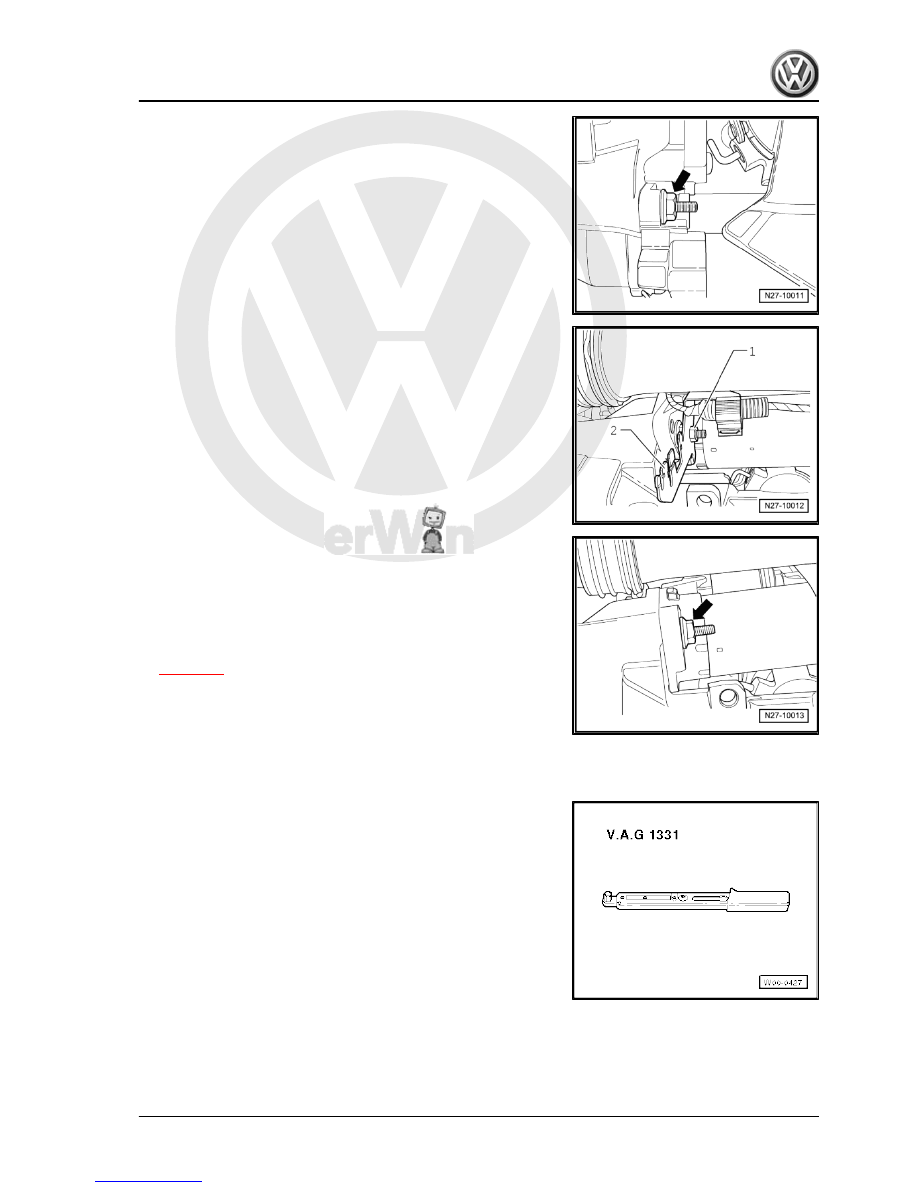

64



– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

– Unscrew starter bolt -arrow-.
– Lower starter -B- out of vehicle.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 60

 .

6.4.4

Vehicles with 1.6l petrol engine

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

6. Starter B
