12 - Front passenger door control unit -J387-

❑ In front passenger door
❑ Removing and installing ⇒  Glazing, window regulator; Rep. gr.  64

13 - Contact switch for bonnet -F266-

❑ In lid lock
❑ Removing and installing

⇒ page 382

9.2

Activating and deactivating anti-theft

alarm system

Activating anti-theft alarm:
The anti-theft alarm is switched on automatically when the vehicle

is locked. The anti-theft alarm is then immediately primed.

Note

To stop the anti-theft alarm system triggering an alarm unneces‐

sarily, close all windows and doors before locking vehicle.

Deactivating anti-theft alarm:
Anti-theft alarm system is deactivated if
♦ vehicle is unlocked using unlock button on remote control
♦ the ignition is switched on
♦ the interior monitoring deactivation switch -E267- has been

operated

Unlock the vehicle mechanically (emergency open):
– Unlock the driver door.
The anti-theft alarm system remains active, although no alarm is

triggered.
– Switch on ignition within 15 seconds.

Note

If you do not switch on the ignition, the alarm will trigger after 15

seconds.

When the ignition is switched on, the electronic immobiliser de‐

tects a valid vehicle key and deactivates the anti-theft alarm.

430

Removing and installing ultrasonic sen‐

sor (rear interior light) (up to MY2009)

The anti-theft alarm ultrasonic sensor -G209- , comprising four

individual sensors -2-, wiring and a control element on the back

of the rear interior light -W45- cannot be replaced individually. The

rear interior light -W45- must be replaced complete.
Removing and installing rear interior light -W45- (vehicles with

anti-theft alarm)

⇒ page 414

 .

9.4

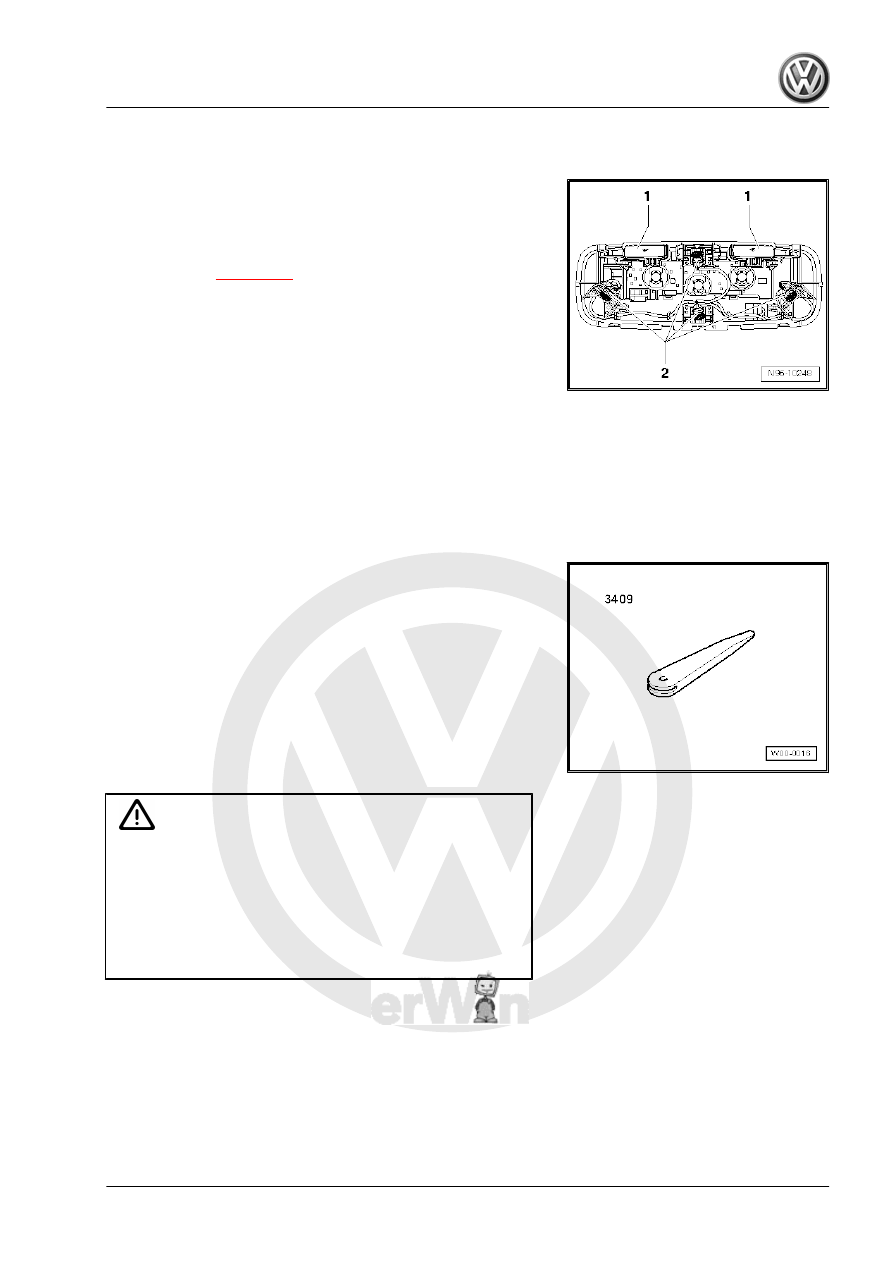

Removing and installing ultrasonic sen‐

sor (rear left-hand side of roof) (up to

MY2009)

From model year 2007 onwards, vehicle inclination sender -

G384- and anti-theft alarm ultrasonic sensor -G209- are installed

in one unit on rear left side of roof.
Special tools and workshop equipment required
♦ Removal wedge -VAS 3409-

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

9. Anti-theft alarm (ATA)

431

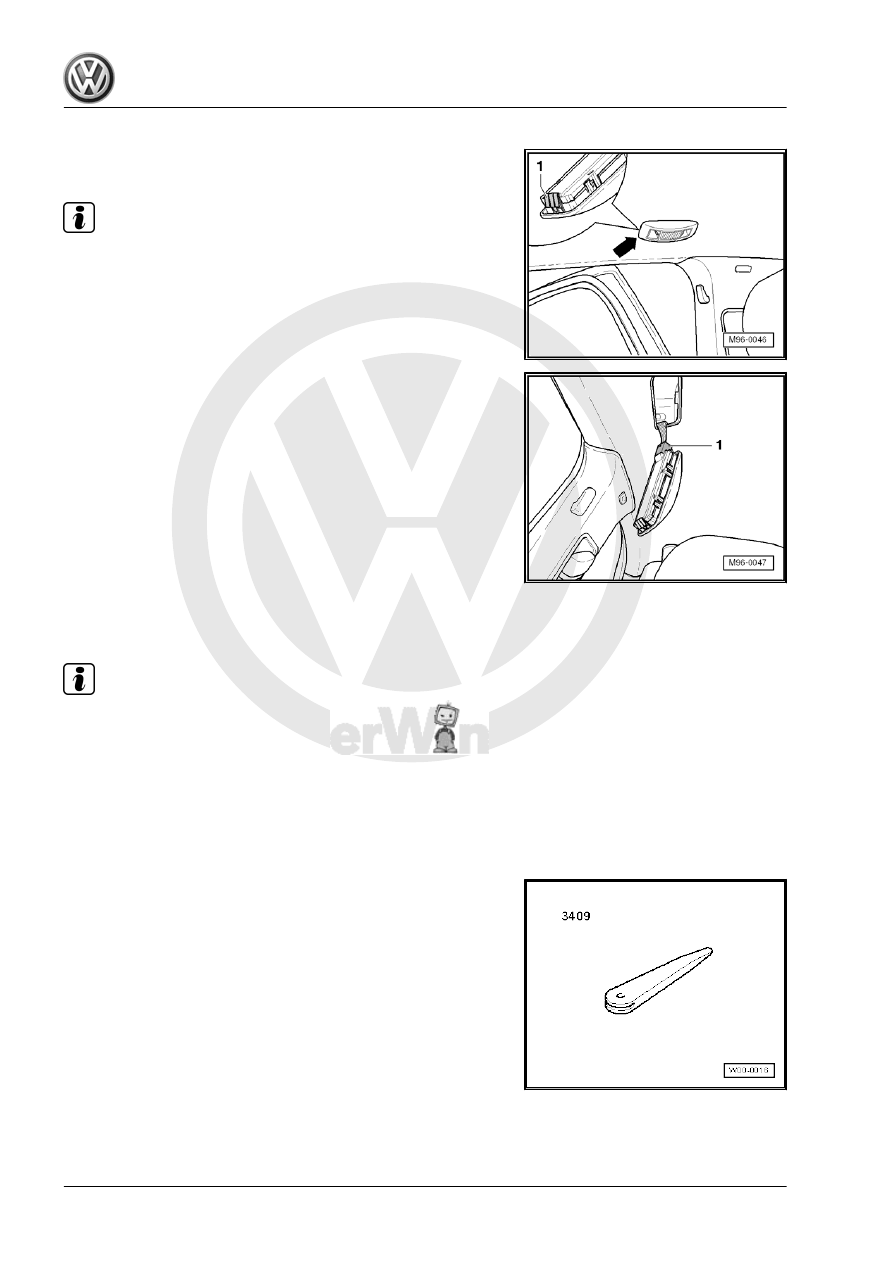

trasonic sensor -G209- -arrow-.

Note

Clip -1- which holds anti-theft alarm ultrasonic sensor -G209- in

place has three legs. Press three legs of clip to release anti-theft

alarm ultrasonic sensor -G209- , otherwise anti-theft alarm ultra‐

sonic sensor -G209- will not come out.

– Pull off anti-theft alarm ultrasonic sensor -G209- .
– Detach connector -1- from anti-theft alarm ultrasonic sensor -

G209- .

Installing
Installation is carried out in reverse order of removal.

9.5

Anti-theft alarm sensor -G578- (from

MY2010)

Note

The anti-theft alarm sensor -G578- includes the vehicle incli‐

nation sender -G384- and the interior monitoring sensor -

G273- (two sensors).

The anti-theft alarm sensor -G578- cannot be dismantled.

9.5.1

Removing and installing anti-theft alarm

sensor -G578-

Special tools and workshop equipment required
♦ Removal wedge -3409-

432

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

Removing
– Remove front interior light -W1- .
♦ Vehicles with sunroof

⇒ page 407

♦ Vehicles with no sunroof

⇒ page 404

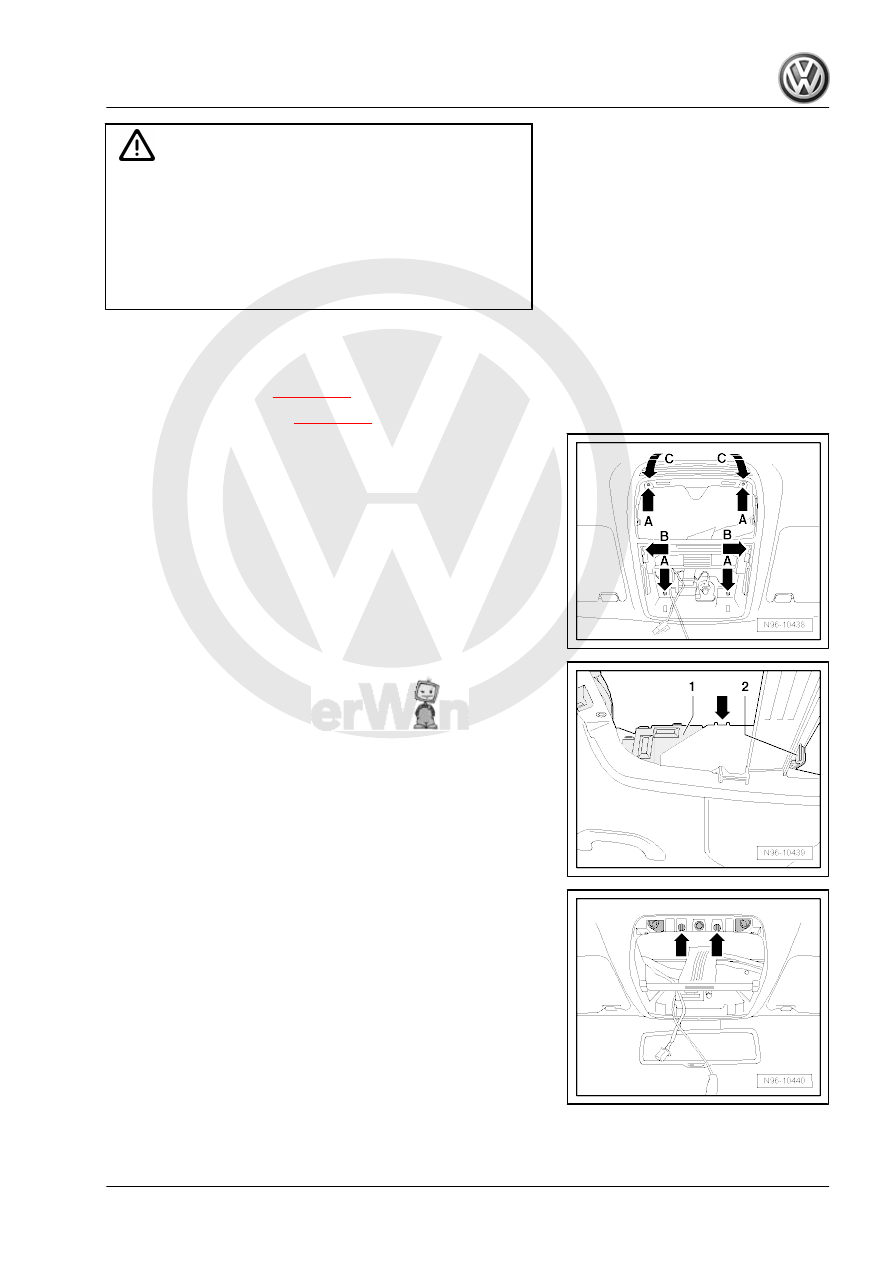

– Remove screws -arrows A-, release locking lugs -arrows B-

and remove console from moulded headliner in

-direction of arrow  C-.

– Detach connector -2- from interior monitor send and receive

module 1 -G303- -1-.

– Release interior monitor send and receive module 1 -G303-

-1- at fasteners -arrows-.

– Release the sensor fasteners and take the sensors and the

interior monitor send and receive module 1 -G303- out of the

moulded headlining.

Installing
Installation is carried out in reverse order of removal.

9. Anti-theft alarm (ATA)
