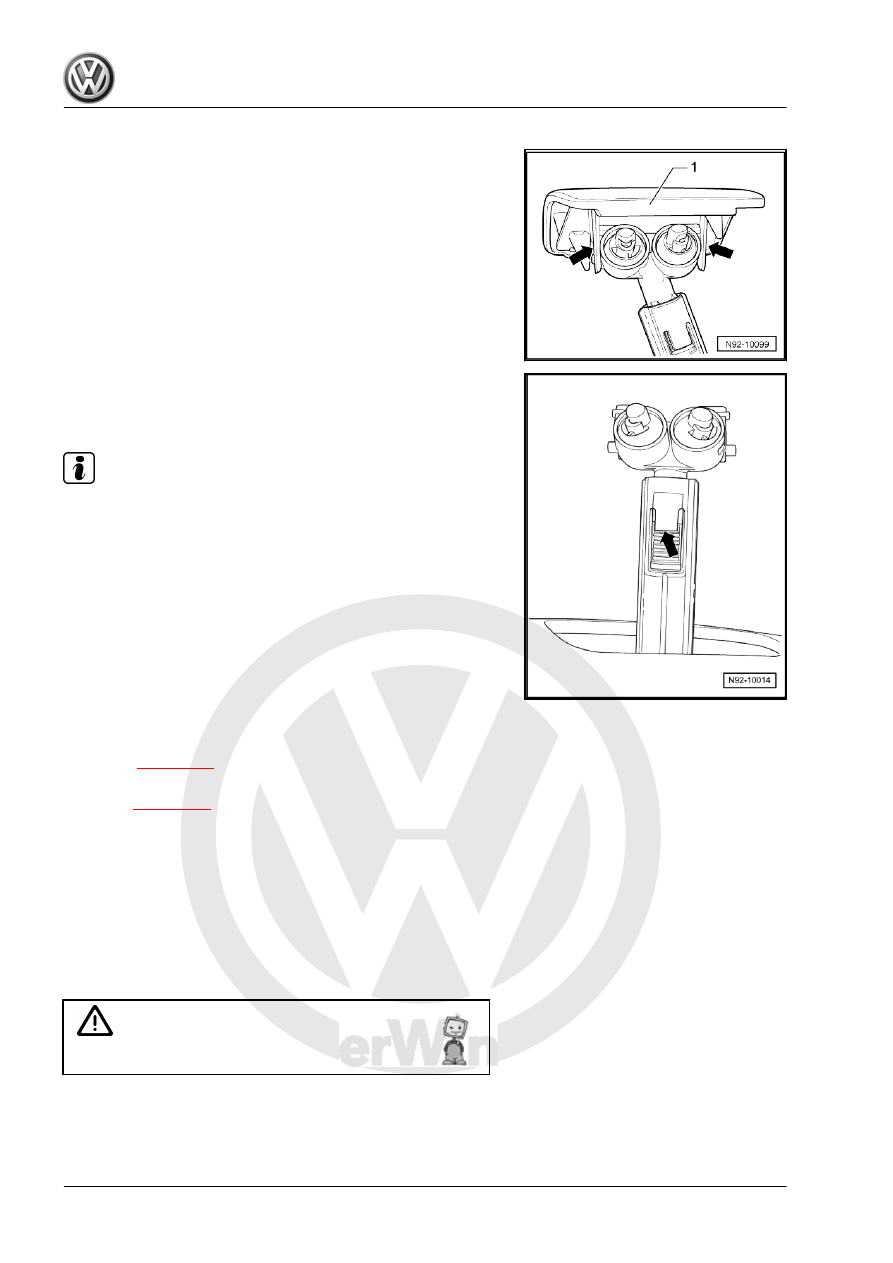

jet assembly.

– Lever locking lug -arrow- up slightly and pull out spray jet as‐

sembly.

Installing

Note

The degree to which the cover cap of the spray jet is pulled down

onto the bumper cover can be adjusted using the clips on the

spray jet assembly. If the spray jet assembly is not pulled in far

enough, the cover cap will not seat correctly. If the spray jet as‐

sembly is pulled in too far, the cover cap and the bumper cover

could be pushed out of shape.

– Push spray jet assembly into pop-up cylinder until it engages.
– Fit cover cap on spray jet assembly and allow pop-up cylinder

to retract.

– Check the cover cap is seated correctly on the bumper cover.
– If necessary, adjust seat of cover cap by pushing spray jet

assembly in higher or lower position on pop-up cylinder.

– On completion of installation work, bleed headlight washer

system

⇒ page 210

– Check headlight washer system spray jets and adjust if nec‐

essary

⇒ page 210

5.5

Adjusting headlight washer system

spray jets

⇒ Maintenance ; Booklet 20.1 ; Descriptions of work

5.6

Bleeding headlight washer system

To guarantee sound functioning of pop-up cylinders and spray

jets, the headlight washer system must be bled following assem‐

bly work or when operated for the first time.

WARNING

Apply handbrake and make sure that gearshift is set to „P“.

Procedure
– Fill washer fluid reservoir.
– Start the engine.

210

seconds each time).

– Repeat this bleeding procedure until the pop-up cylinders and

spray jets are functioning soundly.

5. Headlight washer system

211

Washer fluid line hose couplings

All the instructions and information for this manual are found in

the workshop manual „Electrical System, General Information“. A

link to this workshop manual is not possible at present for tech‐

nical reasons. Please select the workshop manual „Electrical

System, General Information“ manually in ELSA.

212

Hose repair
