Windscreen washer system

Note

Additional information:

⇒  Operating instructions

2.1

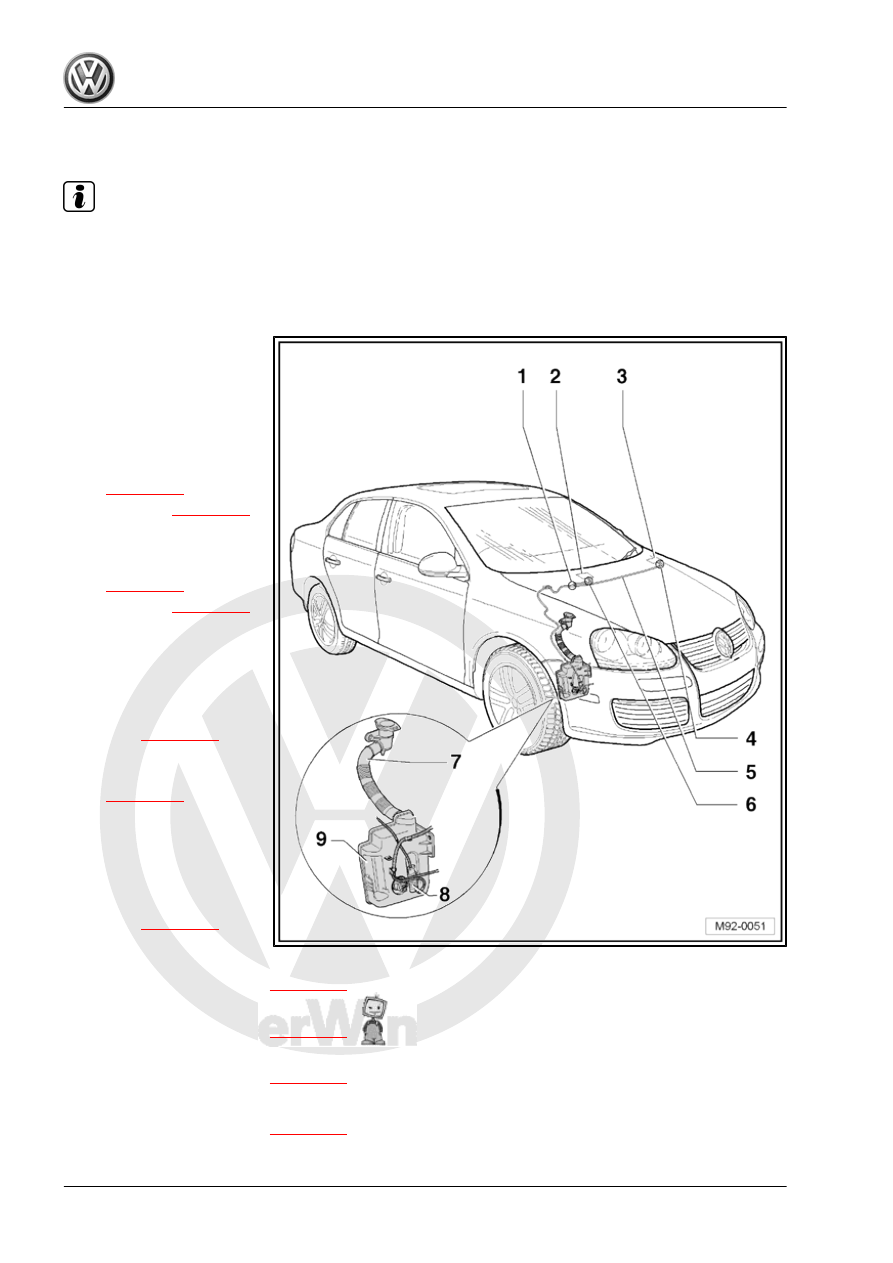

Assembly overview - windscreen washer system

1 - Y-piece

❑ Distribution of washer

fluid line to windscreen

washer system spray

jets

2 - Right washer jet for wind‐

screen washer system

❑ Removing and installing

⇒ page 199

❑ Adjusting

⇒ page 199

3 - Left washer jet windscreen

washer system

❑ Removing and installing

⇒ page 199

❑ Adjusting

⇒ page 199

4 - Angled piece

❑ Connection to left wind‐

screen washer system

spray jet

❑ Overview of hose cou‐

plings for washer fluid

lines

⇒ page 212

5 - Hose

❑ Hose repair

⇒ page 213

6 - Angled piece

❑ Connection to right

windscreen washer sys‐

tem spray jet

❑ Overview of hose cou‐

plings for washer fluid

lines

⇒ page 213

7 - Reservoir filler neck for

windscreen and headlight washer system

❑ Removing and installing

⇒ page 195

8 - Windscreen and rear window washer pump -V59-

❑ Removing and installing

⇒ page 197

9 - Windscreen washer and headlight washer system reservoir

❑ Removing and installing

⇒ page 196

- Windscreen washer fluid level sender -G33-

❑ Removing and installing

⇒ page 198

194

body - 8 Nm

2.2

Removing and installing washer fluid

reservoir

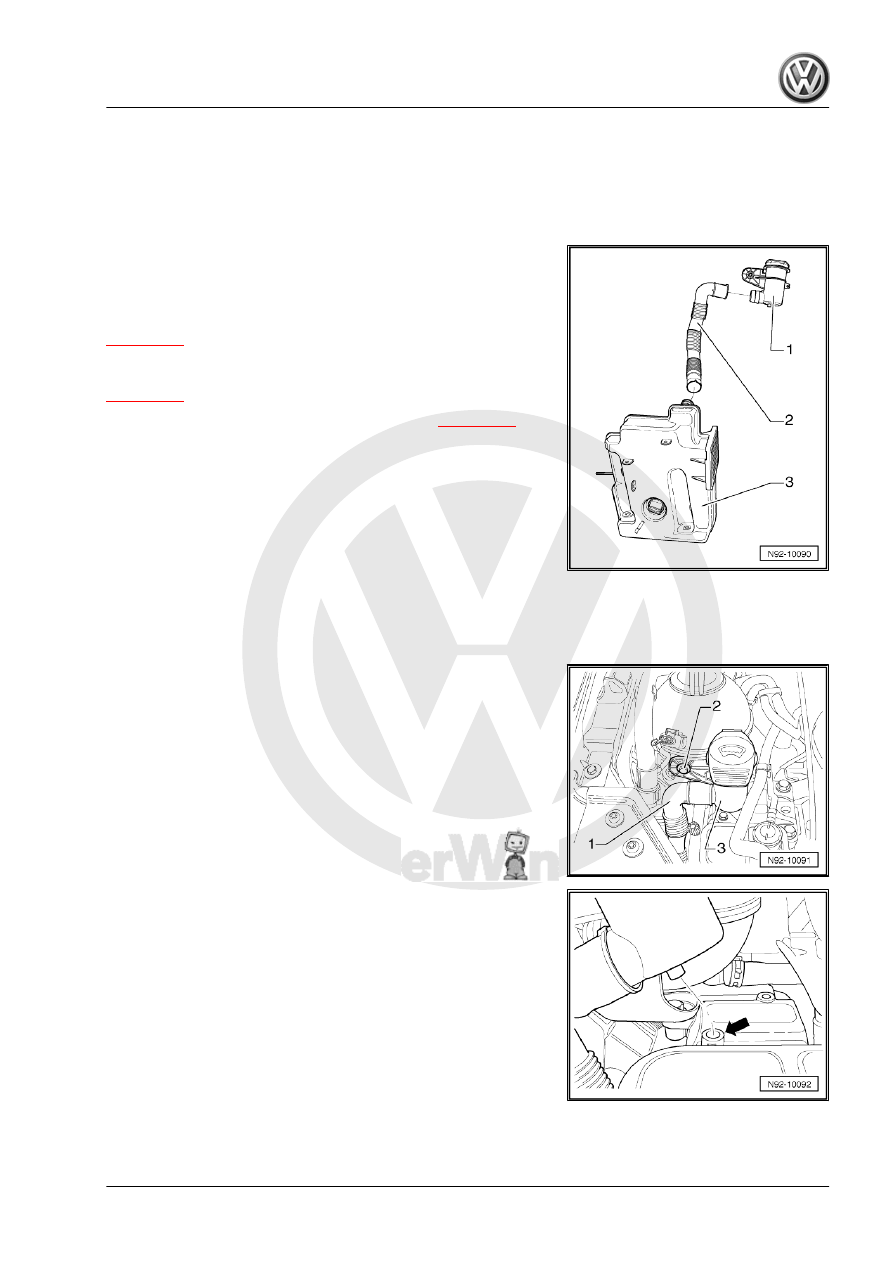

Washer fluid reservoir has 3 parts. The individual parts are com‐

bined together as a unit. In order to ensure the parts are placed

together correctly, check when assembling that the guides of the

individual parts engage in each other.
1 - Removing and installing filler neck for washer fluid reservoir

⇒ page 195

 .

2 - Connecting pipe between filler neck and reservoir. Connecting

pipe is removed together with washer fluid reservoir

⇒ page 196

3 - Removing and installing washer fluid reservoir

⇒ page 196

2.2.1

Removing and installing washer fluid

reservoir filler neck

Removing
– Pull connecting pipe -1- off filler neck -3- on washer fluid res‐

ervoir.

– Remove bolt -2-.
– Unclip hose retainer from filler neck -3- and remove from ve‐

hicle.

Installing
Install in the reverse order of removal. When doing this, note the

following:

The protrusion on the underside of the filler neck should be in‐

serted in the hole -arrow-.

2. Windscreen washer system

195

so that the guides -arrows- engage in each other.

2.2.2

Removing and installing washer fluid

reservoir

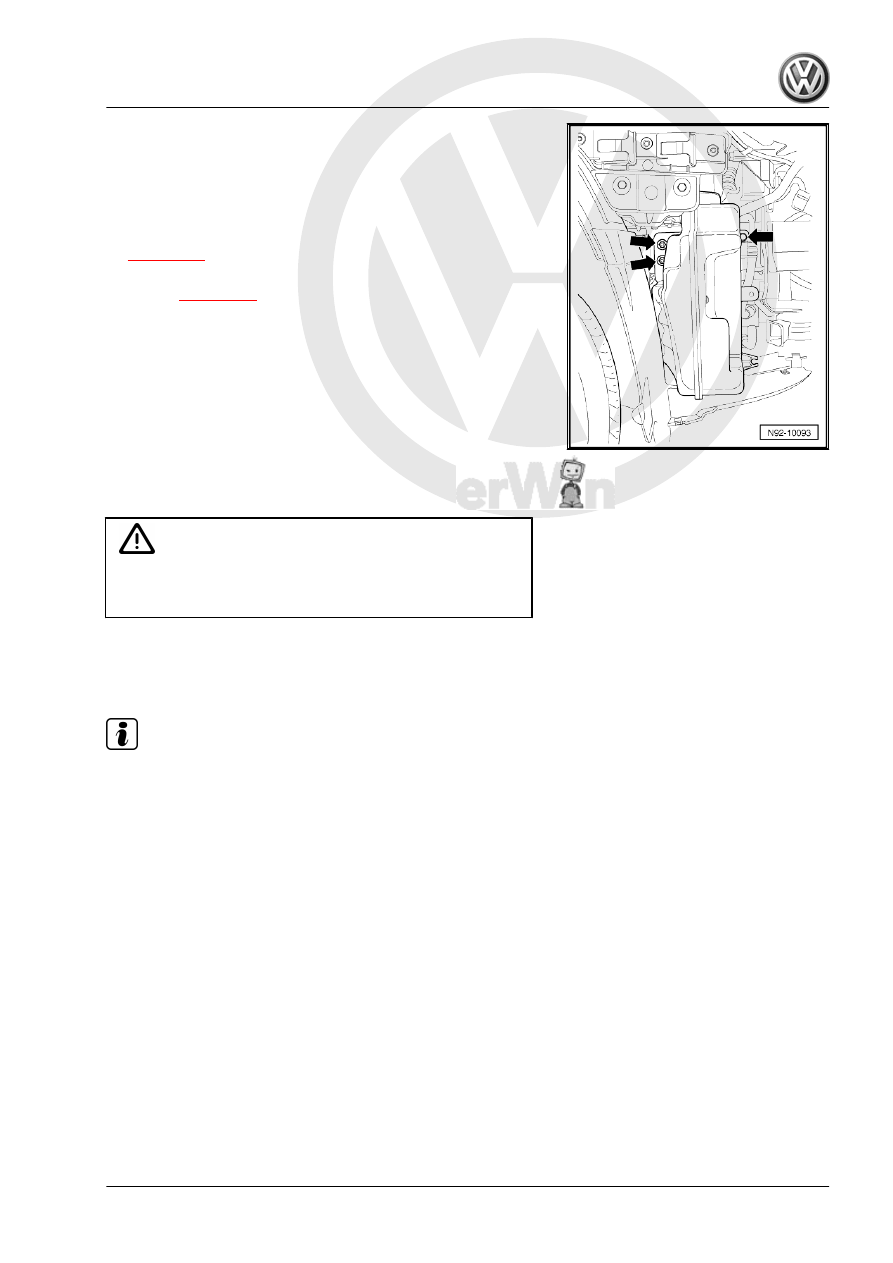

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove filler neck for washer fluid reservoir

⇒ page 195

 .

– Remove front bumper cover ⇒  General body repairs, exterior;

Rep. gr.  63 .

Note

The connections to the windscreen and rear window washer

pump -V59- and hose lines are colour-coded in order to prevent

the washer fluid lines being incorrectly connected to the wind‐

screen and rear window washer pump -V59- . The hose fittings

must be connected to the correct colour-coded pump connections

during installation.

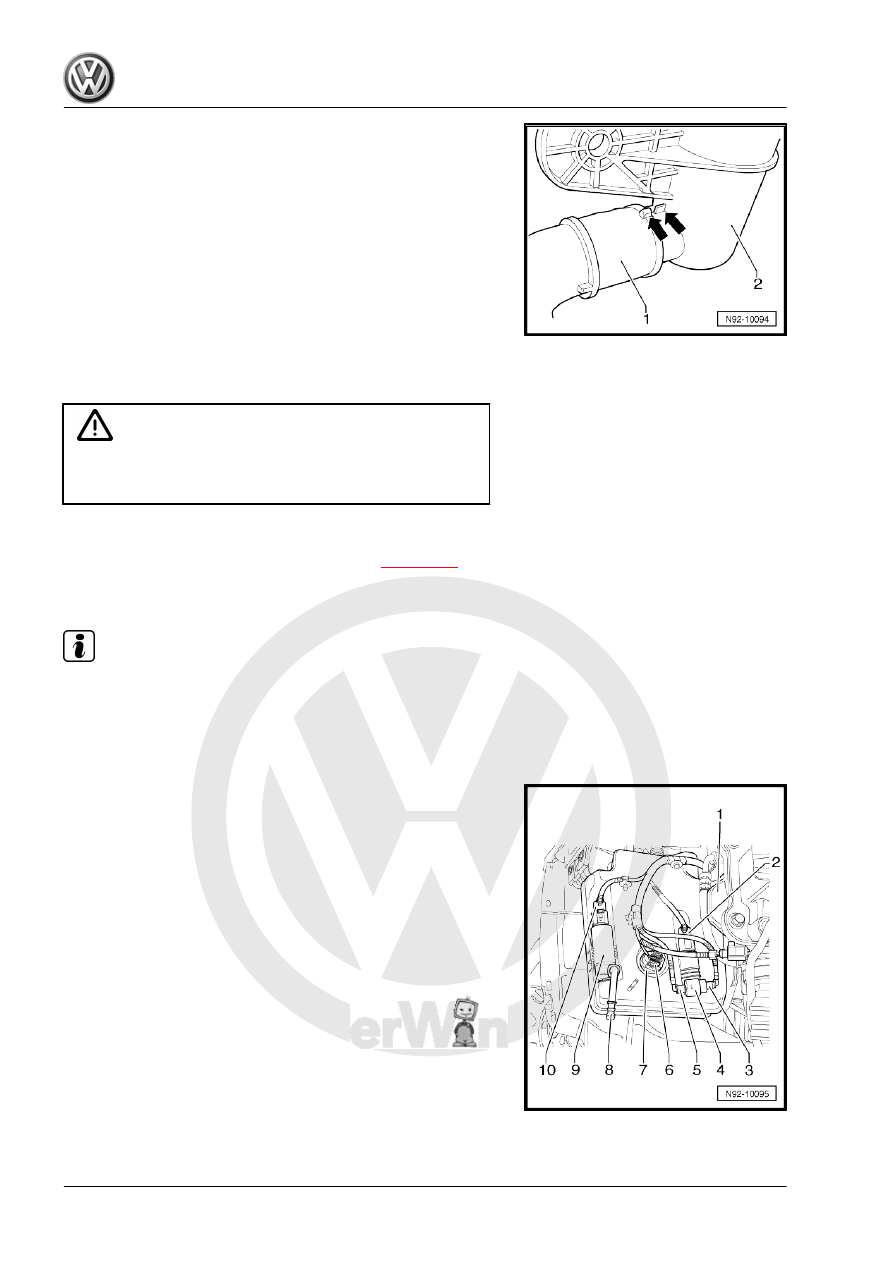

– To release, turn securing clips at hose connections -3- and

-5- and pull these off windscreen and rear window washer

pump -V59- -4-.

– Drain any escaping fluid in a suitable container.
– Disconnect connector -6- for windscreen washer fluid level

sender -G33- -7-.

– Pull windscreen and rear window washer pump -V59- -4- up‐

wards out of reservoir and disconnect connector -2-.

– Pull headlight washer pump -V11- -9- upwards out of reservoir

and disconnect connector -10-.

196

from vehicle.

Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten all threaded connections to specified torques

⇒ page 194

 .

– On completion of installation work, bleed headlight washer

system

⇒ page 210

 .

2.3

Removing and installing windscreen

and rear window washer pump -V59-

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove front bumper cover ⇒  General body repairs, exterior;

Rep. gr.  63 .

Note

The connections to the windscreen and rear window washer

pump -V59- and hose lines are colour-coded in order to prevent

the washer fluid lines being incorrectly connected to the wind‐

screen and rear window washer pump -V59- . The hose fittings

must be connected to the correct colour-coded pump connections

during installation.

2. Windscreen washer system

197
