Rep. gr.  50 .

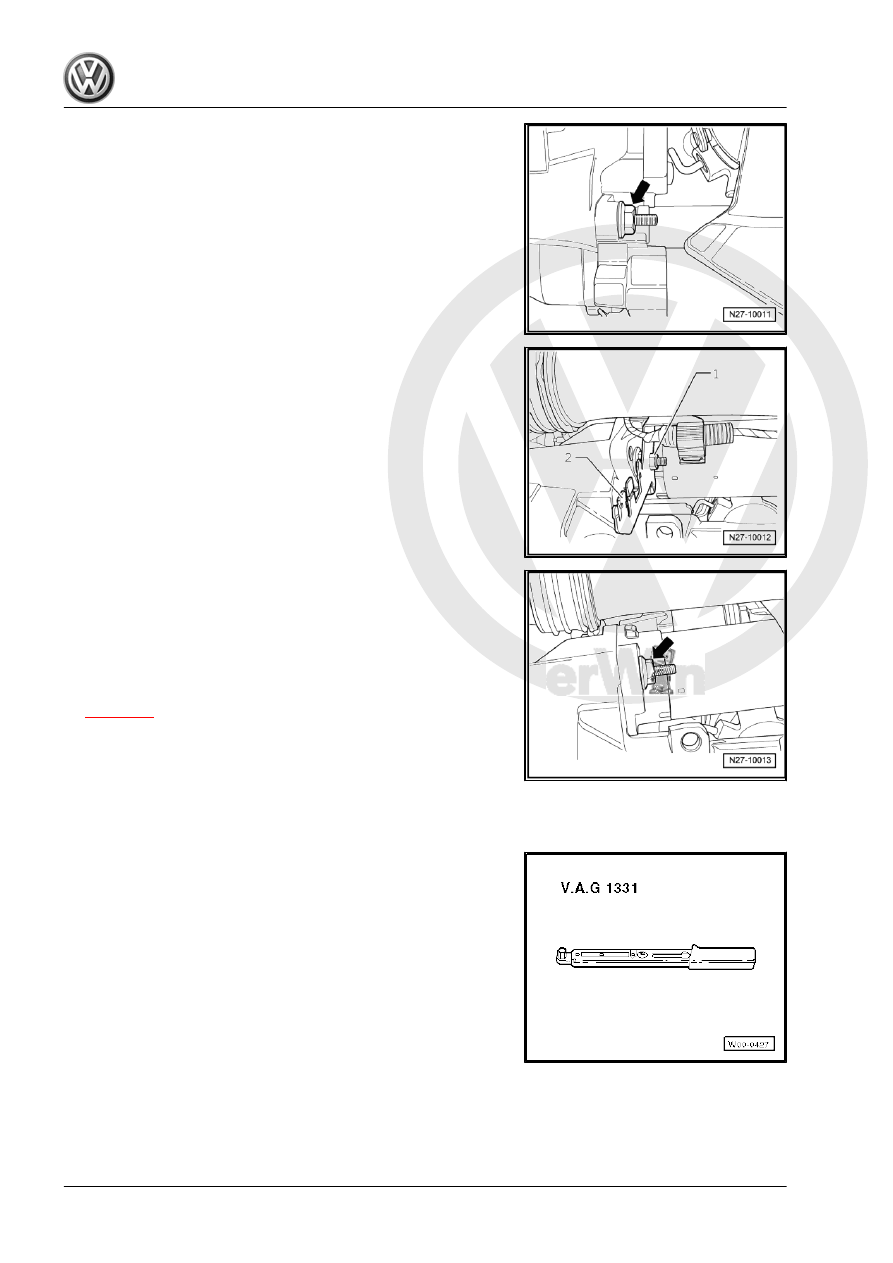

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

– Unscrew starter bolt -arrow-.
– Lower starter -B- out of vehicle.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 35

 .

6.3.5

Vehicles with 2.0l FSI engine

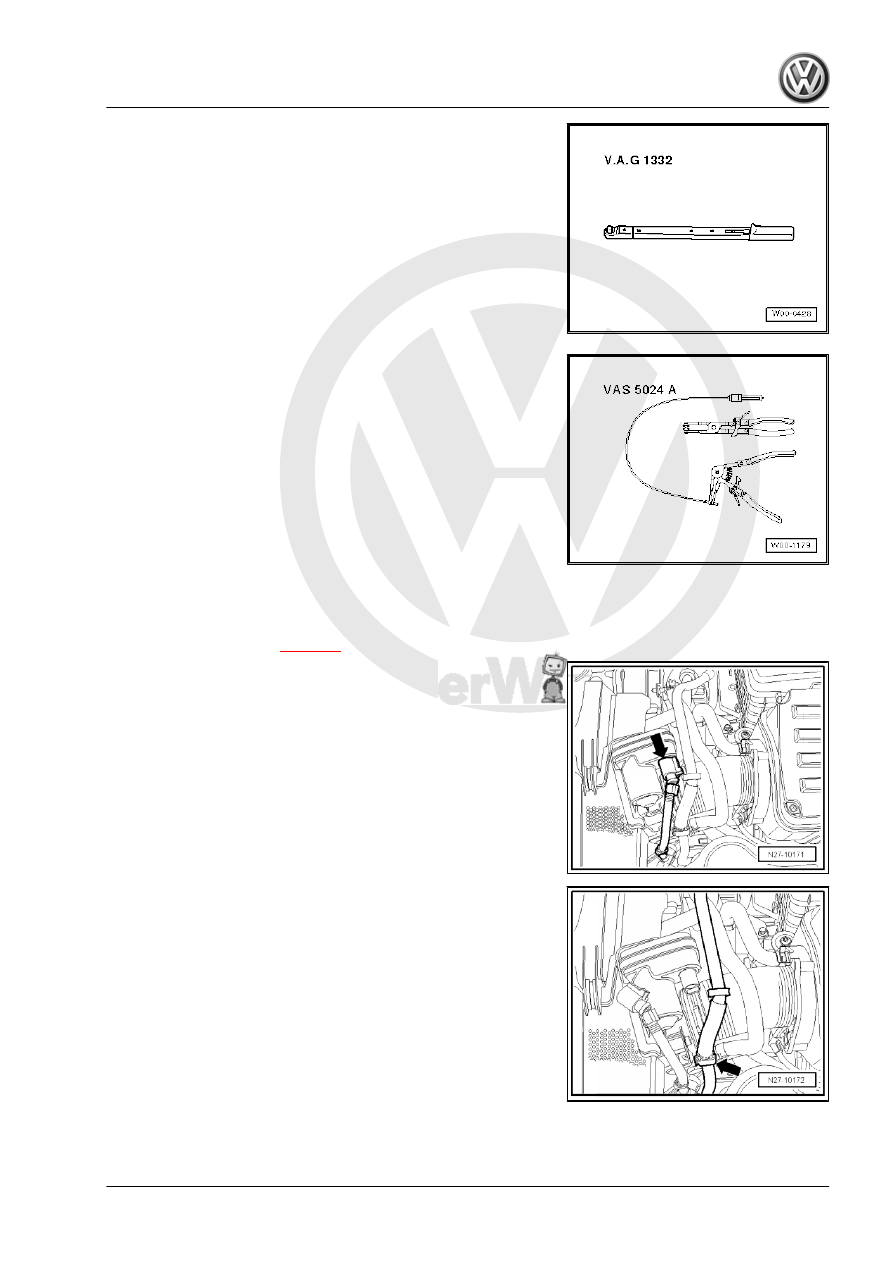

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

42

♦ Spring-type clip pliers -VAS 5024A-

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

– Disconnect connector -arrow-.

– Unclip vacuum hose out of retainer -arrow-.

6. Starter B

43

type clip pliers -VAS 5024A- .

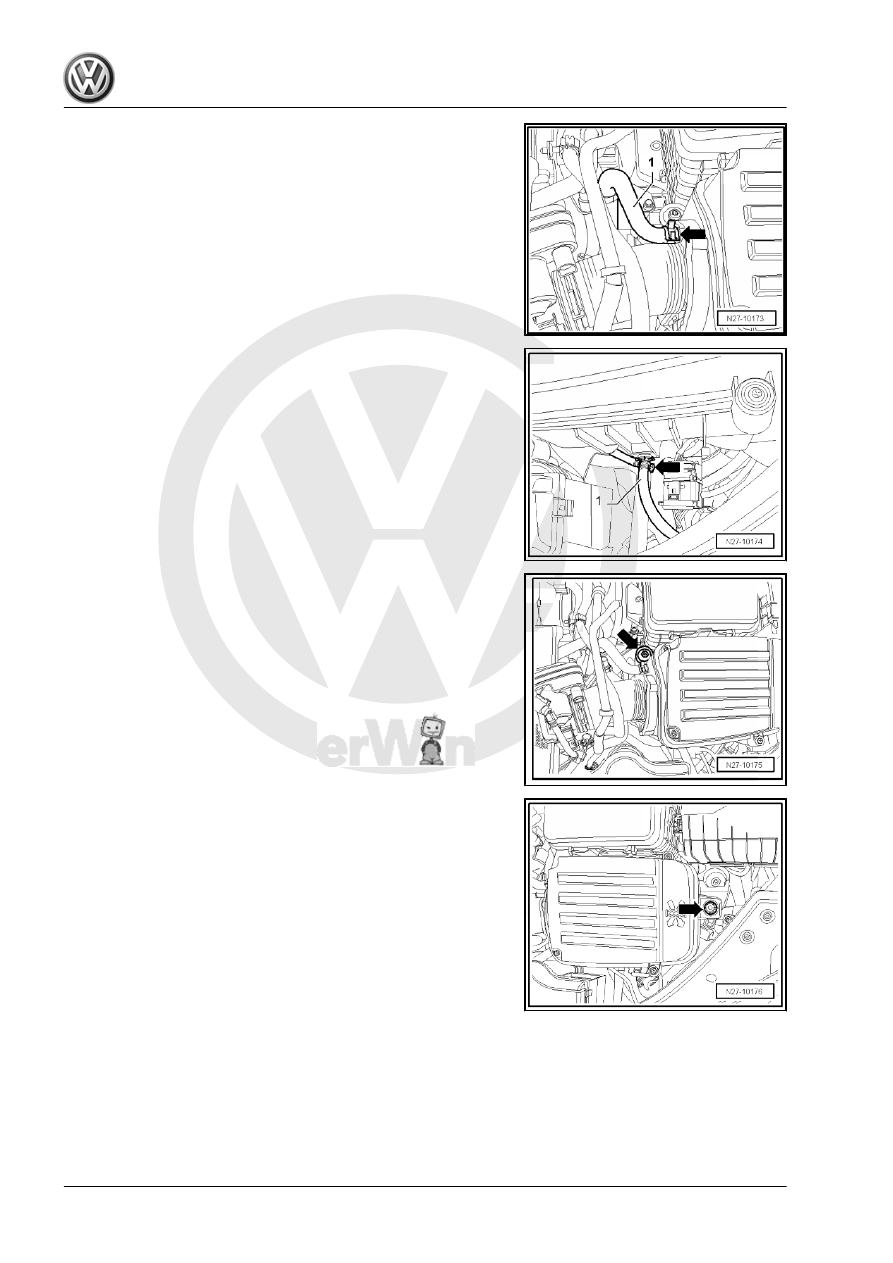

– Pull hose -1- off air filter housing.

– Open retainer -arrow- on front of air filter housing and remove

line -1-.

– Remove bolt of air filter housing -arrow-.

– Pull air filter housing upwards on right-hand side out of rubber

mounting -arrow-.

44

5024A- .

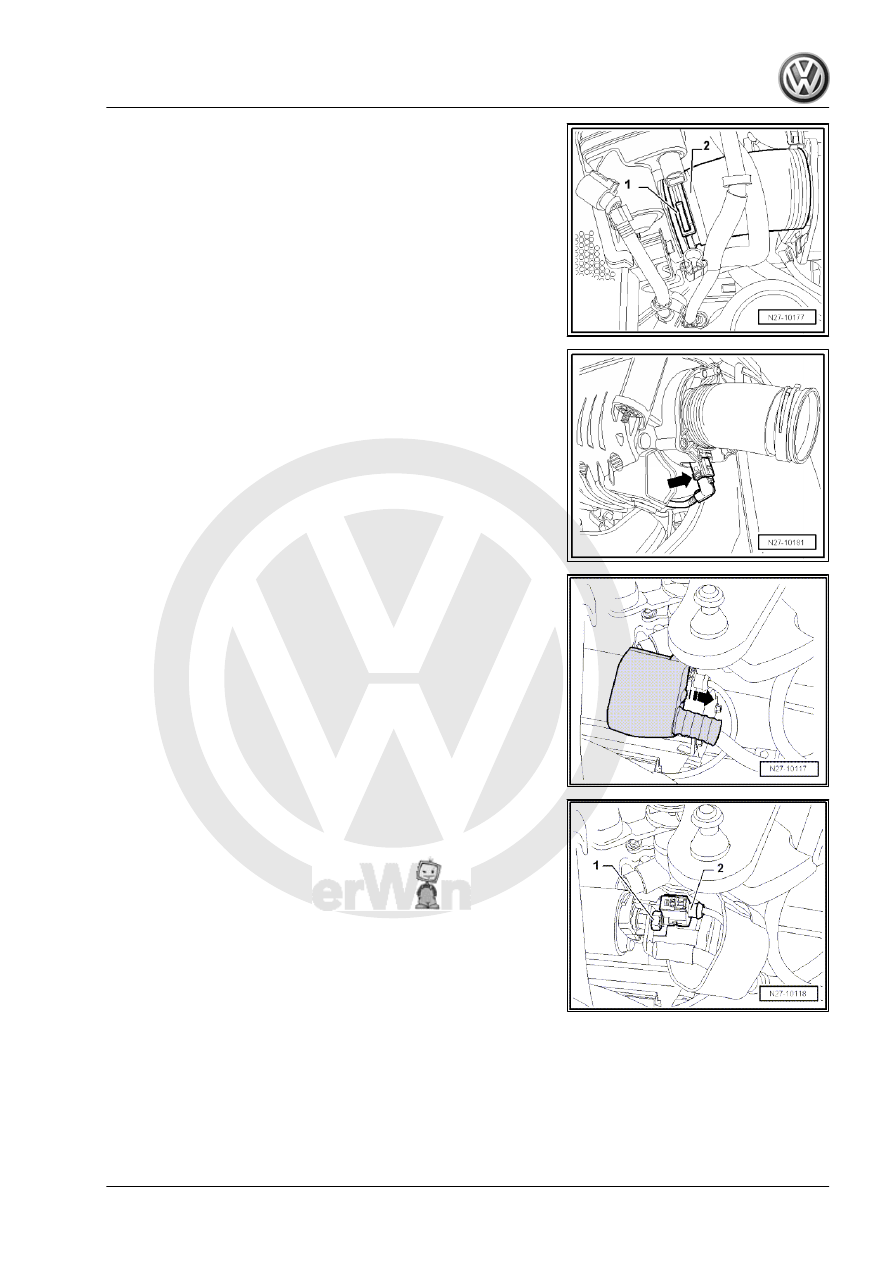

– Pull hose -2- off connection.
– Carefully lift up air filter housing out of vehicle as far as wiring

allows.

– Disconnect connector -arrow- on rear of air filter housing.

– Take air filter housing out of vehicle.
– Slide protective cap in direction of -arrow- off solenoid switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

6. Starter B

45
