the release port of the contact housing.

– Grab hold of the contact by the wire and push it lightly into the

contact housing -arrow-.

Note

By pushing the contact in the direction of the contact housing, the

locking tabs of the contact are lifted up by the housing edge and

can be disengaged using the release tool.

– At the same time, push the release tool in the direction of the

contact housing and pull out the released contact from the

contact housing -arrow-.

– The release tool can be pulled out of the contact housing again

once the contact has been removed.

2.6.6

Special connector systems

Any housing catches in place (secondary locking mechanisms)

must be released or removed prior to disengaging the contacts

using the prescribed tool

⇒ page 106

 .

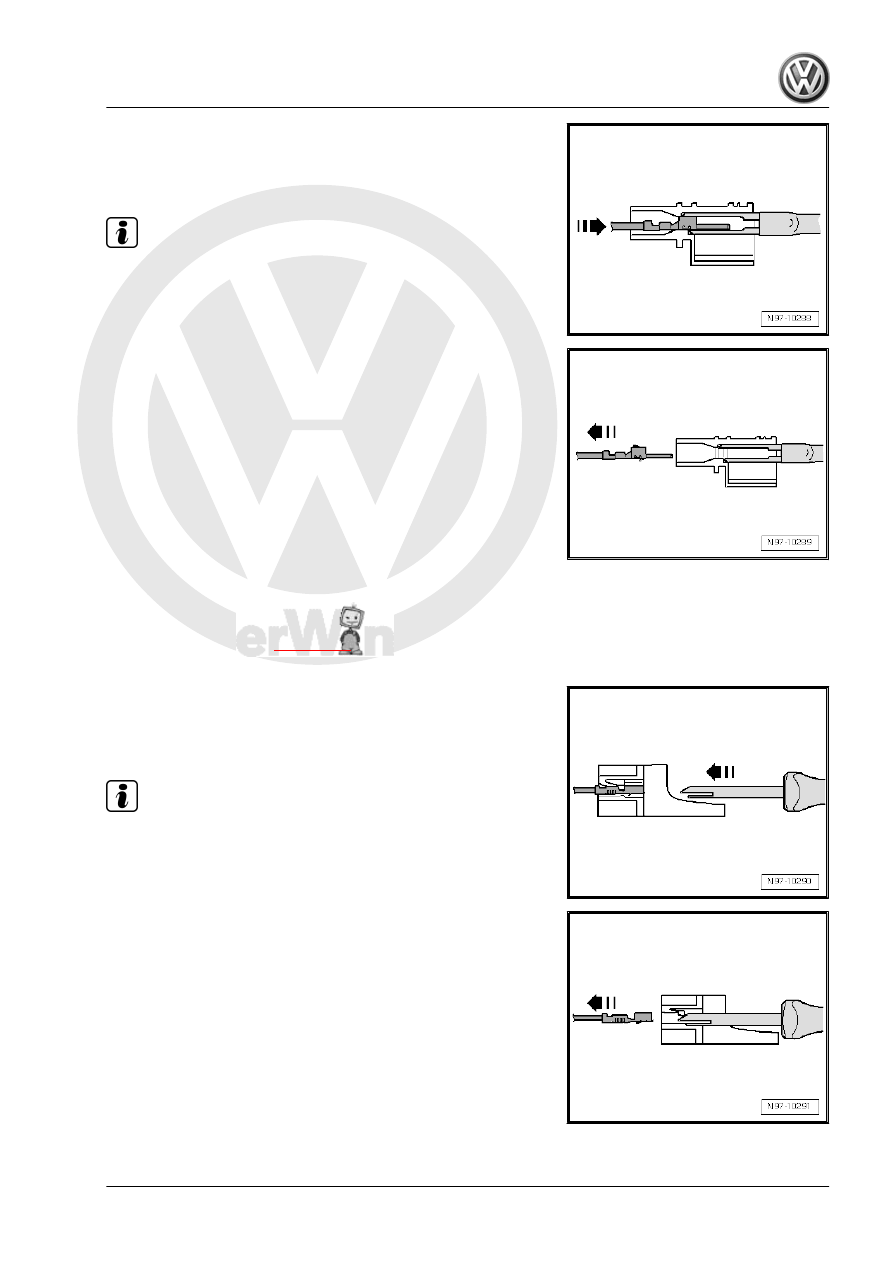

Faston contacts
– Insert the release tool appropriate for the contact housing in

the release port of the contact housing -arrow-.

– Grab hold of the contact by the wire and push it lightly into the

contact housing.

Note

By pushing the contact in the direction of the contact housing, the

locking tabs of the contact are lifted up by the housing edge and

can be disengaged using the release tool.

– At the same time, push the release tool in the direction of the

contact housing and pull out the released contact from the

contact housing -arrow-.

– The release tool can be pulled out of the contact housing again

once the contact has been removed.

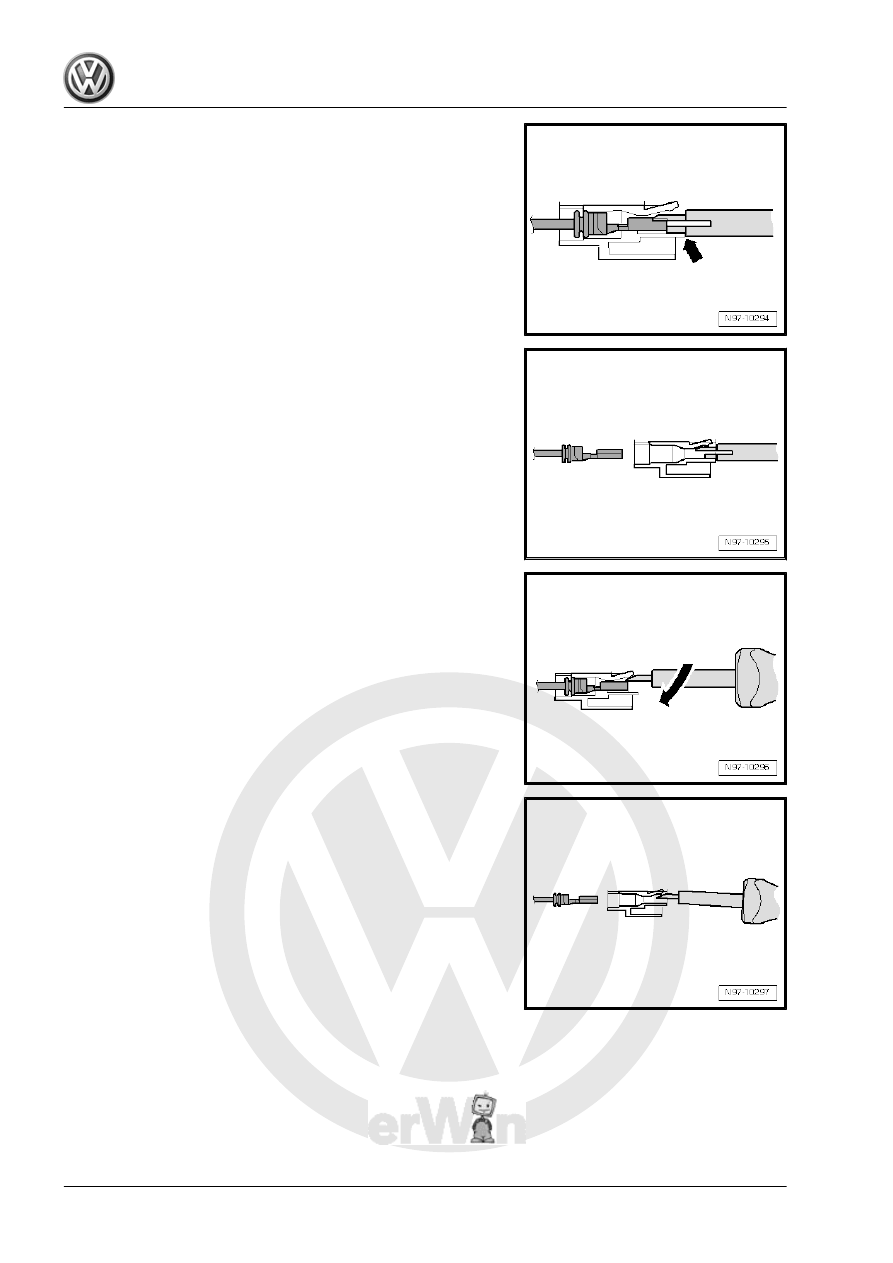

GT 150/280 contacts

2. Repairs to wiring harnesses and connectors

109

der the locking tab into the contact housing.

– Push the tool onto the limit stop -arrow- in the contact housing.

The contact is ejected from the contact housing.
– The release tool can be pulled out of the contact housing again

once the contact has been ejected.

Contacts without locking tabs

– Insert the release tool under the locking tab of the contact

housing.

– Push through the release tool with a light upward movement

-arrow- onto the limit stop.

The contact is ejected from the contact housing.

110

Contact surface cleaning set -VAS

6410-

3.1

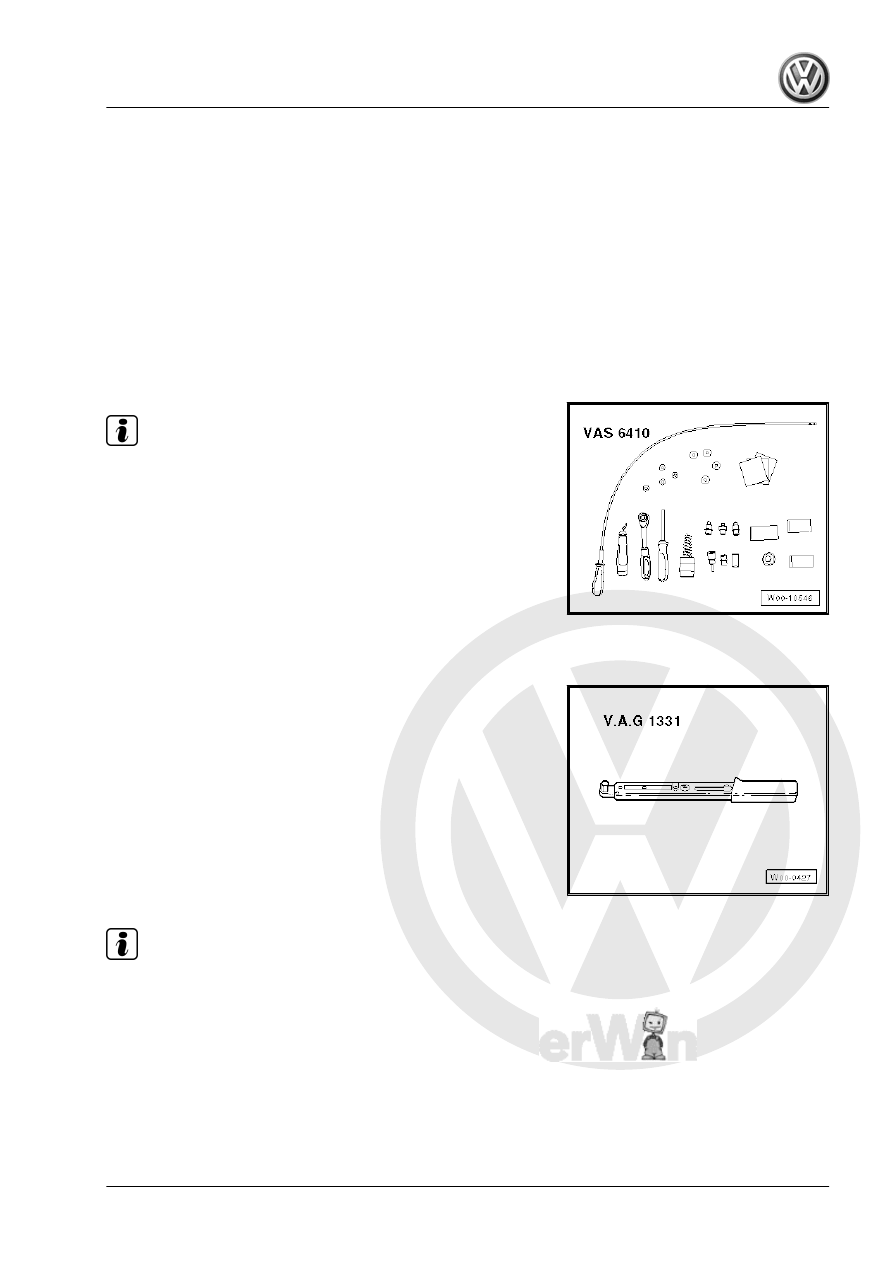

Using the contact surface cleaning set -

VAS 6410-

The contact surface cleaning set -VAS 6410- allows optimal repair

quality to be achieved in the area of vehicle electrics. The tools

allow performing repair work in the area of the sensor in wiring

harnesses for threaded connections in the high-current circuit

(starting and charging current). The easy-to-use contact surface

cleaning set -VAS 6410- has been designed to match the struc‐

tural design of the vehicles and ensures that repairs are carried

out correctly.

Note

The illustrations shown here are just a few examples of repair

work.

Contact surface cleaning set -VAS 6410-

3.1.1

Repairing ring terminals

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

Note

The use of penetrating fluid, contact spray or grease is pro‐

hibited since the lack of adhesion in the threads may cause a

torque excess and, therefore, the breaking of the threaded

connection.

The grey sanding pads are suitable for light dirt and "soft sur‐

faces". The red sanding pads are suitable for heavy dirt and

"hard surfaces".

3. Contact surface cleaning set VAS 6410

111

Danger of injury! Observe warning notices and safety regula‐

tions

⇒ page 2

 !

nection.

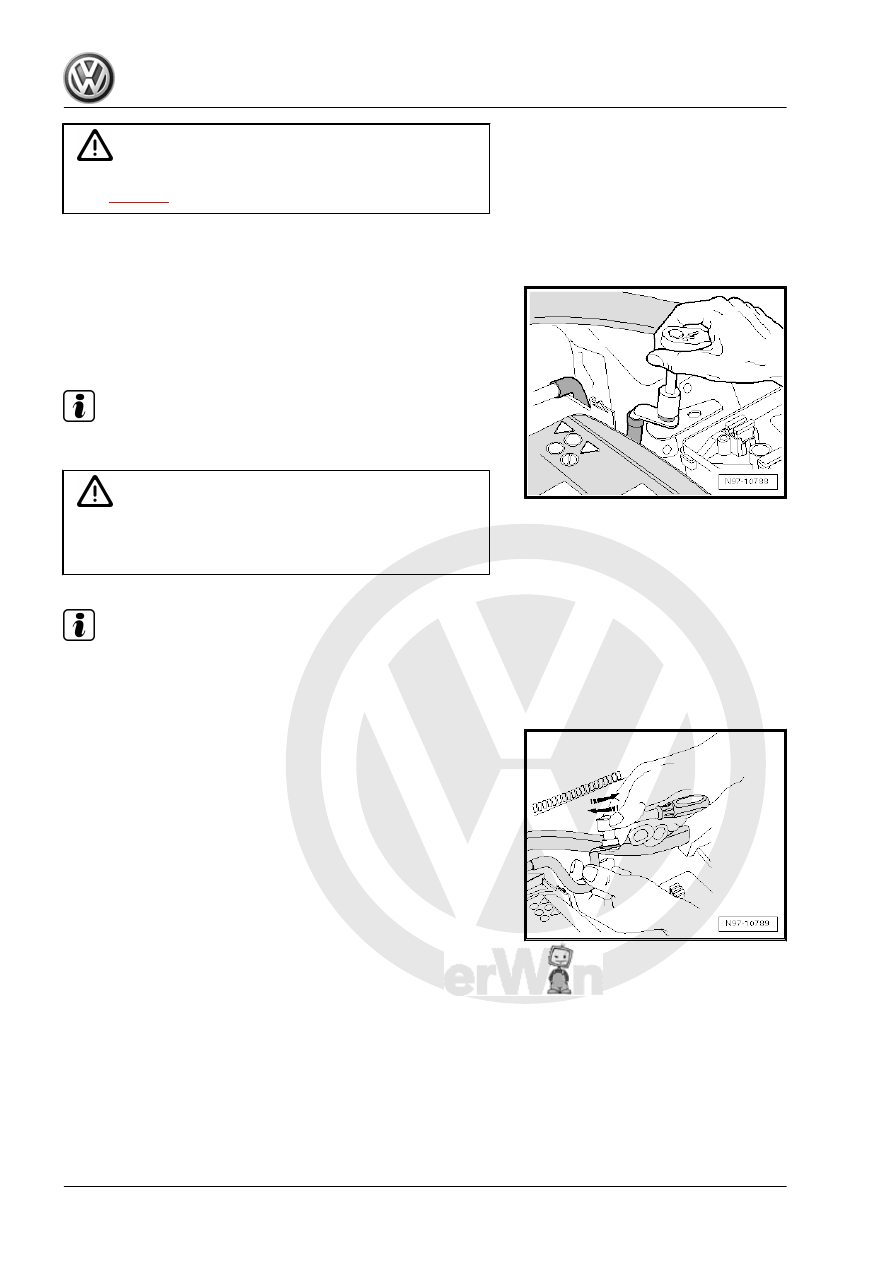

– Check ring terminal for corrosion and dirt.
– Select suitable adapter and suitable sanding pad.

Note

As an alternative, the sanding block may also be used.

Caution

Take care not to abrade excessively the tin coating and ensure

that the copper does not appear. This could produce a galvanic

cell which destroys metal and causes faulty repair.

Note

As the thickness of the tin coating may differ according to the de‐

sign, the cleaning process must be performed step by step and a

visual check of the ring terminal is necessary between the steps.

– Insert adapter into ring terminal and grind off corrosion and dirt

with circular movements.

– Check ring terminal and regrind it.
