ling the starter.
– Always adjust selector lever cable. Refer to
⇒ “2.6 Selector Lever Cable, Adjusting”, page 94
.
– Install the battery tray and the battery. Refer to ⇒ Electrical
Equipment; Rep. Gr. 27 ; Battery; Battery, Removing and In‐
stalling .
- Air Filter Housing .
System; Overview - Air Filter .
– Install the drive axles or attach them to the transmission. Refer
Removing and Installing .
– If removed, attach the ball joint to the control arm. Refer to ⇒
Suspension, Wheels, Steering; Rep. Gr. 40 ; Front Suspen‐
sion and Control Arm; Overview - Front Suspension and Con‐
trol Arm .
– Install the heat shield over the right drive axle, if removed. Re‐
fer to ⇒ Suspension, Wheels, Steering; Rep. Gr. 40 ; Drive
Axles, Overview and Servicing .
Pendulum support to transmission and subframe. Refer to ⇒
Suspension, Wheels, Steering; Rep. Gr. 40 ; Front Suspension
and Control Arm; Overview - Front Suspension and Control Arm .
– Assemble the exhaust system and install the exhaust system
– Install the wheel housing liner front section. Refer to ⇒ Body
Wheel Housing Liner .
50 ; Noise Insulation .
Tightening specifications for installing the transmission. Refer to
⇒ “4.7 Transmission to Engine Tightening Specifications and
Subframe Mount Information”, page 161

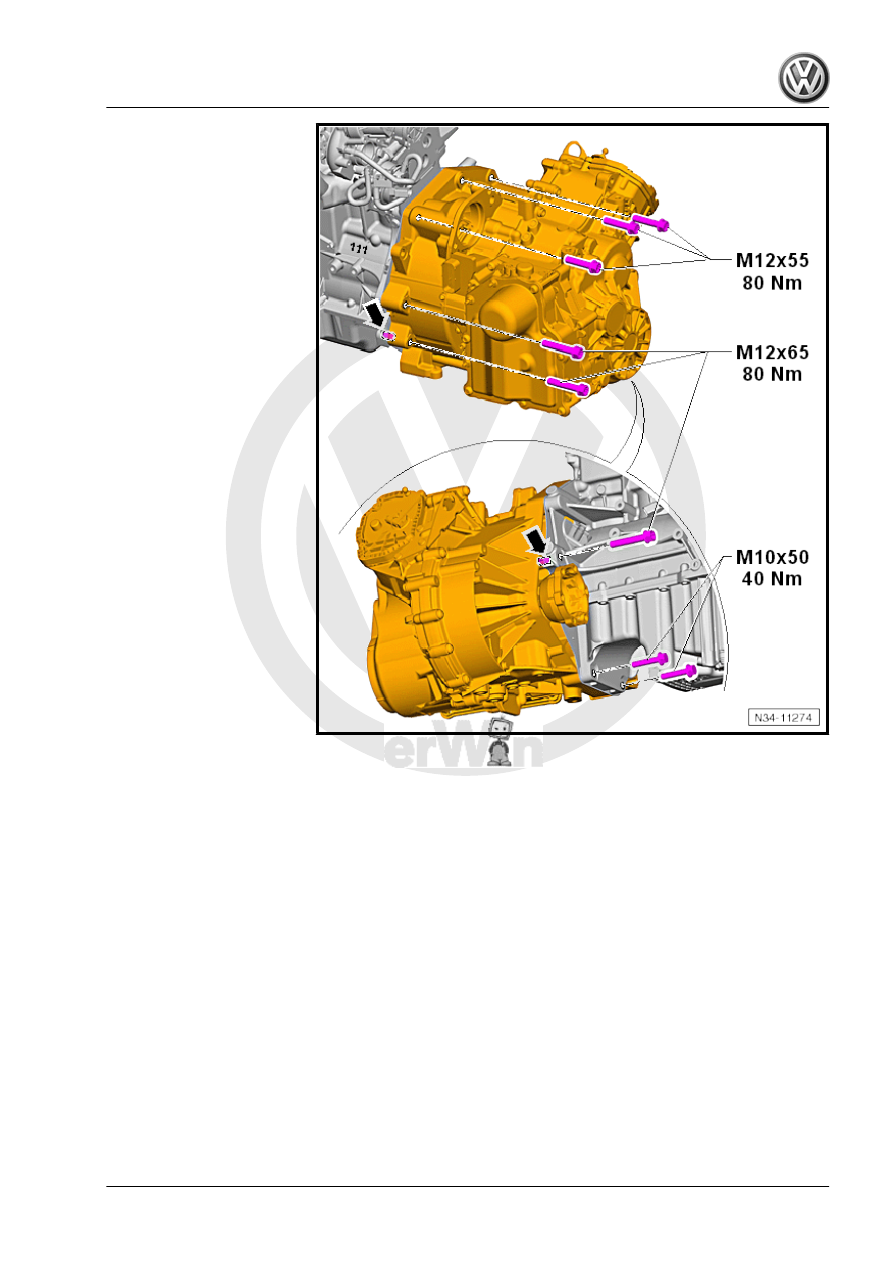

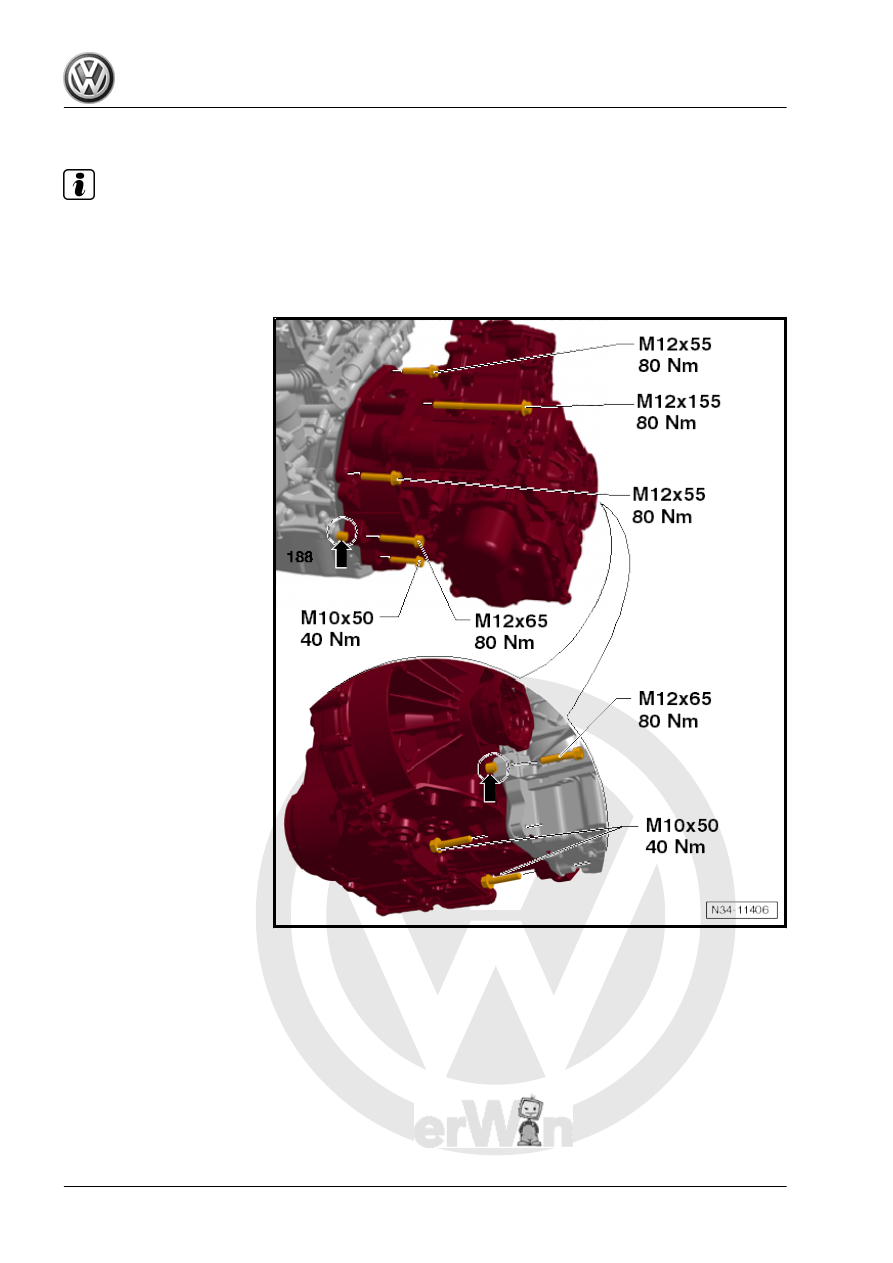

4.7
»Transmission to Engine« Tightening
Specifications and Subframe Mount In‐
formation
⇒ “4.7.1 1.4L/90 kW TFSI, 1.4L/118 kW TSI Engines”,
page 162
⇒ “4.7.2 1.9L/77 kW TDI PD Engine”, page 164
Tightening specifications for transmission installation are found in
the »following chapters«.
There is also information for the »left« subframe mount.
Threaded connections that cannot be allocated directly to the
transmission are found in the corresponding assembly groups.
4. Transmission, Removing and Installing, Jetta from MY 2005, Golf Wagon from MY 2007 and Golf Wagon from MY 2010
161
