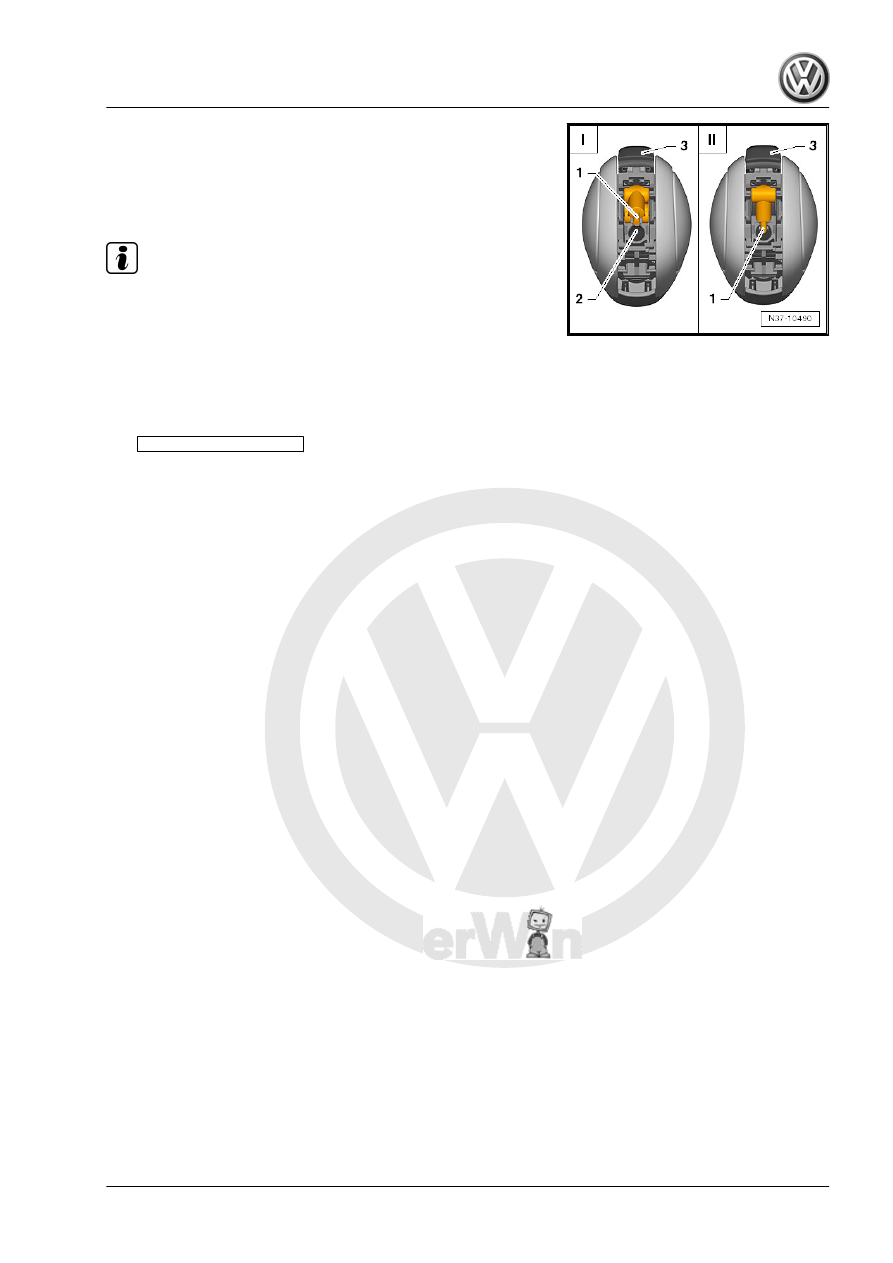

a screwdriver. This pushes the button -3- into the installation
position.
-I- the button is in the pressed position
-II- the button is in the installation position
Note
♦
Push the lever into the groove and no farther.
♦
Clip the handle trim back onto the selector mechanism only
after the handle is installed. This way it is possible to see if the
small lever engages into the pull rod when the button is push‐
ed.
2.10
Selector Mechanism, Checking
Use
Guided Fault Finding
to determine electric faults. A me‐
chanical fault, a faulty system or a faulty »component« must be
found and repaired.
It is not possible to start the engine when the selector lever is in
“R”, “D” and “S” or in the tiptronic position.
If selector lever position “N” is selected at speeds greater than 5
km/h, the shift lock solenoid must not engage and block the se‐
lector lever. The selector lever can be shifted into another gear.
When at speeds below 5 km/h (almost stationary), the shift lock
solenoid may engage after approximately 1 second when the se‐
lector lever is in the “N” position. The selector lever can only be
moved out of “N” when the brake pedal is pressed.
Selector Lever in “P” and the Ignition Turned On:
• If the brake pedal is not depressed:
The selector lever is locked and cannot be moved out of “P” when
the button is pressed. The shift lock solenoid blocks the selector
lever.
• If the brake pedal is depressed:
The shift lock solenoid releases the selector lever. It is possible
to select a gear. Move the selector lever slowly from “P” through
“S”; while doing this, check whether the selector lever position
displayed in instrument cluster matches actual selector lever po‐
sition.
Selector Lever in “N” and Ignition Switched On
• If the brake pedal is not depressed:
The selector lever is locked and cannot be moved out of “N” when
the button is pressed. The shift lock solenoid blocks the selector
lever.
• If the brake pedal is depressed:
The shift lock solenoid releases the selector lever. It is possible
to select a gear.
Selector Level in the “tiptronic” Position
– Move the selector lever into the tiptronic gate.
“P R N D S” must change to “7 6 5 4 3 2 1”.
