Volkswagen Golf Variant / Jetta. Manual - part 455

EGR System, Engine Codes CBDA,

CBDB and CEGA

⇒ “4.1 Overview - Exhaust Gas Recirculation System Compo‐

nents”, page 403

4.1

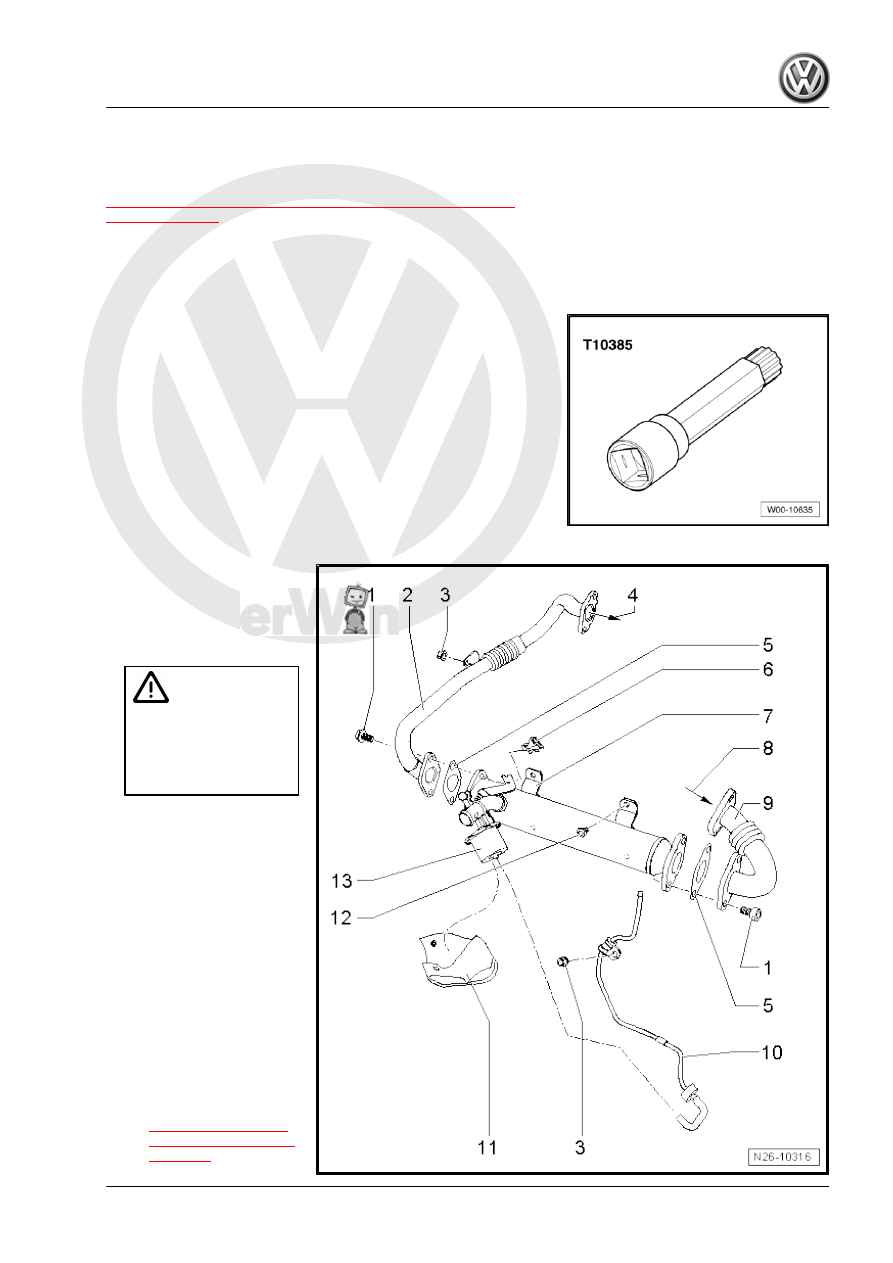

Overview - Exhaust Gas Recirculation

System Components

Special tools and workshop equipment required
♦ Socket - Xzn 10 - T10385-

1 - 20 Nm
2 - Connecting Pipe

❑ Removing and installing

with the Socket - Xzn 10

- T10385-

Caution

Make sure the connect‐

ing pipe decoupling ele‐

ment  does  not  bend  or

stretch. Cracks could de‐

velop.

3 - 10 Nm
4 - To EGR Vacuum Regulator

Solenoid Valve - N18-
5 - Seal

❑ Replace

6 - Cable Guide
7 - Radiator

❑ For the EGR
❑ With a by-pass flap

8 - From Exhaust Manifold
9 - Connecting Pipe
10 - Vacuum Line

❑ Connection diagram for

vacuum hoses. Refer to

⇒ “4.5 Vacuum Hose

Connection Diagram”,

page 295

 .

4. EGR System, Engine Codes CBDA, CBDB and CEGA

403

❑ Replace if damaged

12 - 10 Nm
13 - Vacuum Diaphragm

❑ To the by-pass flap change over

404

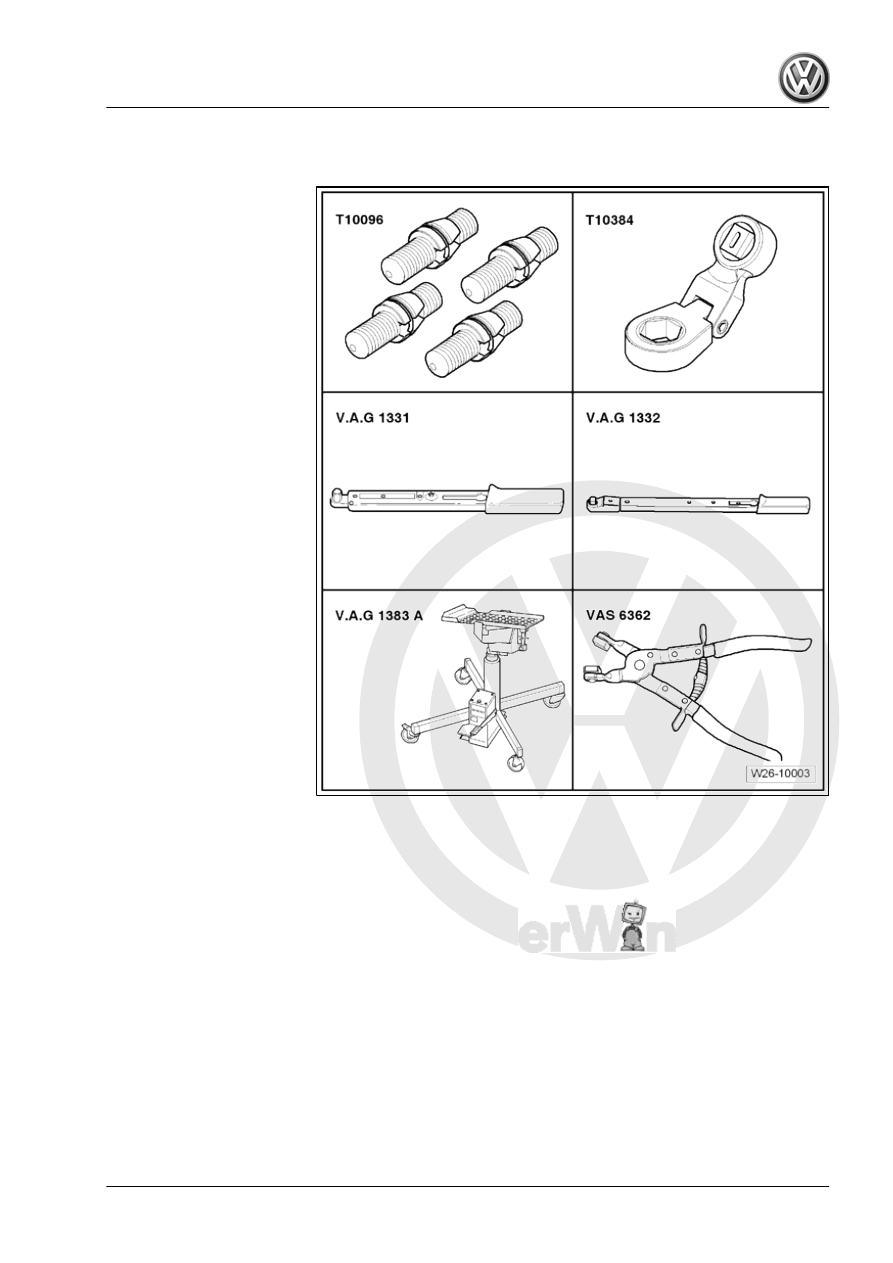

Special Tools

Special tools and workshop

equipment required
♦ Locating Pins - T10096-
♦ Wrench - Sw13 - T10384-
♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Engine/Gearbox Jack -

VAG1383A-

♦ Hose Clip Pliers -

VAS6362-

♦ Tool Set 17 mm - T10395-
♦ Ring Spanner 7-Piece Set -

3337-

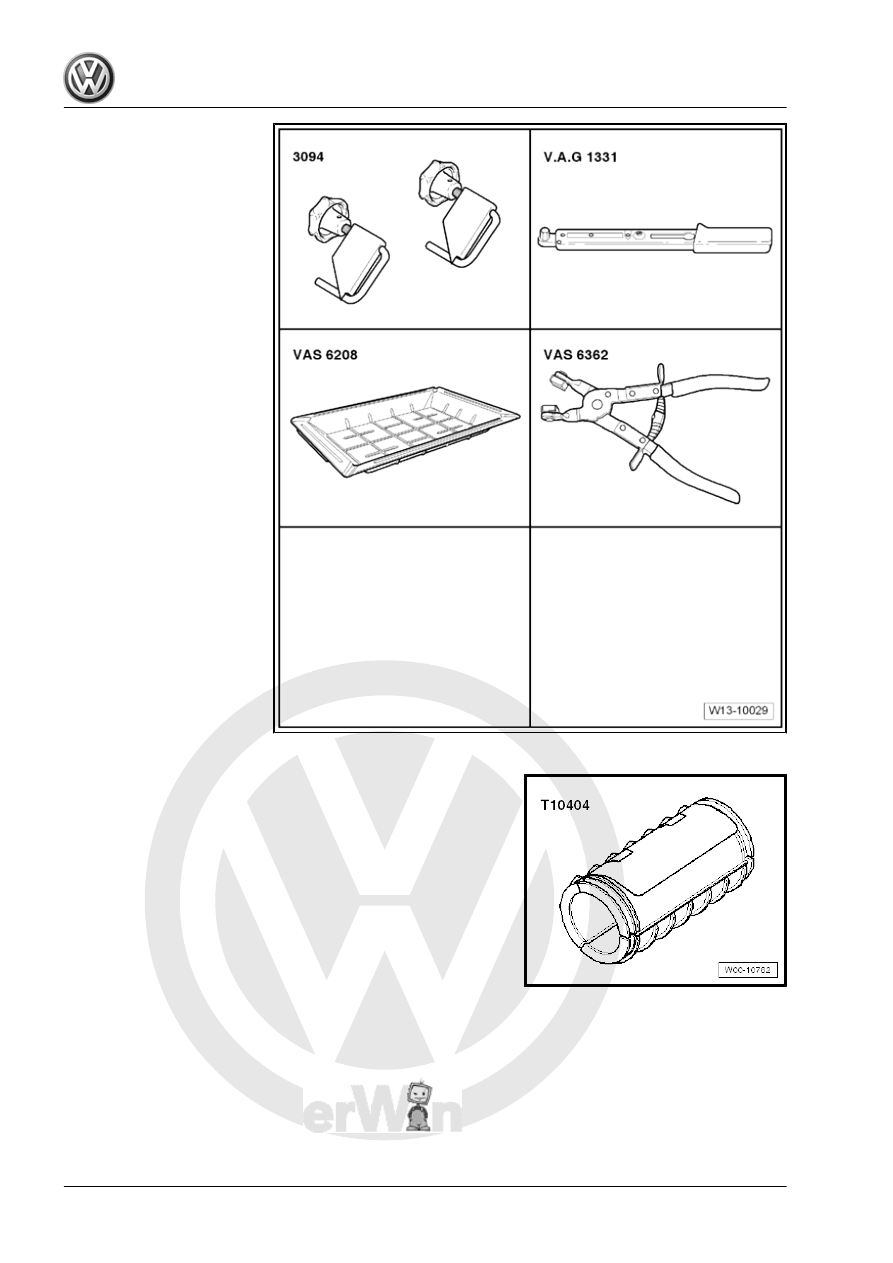

5. Special Tools

405

mm - 3094-

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Shop Crane - Drip Tray -

VAS6208-

♦ Hose Clip Pliers -

VAS6362-

♦ EGR Temp. Sensor Socket

- 14mm - T10401- (not illus‐

trated)

♦ Transportation Lock - T10404-

406
