Long Reach - T10054- 8 Nm without additional turn

♦ Flat head bolts: 8 Nm +90° (

1

/4 turn)

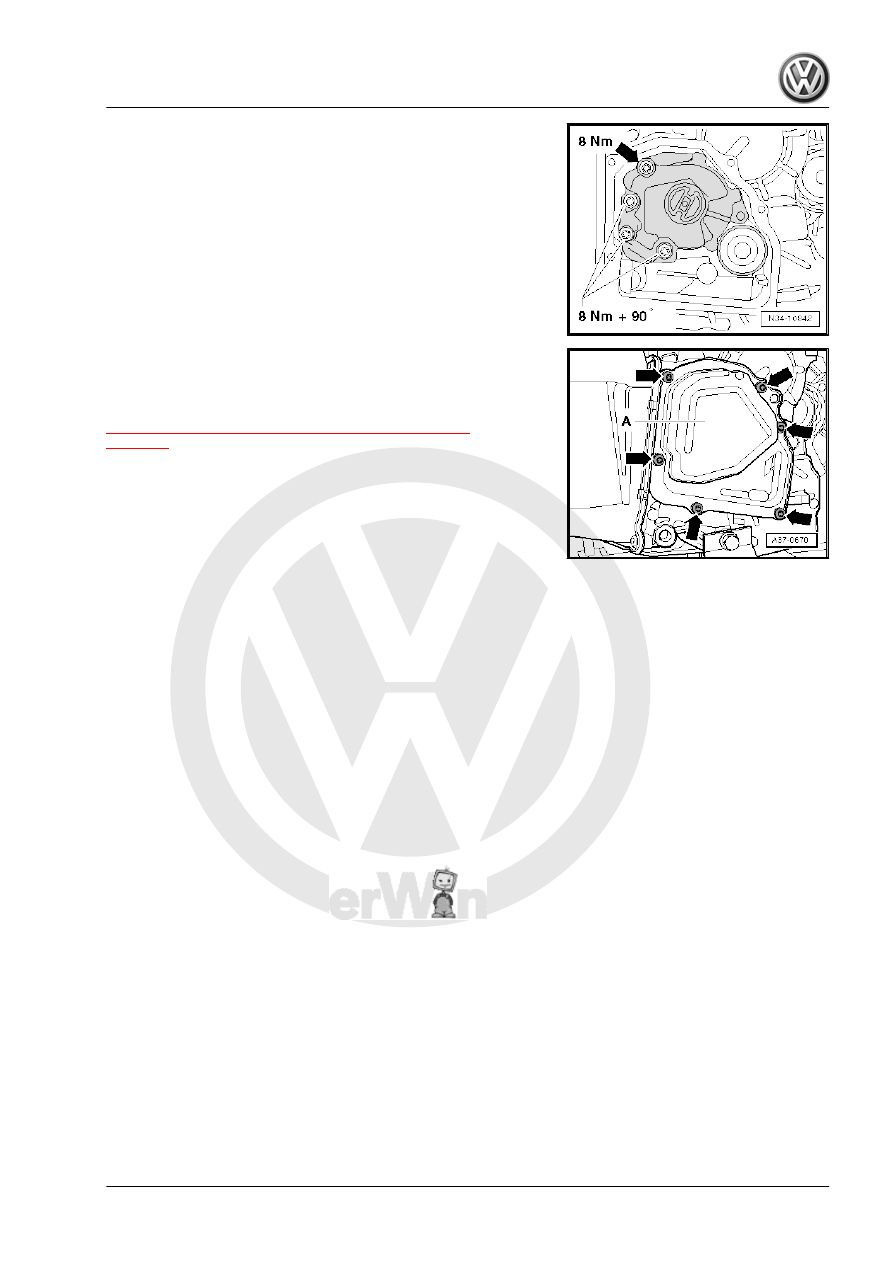

– Set the new oil pump cover -A- in place and tighten new bolts

-arrows- in diagonal sequence and in several steps to 8 Nm.

Transmission does not have oil. »New« oil must now be added

and adjust to the correct oil level. Refer to

⇒ “9 Transmission Fluid and Transmission Fluid Filter”,

page 132

 .

– Install the left wheel housing liner. Refer to ⇒  Body Exterior;

Rep. Gr.  66 ; Wheel Housing Liner; Overview - Front Wheel

Housing Liner .

50 ; Noise Insulation .

3. Oil Pump, Removing and Installing

59

Selector Shaft Lever Gasket, Replac‐

ing

Special tools and workshop equipment required
♦ Press Piece - Shift Rod/Alternator - VW423-
♦ Puller - Crankshaft/Power Steering Seal - T20143-
♦ Torque Wrench 1331 5-50Nm - VAG1331-
– Remove the selector lever cable from the transmission. Refer

to

⇒ “5.2 Selector Lever Cable, Removing and Installing, through

02/2009”, page 64

 .

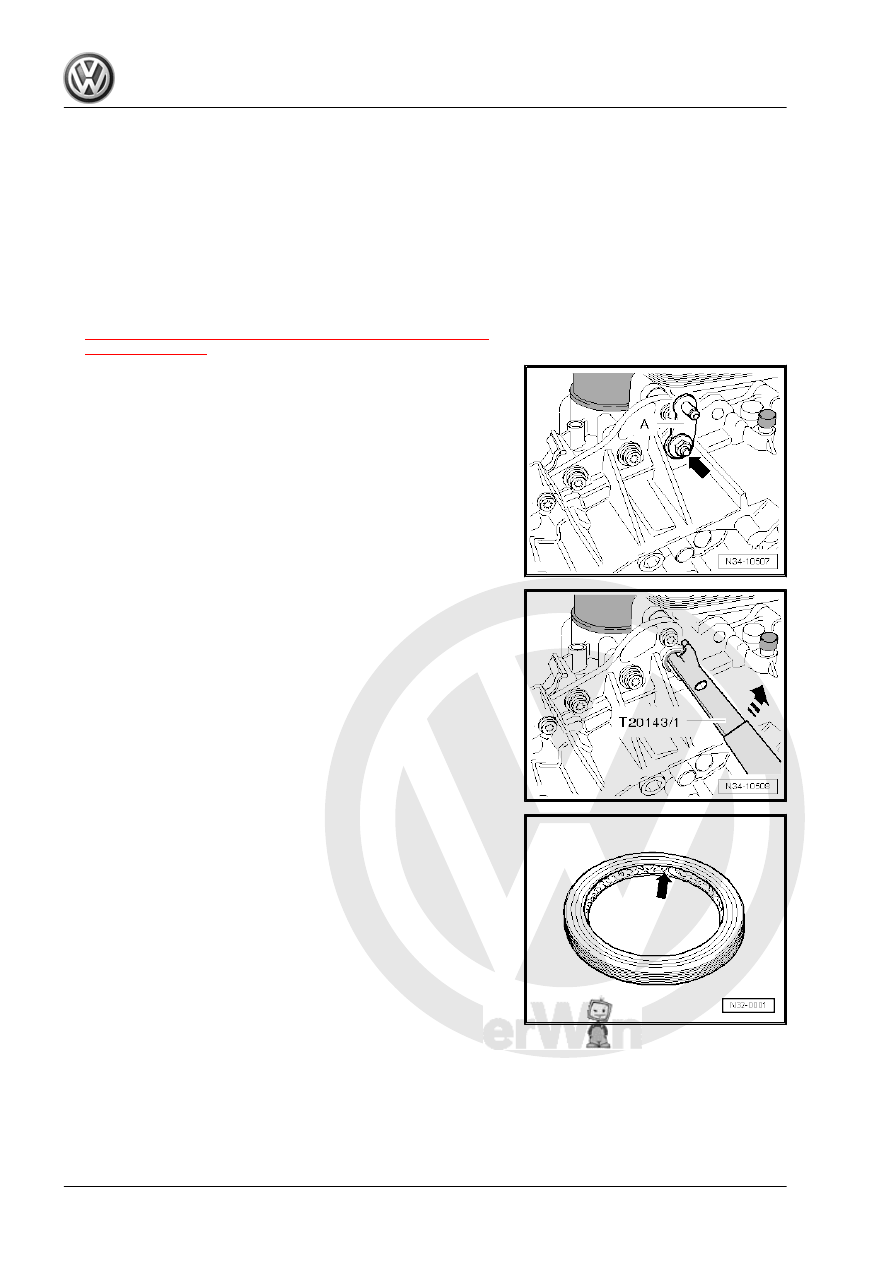

– Carefully pry the lever -A- off the selector shaft.

– Pry out the seal in the direction of -arrow-.

– Fill the space between the sealing/dust lip -arrow- halfway with

Sealing Grease - G 052 128 A1- .

– Lightly lubricate the outer edge of the gasket.

60

installing it.

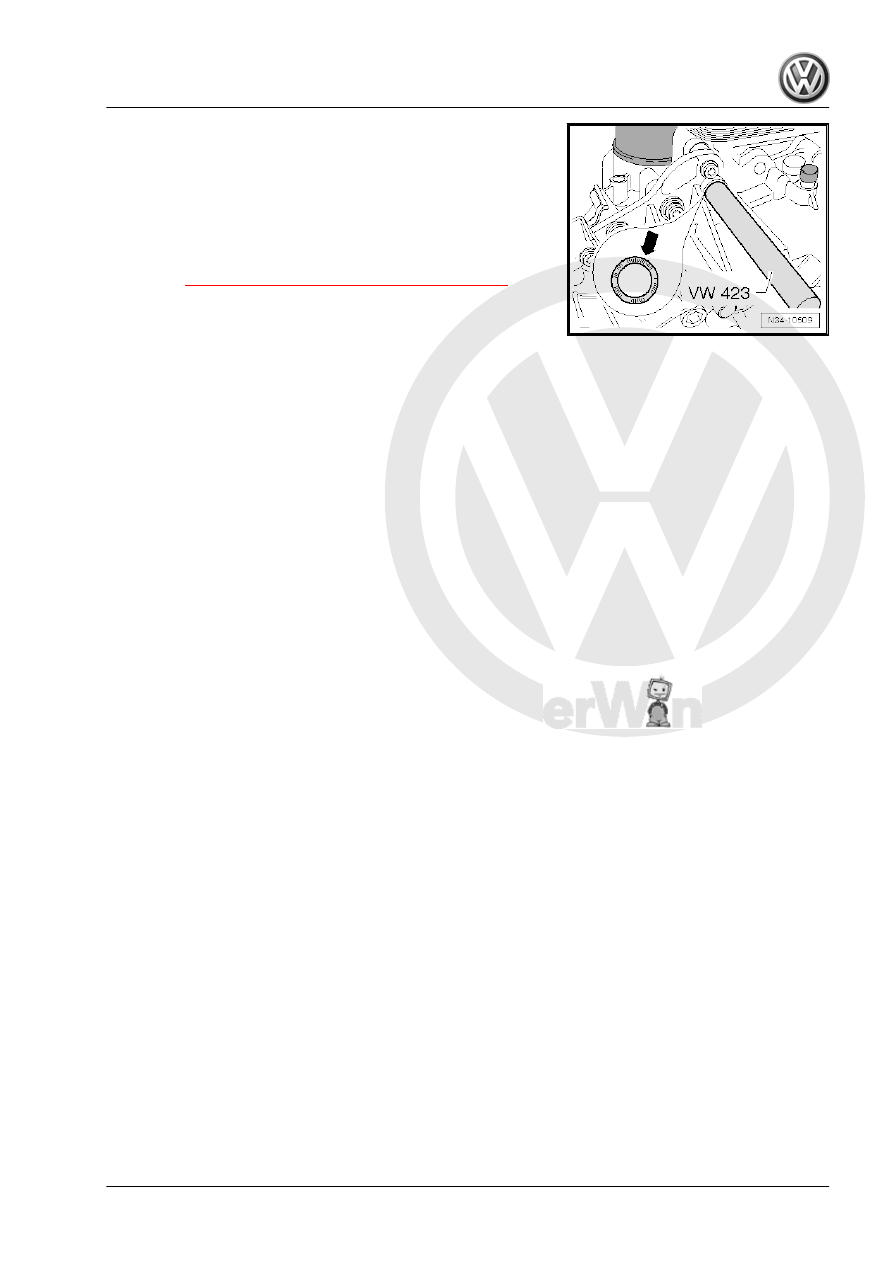

• The closed side of the gasket -arrow- points to the Press Piece

- Shift Rod/Alternator - VW423- .

– Install the lever and tighten the nut to 20 Nm.
The Selector Shaft Lever Fits on the Splines in One Position Only.
– Attach the selector lever cable to the transmission and adjust.

Refer to

⇒ “5.6 Selector Lever Cable, Adjusting”, page 80

 .

4. Selector Shaft Lever Gasket, Replacing

61

Selector Mechanism

⇒ “5.1 Overview - Selector Mechanism, Vehicles through

02/2009”, page 62
⇒ “5.2 Selector Lever Cable, Removing and Installing, through

02/2009”, page 64
⇒ “5.3 Overview - Selector Mechanism, Vehicles from 03/2009”,

page 72
⇒ “5.4 Selector Mechanism, Removing and Installing, Vehicles

from 03/2009”, page 73
⇒ “5.5 Selector Lever Cable, Checking”, page 80
⇒ “5.6 Selector Lever Cable, Adjusting”, page 80
⇒ “5.7 Selector Lever, Emergency Release”, page 82
⇒ “5.8 Selector Lever Handle, Removing and Installing”,

page 82
⇒ “5.9 Button in Handle, Moving into Installation Position”,

page 85
⇒ “5.10 Selector Mechanism, Checking”, page 86

WARNING

Move the selector lever into “P” and set the parking brake be‐

fore working with the engine running.

5.1

Overview - Selector Mechanism, Vehicles through 02/2009

62
