Special Tools

Special tools and workshop equipment required

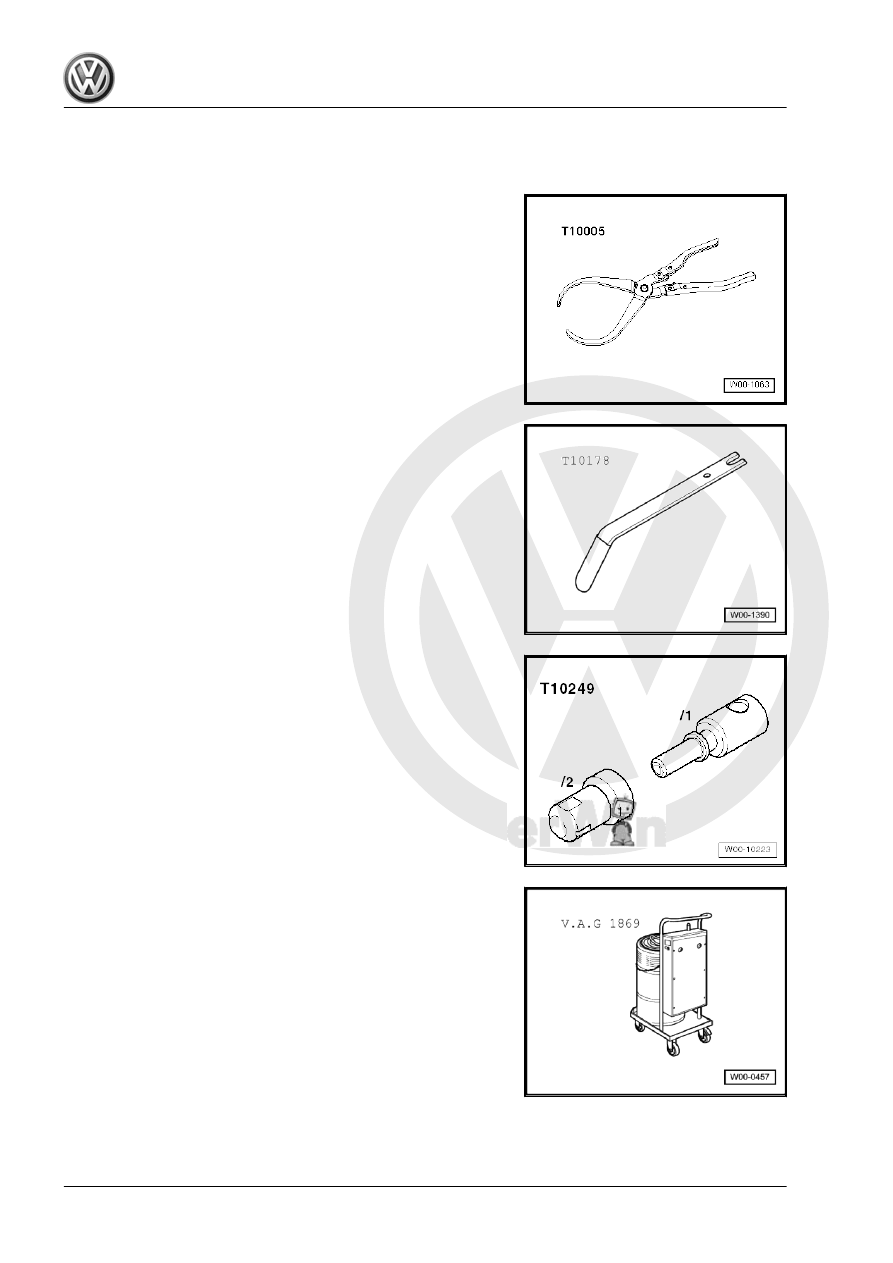

♦ Pliers - T10005-

♦ Assembly Tool - T10178-

♦ Sealing Tool - T10249-

♦ Brake Charger/Bleeder Unit - VAG1869-

58

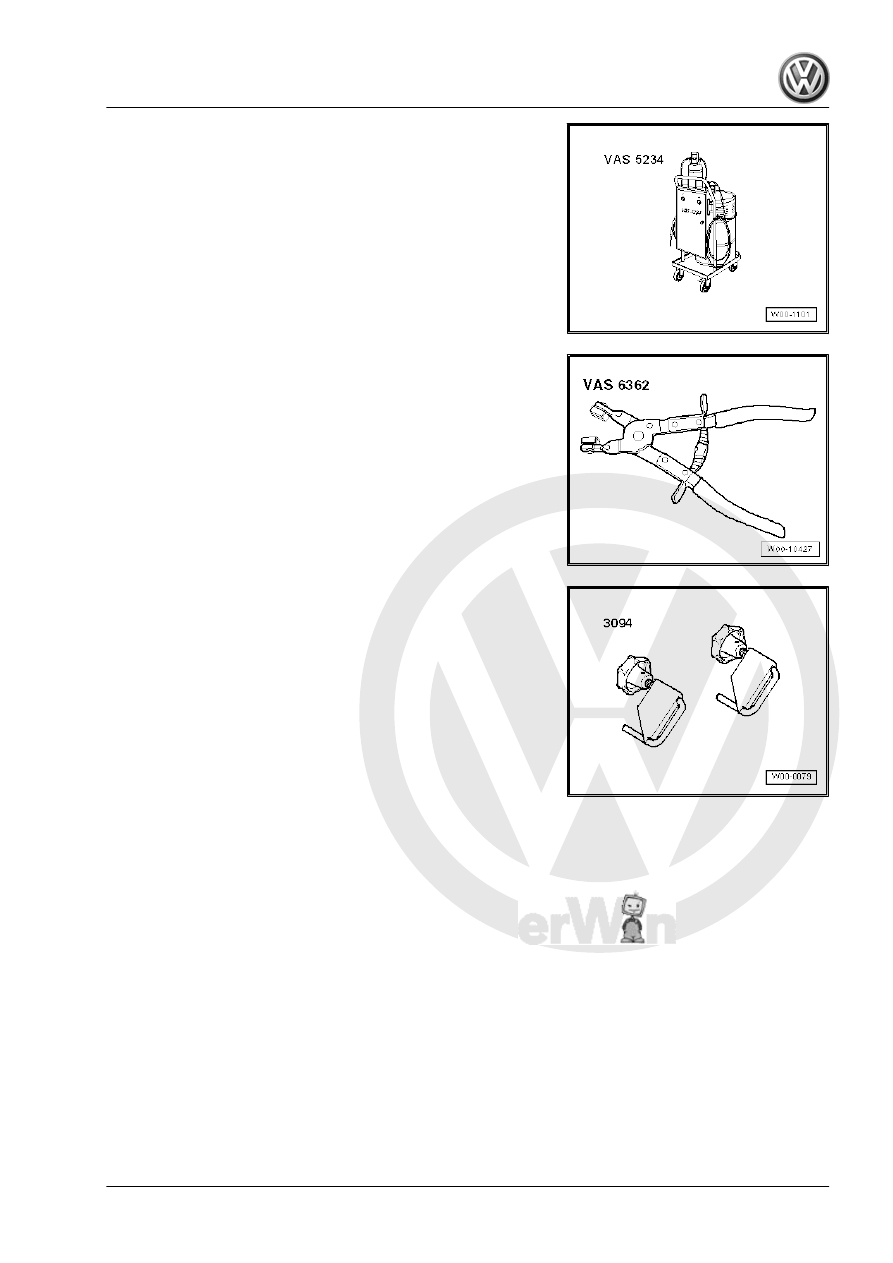

♦ Hose Clamp Pliers - VAS6362-

♦ Hose Clamps up to 25 mm Dia. - 3094-

5. Special Tools

59

1

Shift Mechanism, Servicing

⇒ “1.1 Shift Mechanism Installation Position”, page 60
⇒ “1.2 Selector Mechanism, Overview”, page 62
⇒ “1.3 Gearshift Knob and Cover, Removing and Installing”, page

63
⇒ “1.4 Boot with Shifter Knob and Noise Insulation, Removing and

Installing”, page 64
⇒ “1.5 Gearshift Lever and Shift Housing, through 10/2006, Serv‐

icing”, page 65
⇒ “1.6 Gearshift Lever and Shift Housing, Servicing, from

11/2006”, page 67
⇒ “1.7 Overview - Operating Cables, Removing and Installing”,

page 73
⇒ “1.8 Plastic Relay Lever”, page 77
⇒ “1.9 Selector Mechanism, Removing and Installing”,

page 80
⇒ “1.10 Gearshift Cable and Selector Cable, Removing and In‐

stalling”, page 83
⇒ “1.11 Selector Mechanism, Adjusting”, page 85

1.1

Shift Mechanism Installation Position

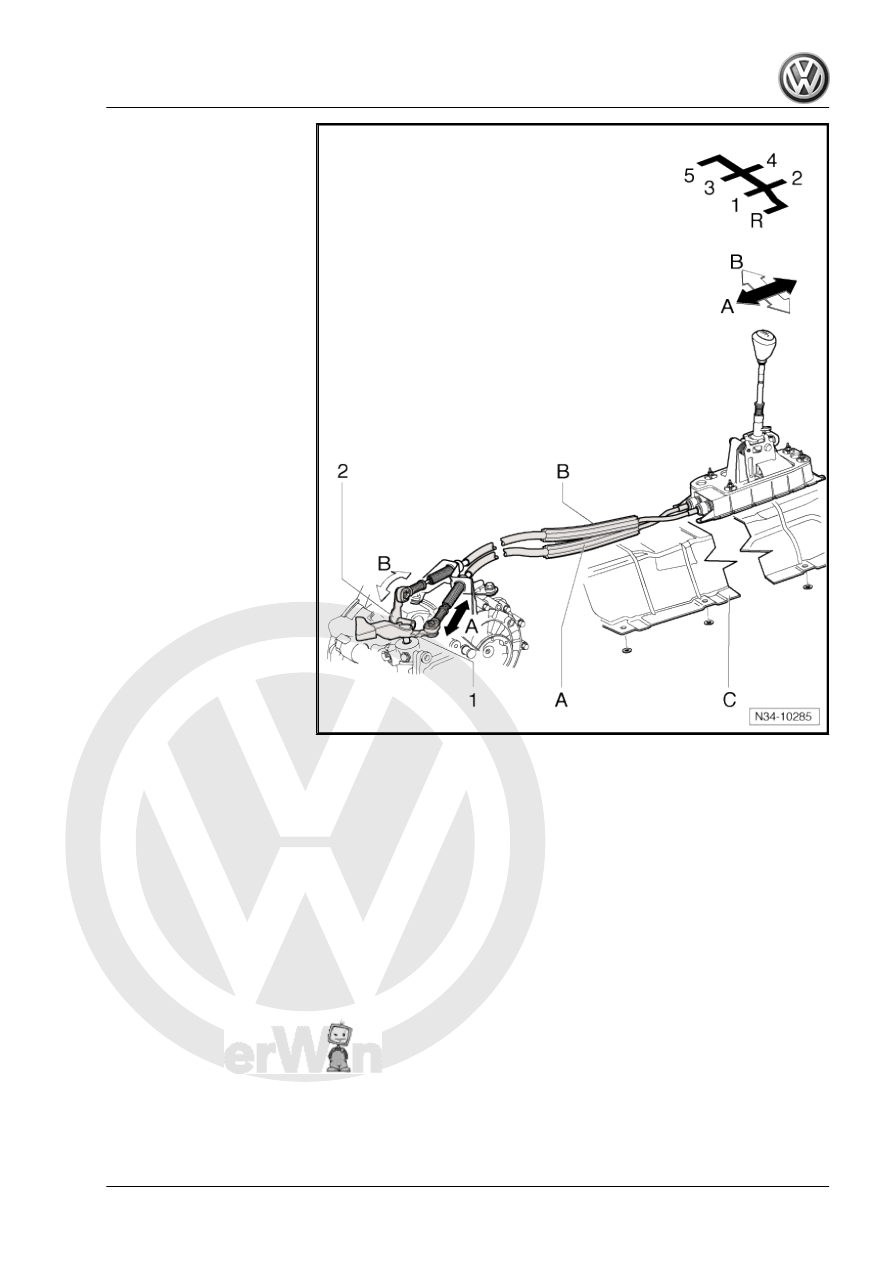

-Arrow A- Gearshift Lever Movement
-Arrow B- Selector Lever Movement

60

❑ Remove the shift mech‐

anism before removal.

1 - Selector Lever
2 - Relay Lever

1. Shift Mechanism, Servicing
