Nm

Selector cable bracket to transmission

8

Cable bracket to transmission

20

6.5

Tightening Specifications, Transmission

to Engine

⇒ “6.5.1 Tightening Specifications, Vehicles with 2.0L - 85kW and

2.0L - 110kW Engines”, page 71

 .

⇒ “6.5.2 Tightening Specifications, Vehicles with 2.5L - 110 kW

and 2.5L -125 kW Engines”, page 73

 .

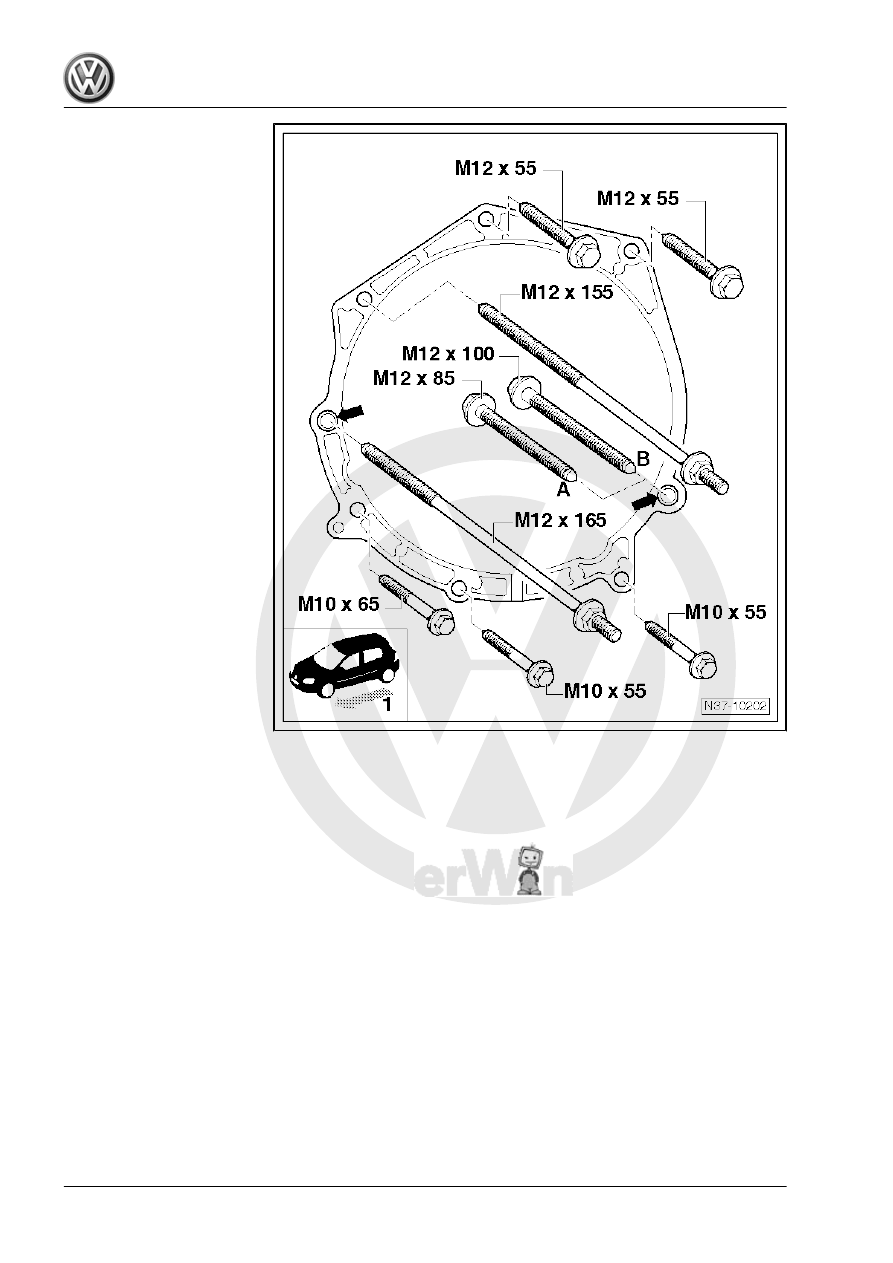

6.5.1

Tightening Specifications, Vehicles with 2.0L - 85kW and 2.0L - 110kW En‐

gines

Note

♦

The -arrows- point to the alignment sleeves in the engine.

♦

When removing and installing pay attention to the different bolt lengths.

♦

If necessary the bolt length may differ from the illustration.

6. Transmission, Removing and Installing, Jetta from 2005, Golf Wagon from 2007, Jetta Wagon from 2008

71

Engine
B - Bolt for 1.6L 75 kW Engine
M12 - 80 Nm

❑ When using the Insert

Tool - 18 mm - T10179- :

65 Nm.

M10 - 40 Nm

❑ These bolts are located

inside the lower flange

72

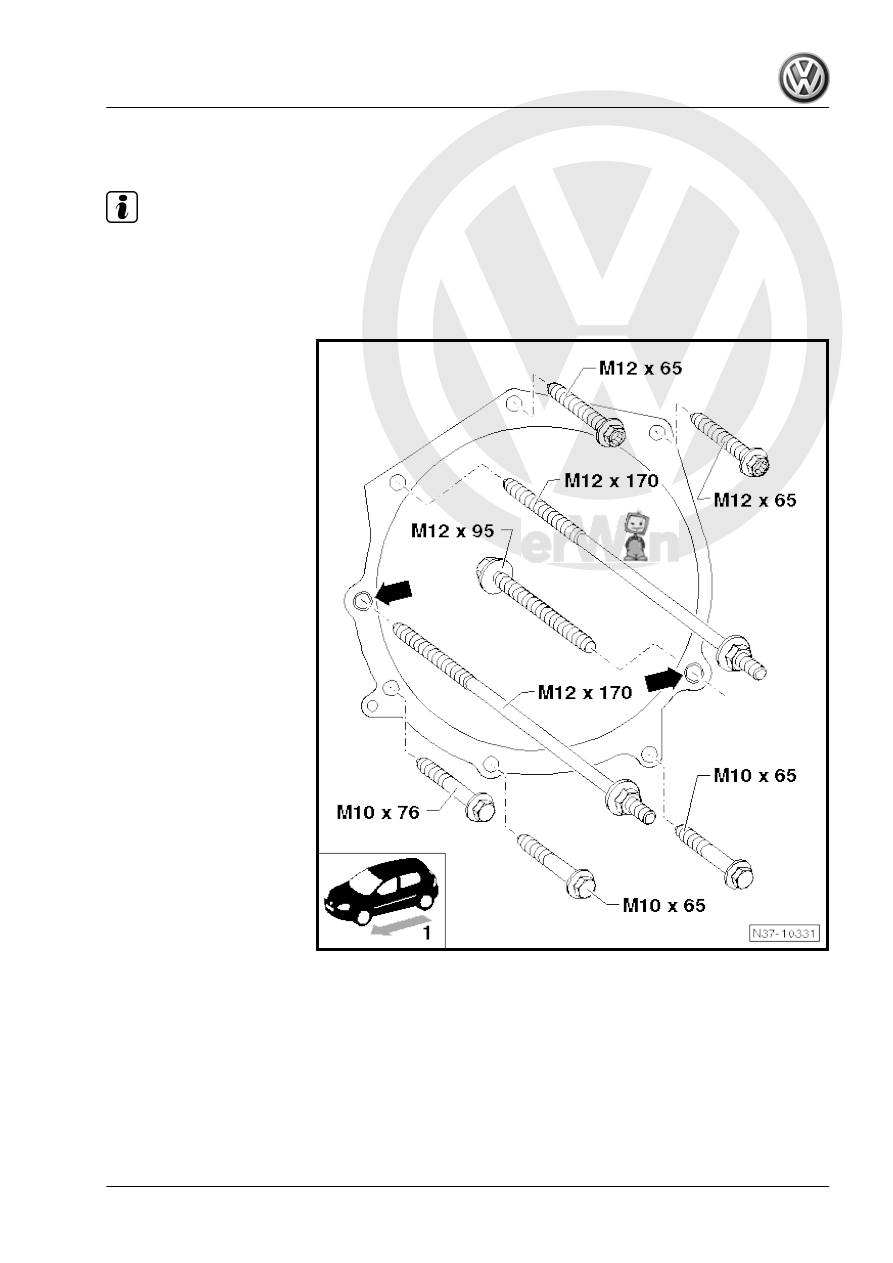

Tightening Specifications, Vehicles with 2.5L - 110 kW and 2.5L -125 kW

Engines

Note

♦

The -arrows- point to the alignment sleeves in the engine.

♦

When removing and installing pay attention to the different bolt lengths.

♦

If necessary the bolt length may differ from the illustration.

1 - Direction of Travel
M12 - 80 Nm

❑ When using the Insert

Tool - 18 mm - T10179- :

65 Nm.

M10 - 40 Nm

❑ These bolts are located

inside the lower flange

6. Transmission, Removing and Installing, Jetta from 2005, Golf Wagon from 2007, Jetta Wagon from 2008

73

Transmission, Removing and Instal‐

ling, Jetta from MY 2011

⇒ “7.2 Transmission, Removing, Jetta MY 2011, 2.0L 85 kW”,

page 82

 .

⇒ “7.3 Transmission, Removing, Jetta MY 2011, 2.5L 125 kW”,

page 91

 .

⇒ “7.4 Transmission, Installing, Jetta MY 2011”, page 100

 .

⇒ “7.5 Tightening Specifications, Transmission to Engine”,

page 102

 .

7.1

Transmission, Removing, Jetta MY

2011 1.6L 77 kW

– Before removing, print out the diagnostic protocol for this ve‐

hicle »if possible«. Affix the protocol on to transmission before

sending back the removed transmission in the usual way.

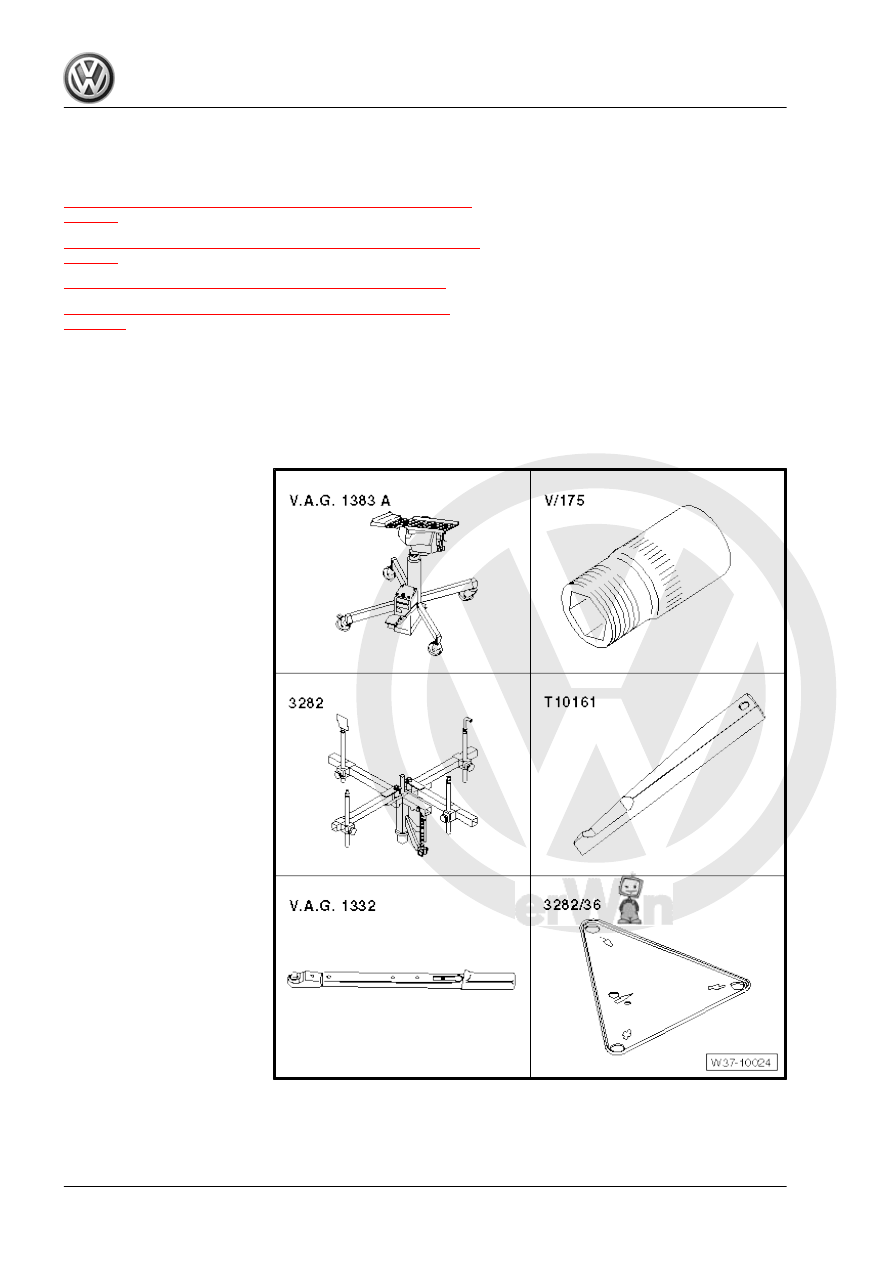

Special tools and workshop

equipment required
♦ Engine and Gearbox Jack -

VAS6931-

♦ Socket - Sw15 - V/175-
♦ Transmission Support -

3282-

♦ Drive Axle Wedge Tool -

T10161-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Transmission Support -

Mounting Plate 36 -

3282/36-

74
