Volkswagen Golf Variant / Jetta. Manual - part 91

8.5.1

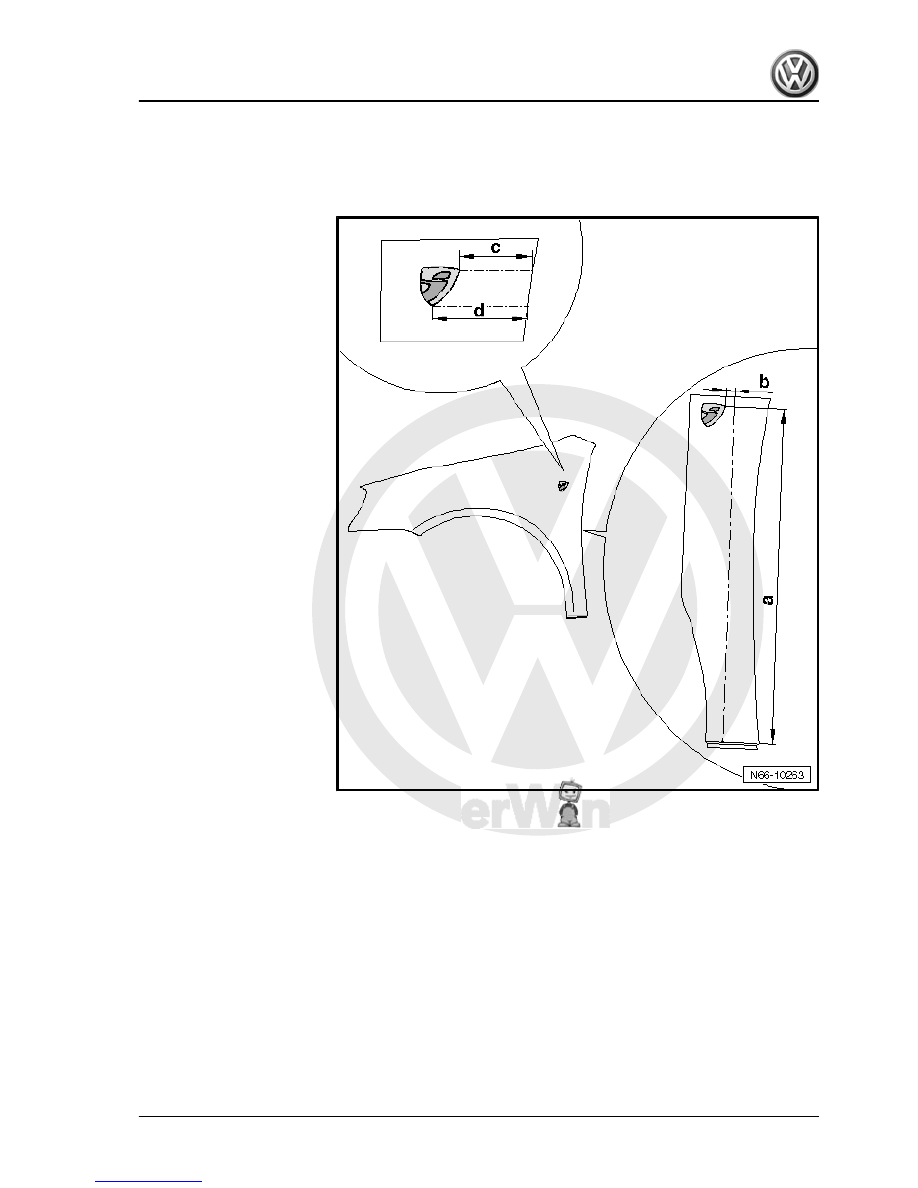

Dimensions for emblem on left wing

1 - Dimension -a- = 551 mm

❑ Transfer -dimension a -

from lower edge of wing

to wing.

2 - Dimension -b- = 14 mm

❑ Transfer -dimension b-

from end point of dimen‐

sion a to corner of em‐

blem.

3 - Dimension -c- = 70 mm

❑ Use -dimension c- to

check distance from up‐

per edge of emblem to

edge of wing.

4 - Dimension -d- = 92 mm

❑ Use -dimension d- to

check distance from

lower edge of emblem to

edge of wing.

8. Lettering

361

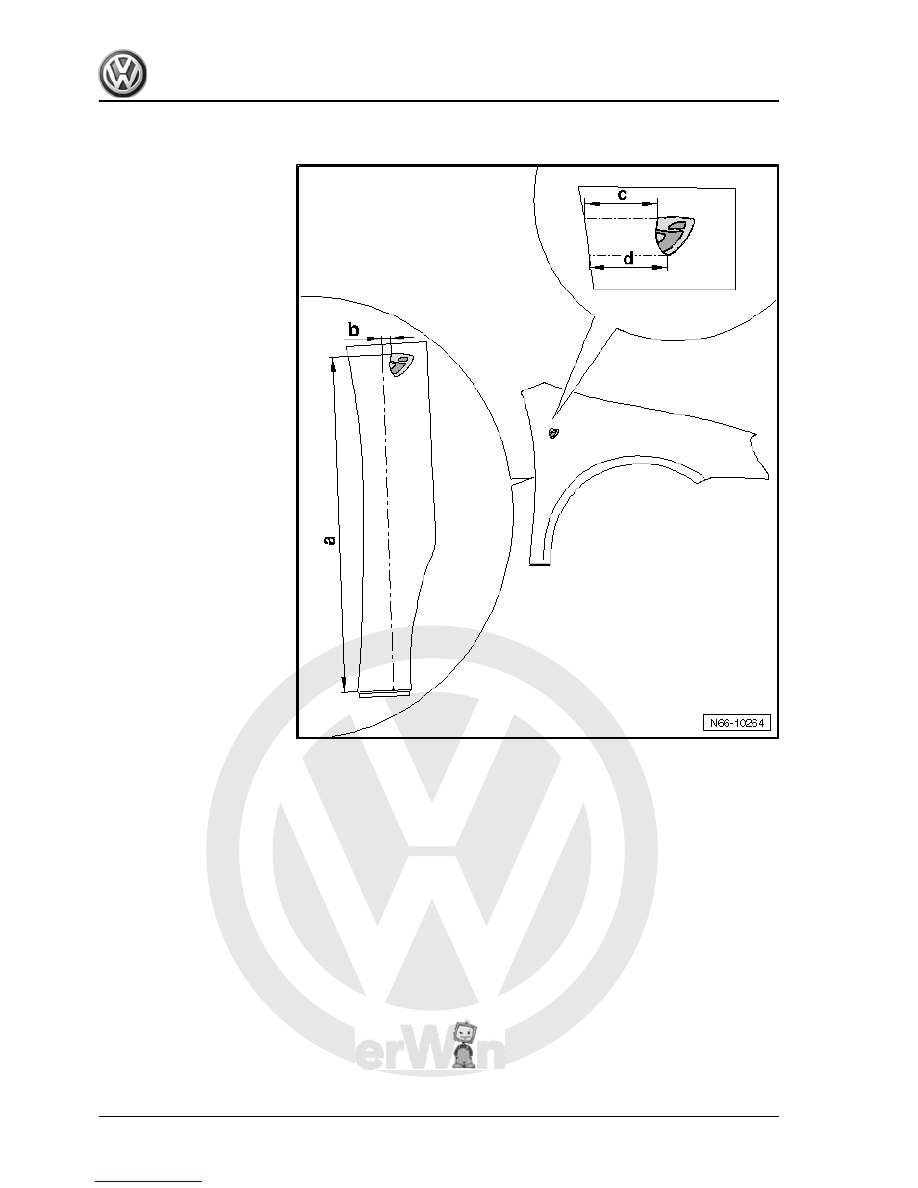

1 - Dimension -a- = 550 mm

❑ Transfer -dimension a -

from lower edge of wing

to wing.

2 - Dimension -b- = 30 mm

❑ Transfer -dimension b-

from end point of

-dimension a- to corner

of emblem.

3 - Dimension -c- = 86 mm

❑ Use -dimension c- to

check distance from up‐

per edge of emblem to

edge of wing.

4 - Dimension -d- = 92 mm

❑ Use -dimension d- to

check distance from

lower edge of emblem to

edge of wing.

362



Golf Variant 2007 ➤

Golf Variant 2010 ➤

Jetta 2005 ➤

Jetta 2011 ➤

6-Speed Automatic Transmission 09G

Service

Service Department. Technical Information

Repair Group

00 - General, Technical Data
32 - Torque Converter
37 - Controls, Housing
38 - Gears, Hydraulic Controls
39 - Final Drive, Differential

Technical  information  should  always  be  available  to  the  foremen  and  mechanics,  because  their

careful and constant adherence to the instructions is essential to ensure vehicle road-worthiness and

safety. In addition, the normal basic safety precautions for working on motor vehicles must, as a

matter of course, be observed.
