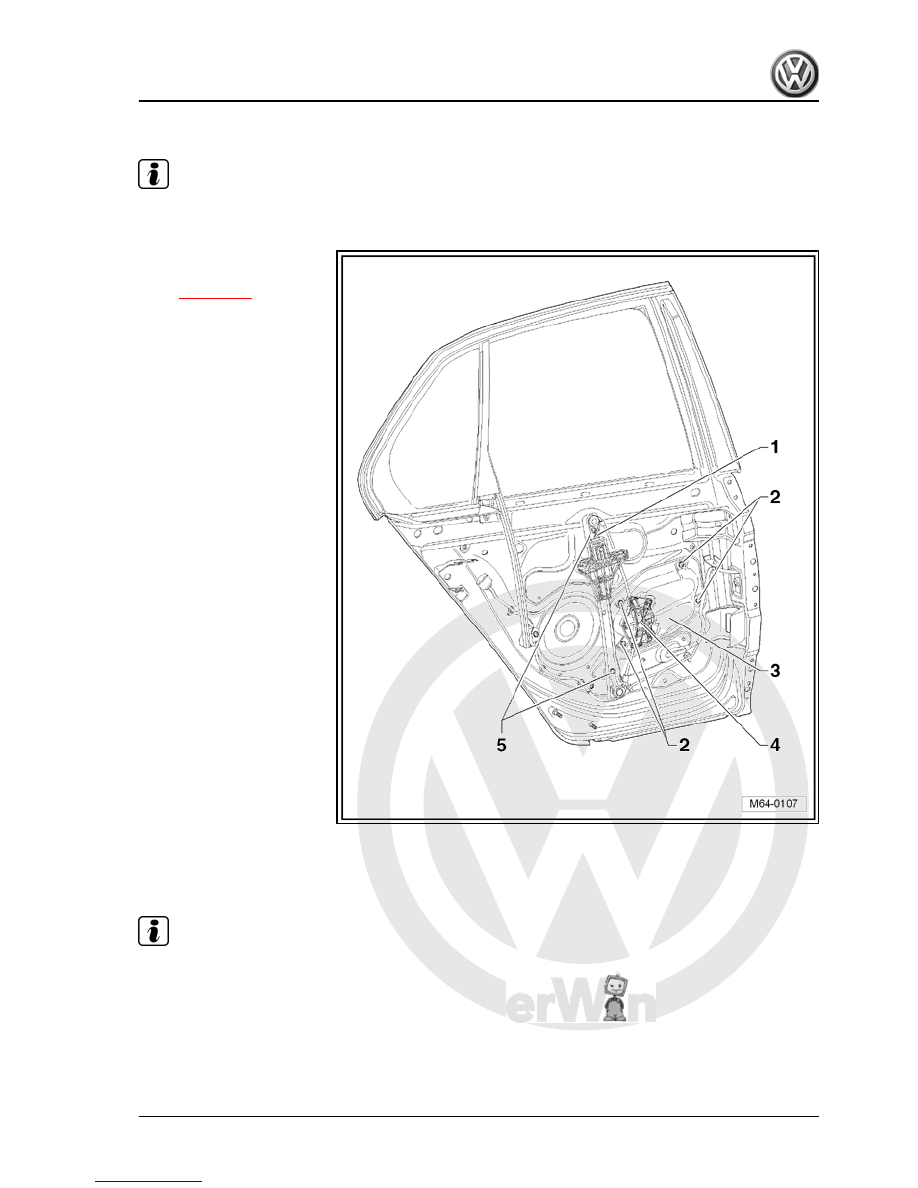

Note

The right side is shown. The left side is similar.

1 - Window regulator

❑ Removing and installing

⇒ page 305

2 - Bolt

❑ Qty. 4
❑ 8 Nm

3 - Mounting plate
4 - Drive
5 - Bolt

❑ Qty. 2
❑ 8 Nm

3.10

Removing and installing window regula‐

tor

Note

♦

The removal and installation sequence is only for the right

window regulator. The removal and installation of the left win‐

dow regulator is similar.

♦

For clarity the side impact protection is not shown in the illus‐

tration

3. Rear door window (saloon)

305

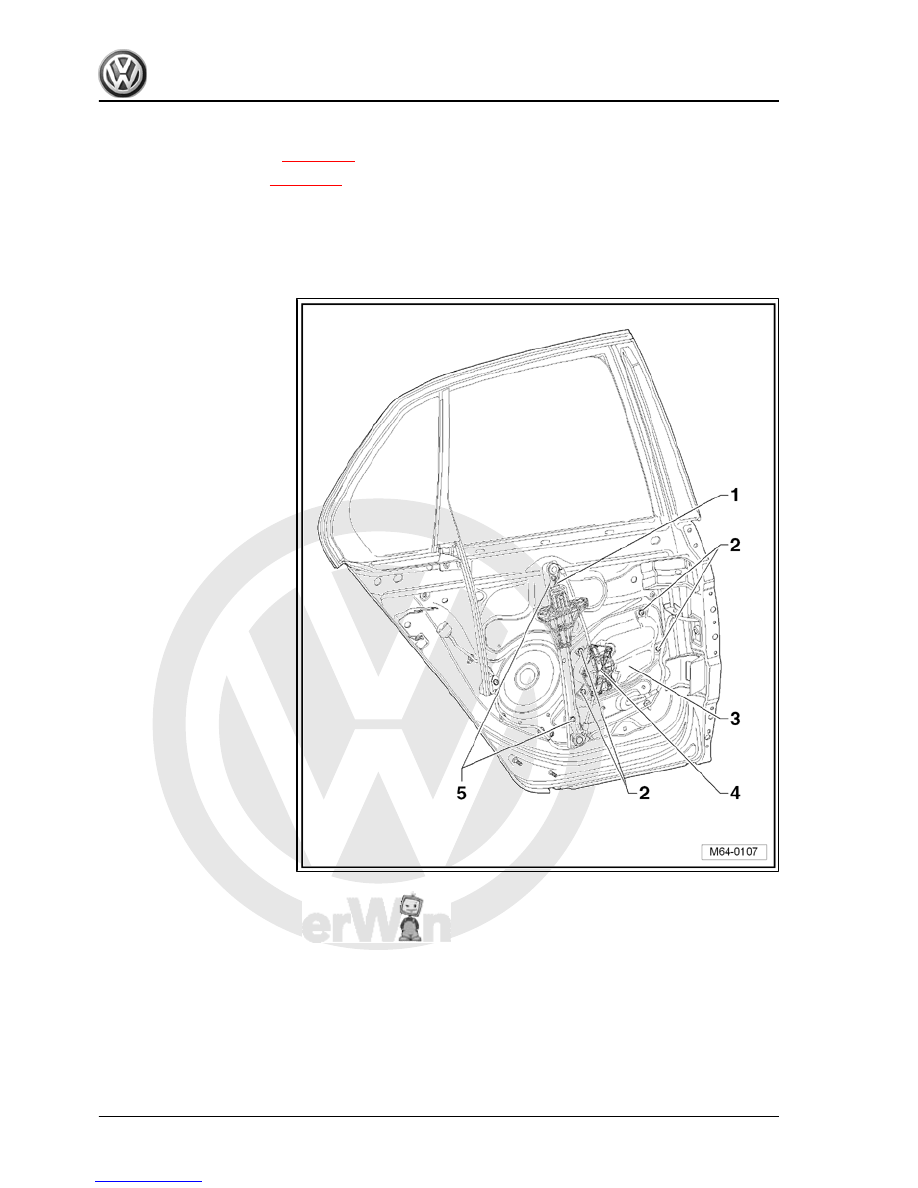

– Remove door outer panel

⇒ page 112

 .

– Removing door window

⇒ page 294

 .

– Remove bolts -2- from mounting plate -3-.
– Remove bolts -5- for window regulator.
– Remove window regulator -1- with drive -4- and mounting

plate -3- for window regulator motor from inner part of door.

3.10.2

Installing

Install in reverse order of removal.
Carry out functional check before installing door outer panel.

306



4.1

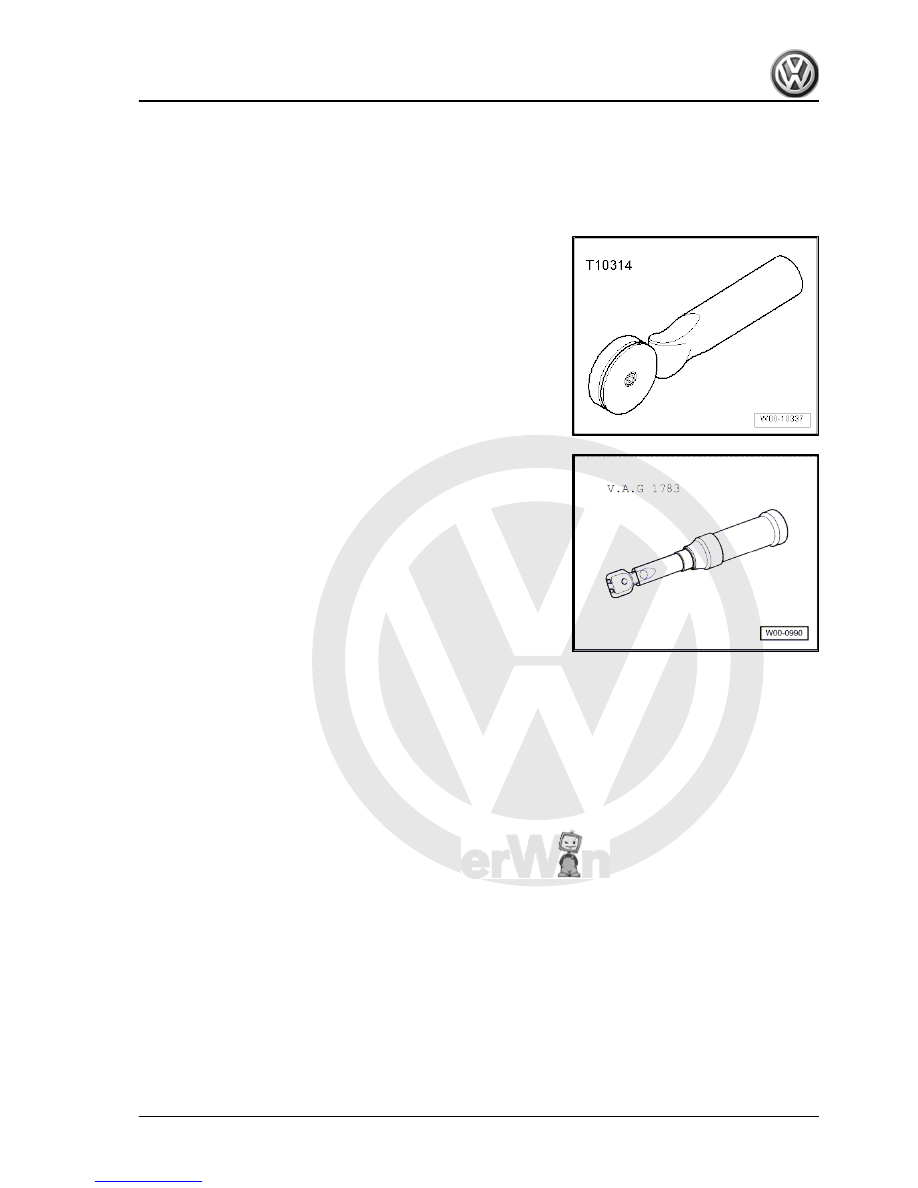

Tools

Special tools and workshop equipment required
♦ Roller -T10314-

♦ Torque wrench -V.A.G 1783-

4. Rear door window (Variant)

307

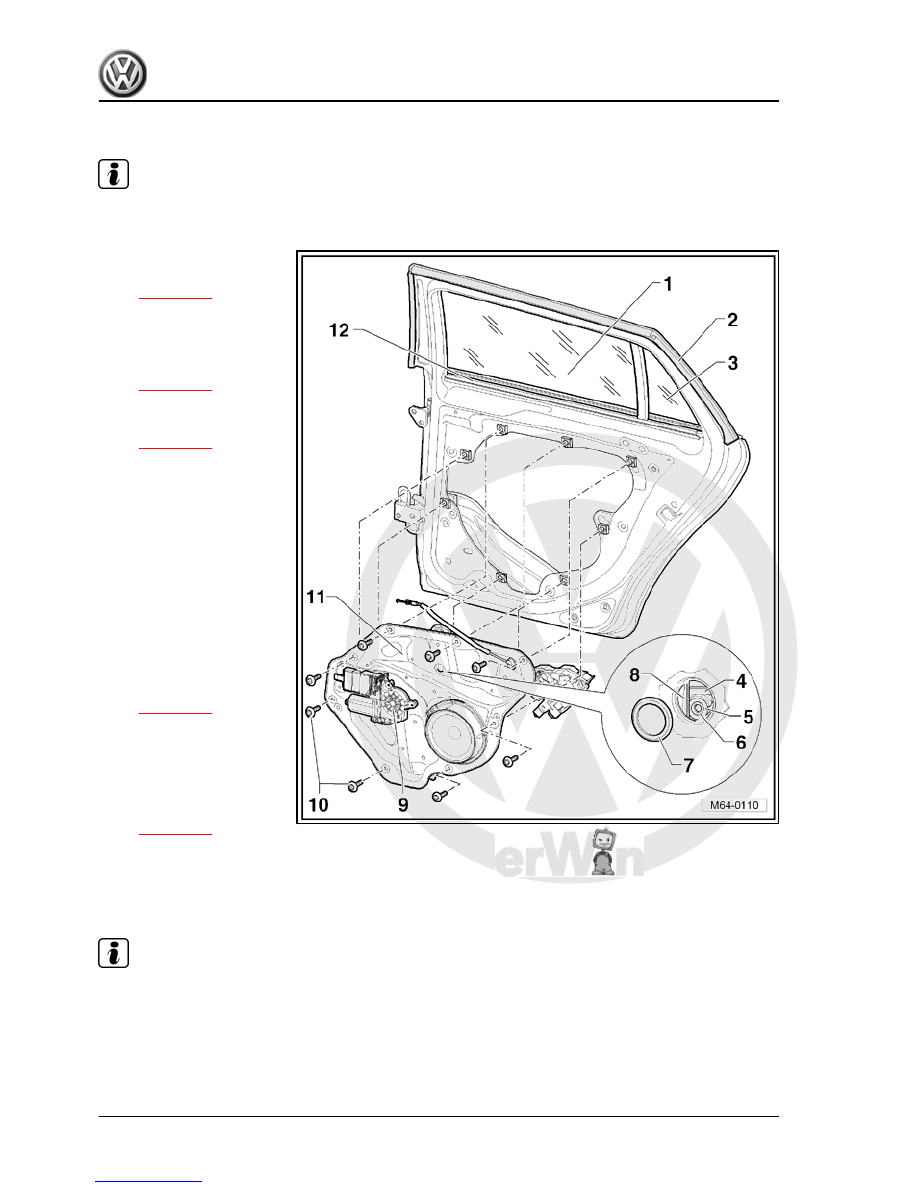

Note

The right side is shown. The left side is similar.

1 - Door window

❑ Removing and installing

⇒ page 308

2 - Window channel

❑ Component part of fixed

door window

❑ Removing and installing

⇒ page 312

3 - Fixed door window

❑ Removing and installing

⇒ page 312

4 - Window regulator guide
5 - Spreader plug

❑ Always renew when

working on door window

6 - Spreader pin

❑ Always renew when

working on door window

7 - Cover
8 - Window regulator

❑ Part of assembly carrier

9 - Window regulator motor

❑ Removing and installing

⇒ page 317

10 - Bolt

❑ Qty. 8
❑ 8 Nm

11 - Assembly carrier

❑ Removing and installing

⇒ page 145

12 - Window slot inner seal

4.3

Removing and installing door window

Note

♦

The removal and installation sequence is only for the rear right

door window. The removal and installation of the rear left door

window is similar.

♦

Outer window slot seal need not be removed.

308
